A message displays if something obstructs
the radar signals from the sensor. The
sensor is in the lower grille. The system
cannot detect a vehicle ahead and does
not function when something blocks the
sensor.
Note:
You cannot see the sensor. It is
behind a fascia panel.
Keep the front of your vehicle free of dirt,
metal badges or objects. Vehicle front
protectors and aftermarket lights may also
block the sensor.
Possible Causes and Actions for This Message Displaying: Action
Cause
Clean the grille surface in front of the radar
or remove the object causing the obstruc-
tion.
The surface of the radar is dirty or
obstructed.
Wait a short time. It may take several
minutes for the radar to detect that it is free
from obstruction.
The surface of the radar is clean but the
message remains in the display.
Do not use the system in these conditions
because it may not detect any vehicles
ahead.
Heavy rain or snow is interfering with the
radar signals.
Do not use the system in these conditions
because it may not detect any vehicles
ahead.
Water, snow or ice on the surface of the
road may interfere with the radar signals.
Wait a short time or switch to normal cruise
control.
You are in a desert or remote area with no
other vehicles and no roadside objects.
Due to the nature of radar technology, it is possible to get a blockage warning with no
actual block. A false blocked condition either self clears, or clears after you restart your
vehicle.
Switching to Normal Cruise
Control WARNING: Normal cruise control
will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary. The cruise control indicator light
replaces the adaptive cruise
control indicator light if you
select normal cruise control. The gap
setting does not display, and the system
does not respond to lead vehicles.
Automatic braking remains active to
maintain set speed.
You can change from adaptive cruise
control to normal cruise control through
the information display.
204
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Cruise ControlE71340

2. Remove the jumper cable on the
negative (-) terminal of the booster
vehicle battery.
3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle battery.
4. Remove the jumper cable from the positive (+) terminal of the disabled
vehicle battery.
5. Allow the engine to idle for at least one
minute.
POST-CRASH ALERT SYSTEM
The system flashes the direction indicators
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the seatbelt pretensioners.
The horn and indicators turn off when:
• You press the hazard control button.
• You press the panic button on the
remote entry transmitter (if equipped).
• Your vehicle runs out of power.
• Sounding of the horn is only enabled
in specific markets. TRANSPORTING THE VEHICLE
If you need to have your vehicle towed,
contact a professional towing service or,
if you are a member of a roadside
assistance program, your roadside
assistance service provider.
We recommend the use of a wheel lift and
dollies or flatbed equipment to tow your
vehicle. Do not tow with a slingbelt. Ford
Motor Company has not approved a
slingbelt towing procedure. Vehicle
damage may occur if towed incorrectly, or
by any other means.
Ford Motor Company produces a towing
manual for all authorized tow truck
operators. Have your tow truck operator
refer to this manual for proper hook-up
and towing procedures for your vehicle.
236
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Roadside EmergenciesE143886

recommended tire and wheel
size may be found on either the
Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or
the door edge that meets the
door-latch post, next to the
driver's seating position), or the
Tire Label which is located on
the B-Pillar or edge of the
driver's door. If this information
is not found on these labels, then
you should contact your
authorized dealer as soon as
possible. Use of any tire or wheel
not recommended by Ford can
affect the safety and
performance of your vehicle,
which could result in an
increased risk of loss of vehicle
control, vehicle rollover, personal
injury and death.
WARNING: To reduce the
risk of serious injury, when
mounting replacement tires and
wheels, you should not exceed
the maximum pressure indicated
on the sidewall of the tire to set
the beads without additional
precautions listed below. If the
beads do not seat at the
maximum pressure indicated,
re-lubricate and try again. WARNING: When inflating
the tire for mounting pressures
up to
20 psi (1.38 bar) greater
than the maximum pressure on
the tire sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
• Make sure that you have the
correct tire and wheel size.
• Lubricate the tire bead and
wheel bead seat area again.
• Stand at a minimum of 12 feet
(3.66 meters) away from the
wheel and tire assembly.
• Use both eye and ear
protection. WARNING: For a mounting
pressure more than
20 psi
(1.38 bar) greater than the
maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting. WARNING:
Always inflate
steel carcass tires with a remote
air fill with the person inflating
standing at a minimum of
12 ft
(3.66 m) away from the wheel
and tire assembly.
Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle
300
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Wheels and Tires

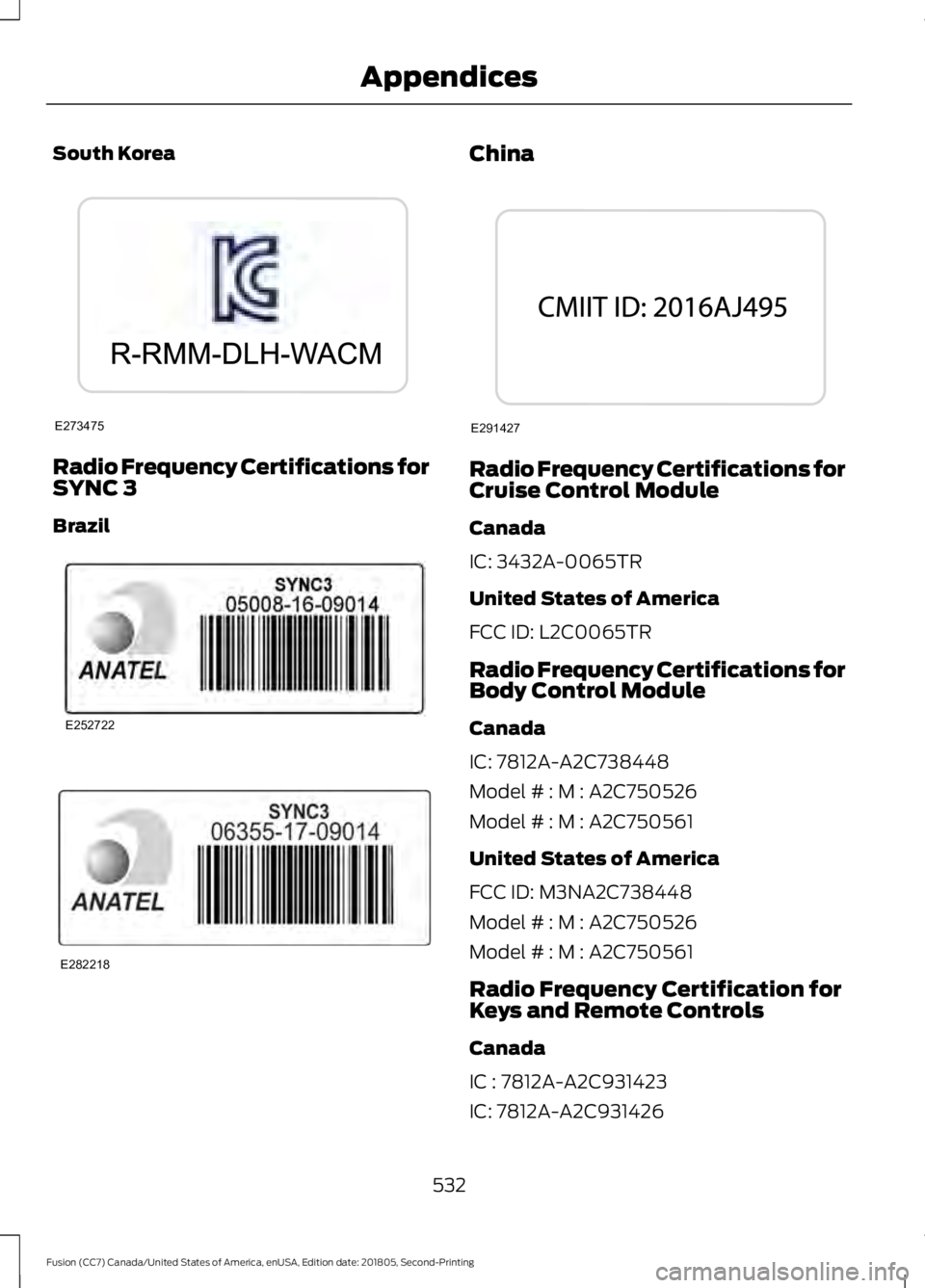

South Korea
Radio Frequency Certifications for
SYNC 3
Brazil China
Radio Frequency Certifications for
Cruise Control Module
Canada
IC: 3432A-0065TR
United States of America
FCC ID: L2C0065TR
Radio Frequency Certifications for
Body Control Module
Canada
IC: 7812A-A2C738448
Model # : M : A2C750526
Model # : M : A2C750561
United States of America
FCC ID: M3NA2C738448
Model # : M : A2C750526
Model # : M : A2C750561
Radio Frequency Certification for
Keys and Remote Controls
Canada
IC : 7812A-A2C931423
IC: 7812A-A2C931426
532
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing AppendicesE273475 E252722 E282218 E291427

Head Restraints..............................................131
Adjusting the Head Restraint......................... 132
Tilting Head Restraints .................................... 133
Heated Exterior Mirrors...............................129
Heated Rear Window..................................129
Heated Seats.................................................138
Heated Steering Wheel................................75
Heating See: Climate Control........................................... 121
Hill Start Assist
..............................................178
Switching the System On and Off................179
Using Hill Start Assist........................................ 179
Hints on Controlling the Interior Climate...........................................................127
Defogging the Side Windows in Cold Weather............................................................. 129
General Hints........................................................ 127
Quickly Cooling the Interior............................ 128
Quickly Heating the Interior............................ 128
Recommended Settings for Cooling...........129
Recommended Settings for Heating..........128
Hints on Driving With Anti-Lock Brakes.............................................................176
Home Screen
................................................409
Hood Lock See: Opening and Closing the Hood..........256
I
In California (U.S. Only)
............................239
Information Display Control.......................75
Information Displays.....................................97 General Information............................................ 97
Information Messages...............................106 Active Park............................................................ 106
Adaptive Cruise Control................................... 107
AdvanceTrac®..................................................... 107
Airbag..................................................................... 108
Alarm...................................................................... 108
All-Wheel Drive.................................................... 110
Automatic Engine Shutdown......................... 110
Auto Start-Stop.................................................. 108
Battery and Charging System.......................... 111
Blind Spot Information and Cross Traffic Alert System...................................................... 111
Doors and Locks................................................... 112
Driver Alert.............................................................. 112
Fuel........................................................................\
.... 112Hill Start Assist.....................................................
112
Keys and Intelligent Access............................. 113
Lane Keeping System........................................ 114
Maintenance.......................................................... 114
MyKey....................................................................... 115
Park Aid................................................................... 116
Park Brake.............................................................. 116
Power Steering...................................................... 117
Pre-Collision Assist............................................. 117
Remote Start......................................................... 117
Seats........................................................................\
118
Starting System .................................................. 118
Tire Pressure Monitoring System................... 118
Traction Control................................................... 119
Transmission......................................................... 119
Installing Child Restraints...........................22 Child Seats.............................................................. 22
Using Lap and Shoulder Belts......................... 22
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 27
Using Tether Straps............................................. 28
Instrument Cluster
........................................90
Instrument Lighting Dimmer......................79 Vehicles With Front Fog Lamps..................... 80
Vehicles Without Front Fog Lamps..............80
Instrument Panel
............................................18
Interior Lamps.................................................82 Front Interior Lamp............................................. 83
Rear Interior Lamps............................................. 83
Interior Luggage Compartment Release...........................................................69
Interior Mirror...................................................88 Auto-Dimming Mirror......................................... 88
Manual Dimming Mirror.................................... 88
Introduction.........................................................7
J
Jump Starting the Vehicle........................234 Connecting the Jumper Cables.................... 234
Jump Starting...................................................... 235
Preparing Your Vehicle..................................... 234
Removing the Jumper Cables....................... 235
541
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Index

K
Keyless Entry....................................................67
SECURICODE™ Keyless Entry
Keypad................................................................. 67
Keyless Starting
............................................148
Ignition Modes..................................................... 148
Keys and Remote Controls.........................53
L
Lane Keeping System................................206 Switching the System On and Off...............207
Lighting Control
..............................................78
Flashing the Headlamp High Beam..............79
Headlamp High Beam........................................ 78
Lighting...............................................................78 General Information............................................ 78
Load Carrying
.................................................219
Load Limit........................................................219
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 223
Vehicle Loading - with and without a Trailer.................................................................. 219
Locking and Unlocking
................................64
Activating Intelligent Access............................ 65
Autolock.................................................................. 66
Autounlock.............................................................. 67
Battery Saver.......................................................... 67
Illuminated Entry.................................................. 67
Illuminated Exit..................................................... 67
Power Door Locks................................................ 64
Remote Control.................................................... 64
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Lug Nuts See: Changing a Road Wheel........................ 310
M
Maintenance.................................................256 General Information......................................... 256
Manual Climate Control..............................121 Directing Air to the Footwell Air Vents.........121
Directing Air to the Instrument Panel Air
Vents.................................................................... 121
Setting the Blower Motor Speed................... 121Setting the Temperature...................................
121
Switching Defrost On and Off......................... 121
Switching Maximum Air Conditioning On and Off............................................................... 122
Switching Maximum Defrost On and Off........................................................................\
122
Switching Recirculated Air On and Off........................................................................\
122
Switching the Air Conditioning On and Off........................................................................\
. 121
Switching the Climate Control On and Off........................................................................\
122
Switching the Heated Seats On and Off........................................................................\
122
Manual Seats
.................................................133
Media Hub......................................................358
Memory Function..........................................135 Easy Entry and Exit Feature............................ 136
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob...................................................................... 136
Saving a PreSet Position................................. 136
Message Center See: Information Displays................................. 97
Mirrors See: Windows and Mirrors................................ 85
Mobile Communications Equipment.......15
Moonroof..........................................................88 Bounce-Back......................................................... 89
Opening and Closing the Moonroof.............89
Venting the Moonroof........................................ 89
Motorcraft Parts - 1.5L EcoBoost™.......321
Motorcraft Parts - 2.0L EcoBoost™.................................................323
Motorcraft Parts - 2.5L..............................324
Motorcraft Parts - 2.7L EcoBoost™.................................................325
MyKey – Troubleshooting...........................62
MyKey ™
.............................................................59
Principle of Operation........................................ 59
N
Navigation
......................................................435
cityseeker.............................................................. 442
Destination Mode.............................................. 437
Map Mode............................................................ 435
Navigation Map Updates................................ 443
542
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Index

Navigation Menu...............................................
440
SiriusXM Traffic and Travel Link................... 443
SYNC AppLink.................................................... 442
Waypoints............................................................. 441
Normal Scheduled Maintenance..........479 Intelligent Oil-Life Monitor............................. 479
Normal Maintenance Intervals.................... 480
O
Oil Change Indicator Reset......................262
Oil Check See: Engine Oil Check....................................... 261
Opening and Closing the Hood..............256 Closing the Hood................................................ 257
Opening the Hood............................................. 256
Ordering Additional Owner's Literature......................................................243
Obtaining a French Owner ’s Manual..........243
Overhead Console
........................................147
P
Parking Aids....................................................183 Principle of Operation....................................... 183
Passive Anti-Theft System..........................71 SecuriLock®............................................................ 71
PATS See: Passive Anti-Theft System...................... 71
Perchlorate........................................................13
Personal Safety System ™
..........................43
How Does the Personal Safety System
Work?.................................................................. 43
Phone...............................................................429 During a Phone Call.......................................... 433
Making Calls........................................................ 432
Pairing Your Cell Phone for the First Time................................................................... 429
Phone Menu........................................................ 430
Receiving Calls.................................................... 433
Smartphone Connectivity.............................. 434
Text Messaging................................................... 434
Post-Crash Alert System
..........................236
Power Door Locks See: Locking and Unlocking............................. 64
Power Seats....................................................133 10-way power seat............................................. 135
6-way power seat............................................... 134Power Lumbar.....................................................
135
Power Windows.............................................85 Accessory Delay................................................... 86
Bounce-Back......................................................... 85
One-Touch Down................................................. 85
One-Touch Up....................................................... 85
Window Lock......................................................... 86
Pre-Collision Assist......................................216 Adjusting Pre-Collision Assist
Settings.............................................................. 217
Blocked Sensors.................................................. 217
Using the Pre-Collision Assist System............................................................... 216
Protecting the Environment........................17
Puncture See: Changing a Road Wheel........................ 310
R
Rear Parking Aid............................................183 Obstacle Distance Indicator........................... 184
Rear Seat Armrest........................................147
Rear Seats........................................................137
Rear View Camera
.......................................193
Camera Guidelines............................................ 194
Camera System Settings................................. 195
Enhanced Park Aids or Park Pilot.................195
Manual Zoom....................................................... 195
Rear Camera Delay............................................ 196
Using the Rear View Camera System.........194
Rear View Camera See: Rear View Camera.................................... 193
Recommended Towing Weights
............225
Refueling..........................................................158 Refueling System Overview........................... 158
Refueling System Warning............................. 160
Refueling Your Vehicle...................................... 159
Remote Control..............................................53 Car Finder................................................................ 56
Intelligent Access Key......................................... 53
Remote Start.......................................................... 57
Replacing the Battery......................................... 55
Sounding the Panic Alarm................................ 56
Using the Key Blade............................................ 54
Remote Start
.................................................130
Automatic Settings............................................ 130
Heated and Cooled Features......................... 130
Last Settings........................................................ 130
543
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Index

Removing a Headlamp..............................274
Repairing Minor Paint Damage..............285
Replacement Parts
Recommendation........................................14
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
Replacing a Lost Key or Remote Control............................................................58
Reporting Safety Defects (Canada Only)..............................................................243
Reporting Safety Defects (U.S. Only)..............................................................243
Roadside Assistance..................................232 Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 233
Vehicles Sold in the United States: Getting Roadside Assistance................................... 232
Vehicles Sold in the United States: Using Roadside Assistance................................... 232
Roadside Emergencies..............................232
Running-In See: Breaking-In................................................. 230
Running Out of Fuel
.....................................157
Adding Fuel From a Portable Fuel
Container........................................................... 157
Filling a Portable Fuel Container................... 157
S
Safety Canopy ™
............................................50
Safety Precautions.......................................155
Satellite Radio..............................................355
Satellite Radio Electronic Serial Number
(ESN)................................................................ 356
Satellite Radio Reception Factors..............356
SiriusXM Satellite Radio Service.................356
Troubleshooting................................................. 357
Scheduled Maintenance Record
...........484
Scheduled Maintenance...........................476
Seatbelt Extension........................................42
Seatbelt Height Adjustment......................39
Seatbelt Reminder
........................................40
Belt-Minder™....................................................... 40
Seatbelts...........................................................35 Principle of Operation......................................... 35Seatbelt Warning Lamp and Indicator
Chime..............................................................40
Conditions of operation.................................... 40
Seats...................................................................131
Security
................................................................71
Settings...........................................................446 911 Assist................................................................ 451
Ambient Lighting............................................... 458
Bluetooth............................................................. 448
Clock...................................................................... 448
Display
................................................................... 459
General.................................................................. 456
Media Player........................................................ 447
Mobile Apps......................................................... 454
Navigation............................................................ 452
Phone.................................................................... 448
Radio....................................................................... 451
SiriusXM................................................................ 452
Sound.................................................................... 446
Valet Mode.......................................................... 460
Vehicle................................................................... 458
Voice Control....................................................... 459
Wi-Fi & Hotspot................................................. 456
Side Airbags
.....................................................48
Side Sensing System..................................185 Obstacle Distance Indicator.......................... 186
Sitting in the Correct Position...................131
Snow Chains See: Using Snow Chains................................. 303
Spare Wheel See: Changing a Road Wheel........................ 310
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance..............................................482
Exceptions........................................................... 483
Speed Control See: Cruise Control............................................. 197
Stability Control
.............................................181
Principle of Operation........................................ 181
Starting a Gasoline Engine.......................149 Automatic Engine Shutdown........................ 150
Failure to Start..................................................... 149
Guarding Against Exhaust Fumes.................151
Important Ventilating Information................151
544
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Index
