2019 FORD FUSION Keyless starting

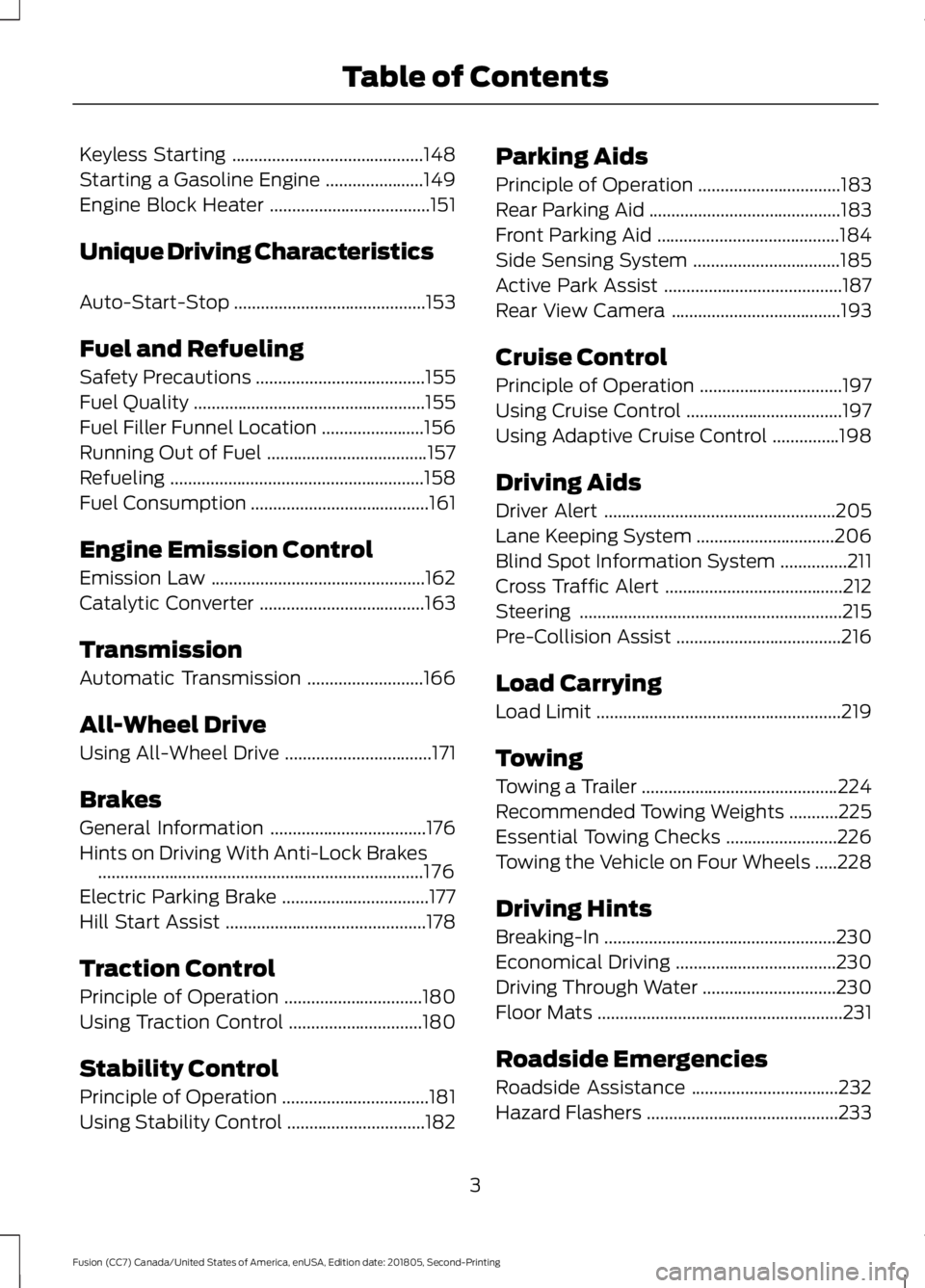

Keyless Starting
...........................................148
Starting a Gasoline Engine ......................
149
Engine Block Heater ....................................
151
Unique Driving Characteristics
Auto-Start-Stop ...........................................
153
Fuel and Refueling
Safety Precautions ......................................
155
Fuel Quality ....................................................
155
Fuel Filler Funnel Location .......................
156
Running Out of Fuel ....................................
157
Refueling .........................................................
158
Fuel Consumption ........................................
161
Engine Emission Control
Emission Law ................................................
162
Catalytic Converter .....................................
163
Transmission
Automatic Transmission ..........................
166
All-Wheel Drive
Using All-Wheel Drive .................................
171
Brakes
General Information ...................................
176
Hints on Driving With Anti-Lock Brakes ........................................................................\
.
176
Electric Parking Brake .................................
177
Hill Start Assist .............................................
178
Traction Control
Principle of Operation ...............................
180
Using Traction Control ..............................
180
Stability Control
Principle of Operation .................................
181
Using Stability Control ...............................
182Parking Aids
Principle of Operation
................................
183
Rear Parking Aid ...........................................
183
Front Parking Aid .........................................
184
Side Sensing System .................................
185
Active Park Assist ........................................
187
Rear View Camera ......................................
193
Cruise Control
Principle of Operation ................................
197
Using Cruise Control ...................................
197
Using Adaptive Cruise Control ...............
198
Driving Aids
Driver Alert ....................................................
205
Lane Keeping System ...............................
206
Blind Spot Information System ...............
211
Cross Traffic Alert ........................................
212
Steering ...........................................................
215
Pre-Collision Assist .....................................
216
Load Carrying
Load Limit .......................................................
219
Towing
Towing a Trailer ............................................
224
Recommended Towing Weights ...........
225
Essential Towing Checks .........................
226
Towing the Vehicle on Four Wheels .....
228
Driving Hints
Breaking-In ....................................................
230
Economical Driving ....................................
230
Driving Through Water ..............................
230
Floor Mats .......................................................
231
Roadside Emergencies
Roadside Assistance .................................
232
Hazard Flashers ...........................................
233
3
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Table of Contents

INSTRUMENT PANEL
Air vents.
A
Direction indicators. See Direction Indicators (page 82).
B
Information display controls. See
Information Display Control (page 75).
C
Instrument cluster. See
Instrument Cluster (page 90).
D
Information display controls. See
Information Display Control (page 75).
E
Wiper lever. See
Wipers and Washers (page 76).
F
Keyless starting.
See Keyless Starting (page 148).
G
Hazard flashers. See
Hazard Flashers (page 233).
H
Information and entertainment display.
I
Audio system. See
Audio System (page 345).
J
Climate control. See
Climate Control (page 121).
K
Heated windows and mirrors. See
Heated Rear Window (page 129).
L
18
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing At a GlanceE271850

Keys and Intelligent Access
Action
Message
A reminder to press the brake while starting your vehicle.
To START Press Brake
The system does not detect a key in your vehicle. See KeylessStarting (page 148).
No Key Detected
You pressed the start/stop button to switch off the engine
and your vehicle does not detect your intelligent access key inside your vehicle.
Restart Now or Key is
Needed
Your vehicle is in the run ignition state.
Accessory Power is
Active
There is a problem with your vehicle ’s starting system. Contact
an authorized dealer for service.
Starting System Fault
You have successfully programmed an intelligent access keyto the system.
Key Program Successful
You have failed to program an intelligent access key to thesystem.
Key Program Failure
You have programmed the maximum number of keys to the system.
Max Number of Keys
Learned
You have not programmed enough keys to the system.
Not Enough Keys
Learned
The key battery is low. Change the battery as soon as possible.
Key Battery Low Replace
Soon
An attempt is made to program a spare key using two existing keys.
Could Not Program
Integrated Key
A reminder that you are exiting your vehicle and the engine is on.
Vehicle is ON
113
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Information Displays

GENERAL INFORMATION
WARNING: Extended idling at high
engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage. WARNING: Do not park, idle or
drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire. WARNING: Do not start the engine
in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic.
Always open the garage door before you
start the engine. WARNING:
Exhaust leaks may
result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.
If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately
5 mi
(8 km) after you reconnect it. This is
because the engine management system
must realign itself with the engine. You
can disregard any unusual driving
characteristics during this period.
The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise. When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine.
KEYLESS STARTING
Note:
The system may not function if the
intelligent access key is close to metal
objects or electronic devices, for example
keys or a cell phone.
Note: A valid intelligent access key must
be located inside your vehicle to switch the
ignition on and start your vehicle.
Ignition Modes The keyless starting system has three
modes:
Off: Turns the ignition off.
• Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode, or
when your vehicle is running but is not
moving.
On:
All electrical circuits are operational
and the warning lamps and indicators
illuminate.
• Without applying the brake pedal,
press and release the button once.
148
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Starting and Stopping the EngineE144447

Automatic Return to Park
Note:
This feature does not operate when
your vehicle is in Stay in Neutral mode or
neutral tow.
Your vehicle has a feature that
automatically shifts your vehicle into park
(P) when any of the following conditions
occur:
• You turn the vehicle off.
• You open the driver's door with your
seatbelt unlatched.
• Your seatbelt is unlatched when the
driver's door is open.
If you turn your vehicle off when moving,
your vehicle first shifts into neutral (N) until
it slows down enough to shift into park (P)
automatically.
Note: If you have waited an extended
period of time (2-15 minutes) before starting
your vehicle, unlatching your seatbelt causes
this feature to activate, even with the
driver's door closed.
Note: This feature may not work properly
if the door ajar switch is malfunctioning. If
your door ajar indicator does not illuminate
when you open the driver ’s door or the
indicator illuminates with the driver ’s door
closed, see your authorized dealer.
Reverse (R)
With the selector in reverse (R), your
vehicle moves backward. Always come to
a complete stop before shifting into and
out of reverse (R).
Neutral (N)
With the selector in neutral (N), your
vehicle can be started and is free to roll.
Hold the brake pedal down when in this
position. Stay in Neutral Mode
Note:
Always put your vehicle in Stay in
Neutral mode when entering an automatic
car wash. Failure to do this could result in
vehicle damage not covered by warranty.
Note: When entering an automatic car
wash, always shift to Neutral (N). If you are
exiting the vehicle before the car wash, Stay
in Neutral Mode is available.
Stay in Neutral mode allows your vehicle
to stay in neutral when you exit your
vehicle. Your vehicle must be stationary to
enter this mode.
To enter Stay in Neutral mode:
1. Switch your vehicle on but do not start
the engine. See Keyless Starting
(page 148).
2. Place your foot on the brake pedal and
rotate the transmission selector to
neutral (N).
Note: When in neutral (N), a message
appears in the display screen informing you
how to access Stay in Neutral mode.
3. Press either the low (L) or sport (S) button in the middle of the
transmission selector to enter Stay in
Neutral mode.
A message appears in the display screen
confirming your vehicle is in Stay in Neutral
mode. The neutral (N) indicator light on
the transmission selector also flashes.
To exit Stay in Neutral mode, place your
foot on the brake pedal and rotate the
transmission selector to park (P).
Drive (D)
Drive (D) is the normal driving position for
the best fuel economy. The overdrive
function allows automatic upshifts and
downshifts through gears one through six.
167
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Transmission

K
Keyless Entry....................................................67
SECURICODE™ Keyless Entry
Keypad................................................................. 67
Keyless Starting
............................................148
Ignition Modes..................................................... 148
Keys and Remote Controls.........................53
L
Lane Keeping System................................206 Switching the System On and Off...............207
Lighting Control
..............................................78
Flashing the Headlamp High Beam..............79
Headlamp High Beam........................................ 78
Lighting...............................................................78 General Information............................................ 78
Load Carrying
.................................................219
Load Limit........................................................219
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 223
Vehicle Loading - with and without a Trailer.................................................................. 219
Locking and Unlocking
................................64
Activating Intelligent Access............................ 65
Autolock.................................................................. 66
Autounlock.............................................................. 67
Battery Saver.......................................................... 67
Illuminated Entry.................................................. 67
Illuminated Exit..................................................... 67
Power Door Locks................................................ 64
Remote Control.................................................... 64
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Lug Nuts See: Changing a Road Wheel........................ 310
M
Maintenance.................................................256 General Information......................................... 256
Manual Climate Control..............................121 Directing Air to the Footwell Air Vents.........121
Directing Air to the Instrument Panel Air
Vents.................................................................... 121
Setting the Blower Motor Speed................... 121Setting the Temperature...................................
121
Switching Defrost On and Off......................... 121
Switching Maximum Air Conditioning On and Off............................................................... 122
Switching Maximum Defrost On and Off........................................................................\
122
Switching Recirculated Air On and Off........................................................................\
122
Switching the Air Conditioning On and Off........................................................................\
. 121
Switching the Climate Control On and Off........................................................................\
122
Switching the Heated Seats On and Off........................................................................\
122
Manual Seats
.................................................133
Media Hub......................................................358
Memory Function..........................................135 Easy Entry and Exit Feature............................ 136
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob...................................................................... 136
Saving a PreSet Position................................. 136
Message Center See: Information Displays................................. 97
Mirrors See: Windows and Mirrors................................ 85
Mobile Communications Equipment.......15
Moonroof..........................................................88 Bounce-Back......................................................... 89
Opening and Closing the Moonroof.............89
Venting the Moonroof........................................ 89
Motorcraft Parts - 1.5L EcoBoost™.......321
Motorcraft Parts - 2.0L EcoBoost™.................................................323
Motorcraft Parts - 2.5L..............................324
Motorcraft Parts - 2.7L EcoBoost™.................................................325
MyKey – Troubleshooting...........................62
MyKey ™
.............................................................59
Principle of Operation........................................ 59
N
Navigation
......................................................435
cityseeker.............................................................. 442
Destination Mode.............................................. 437
Map Mode............................................................ 435
Navigation Map Updates................................ 443
542
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201805, Second-Printing Index
