2019 FIAT 500L technical data

DIMENSIONS
500L VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4242 850 2612 7801658/1667
(**)1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
(**) 500L PRO versions
172F0Y0636C
180
TECHNICAL DATA

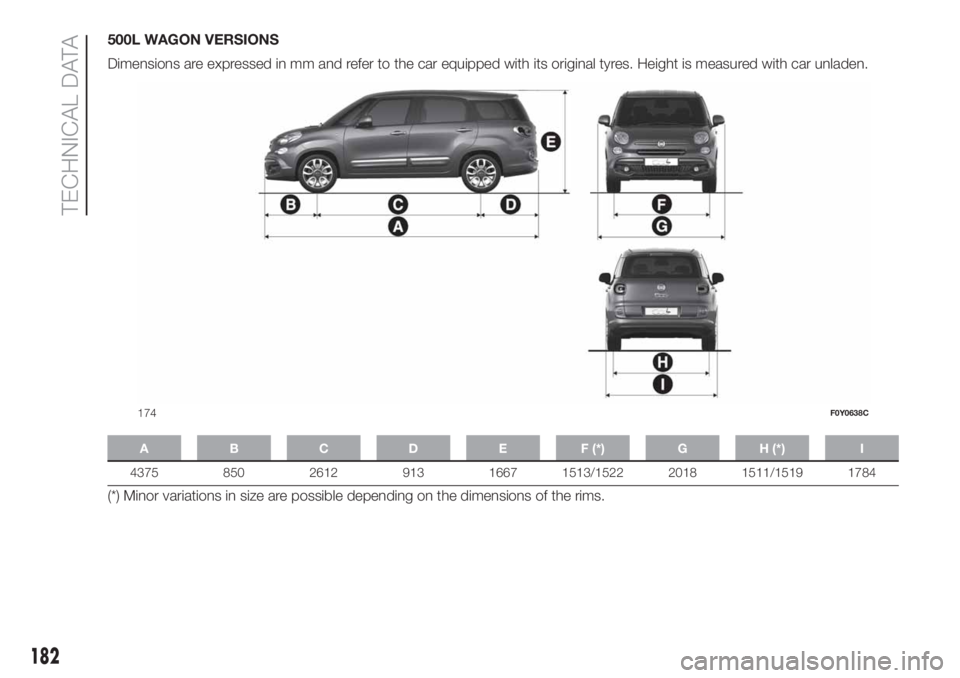

500L WAGON VERSIONS
Dimensions are expressed in mm and refer to the car equipped with its original tyres. Height is measured with car unladen.
A B C D E F (*) G H (*) I
4375 850 2612 913 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
174F0Y0638C
182
TECHNICAL DATA

500L CROSS VERSIONS
Versionskm/h
1.4 16V 95 HP162
1.3 16V 95 HP Multijet166
1.3 16V 95CV MultiJet Dualogic163
1.6 16V 120 HP MultiJet183
184
TECHNICAL DATA

WEIGHTS
NOTE Towing trailers is not permitted on versions for Cyprus.
500L / 500L CROSS / 500L PRO VERSIONS
Weights (kg)1.4 16V 95 HP
500L versions Cross versions PRO versions
Unladen weight (with all fluids,
fuel tank 90% full and without
optional equipment):1300 1320 1300
Payload including the driver
(A)505 480 505
Maximum permitted loads
(B)
- front axle:1050
– rear axle:1000
- total: 1805 1800 1805
Towable loads
– braked trailer: 1000
– non-braked trailer: 400
Maximum load on roof: 60
Maximum load on ball joint
(braked trailer):60
(A) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(B) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
186
TECHNICAL DATA

Weights (kg) 1.3 16V 95CV MultiJet Dualogic
500L versions Cross versions PRO versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1410 1430 1410
Payload including the driver
(A)505 500 505
Maximum permitted loads
(B)
- front axle:1050
– rear axle:1000
- total: 1915 1930 1915
Towable loads
– braked trailer:1000
– non-braked trailer:400
Maximum load on roof:60
Maximum load on ball joint (braked trailer): 60
(A) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(B) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
188
TECHNICAL DATA

Weights (kg)1.4 16V 120 HP
5-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1320
Payload including the driver
(*)520
Maximum permitted loads
(**)
- front axle:1050
– rear axle:1000
- total:1840
Towable loads
– braked trailer:1000
– non-braked trailer:400
Maximum load on roof:60
Maximum load on ball joint (braked trailer): 60
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to themaximum
permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
190
TECHNICAL DATA

Versions1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1445 1485
Payload including the driver
(***)560 620
Maximum permitted loads
(****)
- front axle: 1050 1050
– rear axle: 1000 1080
- total: 2005 2105
Towable loads:
– braked trailer: 1000 1000
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
192
TECHNICAL DATA

1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
PARAFLU
UPliquid at 50%(*)
Engine sump (litres) with
AdBlue® (UREA)3.7 4.4
SELENIA ECO2
(**)/ SELENIA WR
FORWARD 0W-20
(***)Engine sump and filter (litres) con
AdBlue® (UREA)3.9 4.8
Gearbox casing/differential (litres) 2.0 2.0TUTELA TRANSMISSION
GEARFORCE
Dualogic transmission hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and PETRONAS
DURANCE SC35
AdBlue® (UREA) tank (for
versions/markets, where
provided) approximate capacity
(litres):12 12AdBlue® (water-UREA solution)
DIN 70 070 and ISO 22241-1
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(**) 1.3 MultiJet 16V versions
(***) 1.6 MultiJet 16V versions
