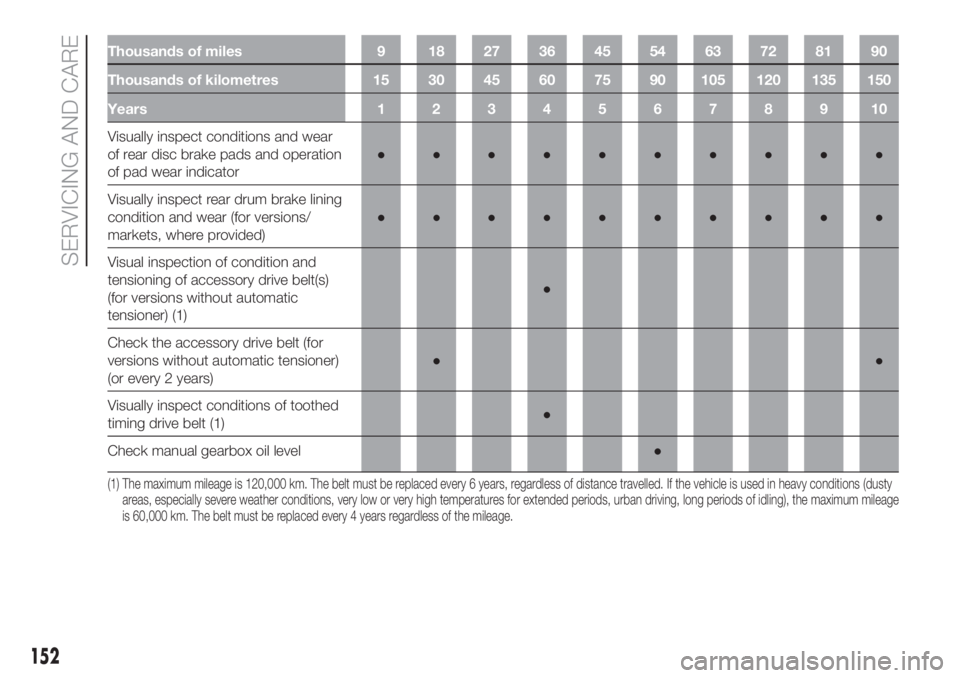

2019 FIAT 500L LIVING mileage

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Visually inspect conditions and wear
of rear disc brake pads and operation
of pad wear indicator●●●●●●●●●●
Visually inspect rear drum brake lining
condition and wear (for versions/
markets, where provided)●●●●●●●●●●
Visual inspection of condition and
tensioning of accessory drive belt(s)
(for versions without automatic
tensioner) (1)●
Check the accessory drive belt (for
versions without automatic tensioner)
(or every 2 years)●●
Visually inspect conditions of toothed
timing drive belt (1)●
Check manual gearbox oil level●
(1) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, especially severe weather conditions, very low or very high temperatures for extended periods, urban driving, long periods of idling), the maximum mileage
is 60,000 km. The belt must be replaced every 4 years regardless of the mileage.
152
SERVICING AND CARE

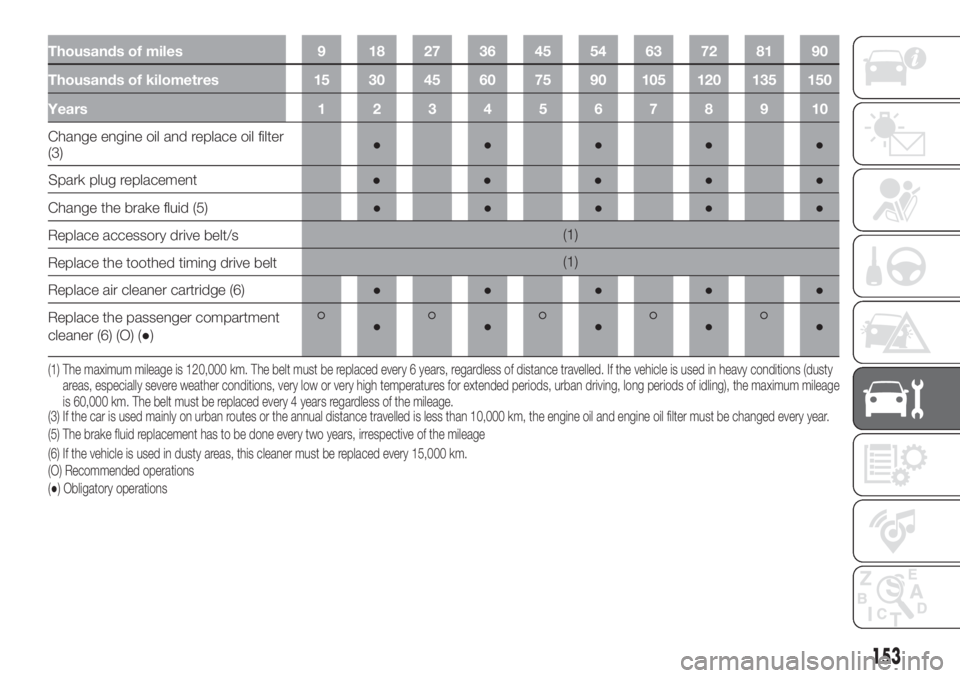

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Change engine oil and replace oil filter
(3)●●●●●
Change the brake fluid (5)●●●●●
Replace accessory drive belt/s(1)
Replace the toothed timing drive belt(1)
Replace air cleaner cartridge (6)●●●●●
Replace the passenger compartment
cleaner (6) (O) (●)
●●●●●
(3) If the car is used mainly on urban routes or the annual distance travelled is less than 10,000 km, the engine oil and engine oil filter must be changed every year.
(5) The brake fluid replacement has to be done every two years, irrespective of the mileage (1) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, especially severe weather conditions, very low or very high temperatures for extended periods, urban driving, long periods of idling), the maximum mileage
is 60,000 km. The belt must be replaced every 4 years regardless of the mileage.
(6) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(O) Recommended operations
(●) Obligatory operations
153
●●●●● Spark plug replacement

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Visually inspect conditions of toothed
timing drive belt (1.3 16V MultiJet
versions excluded)●●
Inspect conditions (2)
and tensioning of
accessory drive belt(s) (for versions without
automatic tensioner)●●
Check manual gearbox oil level●
Check Dualogic gearbox control oil
level (3)●●●●●
Change engine oil and replace oil filter(4) (5)
(2) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the
mileage.
(3) Level check must be carried out every year for vehicles running in countries with particularly severe climates (cold countries).
(4) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message in the instrument panel. In any case, it must never exceed 2 years.
(5) Where the car is used mostly in urban settings you need to replace the engine oil filter every year.
157

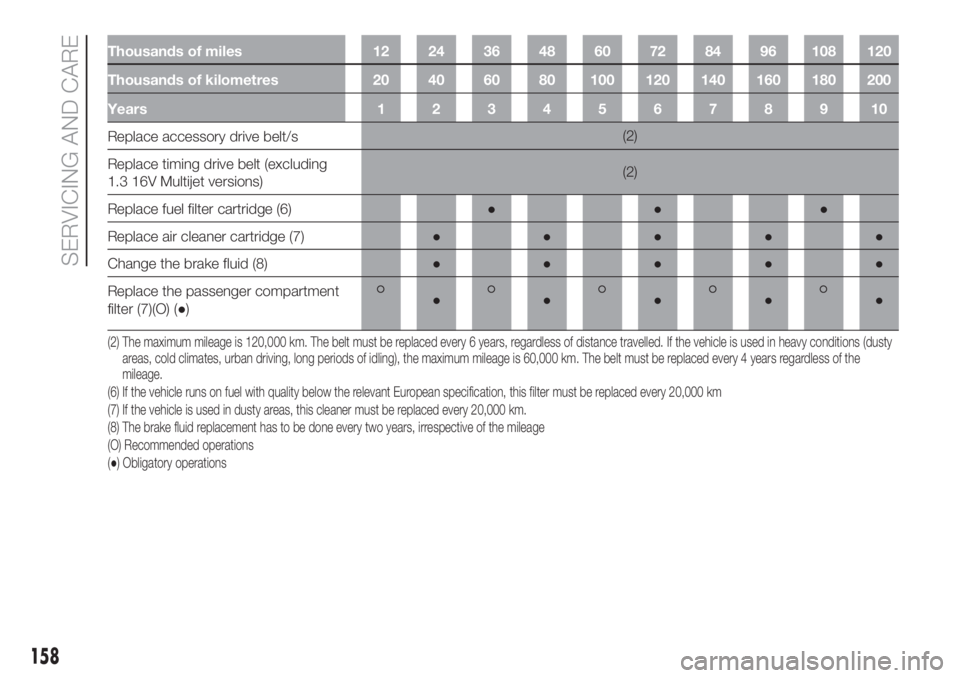

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Replace accessory drive belt/s(2)
Replace timing drive belt (excluding
1.3 16V Multijet versions)(2)
Replace fuel filter cartridge (6)●●●
Replace air cleaner cartridge (7)●●●●●
Change the brake fluid (8)●●●●●
Replace the passenger compartment
filter (7)(O) (●)
●●●●●
(2) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the
mileage.
(6) If the vehicle runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km
(7) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km.
(8) The brake fluid replacement has to be done every two years, irrespective of the mileage
(O) Recommended operations
(●) Obligatory operations
158
SERVICING AND CARE

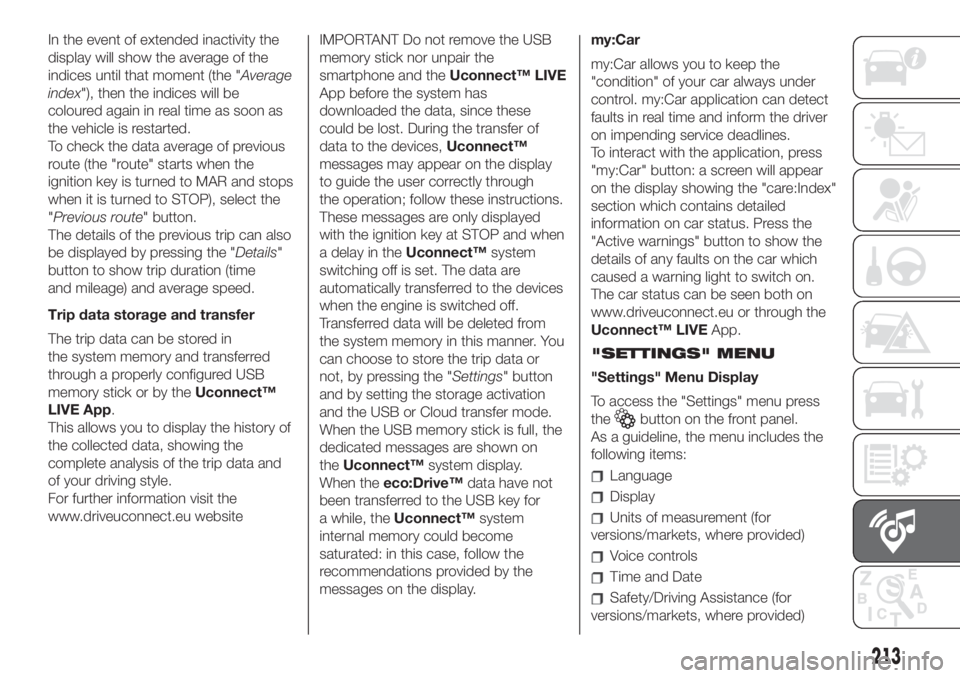

In the event of extended inactivity the
display will show the average of the
indices until that moment (the "Average
index"), then the indices will be
coloured again in real time as soon as
the vehicle is restarted.
To check the data average of previous
route (the "route" starts when the
ignition key is turned to MAR and stops
when it is turned to STOP), select the
"Previous route" button.
The details of the previous trip can also
be displayed by pressing the "Details"
button to show trip duration (time
and mileage) and average speed.
Trip data storage and transfer
The trip data can be stored in
the system memory and transferred
through a properly configured USB
memory stick or by theUconnect™
LIVE App.
This allows you to display the history of
the collected data, showing the
complete analysis of the trip data and
of your driving style.
For further information visit the
www.driveuconnect.eu websiteIMPORTANT Do not remove the USB
memory stick nor unpair the
smartphone and theUconnect™ LIVE
App before the system has
downloaded the data, since these
could be lost. During the transfer of
data to the devices,Uconnect™
messages may appear on the display
to guide the user correctly through
the operation; follow these instructions.
These messages are only displayed
with the ignition key at STOP and when
a delay in theUconnect™system
switching off is set. The data are
automatically transferred to the devices
when the engine is switched off.
Transferred data will be deleted from
the system memory in this manner. You
can choose to store the trip data or
not, by pressing the "Settings" button
and by setting the storage activation
and the USB or Cloud transfer mode.
When the USB memory stick is full, the
dedicated messages are shown on
theUconnect™system display.
When theeco:Drive™data have not
been transferred to the USB key for
a while, theUconnect™system
internal memory could become
saturated: in this case, follow the
recommendations provided by the
messages on the display.my:Car
my:Car allows you to keep the
"condition" of your car always under
control. my:Car application can detect
faults in real time and inform the driver
on impending service deadlines.
To interact with the application, press
"my:Car" button: a screen will appear
on the display showing the "care:Index"
section which contains detailed
information on car status. Press the
"Active warnings" button to show the
details of any faults on the car which
caused a warning light to switch on.
The car status can be seen both on
www.driveuconnect.eu or through the
Uconnect™ LIVEApp.
"SETTINGS" MENU
"Settings" Menu Display
To access the "Settings" menu press
the
button on the front panel.
As a guideline, the menu includes the
following items:
Language
Display
Units of measurement (for
versions/markets, where provided)
Voice controls
Time and Date
Safety/Driving Assistance (for
versions/markets, where provided)
213

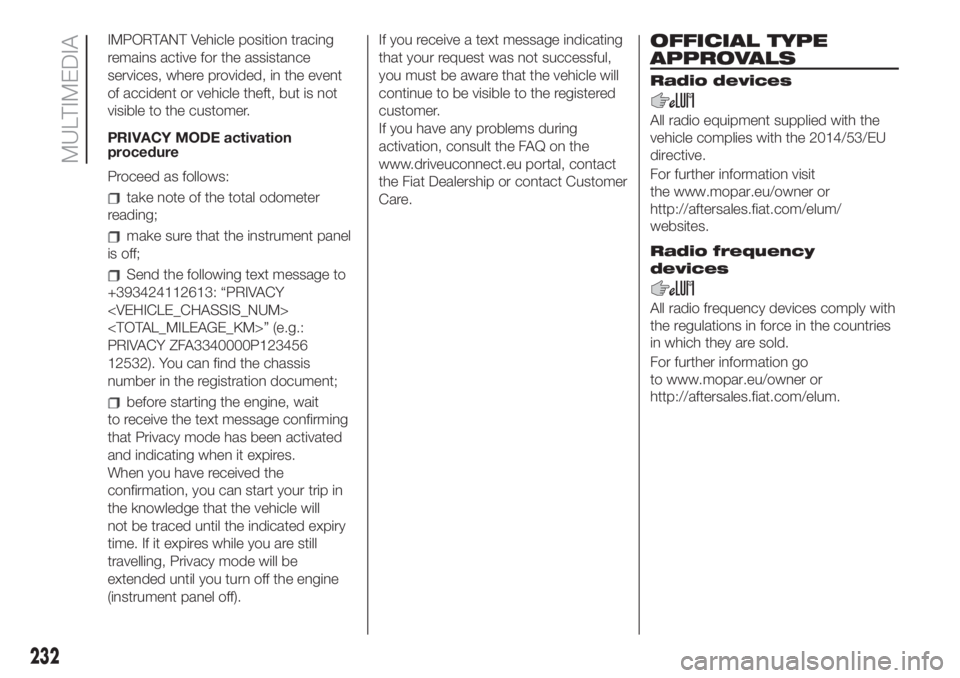

IMPORTANT Vehicle position tracing
remains active for the assistance
services, where provided, in the event
of accident or vehicle theft, but is not
visible to the customer.
PRIVACY MODE activation
procedure
Proceed as follows:
take note of the total odometer
reading;
make sure that the instrument panel
is off;
Send the following text message to
+393424112613: “PRIVACY

” (e.g.:
PRIVACY ZFA3340000P123456
12532). You can find the chassis
number in the registration document;
before starting the engine, wait
to receive the text message confirming
that Privacy mode has been activated
and indicating when it expires.
When you have received the
confirmation, you can start your trip in
the knowledge that the vehicle will
not be traced until the indicated expiry
time. If it expires while you are still
travelling, Privacy mode will be
extended until you turn off the engine
(instrument panel off).If you receive a text message indicating
that your request was not successful,
you must be aware that the vehicle will
continue to be visible to the registered
customer.
If you have any problems during
activation, consult the FAQ on the
www.driveuconnect.eu portal, contact
the Fiat Dealership or contact Customer
Care.
OFFICIAL TYPE
APPROVALS
232
MULTIMEDIA
7,9:;9(<:)(=
!""#$%&’ ()*&+,(-. /*++"&(% 0&.1 .1(
2(1&3"( 3’,+"&(/ 0&.1 .1( 456789:8;<
%&#(3.&2(=
>’#?*#.1(#&-?’#,$.&’- 2&/&.
.1( 000=,’+$#=(*8’0-(#’#
1..+@88$?.(#/$"(/=?&$.=3’,8("*,8
0(A/&.(/=
7,9:;>-(?@(A)B
9(<:)(=
!""#$%&’ ?#()*(-3B %(2&3(/ 3’,+"B 0&.1
.1(#(C*"$.&’-/ &- ?’#3( &- .1( 3’*-.#&(/
&- 01&31 .1(B$#( /’"%=
>’#?*#.1(#&-?’#,$.&’- C’
.’ 000=,’+$#=(*8’0-(#’#
1..+@88$?.(#/$"(/=?&$.=3’,8("*,=
