2019 CITROEN RELAY technical data

161
Van
Dimensions Model name GV WUnbraked trailer Recommended nose
weight
L3

H2 33
3,300 75010 0
35 3,500 75010 0
435 3,500 750120
440 4,005 750120
L3

H3 33
3,300 75010 0
35 3,500 75010 0
435 3,500 750120
440 4,005 750120
L4

H2 435
3,500 750120
440 4,005 750120
L4

H3 435
3,500 750120
440 4,005 750120
9
Technical data

162

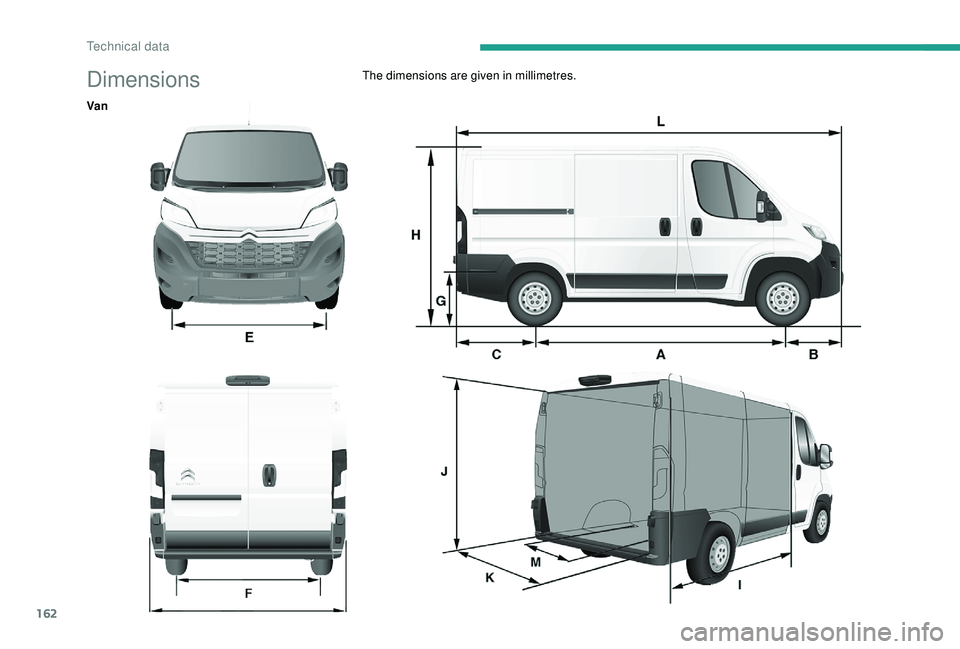

DimensionsThe dimensions are given in millimetres.
Van
Technical data

163
Your vehicle is available in 4 lengths (L1, etc.) and 3 heights (H1, etc.):L1L2 L3L4
H1 H
2H1 H2 H2 H3H2 H3
L Overall length 4,9635 , 4135,998 6,363
H Overall height 2,2542,5242,254 2,524 2,524 2,76 42,524 2,76 4
A Wheelbase 3,0003,450 4,035
B Front overhang 948
C Rear overhang 1,0151,3 8 0
D Width (with/without mirrors) 2,508/2,050
E Front track 1,810
F Rear track 1,79 0
G Load threshold height 535
to 565
I Length of interior floor 2,6703 ,12 03,705 4,070
J Maximum interior load height 1,6 621,9321,6 62 1,932 1,932 2 ,17 21,932 2 ,17 2
K Maximum interior width 1,870
M Interior width between wheel arches 1,42 2
Volume (m
3) 89.5 1011. 5 1315 15 17
9
Technical data

164
Rear doorsL1L2 L3L4
H1 H2 H1H2 H2 H3H2 H3
N Rear door load height 1,520 1,79 0 1,520 1,79 0 1,79 02,0301,79 02,030
O Rear door load width 1,5 62
Technical data

165
Side doorL1L2 L3L4
H1 H2 H1H2 H2 H3H2 H3
P Height of the sliding side door 1,4 8 5 1,75 5 1,4 8 51,75 5
Q Width of the sliding side door 1,0751, 25 0
9
Technical data

166
CombiL1 H 1 L2H2
A 751 8721, 201 1,32 2
B 1, 201 1,74 31, 6 51 2 ,1 9 3
C -860 -860
Technical data

167
Identification markings
A. Manufacturer's plate
4 - Gross train weight (GTW).
5.1 - Maximum weight on the front axle.
5.2 - Maximum weight on the rear axle.
This plate is located on the front crossmember,
under the bonnet.
1 - European Whole Vehicle Type Approval
number.
2 - VF… type serial number.
3 - Gross vehicle weight (GV W).
B. Serial number on the
bodywork
C. Tyres
This label (may differ from image shown),
affixed to the driver's side door pillar, indicates:
-

t
he tyre sizes,
-

t
he tyre pressures when laden. The tyre pressures must be checked when
the tyres are cold, at least monthly.
D. Paint code
This reference number is located on the front
crossmember, under the bonnet.
E. Serial number on the
bodywork
This number is located under the plastic cover,
at the sill on the right-hand side.
9
Technical data

168
Glossary of labels
This section groups together all of the texts that
appear on labels present on the vehicle.For the Identification markings , refer to
the corresponding section.
Under the bonnet
A
Original painting
Colour
Code
Paint
B
ONLY FOR JUMP START C
DANGER
AUTOMATIC ENGINE RESTART. TAKE OUT
THE IGNITION KEY WHEN THE BONNET IS
OPENED.
D
1 - CAUTION
ORIGINAL LUBRICANTS AND FLUIDS
Engine oil Transmission
Radiator Braking
Windscreen washer Power steering
REFER TO MAINTENANCE LOGBOOK. WEAR EYE PROTECTION
Technical data
