CheckingandFilling

Brakefluid
B8K-2122



Fig.259Enginecompartment:caponbrakefluidreservoir
Observethesafetyprecautions>A\inWorking
intheenginecompartmentonpage309.
Checkingthebrakefluidlevel
>Readthebrakefluidlevelonthebrakefluidres-
ervoir>page311,fig.256.Thebrakefluidlev-
elmustbebetweentheMINandMAXmarkings
>A.
Thebrakefluidlevelismonitoredautomatically.
Changingthebrakefluid
Brakefluidshouldbechangedatregularinter-
vals.Havethebrakefluidchangedby anauthor-
izedAudidealerorauthorizedAudiServiceFacili-
ty.TheauthorizedAudidealerorauthorizedAudi
ServiceFacilitywillinformyouofthereplace-
mentintervals.

ZAWARNING
—IfthebrakefluidlevelisbelowtheMIN
marking,itcanimpair thebrakingeffectand
drivingsafety,whichincreasetheriskofan
accident.Donotcontinuedriving.Seeanau-
thorizedAudidealerorauthorizedAudi
ServiceFacilityforassistance.
—Ifthebrakefluidisold,bubblesmayformin
thebrakesystemduringheavybraking.This
couldimpairbrakingperformanceanddriv-
ingsafety,whichincreasestheriskofanac-
cident.
— Thebrakefluidinyourvehiclemustmeet
thestandardVW50114andisavailableat
anauthorizedAudidealerorauthorizedAu-
diServiceFacility.Ifthisbrakefluidisnot
available,anotherhigh-gradebrakefluidof


equivalentqualitymaybeused,anditmust
meettheU.S.FederalMotorVehicleStand-
ard(FMVSS)116DOT4,Class6.
Q)Note
—IfthebrakefluidlevelisabovetheMAX
marking,brakefluidmayleakoutoverthe
edgeofthereservoirandresultindamage
tothevehicle.
—Donotallowanybrakefluidto comeinto
contactwiththevehiclepaint,becauseit
willcorrodethepaint.

Electricalsystem
Ifthe=orflindicatorlightturnson,thereisa
malfunctioninthegenerator,thebattery, orthe
vehicleelectricalsystem.
=Electricalsystem:malfunction!Safelystop
vehicle
Donotcontinuedrivingandswitchtheengineoff
=>AX.SeeanauthorizedAudidealerorauthorized
AudiServiceFacilityforassistance.
[HlElectricalsystem:malfunction!Restartnot
possible.PleasecontactService
Itwillnot bepossibletorestarttheengineonce
youturnitoff.Vehiclefunctions/drivingstability
maybelimited.DrivetoanauthorizedAudideal-
erorauthorizedAudiServiceFacilityimmediate-
ly.
z=Electricalsystem:malfunction!Pleasecon-
tactService
Switchoffallelectricalequipmentthatisnot
needed.Vehiclefunctions/drivingstabilitymay
belimited.DrivetoanauthorizedAudidealeror
authorizedAudiServiceFacilityimmediately.
z=Electricalsystem:lowbatterycharge.Bat-
tery
willbechargedwhiledriving
Thestartingabilitymaybeimpaired.
Ifthismessageturnsoffafteralittlewhile,the
vehiclebatteryhaschargedenoughwhiledriving.>
317

CheckingandFilling

Ifthismessagedoesnotturnoff,driveimmedi-
atelytoanauthorizedAudidealerorauthorized
AudiServiceFacility.

ZA\WARNING
Whenthereisanelectricalsystemmalfunc-
tion,vehiclefunctionsmaynotworkanddriv-
ingstabilitymaybelimited,whichincreases
theriskofanaccident.Stopdrivingand
switchtheengineoff.SeeanauthorizedAudi
dealerorauthorizedAudiServiceFacilityfor
assistance.

Battery
Prlaameeeelec)
Becauseofthecomplexpowersupply,allworkon
batteriessuchasdisconnecting,replacing,etc.,
should only beperformedby anauthorizedAudi
dealerorauthorizedAudiServiceFacility>A\.
Multiplebatterieswithdifferenttechnologies
maybeinstalledinyourvehicle:
—Vehiclebattery(forexample,forstartingthe
engine,basicpowersupply)>page319,Lead
batteryor>page319,Otherbatterytypes
—Auxiliarybattery(forexample,forrecuperation
oroptionalequipment)>page319,Otherbat-
terytypes
Notrunningthevehicleforlongperiodsof
time
Thebatterywillgraduallydrainifthevehicle
doesnotrunforlongperiodsoftime.Toensure
thatthevehiclecanstillbestarted,theelectrical
equipmentwillbereducedorswitchedoff
=>page143.Someconveniencefunctions,such
asinteriorlightingorpowerseatadjustment,
maynotbeavailableundercertaincircumstan-
ces.Theseconveniencefunctionswillbeavailable
againonceyouswitchtheignitiononandstart
theengine.
Evenwhenelectricalequipmentisswitchedoff,
theequipmentcanstilldrainthebatteryifthe
vehicleisnotdrivenforlongperiodsoftime.
Deepdrainingresultsinachemicalreactionthat
destroys
theinsideofthebattery.Thebattery
318
mustbechargedeverymonthtopreventthis
=page319.Contact anauthorizedAudidealeror
authorizedAudiServiceFacilityformoreinfor-
mation.
Winteroperation
Coldweatherplaceshigherdemandsonthebat-
tery.Thisresultsinreducedstartingability.Have
thebatterycheckedbyanauthorizedAudidealer
orauthorizedAudiServiceFacilitybeforecold
weatherbegins.

Z\WARNING
—Allworkonthebatteryorelectricalsystem
inyourvehiclecanresultininjuries,chemi-
calburns,accidents,or burns.Becauseof
this,allworkmustbeperformedonlybyan
authorizedAudidealerorauthorizedAudi
ServiceFacility.
—Neverconnectthechargingcableorjump
startcabledirectlytoyourvehiclebattery.
Onlyusethe connectionsintheenginecom-
partment>page319.

ZAWARNING
CaliforniaProposition65Warning:
—Batteryposts,terminalsandrelatedacces-
soriescontainleadandleadcompounds,
chemicalsknowntotheStateofCalifornia
tocausecancerandreproductiveproblems.
Washhandsafterhandling.
()Note
—Ifthevehiclewillbe parkedforlongperiods
oftime,protectthebatteryagainstthecold
so thatitwillnot be destroyed by“freezing”
=page319,Chargingthebattery.
—Thereareelectricalcomponentsunderthe
cargofloorbehindatrimpanelthatwarm
upduringoperation.To reducetheriskof
thecomponentsoverheating, donotstore
objectssuchasblanketsunderthecargo
floor.Ifthecomponentsoverheat,theywill
switchofftemporarily.Thiswillbeindicated
byamessagethatwillbedisplayedinthe
instrumentclusteruntilthetemperaturere-
turnstonormal.

8W0012721BG
CheckingandFilling

Leadbattery
Explanationofwarnings:

Alwaysweareyeprotection.

Batteryacidishighlycorrosive.Always
wearprotectiveglovesandeyeprotection.

Fire,sparks,openflame,andsmokingare
forbidden.

A
Ahighlyexplosivemixtureofgasescan
formwhenchargingbatteries.

® ®
Alwayskeepchildrenawayfrombattery
acidandthebattery.

e/
oo

Alwaysfollowtheinstructionsintheoper-
atingmanual.

@

Forthesakeoftheenvironment
¥Donotdisposeofleadbatteriesin
householdtrash.Theycontainharmfulsub-
stances,suchassulfuricacidandlead,andal-
sorecyclablerawmaterials.Contactanau-
thorizedAudidealerorauthorizedAudiServ-
iceFacilityformoreinformation.
oyi1ayh48
Explanationofwarnings:

®
Fire,sparks,openflame,andsmokingare
forbidden.

®
Alwayskeepchildrenawayfrombattery
acidandthebattery.

@/
faa)

Alwaysfollowtheinstructionsintheoper-
atingmanual.


Havetheaffectedareaexaminedbyamedi-

calprofessional.


ZN
-Th

Allworkonthebatteriesmustonlybeper-
formedbyanauthorizedAudidealerorau-
thorizedAudiServiceFacility.
—Gasesthatescapefromthesedifferentbat-
terytypescanbepoisonousorflammable.
corrosive.Ifanybatterycontentscomeinto
contactwiththeskin,flushtheaffected
areaforatleast15minuteswithcleanwa-
ter.Thenwashtheaffectedareawithsoap.
WARNING
econtentsofthesebatterytypescanbe

()Note
Components mustnot beconnectedtothe
batteryterminalsandwiresonthesebattery
typesbecausethisincreasestheriskofdam-
age,forexampleduetoovervoltage.
@)Forthesakeoftheenvironment

iesinhouseholdtrash.Theycontainharmful
substancesandrecyclablerawmaterials.Con-
tactanauthorizedAudidealerorauthorized
AudiServiceFacilityformoreinformation.
Chargingthebattery

Fig.260Enginecompartment:connectorsforachargeror
jumpstartcables
Notethesafetyprecautions>page309,Work-
ingintheenginecompartment,>/\inBattery
generalinformationonpage318and>/\.
Requirement:onlyusechargers withamaximum
chargingcurrentof14.8volts.Thebatteryca-
blesremainconnected.
>Switchofftheignitionandallelectricalequip-
ment.
>Openthehood>page310.
>Opentheredcoveronthepositiveterminal
>fig.260.
>Clampthechargerterminalclampstothejump
startpinsaccordingtotheinstructions.(pinun-
der thecover=“positive”,pinwithhexagonal
head=“negative”).
>Insertthepowercableforthechargingdevice
intothesocketandswitchthedeviceon.
319
XXDonotdisposeofthesetypesofbatter-
>

CheckingandFilling

>Attheendofthechargingprocess,switchthe
chargeroffandpullthepowercableoutofthe
socket.
>Removethechargingdeviceterminalclamps.
>Closetheredcoveronthepositiveterminal.
>Closethehood>page310.

ZXWARNING
—Neverconnectthechargingcabledirectlyto
yourvehiclebattery.Onlyuse the connec-
tionsintheenginecompartment
=>page319.
—Ahighlyexplosivemixtureofgasescanform
whenchargingbatteries.Onlychargethe
batteryinwell-ventilatedareas.
—Adrainedbatterycanfreezeattempera-
turesaround329F(02C).Donotchargeor
useafrozenorthawedbattery.If iceforms,
thebatteryhousingcancrackandbattery
electrolytecanleakout,whichincreasesthe
riskofanexplosionandchemicalburns.
Contact anauthorizedAudidealerorauthor-
izedAudiServiceFacilityformoreinforma-
tion.
—Donotconnectordisconnectthecharging
cablewhilechargingbecausethisincreases
theriskofanexplosion.

@)Tips
Readallofthemanufacturer'sinstructions
forthechargerbeforechargingthebattery.
Windshieldwasher
system

B8W-0125



Fig.261Enginecompartment:washerfluidreservoircap
ThewindshieldwasherfluidreservoirScontains
thecleaningsolutionforthewindshieldandthe
320
headlightwashersystem*>page311,fig.256.
Thereservoircapacitycanbefoundin
=>page373.
Toreducetheriskoflimescaledepositsonthe
spraynozzles,usecleanwaterwithlowamounts
ofcalcium.Alwaysaddwindowcleanertothewa-
ter.Whentheoutsidetemperaturesarecold,an
anti-freezingagentshould beaddedtothewater
sothatitdoesnotfreeze.
C)Note
— Theconcentrationofanti-freezingagent
mustbeadjustedtothevehicleoperating
conditionsandtheclimate.Aconcentration
thatistoohighcanleadtovehicledamage.
—Neveraddradiatoranti-freezeorotheraddi-
tivestothewasherfluid.
—Donotuseaglasscleanerthat contains
paintsolvents,becausethiscoulddamage
thepaint.
Serviceintervaldisplay
Theserviceintervaldisplaydetectswhenyourve-
hicleisdueforservice.
Checkingserviceintervals
Youcan checktheremainingdistanceortimeun-
tilthenextoilchangeornextinspectioninthe
Infotainmentsystem.

>SelectintheInfotainmentsystem:the[MENU
button>Vehicle>leftcontrolbutton>Service
&checks>Serviceintervals.

Resettingtheindicator
AnauthorizedAudidealerorauthorizedAudi
ServiceFacilitywillresettheserviceintervaldis-
playafterperformingservice.
Ifyouhavechangedtheoilyourself,youmustre-
settheoilchangeinterval.

>SelectintheInfotainmentsystem:the|MENU
button>Vehicle>leftcontrolbutton>Service
&checks>Serviceintervals>Resetoilchange
interval.

8W0012721BG
CheckingandFilling

Ifanoilchangeorinspectionisdue,youcanac-
cessitintheInfotainmentsystem.Thedisplay
worksintwostages:
—Servicereminder:afteracertaindistanceis
driven,amessageappearsintheinstrument
clusterdisplayeverytimetheignitionisswitch-
edon.Theremainingdistanceandtimeisdis-
playedbriefly.
—Servicedue:ifyourvehiclehasreachedaserv-
iceinterval,amessageappearsbrieflyafter
switchingtheignitionon.
()Note
—Onlyresettheoilchangeindicatoriftheoil
waschanged.
—Followingtheserviceintervalsiscriticalto
maintainingtheservicelifeandvalueof
yourvehicle,especiallytheengine.Evenif
themileageonthevehicleislow,donotex-
ceed thetimeforthenextservice.
321

8W0012721BG
Wheels







Model/TiredesignationTirepressure
EngineNormalloadMaximumload
(upto3people)”
FrontRearFrontRear
PSIkPAPSIkPAPSIkPAPSIkPA
allroad:225/55R1797Y32220292003323030210
2.0L245/45R1896Y32|220|29|200|35|240|32|220
4-cylinder—(345/45R18100H|32|220|32|220|35|240/35|240
gasolineen-
gine245/40R1998Y35240322203826035240


AWARNING
Pleasenotetheimportantsafe-
typrecautionsregardingtire
pressure>page332andload

limits>page335.
Tiresandvehicleloadlimits
Therearelimitstotheamountof
loadorweightthatanyvehicle
andanytirecancarry.Avehicle
thatisoverloadedwillnothandle
wellandismoredifficulttostop.
Overloadingcan notonlyleadto
lossofvehiclecontrol,butcanal-
sodamageimportantpartsofthe
vehicleandcanleadtosudden
tirefailure,includingablowout
andsuddendeflationthatcan
causethevehicletocrash.

Yoursafetyandthat ofyourpas-
sengersalsodependsonmaking
surethatloadlimitsarenotex-
ceeded.Vehicleload includesev-
a)Twopeopleinthefront,onepersonintherear
erybodyandeverythinginand on
thevehicle.Theseloadlimitsare
technicallyreferred toasthevehi-
cle’sGrossVehicleWeightRating
(“GVWR”).
The“GVWR”includestheweight
ofthebasicvehicle,allfactoryin-
stalledaccessories,afulltankof
fuel,oil,coolantandotherfluids
plusmaximumload.Themaxi-
mumload includesthenumberof
passengersthatthevehicleisin-
tendedtocarry(“seatingcapaci-
ty”)withanassumedweightof
150lbs.(68kg)foreachpassen-
geratadesignatedseatingposi-
tionandthetotalweightofany
luggageinthevehicle.Ifyoutow
atrailer,theweightofthetrailer
hitchandthetongueweightof
the loadedtrailermustbeinclud-
edaspart ofthevehicleload.
TheGrossAxleWeightRating
(“GAWR”)isthemaximumload
335
>

Emergencyassistance

Emergencyassistance
Generalinformation
>Parkthevehicleasfaraspossiblefrommoving
trafficinthe eventofabreakdown.Intheevent
ofaflattire,parkthevehicleonalevelsurface.
Ifyouareonasteephill,beespeciallycareful.
>Set theparkingbrake.
>Switchtheemergencyflasherson.
>Havethepassengersexitthevehicle.They
shouldmovetoasafeplace,forexamplebe-
hindaguardrail.

Z\WARNING
Follow thesteps givenabove.Thisisforyour
protectionandtheforthesafetyofotherson
theroad.


Equipment
Vehicletoolkit,tiremobilitykit,and
vehiclejack
Appliesto:vehicleswiththevehicletoolkit,tiremobilitykit,
andvehiclejack
\

SMTOTAL
Fig.266Luggagecompartment:cargofloorcover
Thevehicletoolkit,vehiclejack,tiremobilitykit
andcompressorarestoredintheluggagecom-
partmentunderthecargofloorcover.
>Appliesto:sedan:Toopenthefrontcompart-
ment,liftthecargofloorcoverbythestrap(@).
>Appliesto:allroad:Toopenthefrontcompart-
ment,pullthecargofloorcoverbytheplastic
handle@)slightlytowardtherear.Lift thecar-
gofloorcoveroverthefrontcompartment.
>Toopentherearcompartment,liftthecargo
floorcoverbytheplastichandle@).
348
>Appliesto:sedan:Hooktheplastichandle(2)
intotheluggagecompartmentseal.
>Toremovethecargofloorcovercompletely,
pullittowardtherearattheplastichandle@).
>
Appliesto:vehicleswithsparetire:Turn the
handlecounter-clockwiseandremovethespare
tire.
>Appliesto:sedan:Unhookthecargofloorcover
again
beforeclosingtheluggagecompartment
lid.
Dependingonvehicleequipment,thevehicletool
kit,tiremobilitykit,andcompressormaybelo-
catedunderanothercoverthatissecuredwitha
handwheel.
Appliesto:vehicleswithvehiclejackinthestor-
agebag:Thebagwiththevehiclejackissecured
tothetie-downsintheluggagecompartment
andmustbesecuredtothetie-downsagainafter
usingit.

ZXWARNING
Appliesto:vehicleswithvehiclejackinthestoragebag
Avehiclejackthatisunsecured,incorrectlyse-
cured, ornotsecuredintheluggagecompart-
mentmayslideoutofplacewhenbraking,
turning, orinanaccident,whichincreasesthe
riskofinjuriestovehiclepassengers.Tore-
ducetheriskofanaccident,nevertransport
thevehiclejackwithoutsecuringit.

ZA\WARNING
Improperuseofthevehiclejackcan causese-
riouspersonalinjuries.
—Neverusethescrewdriverhexheadtotight-
enwheelbolts,sincetheboltscannotattain
thenecessarytighteningtorqueifyouuse
thehexhead,potentiallycausinganacci-
dent.
—Thefactory-suppliedjackisintendedonly
foryourvehiclemodel.Undernocircum-
stancesshoulditbeusedtoliftheavyvehi-
clesorotherloads;youriskinjuringyour-
self.
—Neverstarttheenginewhenthevehicleis
raised,whichcouldcauseanaccident.
—Supportthevehiclesecurelywithappropri-
atestandsifworkistobeperformed

8W0012721BG

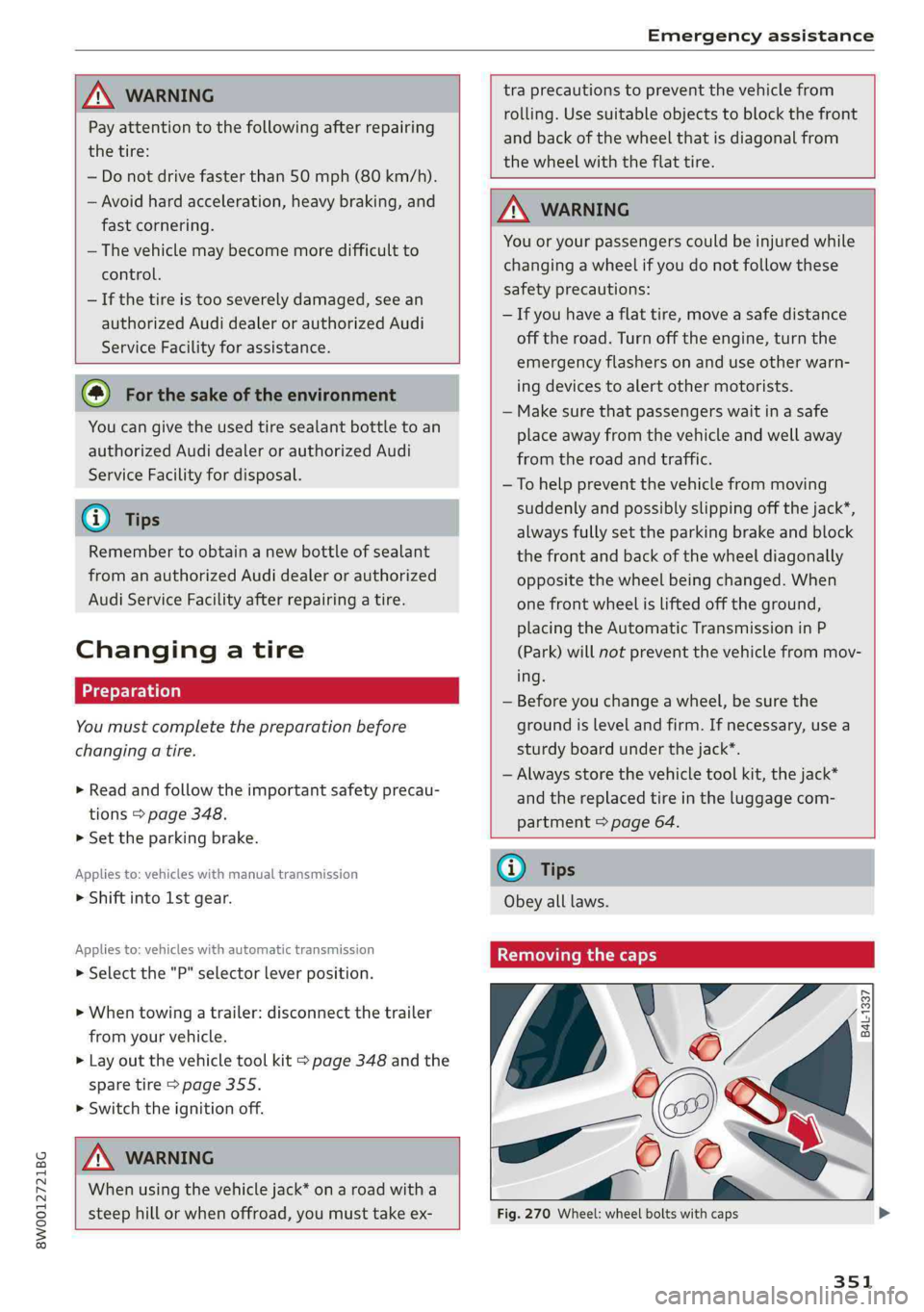

Emergencyassistance


ZA\WARNING
Payattentiontothefollowingafterrepairing
thetire:
—Donotdrivefasterthan50mph(80km/h).
—Avoidhardacceleration,heavybraking,and
fastcornering.
— Thevehiclemaybecomemoredifficultto
control.
—Ifthetireistooseverelydamaged,seean
authorizedAudidealerorauthorizedAudi
ServiceFacilityforassistance.

()Forthesakeoftheenvironment
Youcangivetheusedtiresealantbottletoan
authorizedAudidealerorauthorizedAudi
ServiceFacilityfordisposal.
@)Tips
Remembertoobtainanewbottleofsealant
fromanauthorizedAudidealerorauthorized
AudiServiceFacilityafterrepairingatire.
Changingatire
Youmustcompletethepreparationbefore
changingatire.
>Readandfollowtheimportantsafetyprecau-
tions>page348.
>Set theparkingbrake.
Appliesto:vehicleswithmanualtransmission
>Shiftinto1stgear.
Appliesto:vehicleswithautomatictransmission
>Selectthe"P"selectorleverposition.
>Whentowingatrailer:disconnectthetrailer
fromyourvehicle.
>Layoutthevehicletoolkit>page348andthe
sparetire>page355.
>Switchtheignitionoff.
traprecautionstopreventthevehiclefrom
rolling.Usesuitableobjectstoblockthefront
andbackofthewheelthatisdiagonalfrom
thewheelwiththeflattire.


Z\WARNING
Youoryourpassengerscouldbeinjuredwhile
changingawheelifyoudonotfollowthese
safetyprecautions:
—Ifyouhaveaflattire,moveasafedistance
offtheroad.Turnofftheengine,turnthe
emergencyflashersonanduseotherwarn-
ingdevicestoalertothermotorists.
—Makesurethatpassengerswaitinasafe
place
awayfromthevehicleandwellaway
fromtheroadandtraffic.
—Tohelppreventthevehiclefrommoving
suddenlyandpossiblyslippingoffthejack*,
alwaysfullysettheparkingbrakeandblock
thefrontandbackofthewheeldiagonally
oppositethewheelbeingchanged.When
onefrontwheelisliftedoffthe ground,
placingtheAutomaticTransmissioninP
(Park)willnotpreventthevehiclefrommov-
ing.
—Beforeyouchangeawheel,besurethe
groundislevelandfirm.Ifnecessary,usea
sturdyboardunderthejack”.
—Alwaysstorethevehicletoolkit,thejack*
andthereplacedtireintheluggagecom-
partment>page64.


Z\WARNING
Whenusingthevehiclejack”onaroad witha

steephillorwhenoffroad,youmusttakeex-

(i)Tips
Obeyalllaws.
Removingthecaps
\

N
a
é
?
Fig.270Wheel:wheelboltswith caps
351
