CheckingandFilling

OnBoardDiagnosticSystem
EnginedatacanbereadoutattheOnBoardDi-
agnosticSystemconnectionportusingaspecial
testingdevice>fig.253.
Indicatorlight
IftheSindicatorlightblinksorturnson,there
isamalfunctionthatiscausingpooremissions
qualityandthatcoulddamagethecatalyticcon-
verter.DriveslowlytoanauthorizedAudidealer
orauthorizedAudiServiceFacilitytohave the
malfunction
corrected.
Theindicatorlightcanalsoturnonifthefuelfill-
ercapisnotclosedcorrectly>page306).

Z\WARNING
Incorrectuseofthe connectionportforthe
OnBoardDiagnosticSystemcancausemal-
functions,whichcanthenresultinaccidents
andseriousinjuries.
—OnlyallowanauthorizedAudidealerorau-
thorizedAudiServiceFacilitytoreadout the
enginedata.

Enginecompartment
MelatimimsaCeMtalemeen)Seen1n
Specialcareisrequiredifyouareworkinginthe
enginecompartment
Forworkintheenginecompartment,suchas
checkingandfillingfluids,thereisariskofin-
jury,scalding,accidents,andburns.Forthis
reason,followallthewarningsandgeneral
safetyprecautionsprovidedinthe followingin-
formation.Theenginecompartmentisadan-
gerousarea.>/\.

Z\WARNING
—Turntheengineoff.
—Switchtheignitionoff.
—Settheparkingbrake.
—Onvehicleswithamanualtransmission,
movethegearshiftlevertoneutral,andon


)Dependingontheengine


vehicleswithanautomatictransmission,se-
lectthe“P”(Park)position.
—Allowtheenginetocool.
—Keepchildrenawayfromtheenginecom-
partment.
—Neverspillfluidsonahotengine.Theseflu-
ids(suchastheanti-freezingagentcon-
tainedinthecoolant)canignite.
—Avoidshortcircuitsintheelectricalsystem.
—Neverreachintotheradiatorfan.Thefanis
temperature-controlledandcanturnon
suddenly,evenwhentheignitionisswitched
off.
—Neveropenthehoodwhenthereissteamor
coolantescapingfromtheenginecompart-
ment,becausethereisariskthatyoucould
beburned.Waituntilnosteamorcoolantis
escaping.
—Neveropenthecaponthecoolantexpan-
siontankwhentheengineiswarm.The
coolingsystemisunderpressure.
—Toprotectyourface,hands,andarmsfrom
hotsteamorcoolant,coverthecapwitha
thick clothwhenopening.
—Donotremovetheenginecoverunderany
circumstances.Thisincreasestheriskof
burns.
—Duetotheriskofelectricshock,nevertouch
theignitioncableorothercomponentsin
theelectronichigh-voltageignitionsystem
whentheengineisrunningorisstarting.
—Ifagearisengagedwhilethevehicleissta-
tionaryandtheengineisrunning,donot
presstheacceleratorpedalinadvertently.
Pressingtheacceleratorpedalwillcausethe
vehicletomove,andthiscouldresultinan
accident.
—Ifinspectionsorrepairsmustbeperformed
whiletheengineisrunning,movingcompo-
nents(suchastheribbedbelt,generator,
and
radiatorfan)poseanadditionalrisk.
—Firstsettheparkingbrake,andthenmove
thegearshiftlevertoneutralonvehicles
withamanualtransmissionorselectthe

309

CheckingandFilling


“P”(Park)positiononvehicleswithanau-
tomatictransmission.
—Alwaysmakesurethatnopartsofthe
body,jewelry,ties,looseclothing,and
longhaircanbecaughtinmovingengine
components.Beforeanywork,alwaysre-
moveanyjewelryandties,tiebacklong
hair,andmakesureallclothingfitsclose
tothebodytotoreducetheriskofany-
thingbecomingcaughtinenginecompo-
nents.
—Payattentiontothefollowingwarnings
whenworkonthefuelsystemisrequired:
— Donotsmoke.
—Neverworknearopenflames.
—Alwayshaveaworkingfireextinguisher
nearby.
—Allworkonthebatteryorelectricalsystem
inyourvehiclecanresultininjuries,chemi-
calburns,accidents,or burns.Becauseof
this,allworkmustbeperformedonlyby an
authorizedAudidealerorauthorizedAudi
ServiceFacility.
—Limityour exposuretoexhaustandchemi-
calsto asshortatimeaspossible.

Z\WARNING
CaliforniaProposition65Warning:
—Engineexhaust,someofitsconstituents,
andcertainvehiclecomponentscontainor
emitchemicalsknowntotheStateofCali-
forniatocausecancerandbirthdefectsand
reproductiveharm.Inaddition,certainflu-
idscontainedinvehiclesandcertainprod-
ucts ofcomponentwearcontainoremit
chemicalsknowntotheStateofCalifornia
tocausecancerandbirthdefectsorother
reproductiveharm.
—Batteryposts,terminalsandrelatedacces-
soriescontainleadandleadcompounds,
chemicalsknowntotheStateofCalifornia
tocausecancerandreproductiveharms.
Washhandsafterhandling.

310
CG)Note
Whenfillingfluids,besurenottoaddanyflu-
idstothewrongreservoirs.Otherwisesevere
malfunctionsandenginedamagewilloccur.
@)Forthesakeoftheenvironment
Youshouldregularlycheckthegroundunder
yourvehicleinordertodetectleaksquickly.If
therearevisiblespotsfromoilorotherfluids,
bringyourvehicletoanauthorizedAudideal-
erorauthorizedAudiServiceFacilitytobe
checked.

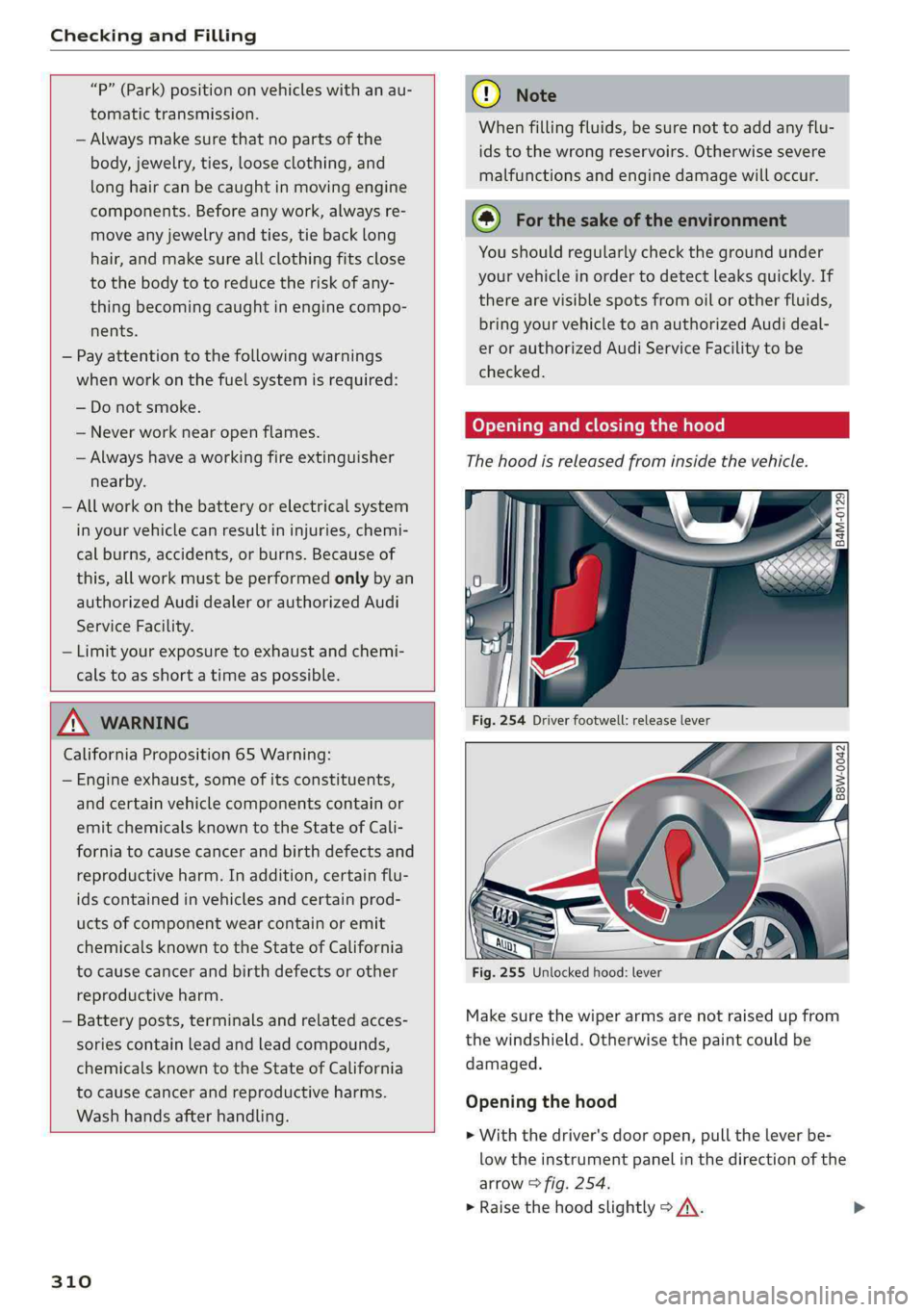

Openingandclosingthehood
Thehoodisreleasedfrominsidethevehicle.

B8W-0042


Fig.255Unlockedhood:lever
Makesurethewiperarmsarenotraisedupfrom
thewindshield.Otherwisethepaintcouldbe
damaged.
Openingthehood
>Withthedriver'sdooropen,pulltheleverbe-
lowtheinstrumentpanelinthedirectionofthe
arrow>fig.254.
>Raisethehoodslightly>A\.

8W0012721BG
CheckingandFilling

>Pressthelever>fig.255inthedirectionofthe
arrow.Thisreleasesthehooks.
>Openthehood.
Closingthehood
>Pushthehooddownuntilyouoverridethe
forceofthestruts.
>»Letthehoodfalllightlyintothelatch.Donot
pressitin.>/\.

ZAWARNING
—Neveropenthehoodwhenthereissteamor
coolantescapingfromtheenginecompart-
ment,becausethereisariskthatyoucould
beburned.Waituntilnosteamorcoolantis
escaping.


Enginecompartmentove
—Forsafetyreasons,thehoodmustalwaysbe
closedsecurelywhiledriving.Becauseof
this,alwayscheckthehoodafterclosingit
tomakesureitislatchedcorrectly.Thehood
islatchedifthefrontcornerscannotbelift-
ed.
—Ifyounoticethatthehoodisnotlatched
whileyouaredriving,stopimmediatelyand
closeit,becausedrivingwhenthehoodis
notlatchedincreasestheriskofanaccident.
—Ifthehoodisnotlatchedcompletely,it
couldflyupwhileyouaredrivingandob-
structyourvision.

Themostimportantcheckpoints.

aimN
Fig.256Typicallocationof thereservoirandtheengineoilfilleropening
Followthesafetyprecautions>page309.
@Washerfluidreservoir(S)>page320

@Jumpstartpoints:(+)underacover,(-)with
hexheadscrew>page319>page362
)Engineoil filleropening(7) >page313
311
>

CheckingandFilling

@®Engineoillabel*withVWstandard
=>page312
©Coolantexpansiontank(-£)>page316
©Brakefluidreservoir(C))>page317
Thecoolantexpansiontankandtheengineoil
fillingopeningmaybelocatedindifferentplaces
within
theenginecompartment,dependingon
theengineversion.
Engineoil
Iftheengineoillevelistoolow
Ifyouneedtoaddengineoil,useanoilthatis
listedonthesticker.Thestickerislocatedatthe
frontoftheenginecompartment>page311,
fig.256.
Iftherecommendedengineoilisnotavailable,in
anemergencyyoumayaddamaximumof1
quart(1liter)ofACEAC3orAPISNengineoil
onetimeuntilthenextoilchange.
Formoreinformationonthecorrectengineoil
foryourvehicle,contactanauthorizedAudideal-
erorauthorizedAudiServiceFacility.Havetheoil
changedbyanauthorizedAudidealerorauthor-
izedServiceFacility.

Audirecommends
Slastiol(ZIDIBIEProrzssional
AudirecommendsusingtheLongLifehigh-per-
formanceengineoilfromAudiGenuineParts.
Messages
Engineoilpressure


&Turnoffengine.Oilpressuretoolow
Stopdrivingandswitchtheengineoff.Checkthe
engineoillevel>page313.
—Iftheengineoillevelistoolow,addengineoil
=>page314.Onlycontinuedrivingoncethein-
dicatorlightturnsoff.
—Iftheengineoilleveliscorrectandtheindica-
torlightstillturnson,turntheengineoffand
do
notcontinuedriving.SeeanauthorizedAudi
dealerorauthorizedAudiServiceFacilityforas-
sistance.
312
Engineoillevel
Applies
to:vehicleswithoillevelwarning
BPleaseaddoilimmediately.
Stoptheengineanddonotcontinuedriving.
Checktheengineoillevel>page313and add
engineoilimmediately>page314.
2Pleaseaddmax.xqt(xl)oil.Youcancon-
tinuedriving
Addtheamountof oil shownimmediately
>page314.
Reducingtheoillevel
3Pleasereduceoillevel.
Thereistoomuchoilintheengineandthereisa
risk
ofdamagingthecatalyticconverteroren-
gine.DrivetoanauthorizedAudidealerorau-
thorizedAudiServiceFacilityimmediatelytohave
engineoilextractedifnecessary.Avoidhighen-
ginespeeds,fullacceleration,andheavyengine
loads.
Engineoilsensor
&Oillevelsensor:oilchangenecessary.Please
contactService
Fuelhasenteredtheengineoil.Thiswillcause
theengineoilleveltoriseslowlyandtheengine
oilqualitytodecrease.Donotextractengineoil
toreducethelevel,becausethiswillincreasethe
riskofenginedamage.DrivetoanauthorizedAu-
didealerorauthorizedAudiServiceFacilityim-
mediatelytohaveengineoilextracted.
&Oillevelsystem:malfunction!Pleasecon-
tactService
Thesensorthatcheckstheengineoillevelhas
malfunctioned.DrivetoanauthorizedAudideal-
erorauthorizedAudiServiceFacilityimmediately
tohavethemalfunctioncorrected.
2Oilpressuresensor:malfunction!Please
contactService
Thesensorthatcheckstheengineoilpressure
hasmalfunctioned.DrivetoanauthorizedAudi
dealerorauthorizedAudiServiceFacilityimmedi-
atelytohavethemalfunctioncorrected.

8W0012721BG
CheckingandFilling

Enginewarm-uprequest
|F|Pleasedrivetowarmupengine
Fuelhasenteredtheengineoil,eitherduetolow
outsidetemperaturesorfrequentshortdrives.
Driveuntiltheengineiswarmso thatthefuelin
theengineoilwillevaporate.Avoidhighengine
speeds,fullaccelerating,andheavyengineloads
whendoingthis.
@Tips
Theoilpressurewarning2isnotanoillevel
indicator.
Alwayschecktheoillevelregularly.
Checkingtheengineoillevel
TheengineoillevelcanbecheckedintheInfo-
tainmentsystem
Observethesafetyprecautions>A\inWorking
intheenginecompartmentonpage309.
>Parkthevehicleonalevelsurface.
>»Shuttheengineoffwhenitiswarm.
>Switchonlytheignitionbackon.
>Waitapproximatelytwominutes.
>SelectintheInfotainmentsystem:the[MENU
button>Vehicle>leftcontrolbutton>Service
&checks>Oillevel.
>Readtheoillevelinthedisplay.Addengineoil
ifthe barintheoillevelindicatorisjustbelow
“min”>page314.
@)Note
Iftheengineoillevelistoolowortoohigh,
thereisariskofenginedamage.
@)Tips
Theoillevelindicatorinthedisplayisonlyan
informationaldisplay.Iftheoillevelistoo
low,aminimumoilwarningappearsinthein-
strumentcluster.Addoilandclosethehood.
ThecurrentoillevelisdisplayedintheInfo-
tainmentsystemthenexttimetheignitionis
switchedon.
@Tips
Theengineoilconsumptionmaybeupto
0.5quart/600miles(0.5liter/1,000km),de-


pendingondrivingstyleandoperatingcondi-
tions.Consumptionmaybehigherduring the
first3,000miles(5,000km).Theengineoil
levelmustbecheckedregularly.Itisbestto
check eachtimeyourefuelyourvehicleand
before longdrives.
—Becauseofthelubricationandcoolingof
theengine,combustionenginesconsume
oil.Theoilconsumptionvariesdepending
ontheengineandmaychangeduring the
servicelifeoftheengine.Enginesgenerally
consumemoreoilatthe beginningduring
thebreak-inperiod.Thenoilconsumption
stabilizes afterthebreak-inperiod.
—Undernormalconditions,oilconsumption
dependsonthequalityandviscosityofthe
oil,theengineRPM,theclimateconditions,
andtheroadconditions.Thedilutionofoil
fromcondensationorfuelresidueaswellas
theageoftheoilalso playarole.Because
enginewearincreaseswithmileage,oilcon-
sumptionwillincreaseagainovertimeuntil
itmaybenecessarytoreplaceworncompo-
nents.
—Becauseallthesevariablesplayarole,itis
notpossibletodefineanoilconsumption
standard.Therefore,theoillevelmustbe
checkedregularly.
—Ifyoubelievethatyourenginehasin-
creaseditsoilconsumption,contactanau-
thorizedAudidealerorauthorizedAudi
ServiceFacilitytodeterminethecause.
Pleasenotethatanexactoilconsumption
measurementmustbedonewiththeneces-
sary careandaccuracyandmaytaketime.
AnauthorizedAudidealerorauthorizedAu-
diServiceFacilityistrainedinaccurately
measuringtheoilconsumption.
—Youcanfindinformationonengineoiland
engineoilcapacitiesfortheUSAatwww.
audiusa.com/help/maintenance,orforCan-
adaatwww.audi.ca/ca/web/en/
customer-area/care-and-maintenance/
audi-service-schedules.html,orcall
800-822-2834.
313

CheckingandFilling

Addingengineoil

B8K-2120



Fig.257Enginecompartment:engineoilfilleropening
cover
Observethesafetyprecautions>A\inWorking
intheenginecompartmentonpage309.
>Turn theengineoff.
>Openthehood>page310.
>Unscrewthecap%~fortheengineoilfiller
opening>fig.257.
>Carefullyadd0.5quart(0.5liter)ofthecorrect
oil>page312.
>Closetheengineoilfilleropeningcap.
>Closethehood>page310.
>Restarttheignitionaftertwominutesandread
thecurrentoillevelintheInfotainmentsystem
=>page313,Checkingtheengineoillevel.
>Addmoreoilifnecessary.

ZXWARNING
—Whenaddingoil,donotletoildripontohot
enginecomponents.Thisincreasestherisk
ofafire.
—Youmustsealthecapontheoilfilleropen-
ingcorrectlyso thatoildoesnotleakouton-
tothe hotengineandexhaustsystemwhen
theengineisrunning,becausethisisa fire
hazard.
—Alwayscleanskinthoroughlyifitcomesinto
contactwithengineoil.
—Engineoilispoisonousandmustbekeptout
ofreachofchildren.
—Storetheengineoilsecurelyintheoriginal
container.


@)Note
— TheNewVehicleLimitedWarrantydoesnot
coverdamageormalfunctionsiftherecom-
314
mendedintendeduseofthevehicleand
maintenance
measureslistedinthe Audi
Owner'sManualandtheWarranty&Main-
tenanceBookletwerenotfollowed.
—Onlyusehigh-gradeengineoilthatexplicit-
lymeetsthe Audioilqualitystandardfor
yourvehicle.Usinganotheroilmaycause
severevehicledamage.
—Donotmixanyadditionallubricantsinto
theengineoil.Damagecausedbysuchaddi-
tivesisnotcoveredbythewarranty.
(@)Forthesakeoftheenvironment
—Oilshouldnever enterthesewersystemor
come
intocontactwiththeground.
—Followthelegalregulationsinthecountry
whereyouarelocatedwhendisposingof
emptyoilcontainers.
Changingengineoil
Werecommendhavingtheoilchangedatanau-
thorizedAudidealerorauthorizedAudiService
Facility.
Followthesafetyprecautions>page309,Work-
ingintheenginecompartment.
Theengineoilmustbechangedattheintervals
specifiedintheWarranty&MaintenanceBook-
let.Thisisveryimportantbecausethelubrication
functionoftheoilgraduallydeclinesduringregu-
larvehicleoperation.
Theengineoilshouldbechangedmorefrequent-
lyundercertaincircumstances.Havetheoil
changedmorefrequentlyifyouoftendriveshort
distances,yourvehicleispredominantlyinstop-
and-gotrafficsituations,isinverydustyenviron-
ments,orisoperatedforlongperiodsoftimein
temperaturesbelowzero.
Cleansingadditivesintheoilmakefreshoilap-
peardarkeraftertheenginehasrunbriefly.This
isnormalandnoreasontochangetheengineoil
morefrequentlythanrecommended.
Becausecorrectlydisposingofengineoilisdiffi-
cultandspecialtoolsandtechnicalknowledge
areneededforanoilchange,havingyourengine

8W0012721BG
CheckingandFilling

oilchangedby anauthorizedAudidealeror au-
thorizedAudiServiceFacilityisrecommended.
Ifyouchangetheengineoilyourself,pleasenote
thefollowingimportantinformation:

ZA\WARNING
Ifyouchangetheengineoilonthevehicle
yourself,thefollowingprecautionsmustbe
followed:
—Wearprotectiveeyewear.
—Duetotheriskofscalding,allowtheengine
to cooldownsufficiently.
—Maintainenoughdistancewhenyouarere-
movingtheoildrainplug.Whiledoingthis,
keep yourforearmparalleltothegroundto
reducetheriskofhotoildrippingdownyour
arm.
—Draintheoilintoacontainerdesignedfor
thispurposethatislargeenoughtoholdthe
fullamountofoilinyourengine.
—Engineoilispoisonous.Alwaysstoreoutof
reachofchildren.
—Prolongedcontactofusedengineoilwith
theskinmaycauseskindamage.Always
washoiloffimmediatelywithsoapand wa-
tertoprotectyourskin.

@®)Note
Donotmixanyadditiveswiththeengineoil.
Additivesmaycauseengine damagethatis
notcoveredbyyourNewVehicleLimitedWar-
ranty.
@Forthesakeoftheenvironment
—Beforechangingtheengineoil,makesure
youcandisposeoftheusedengineoilcor-
rectly.
—Engineoilmustalways bedisposedofcor-
rectly.Donot dumpitintheyard,inthefor-
est,orinopenwater,riverchannels,orsew-
ers.
—Haveyour usedengineoilrecycledbybring-
ingittoausedoilcollectionsiteorcontact
agasstation.
Coolingsystem
Theenginecoolingsystemisfilledwithamixture
ofpurifiedwaterandcoolantadditiveatthefac-
tory.Thiscoolantmustnotbenotchanged.
ThecoolantlevelismonitoredthroughtheBin-
dicatorlight>page22.However,occasionally
checkingthecoolantlevelmanuallyisrecom-
mended.
Ifyoumustaddcoolant,useamixtureofwater
andcoolantadditive.Mixing thecoolantadditive
withdistilledwaterisrecommended.
Coolantadditive
Thecoolantadditiveismadeofanti-freezingand
corrosionprotectionagents.Onlyuse thefollow-
ingcoolantadditives.Theseadditivesmaybe
mixedwitheachother.

CoolantadditiveSpecification
G12++TL774G
G131TL774]




Theamountofcoolantadditivethatneedstobe
mixedwithwaterdependsontheclimatewhere
thevehiclewillbeoperated.Ifthecoolantaddi-
tivepercentageistoolow,thecoolantcanfreeze
anddamagetheengine.

CoolantFreezeprotec-
additivetion
Warmmin.40%min.-13°F
regionsmax.45%(-25°C)
Cold min.50%max.-40°F
regionsmax.55%(-40°C)


C@)Note
—Beforethestartofwinter,haveanauthor-
izedAudidealerorauthorizedAudiService
Facilitycheckifthecoolantadditiveinyour
vehiclematchesthepercentageappropriate
fortheclimate.Thisisespeciallyimportant
whendrivingincolderclimates.
—Iftheappropriatecoolantadditiveisnot
availableinanemergency,donotadd any
otheradditive.Youcoulddamagethe
315

CheckingandFilling

engine.Ifthishappens,onlyusewaterand
restorethecorrectmixtureratiowiththe
specifiedcoolantadditiveassoonaspossi-
ble.
—Onlyrefillwithnewcoolant.
—Radiatorsealantmustnot bemixedwith
thecoolant.
Addingcoolant

©=FeRAZ-0540


MIN

Fig.258Enginecompartment-coolantexpansiontank
(diagram):@coverwithreleasebutton;2)markings
Observethesafetyprecautions>page309,
Workingintheenginecompartment.
Checkingtheenginecoolantlevel
>Parkthevehicleonalevelsurface.
>Switchtheignitionoff.
>Readthecoolantlevelonthecoolantexpansion
tank>page311,fig.256.Thecoolantlevel
mustbebetweenthemarkings@)>fig.258
whentheengineiscold.Whentheengineis
warmitcanbeslightlyabovetheupper mark-
ing.
Addingcoolant
>Allowtheenginetocool.
> Placealarge,thicktowelonthecoolantexpan-
siontankcover.
>Pushthereleasebutton(@)9fig.258onthe
capandcarefullyturnittotheleftuntilyou
feelresistance>/\.
>Pushthereleasebuttonagainandremovethe
capcompletely.
>Makesurethatthefluidlevelremainsstable.
Add morecoolantifnecessary.
>
Turn thecaptotherighttotightenituntilyou
feelresistanceasecondtime.
316
Coolantlossusuallyindicatesthatthereisaleak.
Immediatelydriveyourvehicletoanauthorized
AudidealerorauthorizedAudiServiceFacility
andhavethecoolingsysteminspected.Ifthe
coolingsystemisnotleaking,coolantlosscanre-
sultfromthecoolantboilingdueoverheating
andthenbeingforcedoutofthecoolingsystem.

ZA\WARNING
— Theenginecompartmentinanyvehiclecan
beadangerousarea.Stoptheengineandal-
lowitto coolbeforeworkingintheengine
compartment.Alwaysfollowtheinforma-
tionfoundin>page309,Workinginthe
enginecompartment.
—Neveropenthehoodifyoucan seeorhear
steamorcoolantescapingfromtheengine
compartment.Thisincreasestheriskof
burns.Thecoolingsystemisunderpressure.
Whenyounolongerseeorhearsteamor
coolantescaping,youmayopentheengine
compartmentwithcaution.
—Whenworkingintheenginecompartment,
rememberthattheradiatorfancanswitch
oneveniftheignitionisswitchedoff,which
increasestheriskofinjury.
—Coolantadditiveandcoolantcan bedanger-
oustoyourhealth.Forthisreason, storethe
coolantintheoriginalcontainerandaway
fromchildren.Thereisariskofpoisoning.

@)Note
Donotaddcoolantiftheexpansiontankis
empty.Theremaybe airinthecoolingsys-
tem,whichincreasestheriskofenginedam-
age.Ifthisisthecase,donotcontinuedriv-
ing.SeeanauthorizedAudidealerorauthor-
izedAudiServiceFacilityforassistance.
