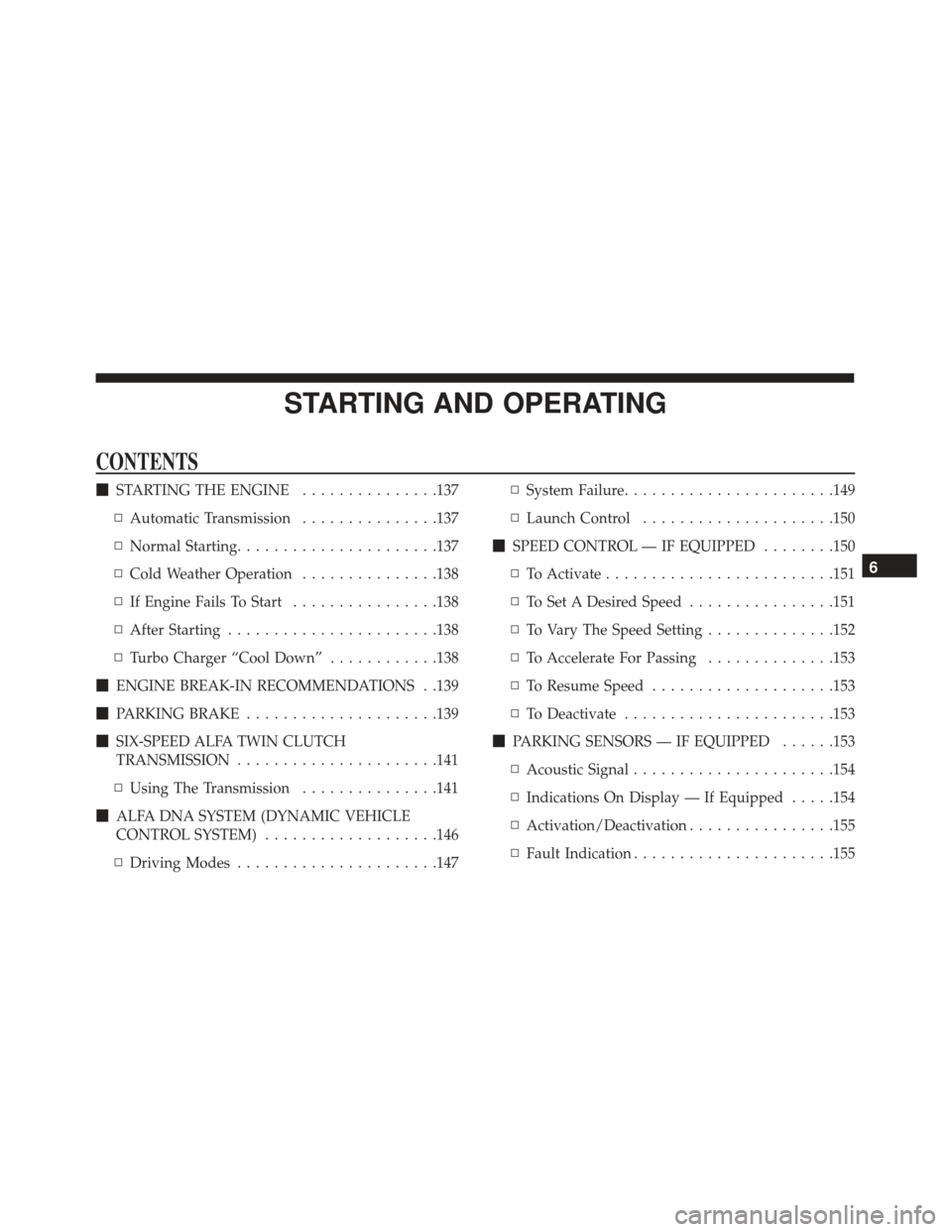

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ...............137
▫ Automatic Transmission ...............137
▫ Normal Starting ..................... .137
▫ Cold Weather Operation ...............138
▫ If Engine Fails To Start ................138
▫ After Starting ...................... .138
▫ Turbo Charger “Cool Down” ............138
 ENGINE BREAK-IN RECOMMENDATIONS . .139
 PARKING BRAKE .....................139
 SIX-SPEED ALFA TWIN CLUTCH
TRANSMISSION ..................... .141
▫ Using The Transmission ...............141
 ALFA DNA SYSTEM (DYNAMIC VEHICLE
CONTROL SYSTEM) ...................146
▫ Driving Modes ..................... .147▫
System Failure ...................... .149
▫ Launch Control .....................150
 SPEED CONTROL — IF EQUIPPED ........150
▫ To Activate ........................ .151
▫ To Set A Desired Speed ................151
▫ To Vary The Speed Setting ..............152
▫ To Accelerate For Passing ..............153
▫ To Resume Speed ....................153
▫ To Deactivate ...................... .153
 PARKING SENSORS — IF EQUIPPED ......153
▫ Acoustic Signal ..................... .154
▫ Indications On Display — If Equipped .....154
▫ Activation/Deactivation ................155
▫ Fault

Indication ..................... .155
6

To Accelerate For Passing
Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
To Resume Speed
To resume a previously set speed, push the CANCEL/
RESUME button, located on the end of the speed
control stalk, and release. Resume can be used at any
speed above 18 mph (30 km/h).
To Deactivate
A soft tap on the brake pedal, pushing the CANCEL/
RESUME button on the end of the stalk, or normal
brake pressure while slowing the vehicle will deactivate
the Speed Control without erasing the set speed
memory. Rotating the end of the multifunction lever to
the O (off) position, or turning the ignition switch to
OFF, erases the set speed memory.
PARKING SENSORS — IF EQUIPPED
The vehicle’s parking sensors are located in the rear
bumper, and will detect the presence of any obstacles
near the rear part of the vehicle while moving in
REVERSE gear. The driver is then informed through an
intermittent acoustic signal.
Parking Sensors
6
STARTING AND OPERATING 153

Acoustic Signal
When REVERSE gear is engaged, and there is an
obstacle behind the vehicle, an acoustic signal is emitted
which varies according to the distance of the bumper
from the obstacle.
The frequency of the acoustic signal:
•Increases as the distance between vehicle and ob-
stacle decreases, culminating in a continuous acous-
tic signal when the distance is less than approxi-
mately 12 inches (30 cm).
• Decreases if the distance from the obstacle increases,
until the signal ceases entirely.
• Remains constant if the distance between vehicle and
obstacle remains unchanged; if this situation con-
cerns the side sensors, the signal will stop after
approximately 3 seconds, for example, in the event of
parking along a wall.
If several obstacles are detected by the sensors, only the
nearest one is considered.
Indications On Display — If Equipped
When the sensors are activated, the parking sensor
display screen appears in the instrument cluster.
Obstacle presence and distance information is therefore
provided both by the acoustic signal and the instrument
cluster display.
The system indicates a detected obstacle by displaying
an arc in one or more positions according to the distance
of the obstacle and its position in relation to the vehicle.
Parking Sensor Display Screen
154 STARTING AND OPERATING

If an obstacle is detected in the rear central area, the
instrument cluster display shows all the arcs in the rear
central area, up to the one that corresponds to the
position of the obstacle itself.
The signal is similar for obstacles in the rear left or right
area.
The arc that corresponds to the position of the obstacle
will flash.
The color on the instrument cluster display depends on
the distance from and position of the obstacle.
The vehicle is close to the obstacle when the instrument
cluster display shows a single constant arc and emits a
continuous sound.
If there are several obstacles, the closest one is indi-
cated.
Activation/Deactivation
The sensors are automatically activated when REVERSE
gear is engaged and a visual display will appear in the
instrument cluster display. As the obstacle behind the
vehicle gets closer, the acoustic signal becomes more
frequent.
Fault Indication
Parking sensor failures, if any, will be indicated when
REVERSE gear is engaged by the illumination of the
warning light in the instrument cluster display.
General Warnings
When parking, take the utmost care over obstacles that
may be above or under the sensor.
Under certain circumstances, objects close to the vehicle
are not detected by the system and could therefore
cause damage to the vehicle or be damaged themselves.
Some conditions may influence the performance of the
parking sensors:
• The presence of ice, snow, mud or multiple layers of
paint on the sensor surface may cause reduced
sensitivity of the sensor itself and therefore reduce
the system performance.
• Mechanical interference (e.g washing the vehicle,
rain, strong wind, hail) may cause the sensor to
detect a non-existent obstacle (“echo interference”).
• The presence of ultrasonic systems (e.g. pneumatic
brake systems of trucks or pneumatic drills) near the
vehicle could alter the signals sent by the sensor.
6
STARTING AND OPERATING 155

•The variation in sensor position, caused by variation
in ride (due to suspension component wear), chang-
ing tires, overloaded vehicle, or tuning that lowers
the vehicle, for example, may affect parking sensor
system performance.
NOTE: The sensor must be free from mud, dirt snow or
ice in order for the system to operate correctly. Be
careful not to scratch or damage the sensors while
cleaning them. Avoid using dry, rough or hard cloths.
The sensors must be washed using clean water, with the
addition of car shampoo if necessary. When using
special washing equipment such as high pressure jets or
steam cleaning, clean the sensors very quickly keeping
the jet more than 4 inches (10 cm) away. Also, do not
apply stickers to the sensors.
WARNING!
Drivers must be careful when backing up even
when using the Parking Sensor system. Always
check carefully behind your vehicle, and be sure to
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You
are responsible for the safety of your surroundings
(Continued)
WARNING! (Continued)
and must continue to pay attention while backing
up. Failure to do so can result in serious injury or
death.
CAUTION!
•The Parking Sensor system is only a parking aid
and it is unable to recognize every obstacle,
including small obstacles. Parking curbs might be
temporarily detected or not detected at all. Ob-
stacles located above or below the sensors will
not be detected when they are in close proximity.
• The vehicle must be driven slowly when using
the Parking Sensor system in order to be able to
stop in time when an obstacle is detected. It is
recommended that the driver looks over his/her
shoulder when using the Parking Sensor system.
PARKVIEW REAR BACK UP CAMERA
The ParkView Rear Back Up Camera allows you to see
an on-screen image of your vehicle’s rear surroundings
when the gear selector is put into REVERSE. The image
will be displayed on the rearview mirror along with a
156 STARTING AND OPERATING
