2019 Alfa Romeo 4C Spider engine

NOTE:Always check that the decklid is closed correctly
to prevent it from opening while the vehicle is travel-
ling.
WARNING!
• The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
• Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
INTERNAL EQUIPMENT
Storage
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Console Storage
There is a cargo pouch storage area located between the
driver and passenger seat.
Driver ’s Side Seatback Storage
3
GETTING TO KNOW YOUR VEHICLE 53

Rear Compartment Storage
CAUTION!
•To prevent possible damage, do not slam the
decklid to close it. Use a firm downward push at
the center of the decklid to ensure the decklid
latch is fully engaged.
• During normal vehicle operation, the luggage
compartment (located rear of the engine) can
reach temperatures above 149 °F (65 °C). Do not
(Continued)
CAUTION! (Continued)
transport objects in the luggage compartment that
may be damaged at such temperatures. Do not
place aerosol cans in the luggage compartment.
Your vehicle is equipped with a storage area located
under the decklid.
Cargo Pouch Storage Location
Decklid Emergency Release
54 GETTING TO KNOW YOUR VEHICLE

WARNING!
Do not allow children to have access to rear storage
compartment. Always close the decklid when your
vehicle is unattended. Once in the rear storage
compartment, young children may not be able to
escape. If trapped in the rear compartment, children
can die from suffocation or heat stroke.
As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent
handle attached to the decklid latching mechanism.
WARNING!
• The maximum load limit for the luggage compart-
ment, in addition to the kits provided, is 33.1 lbs.
(15kg). Do not exceed the maximum permitted
load in the luggage compartment. When accessing
the rear luggage compartment, do not come into
contact with engine, or other components, that
may be hot and could burn you if touched.
(Continued)
Rear Compartment Light
3
GETTING TO KNOW YOUR VEHICLE 55

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
(Continued)
CAUTION! (Continued)
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
• Do not exceed the maximum power of 180 Watts
(15 Amps) at 12 Volts. If the 180 Watts (15 Amps)
power rating is exceeded, the fuse protecting the
system will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow
the fuse. Improper use of the power outlet can
cause damage not covered by your New Vehicle
Limited Warranty.
58 GETTING TO KNOW YOUR VEHICLE

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ................60
▫ Instrument Cluster Descriptions ...........61
 INSTRUMENT CLUSTER DISPLAY ..........62
▫ Location And Controls ..................62
▫ Change Engine Oil Indicator System .......64
▫ Instrument Cluster Display Programmable
Menu .............................64
▫ Values Displayed .....................71
 TRIP COMPUTER ......................73
▫ Trip Button .........................73
▫ Trip Functions .......................73
▫ NewTrip...........................74
▫ Start Of Trip Procedure .................74 ▫
Exit Trip ...........................74
 WARNING LIGHTS AND MESSAGES ........74
▫ Red Warning Lights ....................75
▫ Yellow Warning Lights ..................78
▫ Green Indicator Lights ..................82
▫ Blue Indicator Lights ...................82
 ONBOARD DIAGNOSTIC SYSTEM —
OBDII ..............................83
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................83
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............844

Instrument Cluster Descriptions
1. Temperature Gauge•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range
indicates that the engine cooling system is operat-
ing satisfactorily.
• The digital gauge will likely indicate a higher
temperature when driving in hot weather, or up
mountain grades. It should not be allowed to
exceed the upper limits of the normal operating
range.
NOTE: Driving with a hot engine cooling system could
damage your vehicle. The digital warning light may
switch on (together with a message on the display) to
indicate that the coolant temperature is too high; in this
case, stop the engine and contact a dedicated autho-
rized dealership.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
(Continued)
WARNING! (Continued)
for service if your vehicle overheats. If you decide
to look under the hood yourself, see “Servicing And
Maintenance.” Follow the warnings under the
Cooling System Pressure Cap paragraph.
2. Tachometer •This gauge measures engine revolutions per min-
ute (RPM x 1000). Before the pointer reaches the red
area, ease up on the accelerator to prevent engine
damage.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The digital display shows the amount of fuel in the
tank.
• The switching on of the digital warning light
indicates that 1 – 1.3 gallons of fuel are left in the
tank; in this situation, refuel as soon as possible.
• Do not travel with the fuel tank almost empty; any
gaps in fuel delivery could damage the catalytic
converter.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 61

Change Engine Oil Indicator System
Your vehicle is equipped with an engine oil
change indicator system. The “Change Engine Oil”
message will flash in the instrument cluster display for
approximately ten seconds and the oil pressure warning
light will illuminate. The “Change Engine Oil” message
in the instrument cluster display and the oil pressure
warning light will turn off after approximately ten
seconds.
Reset the Oil Change Reminder message as follows:
1. Without pushing the brake pedal, cycle the ignition to the MAR/ON/RUN position (do not start the
engine).
2. Push and hold the accelerator pedal.
3. Push and release the brake pedal six times; with a one second pause between each push of the brake
pedal.
4. After the 6th release of the brake pedal, pause one second and then release the accelerator pedal.
NOTE: Consult your authorized dealer if the oil change
indicator message does not reset.
Instrument Cluster Display Programmable Menu
The menu comprises a series of functions arranged in a
cycle. Push the upand down arrow buttons to access
the different options and settings (setup).
The setup menu can be activated by pushing the
SET/BACK button. Single pushes on the upordown
arrow buttons will scroll through the setup menu
options. The menu includes the following functions:
• Menu
• Speed Buzzer
• Trip B Data
• Set Time
• Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Seat Belt Buzzer
• Service
• Daylights (D.R.L.)
• Exit Menu
64 GETTING TO KNOW YOUR INSTRUMENT PANEL

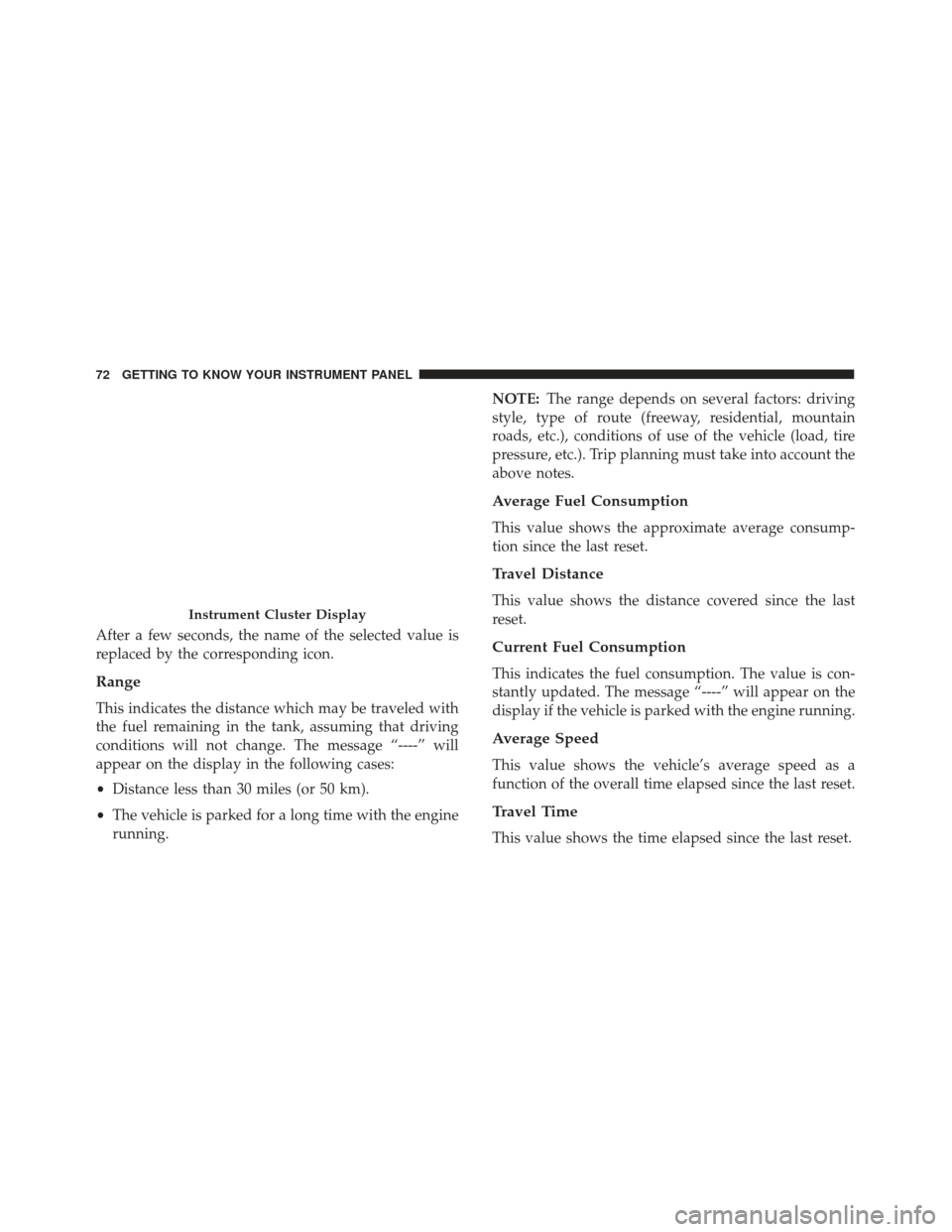

After a few seconds, the name of the selected value is
replaced by the corresponding icon.
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
•Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine
running. NOTE:
The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the vehicle (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Average Fuel Consumption
This value shows the approximate average consump-
tion since the last reset.
Travel Distance
This value shows the distance covered since the last
reset.
Current Fuel Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the vehicle is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Instrument Cluster Display
72 GETTING TO KNOW YOUR INSTRUMENT PANEL
