2019 Acura ILX TPMS

445

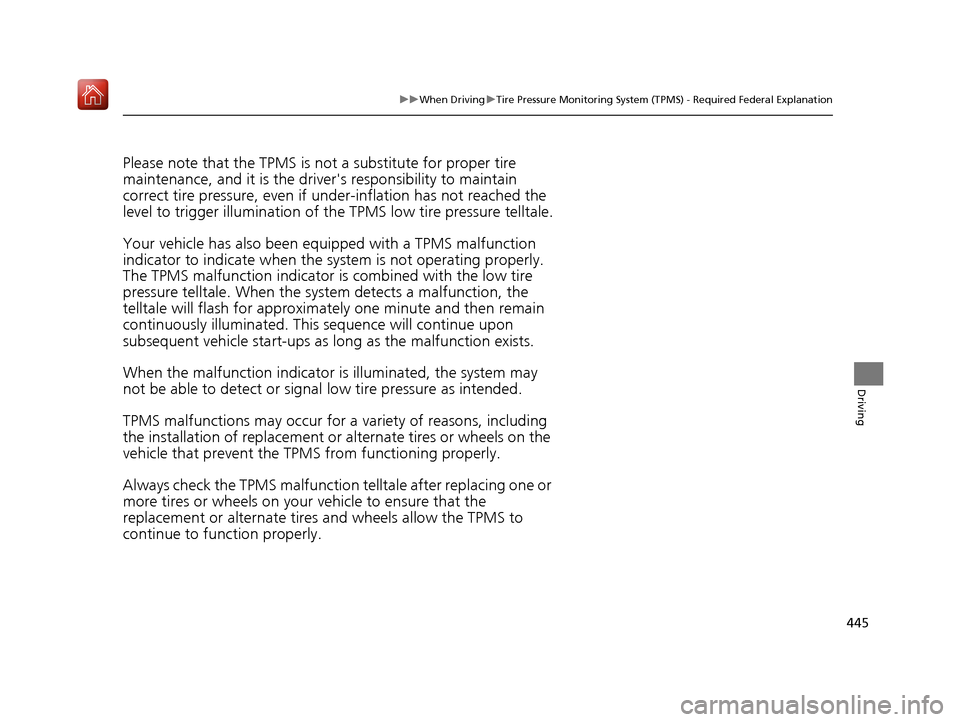

uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver 's responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
19 ACURA ILX-31TX66610.book 445 ページ ２０２０年４月１７日　金曜日　午前８時５２分

538
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Whenever you have a tire replaced or reset, make sure that the rubber valve stem is
replaced and that the TPMS sensor is trans ferred from the old valve stem to the new
one.
If you replace a wheel, make sure the wheel ’s specifications match those of the
original wheels.1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
19 ACURA ILX-31TX66610.book 538 ページ ２０２０年４月１７日　金曜日　午前８時５２分

553
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 554
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 555
Changing a Flat Tire ......................... 570
Engine Does Not Start Checking the Engine ........................ 577
If the Keyless Access Remote Battery is Weak ............................................. 578
Emergency Engine Stop ................... 579
Jump Starting .................................... 580
Models with optional spare tire
Shift Lever Does Not Move .............. 583
Overheating How to Handle Overheating............. 584
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 586
If the Charging System Indicator Comes
On ................................................. 586
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 587
If the Brake System Indicator (Red) Comes On .................................. 588
If the Electric Power Steering (EPS) System
Indicator Comes On......................... 588
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 589
Fuses Fuse Locations ................................. 590
Inspecting and Changing Fuses ........ 592
Emergency Towing ........................... 593
19 ACURA ILX-31TX66610.book 553 ページ ２０２０年４月１７日　金曜日　午前８時５２分

uuIf a Tire Goes Flat uChanging a Flat Tire
576
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).
■TPMS and the Spare Tire1 TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
19 ACURA ILX-31TX66610.book 576 ページ ２０２０年４月１７日　金曜日　午前８時５２分

589
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire is installed, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed levelM
19 ACURA ILX-31TX66610.book 589 ページ ２０２０年４月１７日　金曜日　午前８時５２分

614
Index
Indicators..................................................... 68
Adaptive Cruise Control (ACC) .... 76, 77, 459
Anti-lock Brake System (ABS) ..................... 71
Auto High-Beam ........................................ 74
Blind spot information System ........... 79, 440
Brake System (Amber)................................ 68
Brake System (Red) ............................ 68, 588
Charging System ............................... 70, 586
Collision Mitigation Braking System
TM (CMBSTM) ............................ 79, 80
Electric Power Steering (EPS) System .. 72, 588
Fog Light ................................................... 74
Gear Position ............................................. 69
High Beam................................................. 74
Immobilizer System .................................... 75
Keyless Access System ............................... 75
Lane Keeping Assist System (LKAS) .... 78, 476
Lights On ................................................... 74
Low Fuel .................................................... 71
Low Oil Pressure ................................ 69, 586
Low Tire Pressure/TPMS ..... 73, 442, 444, 589
Maintenance Minder ............................... 509
Malfunction Indicator Lamp ............... 70, 587
Parking Brake and Brak e System ........ 68, 588
Road Departure Mitigation (RDM) .............. 76
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 75
Sequential mode...................................... 436
Shift Lever Position .................................... 69
Supplemental Restraint System ............ 49, 72
System Message ........................................ 73 Transmission System.................................. 69
Turn Signal ................................................ 74
Vehicle Stability Assist
® (VSA ®)
System ............................................ 72, 437
VSA ® OFF .......................................... 73, 438
Information .............................................. 595
Information Screen .................................. 211
Instant Fuel Economy ................................. 93
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 206
Interior Lights ........................................... 164
Interior Rearview Mirror .......................... 152
iPhone ............................................... 258, 289
iPod ................................................... 195, 251
J
Jack (Wheel Nut Wrench) ........................ 573
Jump Starting ........................................... 580
K
Key Number Tag ....................................... 110
Keyless Access System .............................. 111
Keyless Lockout Prevention ..................... 118
Keys ........................................................... 108
Lockout Prevention.................................. 118
Number Tag ............................................ 110
Rear Door Won’t Open............................ 122
Remote Transmitter ................................. 116 Two-way Keyless Access Remote..... 119, 428
Types and Functions................................ 108
Kickdown (Dual Clutch Transmission) .... 432
L
Lane Keeping Assist System (LKAS)........ 474
LATCH (Child Seats) ................................... 57
License information ................................. 303
Lights ................................................ 139, 525
Automatic............................................... 140
Bulb Replacement ................................... 525
Daytime Running Lights .......................... 142
Fog Lights ............................................... 142
High-Beam Indicator ................................. 74
Interior.................................................... 164
Light Switches......................................... 139
Lights On Indicator .................................... 74
Turn Signals ............................................ 138
Limitations for Manual Operation .. 340, 370
Load Limits ............................................... 423
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 123
Childproof Door Locks ............................ 122
From Inside ............................................. 120
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 117
Lockout Prevention System ..................... 118
Low Battery Charge ................................. 586
Low Fuel Indicator ..................................... 71
19 ACURA ILX-31TX66610.book 614 ページ ２０２０年４月１７日　金曜日　午前８時５２分

617
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 442
Indicator ........................................... 73, 589
Tires .......................................................... 532
Air Pressure..................................... 533, 597
Checking and Maintaining ...................... 532
Flat Tire (Puncture) .................................. 555
Inspection ............................................... 532
Labeling .................................................. 533
Puncture (Flat Tire) .................................. 555
Regulations ............................................. 535
Rotation.................................................. 539
Spare Tire ............................................... 597
Summer .................................................. 540
Temporary Tire Repair Kit ........................ 556
Tire Chains.............................................. 540
Wear Indicators....................................... 537
Winter .................................................... 540
Tools ......................................................... 554
Towing a Trailer ....................................... 425
Towing Your Vehicle ............................... 425
Emergency .............................................. 593
TPMS (Tire Pressure Monitoring System) .................................................... 442
Transmission ............................................. 433
Automatic............................................... 433
Fluid ....................................................... 523
Gear Position Indicator .............................. 69
Number .................................................. 598
Sequential Mode..................................... 435
Shift Lever Position Indicator ................... 434 Trip Meter
................................................... 92
Troubleshooting ....................................... 553
Blown Fuse ...................................... 590, 591
Brake Pedal Vibrates .................................. 23
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 593
Engine Won’t Start .................................. 577
Flat Tire/Puncture ..................................... 555
Noise When Braking .................................. 24
Overheating ............................................ 584
Premium Gasoline ........................... 502, 596
Puncture/Flat Tire ..................................... 555
Rear Door Won’t Open ...................... 23, 122
Select Lever Won’t Move ......................... 583
Warning Indicators .................................... 68
Trunk ......................................................... 124
Lid ........................................................... 124
Light Bulb ................................................ 596
Open Message .......................................... 83
Turn Signals .............................................. 138
Indicators (Instrument Panel) ...................... 74
Turn-by-Turn Directions ............................. 93
Two-way Keyless Access Remote ..... 119, 428
U
Unlocking the Doors................................ 111
Unlocking the Front Doors from the Inside ................................................. 12, 120
USB Adapter Cable ........................... 176, 178
USB Flash Drives ........................................ 289 USB Port
.................................................... 179
Using the Keyless Access System ............. 111
V
Vanity Mirrors............................................... 7
Vehicle Identification Number ................ 598
Vehicle Stability Assist ® (VSA ®)................ 437
Off Button............................................... 438
Off Indicator.............................................. 73
System Indicator ........................................ 72
Viscosity (Oil) .................................... 516, 597
Voice Control Operation .......................... 218
Voice Portal Screen.................................. 219
Voice Recognition ................................... 218
VSA ® (Vehicle Stability Assist ®)................ 437
W
Wallpaper ................................................. 214
Wallpaper Setup ....................................... 186
Warning and Info rmation Messages ......... 81
Warning Indicator On/Blinking ............... 586
Warning Labels ........................................... 66
Warranties (Warranty Manual provided separately) .............................................. 603
Watts ......................................................... 596
Wear Indicators (Tire) .............................. 537
Wheel Nut Wrench (Jack Handle) ........... 573
19 ACURA ILX-31TX66610.book 617 ページ ２０２０年４月１７日　金曜日　午前８時５２分
