2019.75 VAUXHALL CROSSLAND X Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 41.
Seat adjustment 3 42.
Backrests inclination
Turn handwheel. Do not lean on
backrest when adjusting.
Seat position 3 41.
Seat adjustment 3 42.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 41.
Seat adjustment 3 42.

8In briefSeat inclination
Press switch
top:front end higherbottom:front end lower
Seat position 3 41.
Seat adjustment 3 42.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 40.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 41.
Seat belts 3 46.
Airbag system 3 49.

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 35.
Automatic anti-dazzle interior mirror 3 35.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 33.
Electric adjustment 3 33.
Folding mirrors 3 34.
Heated mirrors 3 34.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 41.
Ignition switch positions 3 122.
Power button 3 122

10In briefInstrument panel overview

In brief111Power windows .....................36
2 Exterior mirrors .....................33
3 Cruise control .....................139
Speed limiter ....................... 141
Heated steering wheel .........70
4 Turn lights ........................... 103
Headlight flash ....................101
High beam ........................... 100
High beam assist ...............100
Exit lighting ......................... 106
Parking lights ...................... 104
Buttons for Driver
Information Centre ................87
5 Side air vents ...................... 117
6 Instruments .......................... 77
Driver Information Centre ...... 87
7 Infotainment controls ...........70
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 71
9 Head-up display ....................92
10 Centre air vents .................. 11711Hazard warning flashers ....102
12 Info Display .......................... 90
13 Centre air vent ....................118
14 Anti-theft alarm system
status LED ........................... 31
15 Central locking system ..........23
16 Glovebox .............................. 61
Fuse box ............................ 190
17 Controls for Info Display
operation ............................... 90
18 Climate control system ........ 108
19 USB port .............................. 74
20 Electronic Stability Control
and Traction Control ...........137
Lane departure warning .....162
Stop-start system ................125
Parking assist ..................... 149
Advanced parking assist ....152
Electric child locks ................ 28
21 Power outlet .......................... 74
22 Selector lever ...................... 132
23 Parking brake ......................136
24 Power button ....................... 122
25 Ignition switch .....................12226Steering wheel adjustment ..70
27 Horn ..................................... 71
28 Bonnet release lever ..........174
29 Storage ................................. 61
Fuse box ............................ 190
30 Head-up display ....................92
31 Light switch .......................... 99
Headlight range
adjustment ......................... 101
Front fog lights ...................103
Rear fog light ...................... 104
Instrument illumination .......105

12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 100.
Front fog lights 3 103.
Rear fog light 3 104.
Headlight flash and high beampull:headlight flashpush:high beam
High beam 3 100.
High beam assist 3 100.
Headlight flash 3 101.
LED headlights 3 102.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 103.
Parking lights 3 104.

In brief13Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 102.
Horn
Press j.

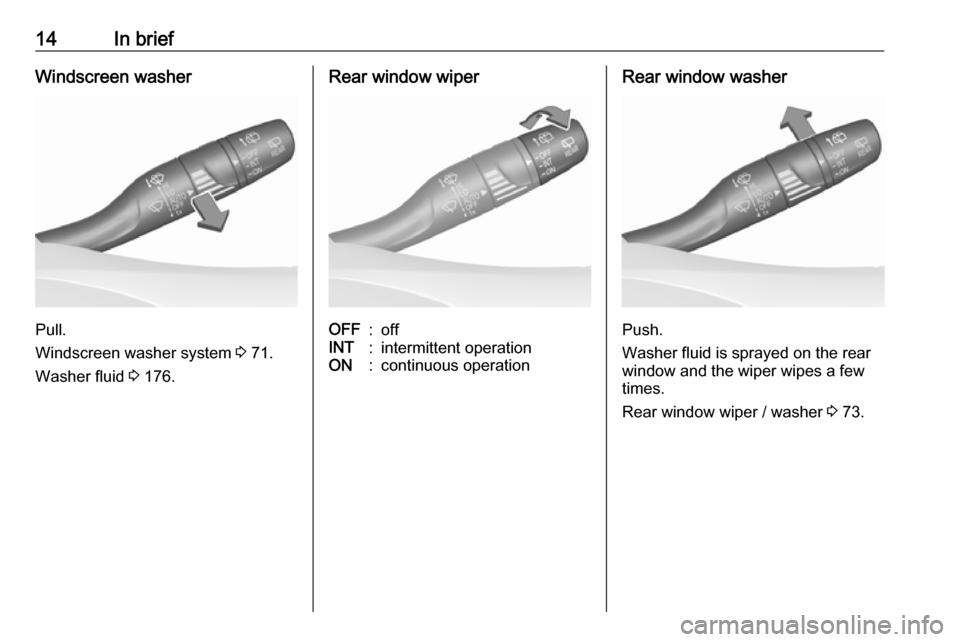

Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off1x:single wipe
Windscreen wiper 3 71.

14In briefWindscreen washer
Pull.
Windscreen washer system 3 71.
Washer fluid 3 176.
Rear window wiperOFF:offINT:intermittent operationON:continuous operationRear window washer
Push.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 73.
