2019.5 OPEL ASTRA K Manual user

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 47.
Manual seat adjustment 3 48.
Power seat adjustment 3 50.
Backrests inclination
Turn handwheel. Do not lean on
backrest when adjusting.
Seat position 3 47.
Manual seat adjustment 3 48.
Power seat adjustment 3 50.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 47.
Manual seat adjustment 3 48.
Power seat adjustment 3 50.

8In briefSeat inclination
Press switch
top:front end higherbottom:front end lower
Seat position 3 47.
Manual seat adjustment 3 48.
Power seat adjustment 3 50.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 46.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 47.
Seat belts 3 56.
Airbag system 3 58.

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 40.
Automatic anti-dazzle interior mirror 3 41.
Exterior mirrors
Select the relevant exterior mirror by
switching the rocker control to left
mirror (L) or right mirror (R). Adjust
respective mirror by the four-way control.
Convex exterior mirrors 3 39.
Electric adjustment 3 39.
Folding exterior mirrors 3 39.
Heated exterior mirrors 3 40.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 58.
Ignition positions 3 158.

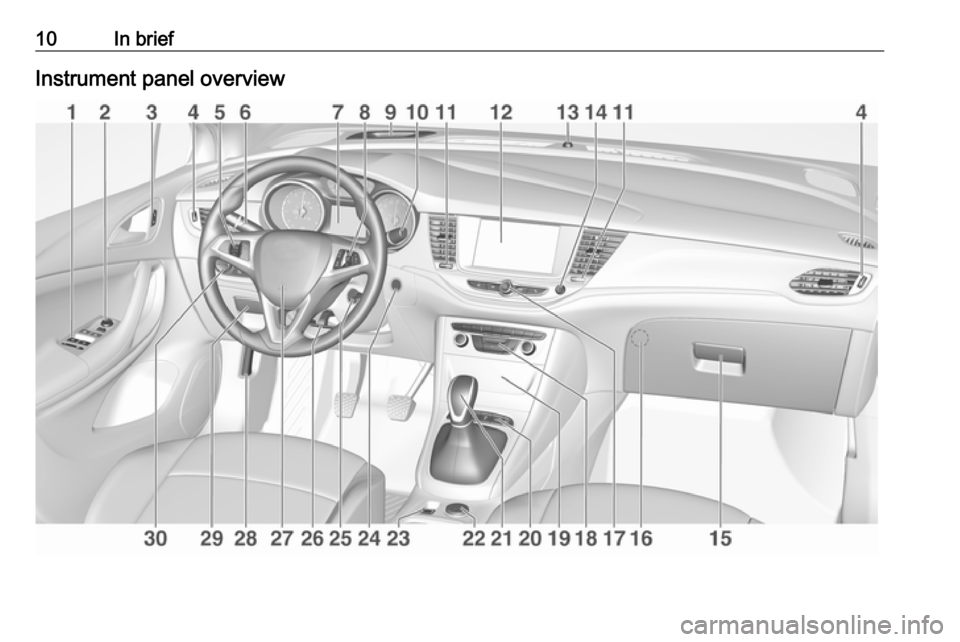

10In briefInstrument panel overview

In brief111Power windows .....................41
2 Exterior mirrors .....................39
3 Central locking system ..........24
4 Side air vents ...................... 155
5 Cruise control .....................181
Speed limiter ....................... 183
Adaptive cruise control .......185
Forward collision alert .........192
6 Turn lights, headlight
flash, low / high beam,
high beam assist .................141
Exit lighting ......................... 145
Parking lights ...................... 142
Buttons for Driver
Information Centre ..............114
7 Instruments ........................ 102
Driver Information Centre .... 114
8 Buttons for Driver
Information Centre ..............114
9 Forward collision alert
indicator ............................. 192
10 Windscreen wiper and
washer, rear wiper and
washer ................................. 9211Centre air vents ................... 155
12 Info Display ......................... 119
13 Anti-theft alarm system
status LED ........................... 36
14 Hazard warning flashers ....141
15 Glovebox .............................. 71
16 CD player
17 Controls for Info Display
operation ............................. 119
18 Climate control system ........ 148
19 Fuse box ............................ 248
20 Traction Control system .....178
Electronic Stability Control . 179
Sport mode ........................ 181
Parking assist / Advanced
parking assist .....................199
Lane keep assist ................214
Eco button for stop-start
system ................................. 163
Fuel selector ....................... 104
21 Manual transmission ..........175
Automatic transmission ......172
22 Power outlet .......................... 97
23 Parking brake ......................17624Power button ....................... 159
25 Ignition switch .....................158
26 Steering wheel adjustment ..91
27 Horn ..................................... 92
28 Bonnet release lever ..........229
29 Storage compartment ...........72
30 Light switch ........................ 135
Headlight range
adjustment ......................... 138
Front / rear fog lights ..........142
Instrument illumination .......143

12In brief

In brief13Exterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 136.
Front fog lights 3 142.
Rear fog light 3 142.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 138.
Headlight flash 3 138.
LED headlights 3 139.
High beam assist 3 139.
Turn lightslever up:right turn lightslever down:left turn lights
Turn lights 3 141.
Parking lights 3 142.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 141.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 92.
