Storage71StorageStorage compartments................71
Glovebox ................................... 71
Cupholders ................................ 71
Front storage ............................. 72
Overhead console .....................73
Underseat storage .....................74
Centre console storage .............75
Footwell storage ........................75
Load compartment .......................76
Ladder flap ................................ 76
Load compartment cover ...........77
Lashing eyes ............................. 80
Cargo management system ......80
Safety net .................................. 81
Load compartment grille ............83
Warning triangle ........................86
First aid kit ................................. 86
Roof rack system .........................86
Roof rack ................................... 86
Loading information .....................87Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.
Glovebox
To open the glovebox pull the handle.
The glovebox should be closed whilst driving.

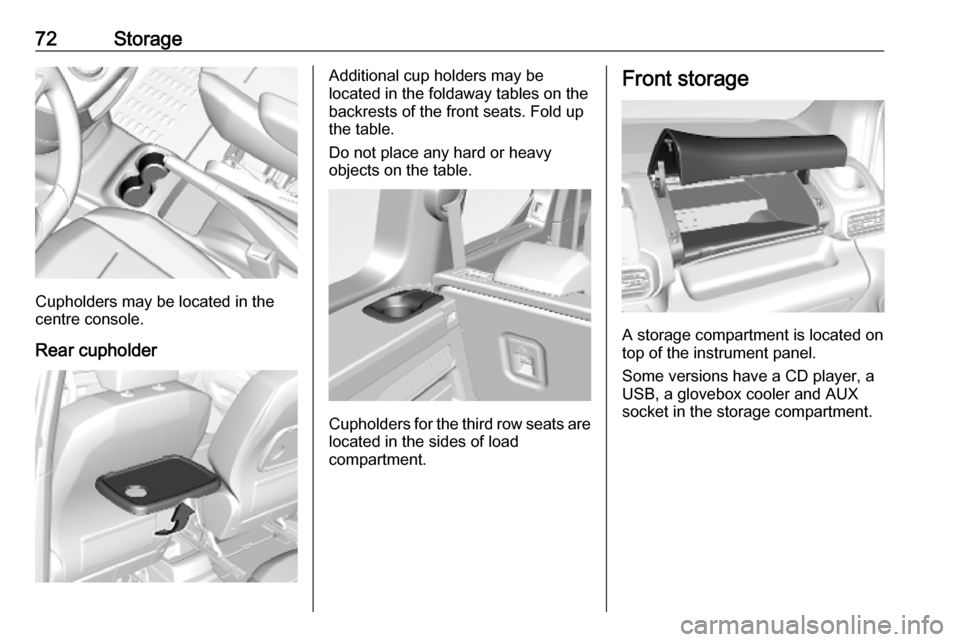

Cupholders Front cupholder
Cup holders are located at the sides
of the instrument panel.

72Storage
Cupholders may be located in the
centre console.
Rear cupholder
Additional cup holders may be
located in the foldaway tables on the
backrests of the front seats. Fold up
the table.
Do not place any hard or heavy
objects on the table.
Cupholders for the third row seats are located in the sides of load
compartment.
Front storage
A storage compartment is located on
top of the instrument panel.
Some versions have a CD player, a
USB, a glovebox cooler and AUX
socket in the storage compartment.

Storage73
A storage compartment is located
above the Instrument cluster.
A coin holder is located on the
instrument panel.
Folding the centre seatback
The front centre passenger seat
backrest has a document tray.
Seat folding 3 49.
9 Warning
When the front centre passenger
seat is in the folded position, the front passenger airbag system
must be deactivated.
Airbag deactivation 3 64.
Overhead console
Store only lightweight items such as
paperwork or maps.

74StorageThe separation of the four
compartments can be taken out.
The maximum permitted load is 6 kg.9 Warning
Secure objects to prevent them
from falling out and causing injury.
Slide the flaps to open.
Close whilst driving. The maximum
permitted load is 10 kg.
Pull handle to open.
Close whilst driving. The maximum
permitted load is 10 kg.
Underseat storage
Underseat drawer
There may be a drawer under the
front seats. To open lift the drawer a
bit and then pull.

Storage75Storage box
There may be a storage box under the
centre bench seat. Lift up the seat
cushion by pulling the handle. The
storage box can be locked by a
padlock.
Centre console storage
A storage box may be located in the
centre console. Press cover to open.
A 12 V power outlet is located behind
the storage cover.
Footwell storage The footwell storages can be
accessed from the rear seats.
Vehicle tools may be located in the
stowage compartments underneath
the front seats 3 230.

76StorageDepending on version, there are two
stowage compartments in the rear
footwell.Load compartment
Depending on version, the load
compartment area can be increased
by folding up or removing the third row seats. The seat backrests of the
second row can be folded forward separately. Additionally, the backrest
of the passenger seat can be folded.
Depending on the loading, only single
seats or backrests can be folded.
Folding passenger seat 3 49
Folding second row seats 3 52
Folding or removing third row seats
3 52
Ladder flap
The ladder flap is available for
transporting long loads.Opening the ladder flap
1. Press the lever and disengage the
spring clip from the retainer by
pulling.
2. Lift the ladder flap.

Storage77
3. Move past the point of resistanceto lock the ladder flap with the
props.
Support bar Rest long loads on the support bar.1. Push the lever to the top.
2. Push the support bar a bit to the front and then guide it down to thedoor pillar.
3. Hold the long load in the angled position.
4. Move the support bar below the load to its original position. Fix it
by pressing the lever downwards
past the point of resistance.
The rear doors will only lock when the support bar is installed.
5. Secure the loads firmly. The side supports can be used as hooking
points.
Closing the ladder flap
1. Check that the support bar is properly locked.
2. Lower the ladder flap.
3. Fix the spring clip in its retainer.

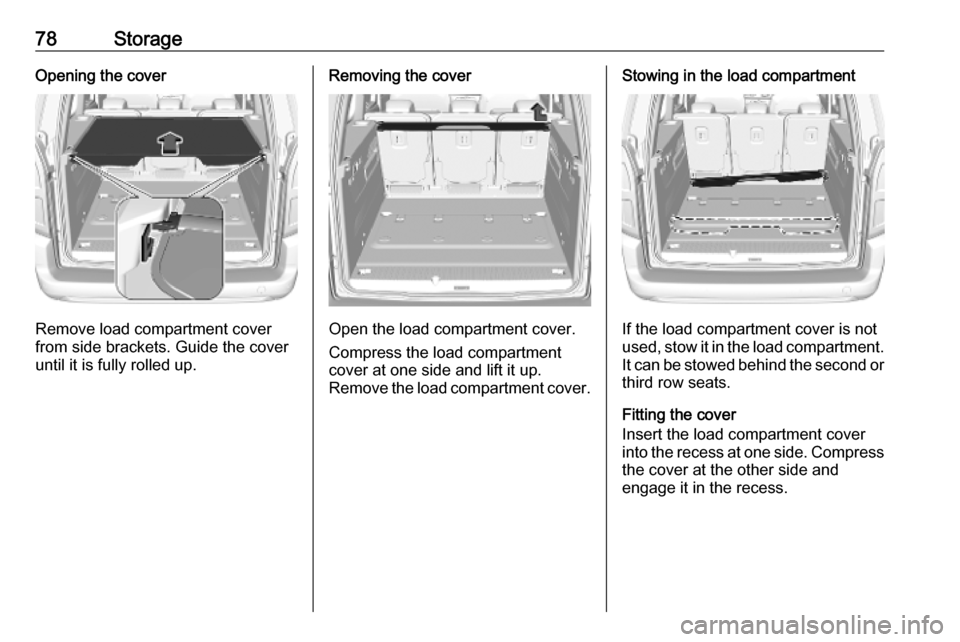

Load compartment cover
Rear luggage cover Do not place any objects on the cover.
Closing the cover
Pull the load compartment cover
towards the rear and engage it in the
side brackets.

78StorageOpening the cover
Remove load compartment cover
from side brackets. Guide the cover
until it is fully rolled up.
Removing the cover
Open the load compartment cover.
Compress the load compartment
cover at one side and lift it up.
Remove the load compartment cover.
Stowing in the load compartment
If the load compartment cover is not
used, stow it in the load compartment. It can be stowed behind the second or
third row seats.
Fitting the cover
Insert the load compartment cover
into the recess at one side. Compress the cover at the other side and
engage it in the recess.
