2018 YAMAHA YZ65 air filter

Table of contents
Location of important la bels ........... 1-1
Safety information ............................ 2-1
Description ....................................... 3-1
Left view ......................................... 3-1
Right view ....................................... 3-2
Controls and instruments ............... 3-3
Instrument an d control functions ... 4-1
Handlebar switch............................ 4-1
Clutch lever .................................... 4-1
Shift pedal ...................................... 4-2
Brake lever...................................... 4-2
Brake pedal .................................... 4-3
Fuel tank cap .................................. 4-3
Fuel ................................................. 4-4
Fuel tank breather hose.................. 4-6
Fuel cock ........................................ 4-6
Starter (choke) knob ....................... 4-7
Kickstarter ...................................... 4-7
Seat ................................................ 4-8
Adjusting the front fork ................... 4-9
Front fork bleeding ....................... 4-10
Adjusting the shock absorber assembly ................................... 4-11
Removable sidestand ................... 4-15
YPVS system ................................ 4-16
For your safety – pre-operation
checks ............................................... 5-1
Operation an d important ri din g
points ................................................ 6-1
Starting and warming up a cold
engine ......................................... 6-1
Starting a warm engine .................. 6-2
Shifting ........................................... 6-2
Engine break-in .............................. 6-3
Parking ........................................... 6-5
Perio dic maintenance an d
a d justment ........................................ 7-1
Periodic maintenance and lubrication chart .......................... 7-2
Checking the spark plug ................ 7-6 Transmission oil .............................. 7-7
Coolant ............................................ 7-8
Cleaning the air filter element ....... 7-10
Adjusting the carburetor ............... 7-12
Adjusting the engine idling
speed ......................................... 7-12
Adjusting the throttle grip free play ............................................ 7-13
Tires .............................................. 7-14
Spoke wheels ................................ 7-16
Adjusting the clutch lever free play ............................................ 7-16
Checking the brake lever free play ............................................ 7-17
Checking the shift pedal ............... 7-18
Checking the front and rear brake pads ........................................... 7-18
Checking the brake fluid level ....... 7-19
Changing the brake fluid ............... 7-20
Drive chain slack ........................... 7-21
Cleaning and lubricating the drive chain ................................. 7-22
Checking and lubricating the
cables ........................................ 7-23
Checking and lubricating the throttle grip and cable ............... 7-23
Checking and lubricating the brake and clutch levers ............. 7-24
Checking and lubricating the
brake pedal ................................ 7-24
Lubricating the rear suspension.... 7-25
Lubricating the swingarm pivots ... 7-25
Checking the front fork ................. 7-26
Checking the steering ................... 7-26
Checking the wheel bearings ........ 7-27
Supporting the motorcycle ........... 7-27
Front wheel ................................... 7-28
Rear wheel .................................... 7-29
Troubleshooting ............................ 7-30
Troubleshooting charts ................. 7-31
Motorcycle care an d stora ge .......... 8-1
Matte color caution ......................... 8-1
Care................................................. 8-1
Storage............................................ 8-3
UBR880E0.book Page 1 Friday, February 16, 2018 8:32 AM

Description
3-1
3
EAU63371
Left view
6745231
981011
1. Rebound damping force adjuster (page 4-9)
2. Radiator cap (page 7-8)
3. Fuel tank cap (page 4-3)
4. Fuel cock (page 4-6)
5. Starter (choke) knob (page 4-7)
6. Air filter element (page 7-10)
7. Seat (page 4-8)
8. Rebound damping force adjuster (page 4-11)
9. Throttle stop screw (page 7-12)
10.Shift pedal (page 4-2)
11.Compression damping force adjuster (page 4-9)
UBR880E0.book Page 1 Friday, February 16, 2018 8:32 AM

Operation and important ri din g points
6-3
6
an
d d rive train, which are not
d esi gne d to withstan d the
shock of force d shifting .
EAU16691To start out an d accelerate
1. Pull the clutch lever to disengage the clutch.
2. Shift the transmission into first gear.
3. Open the throttle gradually and si- multaneously release the clutch
lever slowly.
4. Once the motorcycle has reached a speed high enough to change
gears, close the throttle, and at the
same time, quickly pull the clutch
lever in.
5. Shift the transmission into second gear. (Make sure not to shift the
transmission into the neutral posi-
tion.)
6. Open the throttle halfway and gradually release the clutch lever.
7. Follow the same procedure when
shifting to the next gear.
EAU16711To decelerate
1. Close the throttle and apply both the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU41506
Engine break-in
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or death durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
TIP
Before starting the engine for the first
time, the air filter must be lubricated.
(See page 7-10.)
En gine break-in proce dure
1. Fill the fuel tank with a break-in oil- fuel mixture as follows.
2. Start and warm up the engine. Check the operation of the con-
trols and the engine stop switch.
(See page 4-1.)
3. Operate the motorcycle in the low- er gears at moderate throttle
openings for 5 to 8 minutes. Stop
the engine and check the spark
plug condition (see page 7-6); it
will show a rich condition during
break-in.
4. Allow the engine to cool. Restart the engine and operate the motor-
cycle as in the step above for 5
minutes. Then, very briefly shift to
Recommen ded 2-stroke en gine oil:
YAMALUBE 2R
Mixin g ratio ( gasoline to oil):
15:1
UBR880E0.book Page 3 Friday, February 16, 2018 8:32 AM

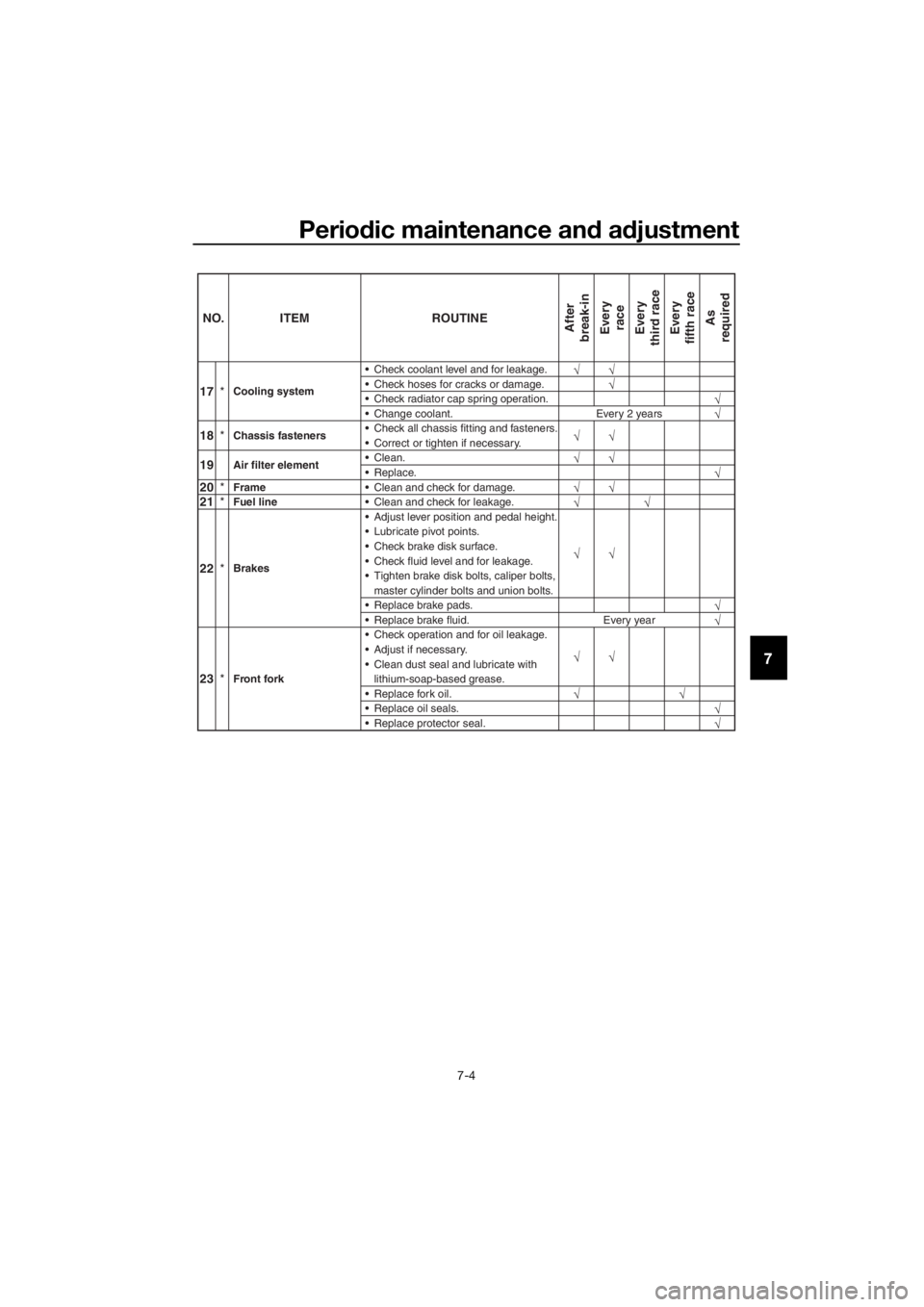

Periodic maintenance an d a djustment
7-4
7
23 *Front fork Check operation and for oil leakage.
Adjust if necessary.
 Clean dust seal and lubricate with
lithium-soap-based grease.
Replace fork oil.
 Replace oil seals. Replace protector seal.
NO. ITEM ROUTINE
After
break-in
Everyrace
Every
third race
Every
fifth race
As
required
Check coolant level and for leakage.
17 *
Cooling system Check hoses for cracks or damage. Check radiator cap spring operation. Change coolant.
Every 2 years
Every year Check all chassis fitting and fasteners.
18
*Chassis fasteners
Correct or tighten if necessary.
19Air filter element Clean. Replace.
20 *Frame Clean and check for damage.

21
*Fuel line Clean and check for leakage.
22 *
Brakes Adjust lever position and pedal height.
Lubricate pivot points.
Check brake disk surface.
Check fluid level and for leakage.
Tighten brake disk bolts, caliper bolts,
master cylinder bolts and union bolts.
Replace brake pads.
 Replace brake fluid.
UBR880E0.book Page 4 Friday, February 16, 2018 8:32 AM

Periodic maintenance an d a djustment
7-10
7
6. Pour the recommended coolant
into the radiator until it is full.
7. Install the radiator cap, start the engine, let it idle for several min-
utes, and then turn it off.
8. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the bottom of the
radiator filler neck, and then install
the radiator cap.
9. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
EAU84100
Cleanin g the air filter element
Clean or replace the air filter element at
the intervals specified in the periodic
maintenance and lubrication chart.
Service the air filter element more fre-
quently if you often ride in wet or dusty
conditions.
1. Remove the seat. (See page 4-8.)
2. Remove the air filter element by removing the wing bolt and its
washer.
3. Remove the sponge material from the air filter element frame.
4. Clean the sponge material with solvent or YAMALUBE foam air fil-
ter cleaner, and then squeeze out
the remaining liquid.
Antifreeze/water mixture ratio:1:1
Recommen ded antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibi-
tors for aluminum engines
Coolant quantity:
Radiator (including all routes):0.38 L (0.40 US qt, 0.33 Imp.qt)
1. Wing bolt
2. Washer
3. Air filter element
1. Sponge material
2. Air filter element frame
1
2
3
1
2
UBR880E0.book Page 10 Friday, February 16, 2018 8:32 AM

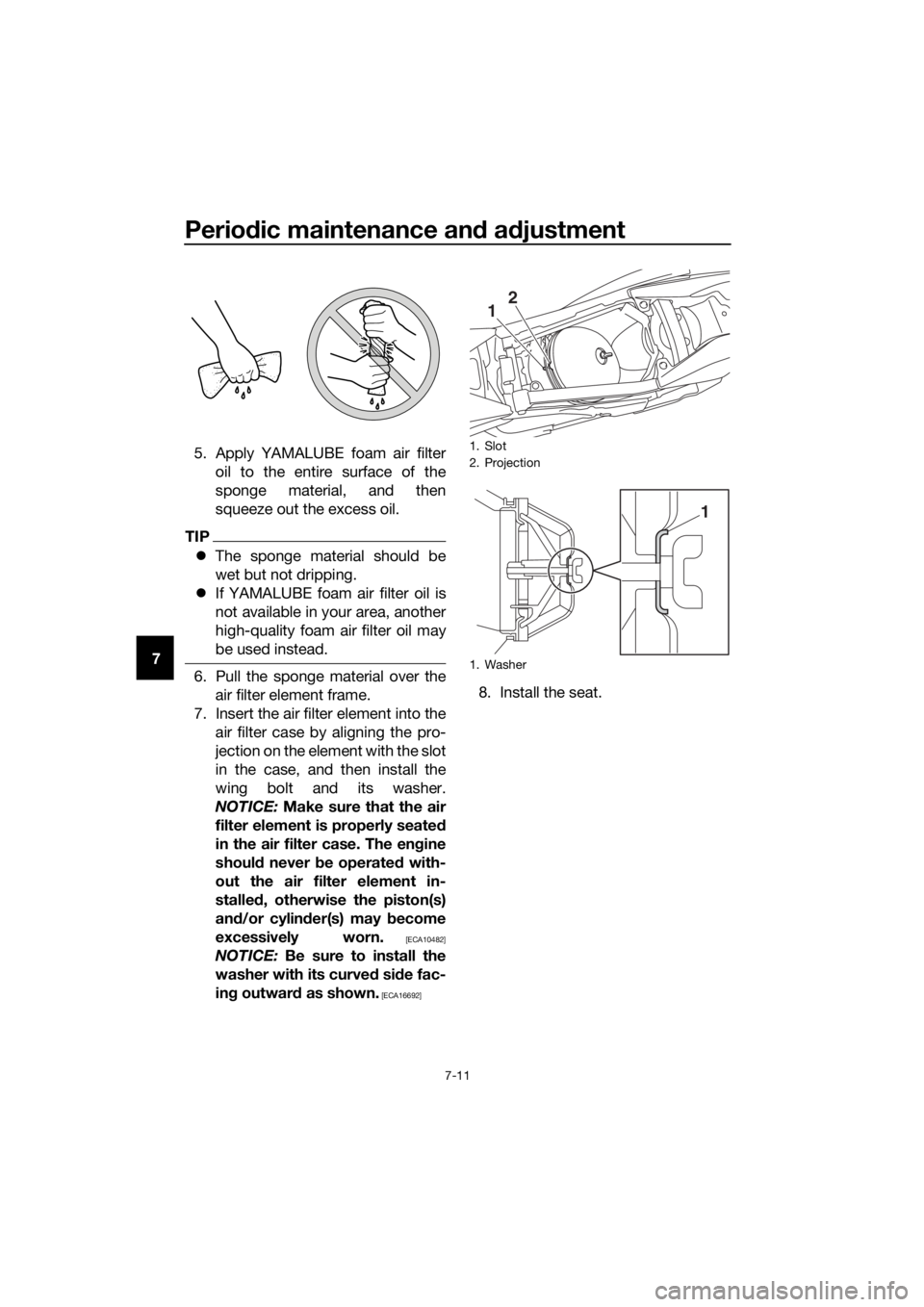

Periodic maintenance an d a djustment
7-11
7 5. Apply YAMALUBE foam air filter
oil to the entire surface of the
sponge material, and then
squeeze out the excess oil.
TIP
The sponge material should be
wet but not dripping.
 If YAMALUBE foam air filter oil is
not available in your area, another
high-quality foam air filter oil may
be used instead.
6. Pull the sponge material over the
air filter element frame.
7. Insert the air filter element into the air filter case by aligning the pro-
jection on the element with the slot
in the case, and then install the
wing bolt and its washer.
NOTICE: Make sure that the air
filter element is properly seate d
in the air filter case. The en gine
shoul d never be operated with-
out the air filter element in-
stalle d, otherwise the piston(s)
an d/or cylin der(s) may become
excessively worn.
[ECA10482]
NOTICE: Be sure to install the
washer with its curve d si de fac-
in g outwar d as shown.
[ECA16692]
8. Install the seat.
1. Slot
2. Projection
1. Washer
1 2
1
UBR880E0.book Page 11 Friday, February 16, 2018 8:32 AM

Specifications
9-1
9
Dimensions:
Overall length:1615 mm (63.6 in)
Overall width:
760 mm (29.9 in)
Overall height: 1000 mm (39.4 in)
Seat height: 755 mm (29.7 in)
Wheelbase:
1140 mm (44.9 in)
Ground clearance: 265 mm (10.43 in)
Wei ght:
Curb weight:
61 kg (134 lb)
Maximum rider weight:
50.0 kg (110 lb)
ng ine:
Combustion cycle:
2-stroke
Cooling system:
Liquid cooled
Number of cylinders: Single cylinder
Displacement: 65 cm³
Bore × stroke:
43.5 × 43.6 mm (1.71 × 1.72 in)
Compression ratio: 8.1–9.6 : 1
Starting system: Kickstarter
Lubrication system:
Premix lubrication
Engine oil:
Engine oil:
YAMALUBE 2R
Recommended brand:
YAMALUBE
Transmission oil:
Type: Motor oil SAE 10W-30 type SE or higher or
Gear oil SAE 85W GL-3
Quantity: 0.50 L (0.53 US qt, 0.44 Imp.qt)
Coolant quantity:
Radiator (including all routes):0.38 L (0.40 US qt, 0.33 Imp.qt)
Air filter:
Air filter element:Wet element
Fuel:
Recommended fuel:Premium unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 3.5 L (0.9 US gal, 0.8 Imp.gal)
Car buretor:
Type × quantity:
PWK28 × 1
Spark plu g(s):
Manufacturer/model:
NGK/BR9ECM
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:Wet, multiple-disc
Drivetrain:
Primary reduction ratio:
3.611 (65/18)
Final drive: Chain
Secondary reduction ratio: 3.357 (47/14)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.455 (27/11)
2nd: 1.882 (32/17)
3rd: 1.529 (26/17)
4th:
1.263 (24/19)
5th: 1.095 (23/21)
6th: 0.960 (24/25)
Chassis:
Frame type:Semi double cradle
Caster angle: 26.4 °
Trail:
64 mm (2.5 in)
UBR880E0.book Page 1 Friday, February 16, 2018 8:32 AM

11-1
11
Index
A
Air filter element, cleaning .................... 7-10
B
Brake and clutch levers, checking and
lubricating .......................................... 7-24
Brake fluid, changing ........................... 7-20
Brake fluid level, checking ................... 7-19
Brake lever ............................................. 4-2
Brake lever free play, checking ............ 7-17
Brake pedal ............................................ 4-3
Brake pedal, checking and lubricating .......................................... 7-24
C
Cables, checking and lubricating ......... 7-23
Carburetor, adjusting ........................... 7-12
Care ........................................................ 8-1
Clutch lever ............................................ 4-1
Clutch lever free play, adjusting ........... 7-16
Coolant ................................................... 7-8
D
Drive chain, cleaning and lubricating ... 7-22
Drive chain slack .................................. 7-21
E
Engine break-in ...................................... 6-3
Engine idling speed .............................. 7-12
Engine serial number............................ 10-1
Engine, starting a warm ......................... 6-2
Engine stop switch ................................. 4-1
F
Front and rear brake pads, checking ... 7-18
Front fork, adjusting ............................... 4-9
Front fork, bleeding .............................. 4-10
Front fork, checking ............................. 7-26
Fuel......................................................... 4-4
Fuel cock ................................................ 4-6
Fuel tank breather hose ......................... 4-6
Fuel tank cap.......................................... 4-3
H
Handlebar switch ................................... 4-1
I
Identification numbers.......................... 10-1
K
Kickstarter .............................................. 4-7
L
Labels, location ...................................... 1-1
M
Matte color, caution ............................... 8-1
P
Parking ................................................... 6-5
Part locations ......................................... 3-1 Periodic maintenance and lubrication
chart ..................................................... 7-2
R
Rear suspension, lubricating ................ 7-25
S
Safety information................................... 2-1
Seat......................................................... 4-8
Shifting .................................................... 6-2
Shift pedal............................................... 4-2
Shift pedal, checking ............................ 7-18
Shock absorber assembly, adjusting ... 4-11
Sidestand .............................................. 4-15
Spark plug, checking .............................. 7-6
Specifications ......................................... 9-1
Starter (choke) knob ............................... 4-7
Starting and warming up a cold engine ................................................... 6-1
Steering, checking ................................ 7-26
Storage ................................................... 8-3
Supporting the motorcycle ................... 7-27
Swingarm pivots, lubricating ................ 7-25
T
Throttle grip and cable, checking and lubricating ........................................... 7-23
Throttle grip free play, adjusting ........... 7-13
Tires ...................................................... 7-14
Transmission oil ...................................... 7-7
Troubleshooting .................................... 7-30
Troubleshooting charts ......................... 7-31
V
Vehicle identification number ............... 10-1
W
Wheel bearings, checking..................... 7-27
Wheel (front).......................................... 7-28
Wheel (rear) ........................................... 7-29
Wheels .................................................. 7-16
Y
YPVS system ........................................ 4-16
UBR880E0.book Page 1 Friday, February 16, 2018 8:32 AM
