Periodic maintenance an d a djustment
6-11
6
a
ddition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
z Make sure that no forei gn mate-
rial enters the crankcase.
11. Install the cowling by installing the bolts.
12. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIP
After the engine is started, the engine
oil pressure warning light should go off.
NOTICE
ECA20860
If the oil pressure warnin g li ght flick-
ers or remains on even if the oil level
is correct, imme diately turn the en-
g ine off an d have a Yamaha dealer
check the vehicle.
13. Turn the engine off, wait a few minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
EAU20071
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU38176To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.
TIP
zThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
z Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the
coolant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
3. Coolant reservoir
1
2
3
UB9AE0E0.book Page 11 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-15
6
EAU21402
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU64240
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control. z The tire air pressure must b e
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
z The tire air pressure must b e
a d juste d in accor dance with the
ri din g speed and with the total
wei ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
UB9AE0E0.book Page 15 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-35
6
5. Insert a new bulb into the socket.
6. Install the socket (together with
the bulb) by pushing it in.
7. Install the rear fender lower panel by installing the bolts and screws.
8. Install the mudguard by installing the quick fasteners.
EAU24351
Supportin g the motorcycle
Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. License plate light bulb
2. License plate light bulb socket
2
1
UB9AE0E0.book Page 35 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-37
6
EAU63470
Trou bleshootin g charts
Startin g pro blems or poor en gine performance
1. FuelThere is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine turns over
quickly.
The engine turns over
slowly.
The engine does not
start.
Check the battery.
Wipe off with a dry
cloth and correct the
spark plug gaps, or
replace the spark
plugs.
Check the battery
lead connections, and
have a Yamaha dealer
charge the battery if
necessary.
2. BatteryThe battery is good.
The engine does not
start.
Check the ignition.
3. IgnitionWetOperate the electric
starter.
Dry
There is compression.
There is no
compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Have a Yamaha dealer check the vehicle.
The engine does not
start.
Check the
compression.Have a Yamaha
dealer check the
vehicle.
Remove the spark
plugs and check
the electrodes.
Operate the electric
starter.
Operate the electric
starter.
Check the fuel level
in the fuel tank.
4. Compression
UB9AE0E0.book Page 37 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-38
6 En
gine overheatin g
WARNING
EWAT1041
zDo not remove the ra diator cap when the en gine an d ra diator are hot.
Scal din g hot flui d an d steam may b e blown out un der pressure, which
coul d cause serious injury. Be sure to wait until the eng ine has cooled.
z Place a thick ra g, like a towel, over the ra diator cap, an d then slowly ro-
tate the cap counterclockwise to the detent to allow any resi dual pres-
sure to escape. When the hissin g soun d has stopped , press down on the
cap while turnin g it counterclockwise, an d then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided
that it is changed to the recommended coolant as soon as possible.
Wait until the engine
has cooled.
Check the coolant
level in the reservoir
and radiator.Add coolant.
(See TIP.)
The coolant level is
OK.
There is no leakage.
There is leakage.
The coolant level is
low.
Check the cooling
system for leakage.
Have a Yamaha
dealer check and
repair the cooling
system.
Start the engine. If the engine overheats again,
have a Yamaha dealer check and repair the cooling
system.
UB9AE0E0.book Page 38 Thursday, March 23, 2017 2:48 PM

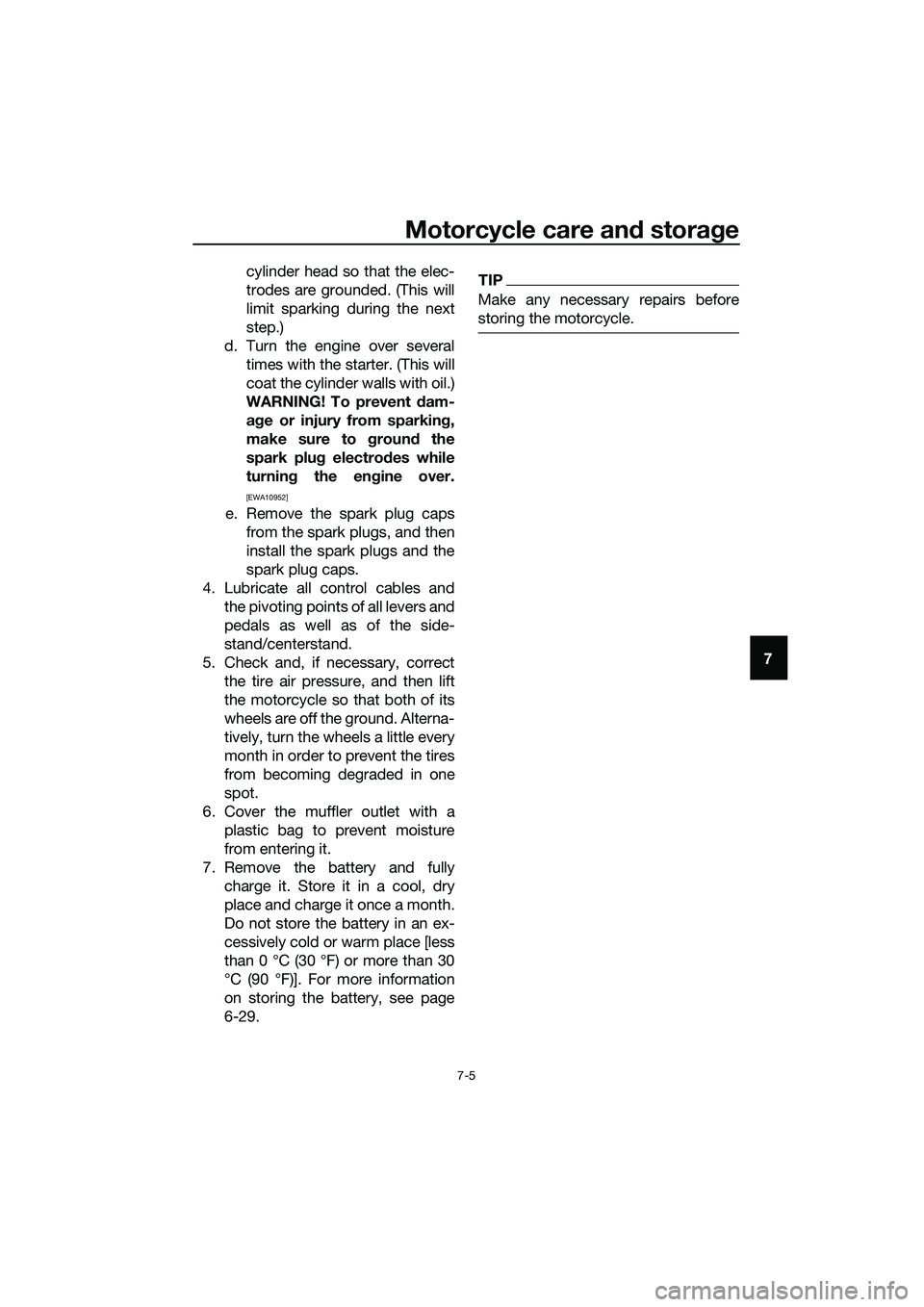

Motorcycle care and stora ge
7-5
7
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-29.
TIP
Make any necessary repairs before
storing the motorcycle.
UB9AE0E0.book Page 5 Thursday, March 23, 2017 2:48 PM

Consumer information
9-3
9
EAU74702
Vehicle data record ing
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
z Vehicle status and engine perfor-
mance data
z Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a third party except: z With the consent of the vehicle
owner
z Where obligated by law
z For use by Yamaha in litigation
z For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner
UB9AE0E0.book Page 3 Thursday, March 23, 2017 2:48 PM

10-1
10
Index
A
ABS ....................................................... 3-14
ABS warning light ................................... 3-3
Air filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light......................................... 6-33
B
Battery .................................................. 6-29
Brake and clutch levers, checking
and lubricating .................................... 6-26
Brake and shift pedals, checking and lubricating .................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-13
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-19
Brake pedal........................................... 3-14
C
Cables, checking and lubricating ......... 6-24
Canister................................................... 6-8
Care ........................................................ 7-1
Catalytic converter ................................ 3-18
Clutch lever ........................................... 3-12
Clutch lever free play, adjusting ........... 6-18
Coolant ................................................. 6-11
D
Data recording, vehicle ........................... 9-3
Diagnostic connector.............................. 9-2
Dimmer switch ...................................... 3-11
Drive chain, cleaning and lubricating .... 6-24
Drive chain slack................................... 6-22
E
Engine break-in....................................... 5-4
Engine oil and oil filter cartridge ............. 6-8
Engine serial number .............................. 9-1
Engine stop switch ............................... 3-12
Engine trouble warning light ................... 3-3
F
Front and rear brake pads, checking.... 6-20
Front fork, checking .............................. 6-27
Fuel ....................................................... 3-16
Fuel tank cap ........................................ 3-15
Fuel tank overflow hose ........................ 3-17
Fuses, replacing.................................... 6-30
H
Handlebar switches .............................. 3-11
Headlight bulb, replacing ...................... 6-32
Helmet holders...................................... 3-20
High beam indicator light........................ 3-2 Horn switch .......................................... 3-12
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-23
Indicator lights and warning lights ......... 3-2
L
License plate light bulb, replacing........ 6-34
Luggage strap holders ......................... 3-22
M
Main switch/steering lock....................... 3-1
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission
control system ..................................... 6-3
Matte color, caution ............................... 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-4
N
Neutral indicator light ............................. 3-2
O
Oil pressure warning light ....................... 3-2
P
Parking ................................................... 5-4
Part locations ......................................... 2-1
Pass switch .......................................... 3-11
S
Safety information .................................. 1-1
Seats .................................................... 3-18
Shifting ................................................... 5-3
Shift pedal ............................................ 3-13
Shift timing indicator light....................... 3-4
Shock absorber assembly, adjusting............................................. 3-21
Sidestand ............................................. 3-23
Sidestand, checking and lubricating .... 6-26
Spark plugs, checking ............................ 6-7
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Start switch .......................................... 3-12
Steering, checking................................ 6-28
Storage ................................................... 7-4
Storage compartment .......................... 3-21
Supporting the motorcycle................... 6-35
Swingarm pivots, lubricating ................ 6-27
T
Tail/brake light ...................................... 6-33
Throttle grip and cable, checking and lubricating .................... 6-25
Throttle grip free play, checking........... 6-14
Tires ...................................................... 6-15
Tool kit.................................................... 6-2
UB9AE0E0.book Page 1 Thursday, March 23, 2017 2:48 PM
