[x] Cancel search: fuel filterPage 30 of 108
Description
24

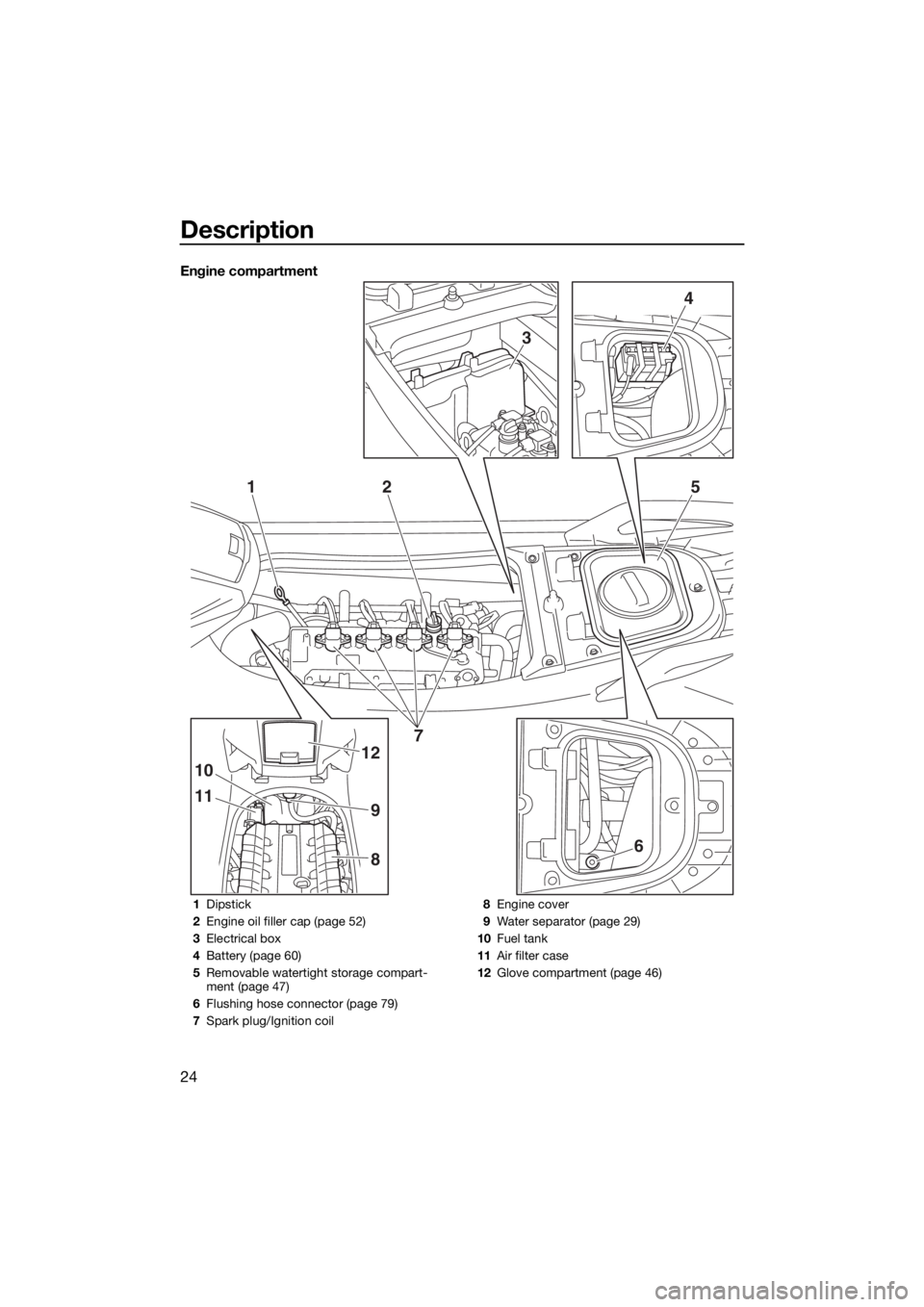

Engine compartment
3
4
125
11
10
9
12
86
7
1Dipstick
2Engine oil filler cap (page 52)
3Electrical box
4Battery (page 60)
5Removable watertight storage compart-
ment (page 47)
6Flushing hose connector (page 79)
7Spark plug/Ignition coil8Engine cover
9Water separator (page 29)
10Fuel tank
11Air filter case
12Glove compartment (page 46)
UF3P71E0.book Page 24 Tuesday, June 27, 2017 10:54 AM
Page 92 of 108
Maintenance
86
EJU43101Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need
to be performed more frequently depending on your operating conditions. If you have any
questions, consult a Yamaha dealer.
This “√” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial Thereafter every
Page
10 hours50 hours
or 12
months
*1100
hours or
12
months
*1200
hours or
24
months
*1
Fuel lineCheck fuel hoses and
clamps√—
Fuel filler cap/Wa-
ter separatorCheck O-rings for cracks
and deformation√—
Fuel tankCheck installation and
straps√—
Water inlet strainerCheck for clogs and dam-
age√—
Cooling water hos-
esCheck for damage and
leakage, and check
clamps√—
Engine oilReplace√√88
Oil filterReplace√88
Intermediate hous-
ingLubricate√—
Spark plugsCheck√√—
BatteryCheck state of charge,
terminals, bands, and
breather hose√—
Battery leadsCheck terminals√—
Steering masterCheck operation and for
looseness√√—
Steering cableCheck exterior and con-
nections, and lubricate√—
Electric trim rodCheck exterior and con-
nections, and lubricate√—
Shift rod and re-
verse gate Check exterior and con-
nections, and lubricate√—
Air filter elementCheck for damage and
dirt√—
Air intake hosesCheck for damage, and
check clamps√
—
Throttle bodyLubricate throttle valve√—
UF3P71E0.book Page 86 Tuesday, June 27, 2017 10:54 AM
Page 95 of 108
Specifications
89
EJU34543
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions and weight:
Length:
3350 mm (131.9 in)
Width:
1220 mm (48.0 in)
Height:
1190 mm (46.9 in)
Dry weight:
349 kg (769 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
183.9 kW at 7500 r/min
Maximum fuel consumption:
83.7 L/h (22.1 US gal/h, 18.4 Imp.gal/h)
Cruising range at full throttle:
0.84 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore × stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.5 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
Electric
Ignition system:
T.C.I.Spark plug (NGK):
LFR7A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24+24 °
Jet thrust nozzle trim angle:
-5, -3, 0, 3, 6 °
Fuel and oil:
Recommended fuel:
Premium unleaded gasoline
Minimum octane rating (PON):
91
Minimum octane rating (RON):
95
Recommended engine oil:
YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SG, SH, SJ, SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.6 L (3.81 US qt, 3.17 Imp.qt)
Engine oil quantity without oil filter replacement:
3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity:
5.3 L (5.60 US qt, 4.66 Imp.qt)
UF3P71E0.book Page 89 Tuesday, June 27, 2017 10:54 AM
Page 98 of 108
Trouble recovery
92
Watercraft slow or
loses powerWatercraft
operation
modeLow RPM Mode acti-
vatedDeactivate Low RPM
Mode 35
Cavitation Jet intake clogged Clean 93
Impeller damaged or
wornHave serviced by
Yamaha dealer93
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine40
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
39
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer—
Incorrect octane
numberUse correct fuel
49
Air filter Clogged Have serviced by
Yamaha dealer—
Oil buildup Have serviced by
Yamaha dealer—
Throttle lever Faulty Have serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3P71E0.book Page 92 Tuesday, June 27, 2017 10:54 AM
Page 105 of 108
