Instrument and control functions
3-34
3
EAU39496

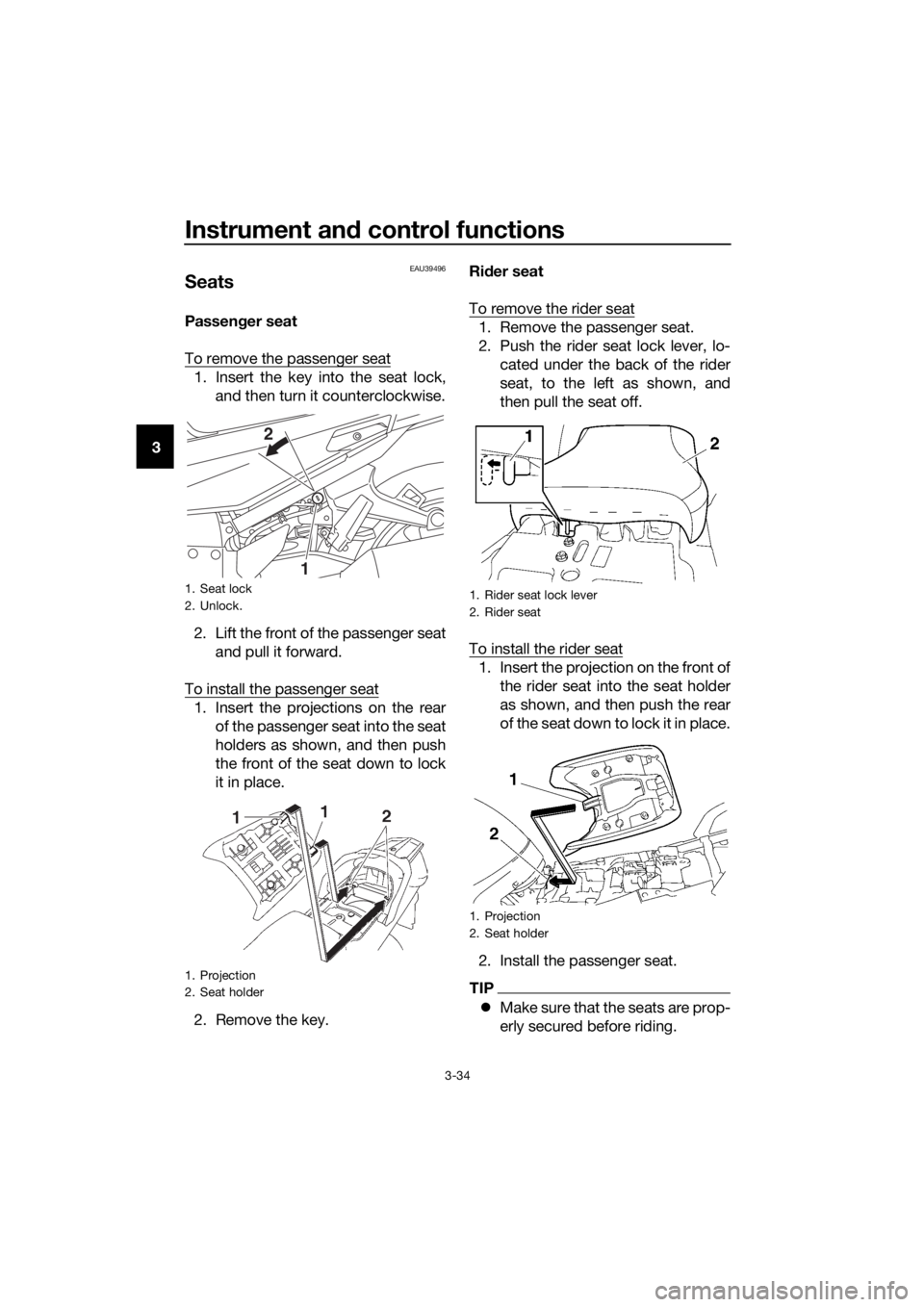

Seats
Passen ger seat
To remove the passenger seat
1. Insert the key into the seat lock, and then turn it counterclockwise.
2. Lift the front of the passenger seat and pull it forward.
To install the passenger seat
1. Insert the projections on the rear of the passenger seat into the seat
holders as shown, and then push
the front of the seat down to lock
it in place.
2. Remove the key. Ri
der seat
To remove the rider seat
1. Remove the passenger seat.
2. Push the rider seat lock lever, lo- cated under the back of the rider
seat, to the left as shown, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the front of the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place.
2. Install the passenger seat.
TIP
Make sure that the seats are prop-
erly secured before riding.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1
2
1. Rider seat lock lever
2. Rider seat
1. Projection
2. Seat holder
UB95E1E0.book Page 34 Tuesday, September 26, 2017 12:01 PM
Periodic maintenance an d a djustment
6-8
6 To install the panel
1. Fit the slot at the front of the panel
under the projection on the front
cowling, and then fit the slot at the
rear of the panel over the projec-
tion on the right side cowling as
shown.
TIP
Make sure that the fuses are covered
and located to the inside of the panel
lip.
2. Install the bolts and the quick fas-teners.
Panels B an d C
To remove a panel
1. Remove the seats. (See page 3-34.)
2. Remove the bolts and the quick fastener screws.
1. Slot
2. Projection
1. Slot
2. Projection
1. Slot
2. Projection
2
1
2
1
12
1. Fuse
1. Panel B
2. Quick fastener screw
3. Bolt
1
12
2
3
3
2
3
