2018 VOLVO V60 CROSS COUNTRY Owner´s Manual

S P E C I F I C A T I O N S

SPECIFICATIONS
376
Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

SPECIFICATIONS
}}
377

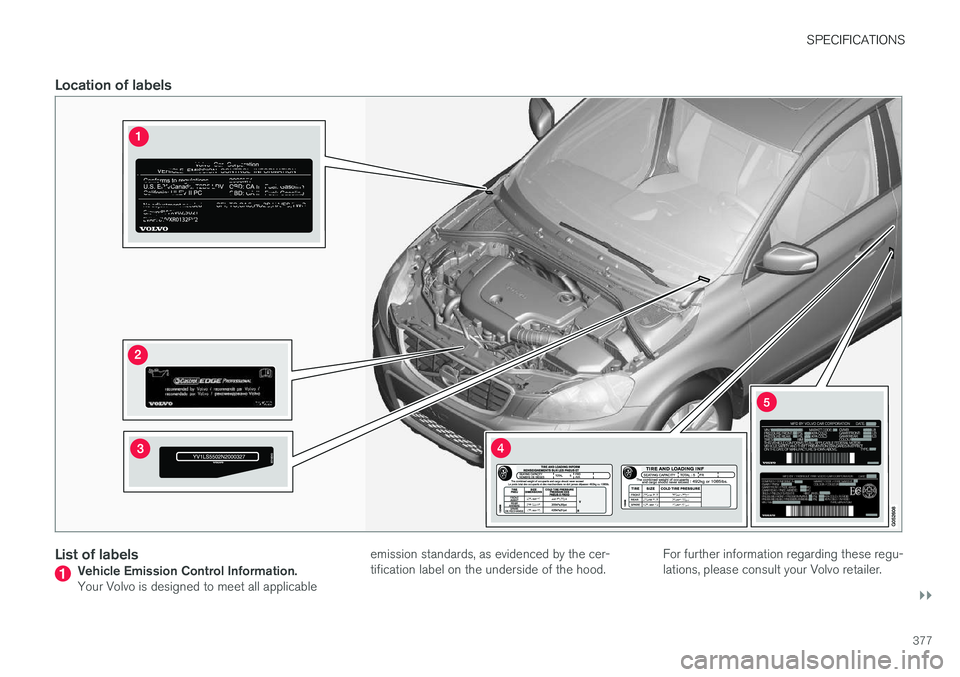

Location of labels
List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all applicableemission standards, as evidenced by the cer- tification label on the underside of the hood.
For further information regarding these regu-lations, please consult your Volvo retailer.

||
SPECIFICATIONS
378
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.
Related information
• Weights (p. 381)
• Engine specifications (p. 382)

SPECIFICATIONS
}}
379
DimensionsThis section lists your vehicle's most important dimensions.

||
SPECIFICATIONS
380
Dimensions–V60CC
PositionDimension in. (mm)
A Ground clearance (curb weight + 2 people) A
7.5 (191)
B Wheelbase 109.2 (2774)
C Length 182.6 (4637)
D Load length, floor, seatback down 68.9 (1749)
E Load length, floor 38.5 (978)
F Height 60.8 (1545)Position Dimension in. (mm)
G Load height 25.9 (658)
H Track, front 63.7 (1619)B
/
63.3 (1609) C
I Track, rear 62.1 (1577)B
61.7 (1567) C
J Load width, floor 42.6 (1082)
K Width 73.5 (1866)Position Dimension in. (mm)
L Width incl. door mirrors (folded
out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
AVaries slightly depending on tire size, optional sport chassis, etc.
B with 50 mm offset
C with 55 mm offset

SPECIFICATIONS
381
Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD A
4980 lbs 2260 kg
Capacity weight All models: 990 lbs All models: 450 kg
Permissible axle weights, front
4-cyl. AWD 2650 lbs 1205 kg
Permissible axle weights, rear 4-cyl. AWD 2440 lbs 1105 kg
Curb weight 3870 - 3930 lbs 1760 - 1765 kg
Max. roof load 165 lbs 75 kg
Max. trailer weightsWithout brakes With brakes 1650 lbs2,000 lbs750 kg900 kg
Max. tongue weight 165 lbs 75 kg
A
All Wheel Drive
Related information
• Loading specifications (p. 312)
• Loading specifications – load limit (p. 312)

SPECIFICATIONS
382
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T5 AWD
Engine designation B4204T11
Output (kW/rps) 179/93
Output (hp/rpm) 240/5600
Torque (Nm/rps) 350/25-75
Torque (ft. lbs./rpm) 258/1500–4500
No. of cylinders 4
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 1.97 liters (120.2 cu. in.)
Compression ratio 10.8:1
Related information
•Coolant – specification and volume (p. 385)
• Oil specifications (p. 383)
• Oil volume (p. 384)
