2018 VOLVO S60 INSCRIPTION Owner´s Manual

SPECIFICATIONS
}}
367

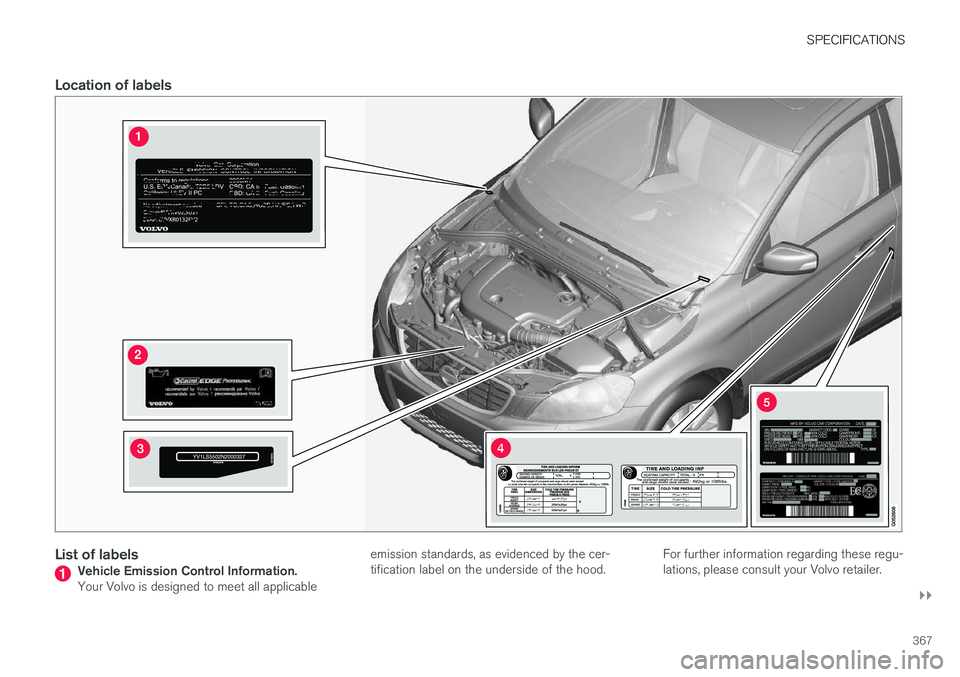

Location of labels
List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all applicableemission standards, as evidenced by the cer- tification label on the underside of the hood.
For further information regarding these regu-lations, please consult your Volvo retailer.

||
SPECIFICATIONS
368
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.
Related information
• Weights (p. 371)
• Engine specifications (p. 373)

SPECIFICATIONS
}}
369
DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60 Inscription
Position Dimension in. (mm)
A Ground clearance (curb weight + 2 people) A
5.0 (127 )
B Wheelbase 112.4 (2856)
C Length 185.6 (4715)
D Load length, floor, seatback down 72.0 (1829)
E Load length, floor 38.0 (965)
F Height 58.3 (1481)

||
SPECIFICATIONS
370
PositionDimension in. (mm)
G Load height 19.4 (492)
H Track, front 62.5 (1588)
I Track, rear 62.4 (1585)
J Load width, floor 36.2 (919)
K Width 73.5 (1866)
L Width incl. door mirrors (folded out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.

SPECIFICATIONS
}}
371

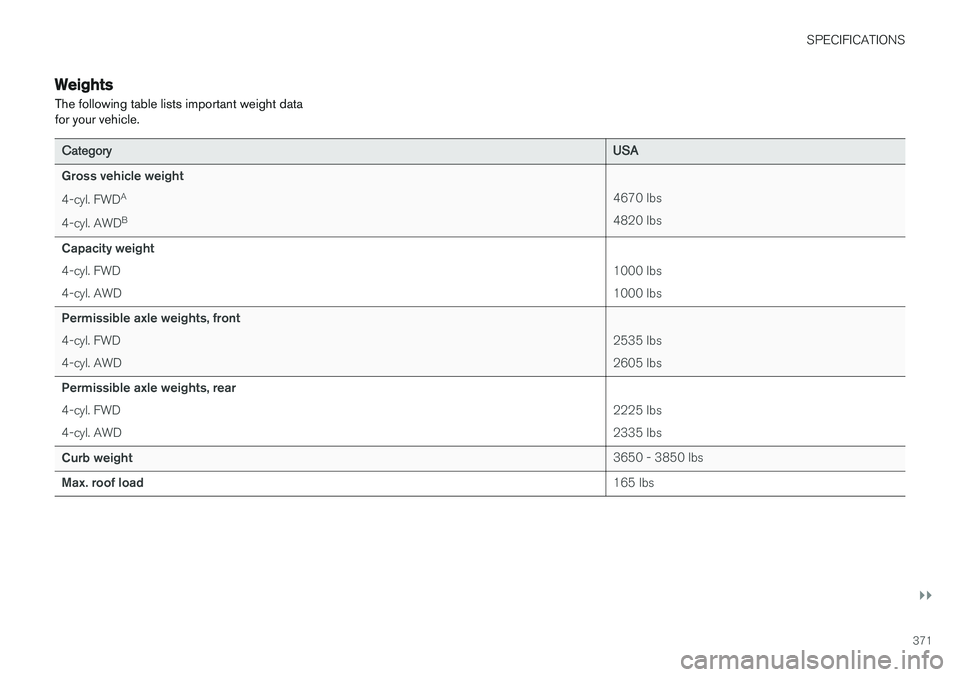

Weights The following table lists important weight data for your vehicle.
CategoryUSA
Gross vehicle weight 4-cyl. FWD A
4-cyl. AWD B 4670 lbs 4820 lbs
Capacity weight 4-cyl. FWD 4-cyl. AWD 1000 lbs1000 lbs
Permissible axle weights, front 4-cyl. FWD 4-cyl. AWD 2535 lbs2605 lbs
Permissible axle weights, rear 4-cyl. FWD 4-cyl. AWD 2225 lbs2335 lbs
Curb weight 3650 - 3850 lbs
Max. roof load 165 lbs

||
SPECIFICATIONS
372

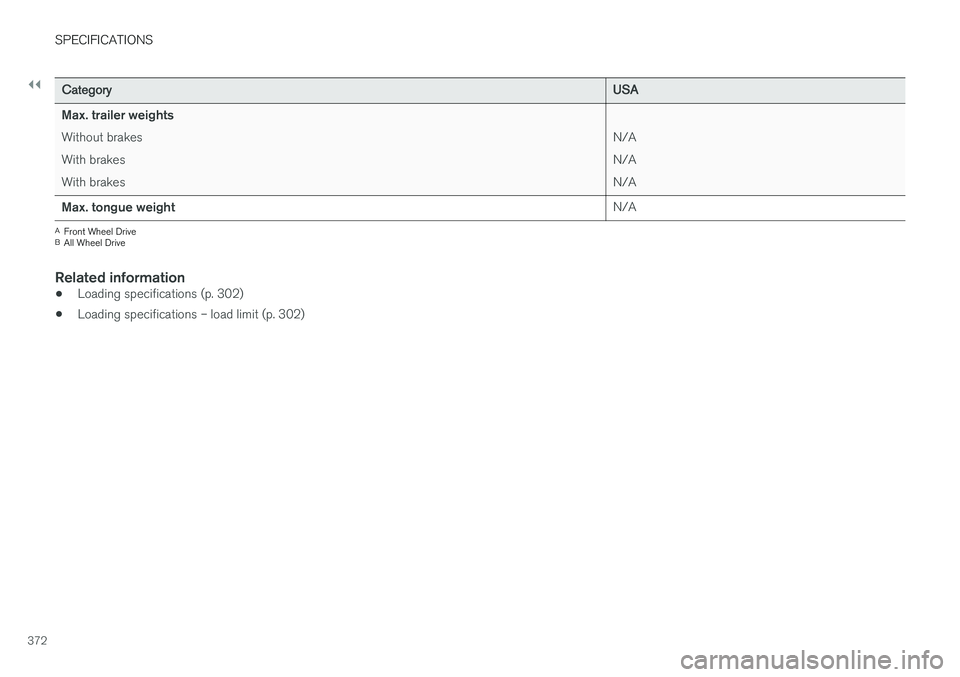

CategoryUSA
Max. trailer weights Without brakes With brakesWith brakes N/AN/AN/A
Max. tongue weight N/A
A
Front Wheel Drive
B All Wheel Drive
Related information
• Loading specifications (p. 302)
• Loading specifications – load limit (p. 302)

SPECIFICATIONS
373
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T5 / T5 AWD
Engine designation B4204T11
Output (kW/rps) 179/93
Output (hp/rpm) 240/5600
Torque (Nm/rps) 350/25-75
Torque (ft. lbs./rpm) 258/1500–4500
No. of cylinders 4
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 1.97 liters (120.2 cu. in.)
Compression ratio 10.8:1
Related information
•Coolant – specification and volume (p. 376)
• Oil specifications (p. 374)
• Oil volume (p. 375)

SPECIFICATIONS
374
Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 375)
• Engine compartment – engine oil (p. 329)
