2018 VOLVO S60 CROSS COUNTRY Owner´s Manual

SPECIFICATIONS
}}
367

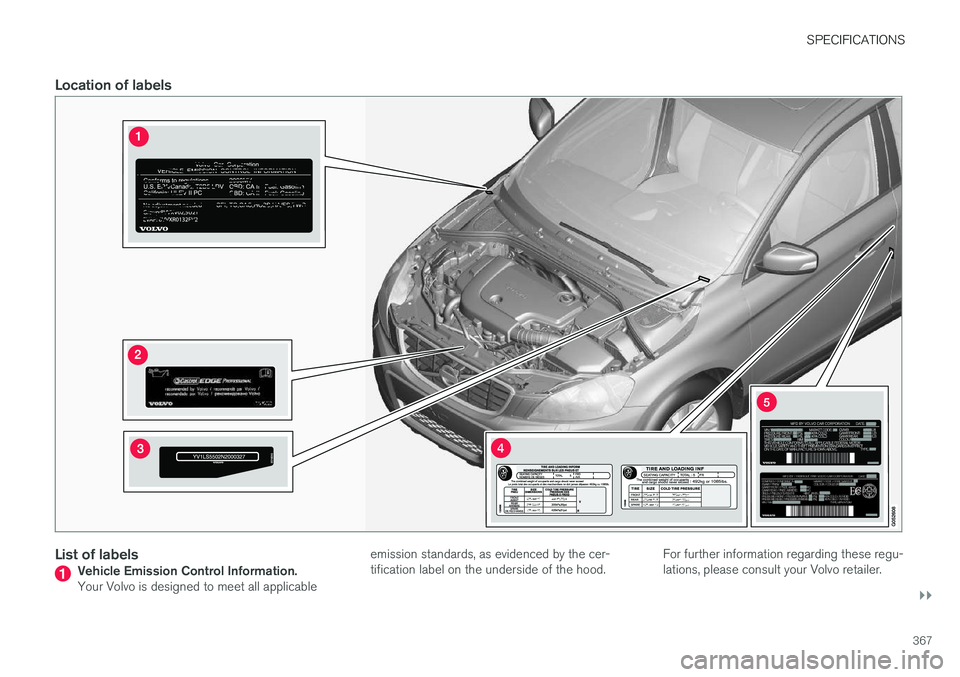

Location of labels
List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all applicableemission standards, as evidenced by the cer- tification label on the underside of the hood.
For further information regarding these regu-lations, please consult your Volvo retailer.

||
SPECIFICATIONS
368
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.
Related information
• Weights (p. 371)
• Engine specifications (p. 372)

SPECIFICATIONS
}}
369
DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60 Cross Country
Position Dimension in. (mm)
A Ground clearance (curb weight + 2 people) A
7.5 (191 )
B Wheelbase 109.2 (2774)
C Length 185.6 (4715)
D Load length, floor, seatback down 68.9 (1749)
E Load length, floor 38.0 (965)
F Height 60.6 (1539)

||
SPECIFICATIONS
370
PositionDimension in. (mm)
G Load height 19.4 (492)
H Track, front 63.7 (1619)B
/
63.3 (1609) C
I Track, rear 62.1 (1577)D
/
61.7 (1567) E
J Load width, floor 36.2 (919)
K Width 73.5 (1866)
L Width incl. door mirrors (folded out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 17" wheels
C with 18" wheels
D with 16" wheels
E with 17" wheels

SPECIFICATIONS
371

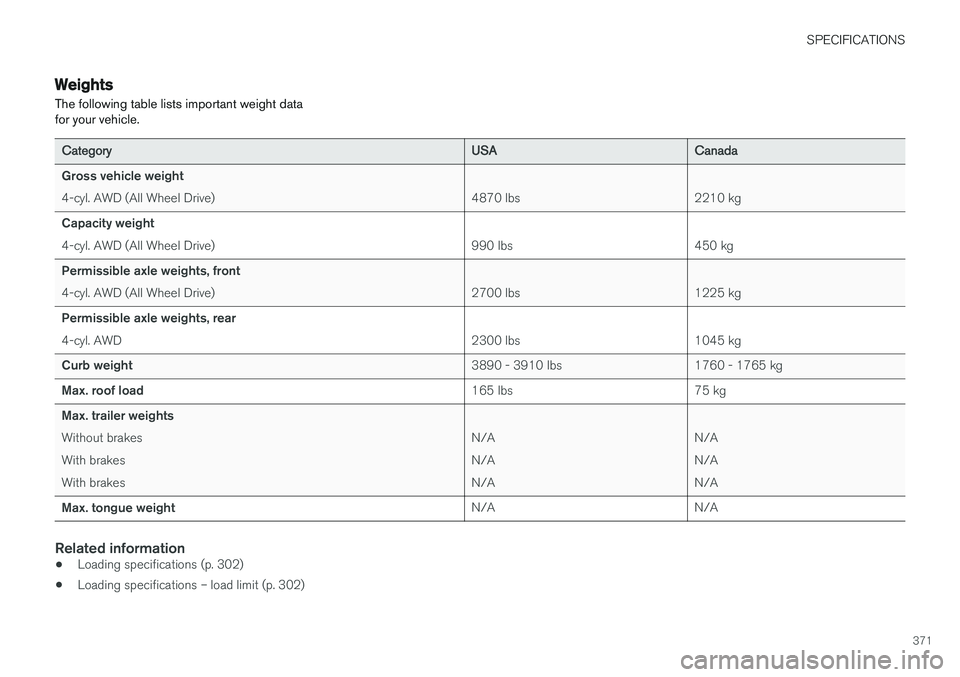

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD (All Wheel Drive) 4870 lbs 2210 kg
Capacity weight4-cyl. AWD (All Wheel Drive) 990 lbs 450 kg
Permissible axle weights, front4-cyl. AWD (All Wheel Drive) 2700 lbs 1225 kg
Permissible axle weights, rear4-cyl. AWD 2300 lbs 1045 kg
Curb weight 3890 - 3910 lbs 1760 - 1765 kg
Max. roof load 165 lbs 75 kg
Max. trailer weightsWithout brakes With brakesWith brakes N/AN/AN/AN/AN/AN/A
Max. tongue weight N/A N/A
Related information
•Loading specifications (p. 302)
• Loading specifications – load limit (p. 302)

SPECIFICATIONS
372
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T5 AWD
Engine designation B4204T11
Output (kW/rps) 179/93
Output (hp/rpm) 240/5600 rpm
Torque (Nm/rps) 350/25-75
Torque (ft. lbs./rpm) 258/1500-4500
No. of cylinders 4
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 1.97 liters / (120.2 cu. in.)
Compression ratio 10.8:1
Related information
•Coolant – specification and volume (p. 375)
• Oil specifications (p. 373)
• Oil volume (p. 374)

SPECIFICATIONS
373
Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 374)
• Engine compartment – engine oil (p. 329)

SPECIFICATIONS
374
Oil volume
The following table provides the recommended oil volume for the engine in your vehicle. Some engines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine model
Approx. volume (incl. filter)
4-cylinder 5.9 US qts (5.6 liters)
Related information
•Engine compartment – engine oil (p. 329)
• Oil specifications (p. 373)
