2018 VOLKSWAGEN TIGUAN instrument panel

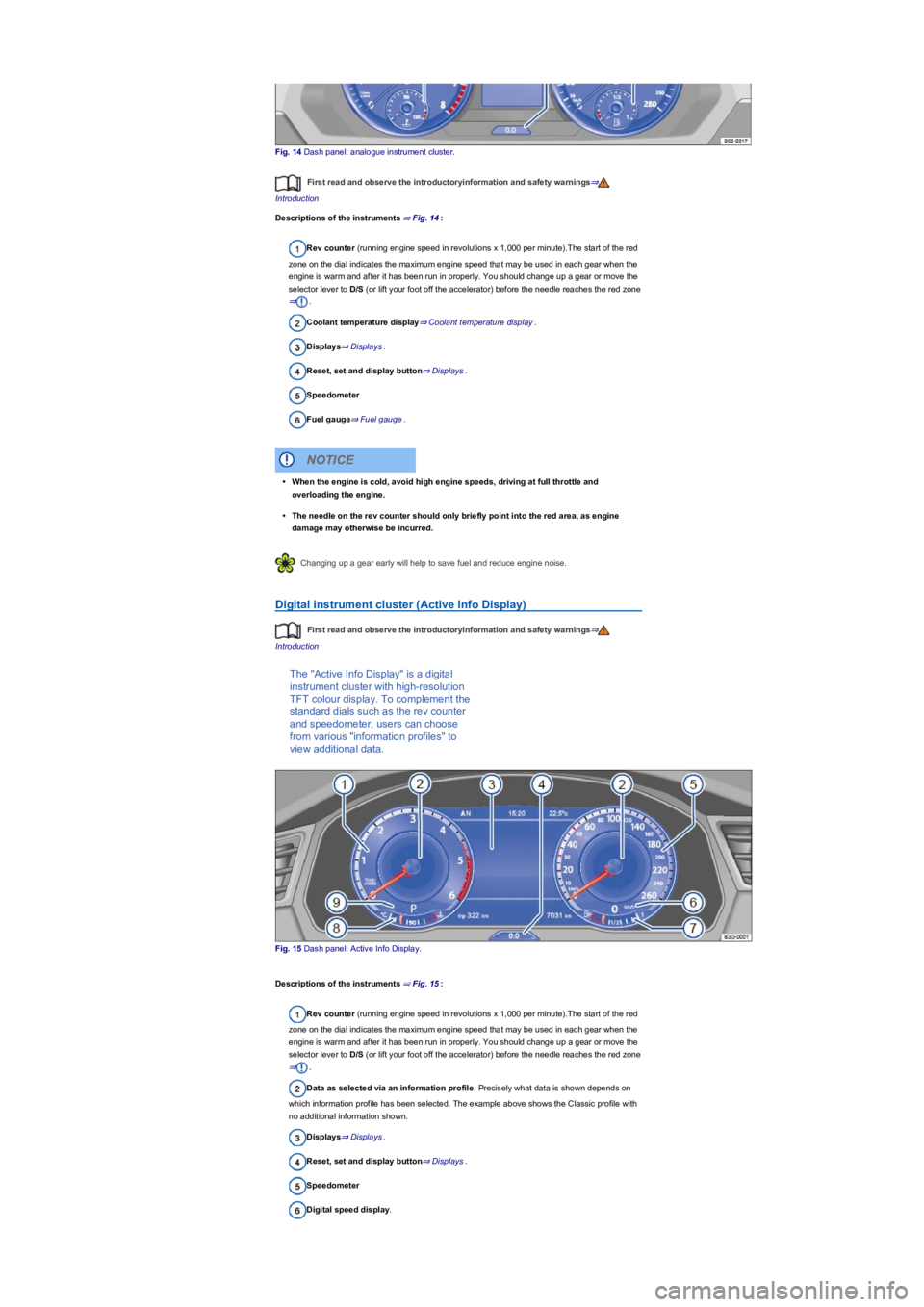

Fig. 14 Dash panel: analogue instrument cluster.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Descriptions of the instruments ⇒ Fig. 14:
Rev counter (running engine speed in revolutions x 1,000 per minuteyf.The start of the red
zone on the dial indicates the maximum engine speed that may be used in each gear when the
engine is warm and after it has been run in properly. You should change up a gear or move the
selector lever to D/S (or lift your foot off the acceleratoryfEHIRUHWKHQHHGOHUHDFKHVWKHUHG]RQH
⇒.
Coolant temperature display⇒ Coolant temperature display.
Displays⇒ Displays.
Reset, set and display button⇒ Displays.
Speedometer
Fuel gauge⇒ Fuel gauge.
Changing up a gear early will help to save fuel and reduce engine noise.
Digital instrument cluster (Active Info Displayyf
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The "Active Info Display" is a digital
instrument cluster with high-resolution
TFT colour display. To complement the
standard dials such as the rev counter
and speedometer, users can choose
from various "information profiles" to
view additional data.
Fig. 15 Dash panel: Active Info Display.
Descriptions of the instruments ⇒ Fig. 15:
Rev counter (running engine speed in revolutions x 1,000 per minuteyf.The start of the red
zone on the dial indicates the maximum engine speed that may be used in each gear when the
engine is warm and after it has been run in properly. You should change up a gear or move the
selector lever to D/S (or lift your foot off the acceleratoryfEHIRUHWKHQHHGOHUHDFKHVWKHUHG]RQH
⇒.
Data as selected via an information profile. Precisely what data is shown depends on
which information profile has been selected. The example above shows the Classic profile with
no additional information shown.
Displays⇒ Displays.
Reset, set and display button⇒ Displays.
Speedometer
Digital speed display.
•When the engine is cold, avoid high engine speeds, driving at full throttle and
overloading the engine.
•The needle on the rev counter should only briefly point into the red area, as engine
damage may otherwise be incurred.
NOTICE

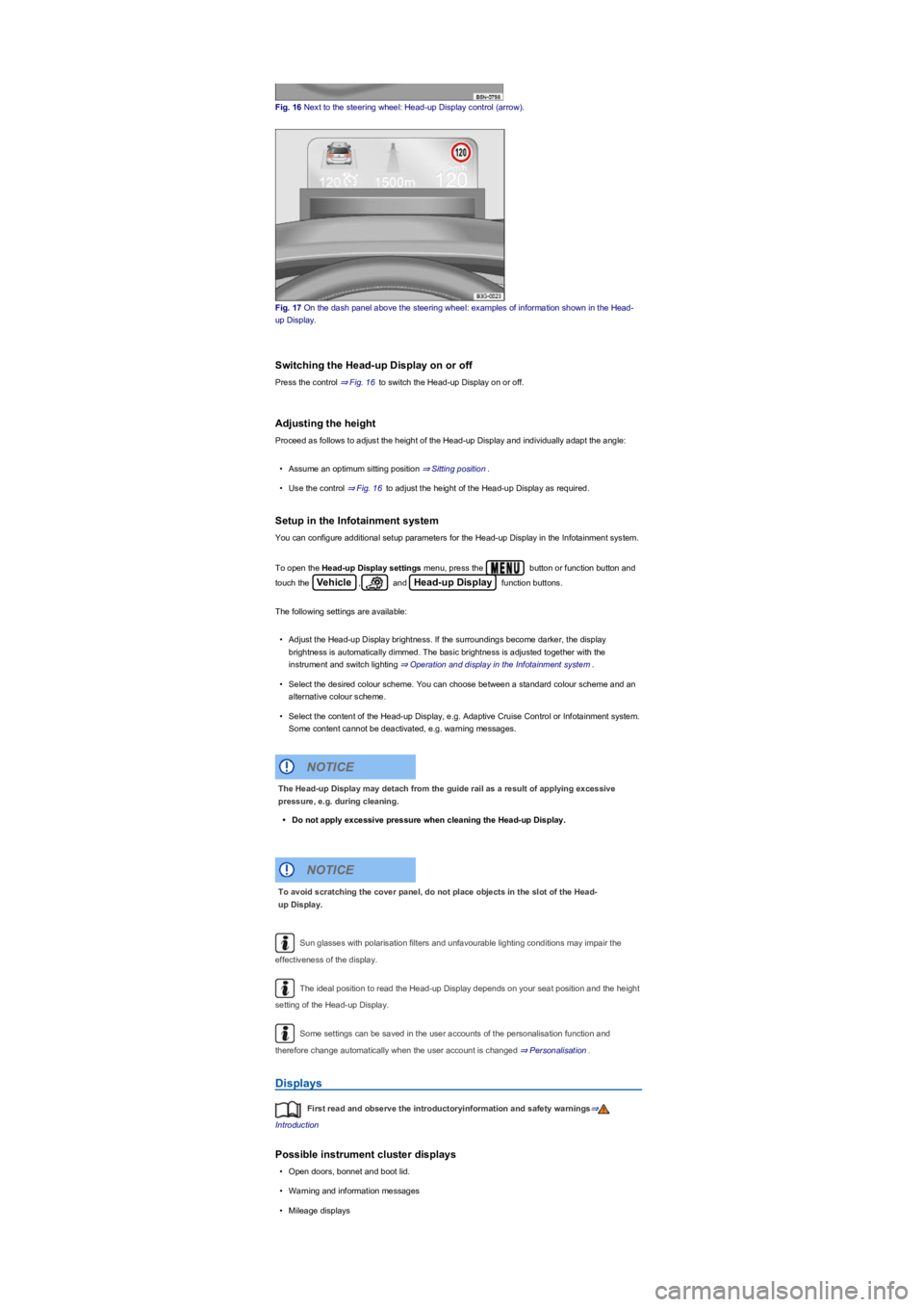

Fig. 16 Next to the steering wheel: Head-up Display control (arrowyf.
Fig. 17 On the dash panel above the steering wheel: examples of information shown in the Head-
up Display.
Switching the Head-up Display on or off
Press the control ⇒ Fig. 16 to switch the Head-up Display on or off.
Adjusting the height
Proceed as follows to adjust the height of the Head-up Display and individually adapt the angle:
•Assume an optimum sitting position ⇒ Sitting position.
•Use the control ⇒ Fig. 16 to adjust the height of the Head-up Display as required.
Setup in the Infotainment system
You can configure additional setup parameters for the Head-up Display in the Infotainment system.
To open the Head-up Display settings menu, press the button or function button and
touch the Vehicle, and Head-up Display function buttons.
The following settings are available:
•Adjust the Head-up Display brightness. If the surroundings become darker, the display
brightness is automatically dimmed. The basic brightness is adjusted together with the
instrument and switch lighting ⇒ Operation and display in the Infotainment system.
•Select the desired colour scheme. You can choose between a standard colour scheme and an
alternative colour scheme.
•Select the content of the Head-up Display, e.g. Adaptive Cruise Control or Infotainment system.
Some content cannot be deactivated, e.g. warning messages.
Sun glasses with polarisation filters and unfavourable lighting conditions may impair the
effectiveness of the display.
The ideal position to read the Head-up Display depends on your seat position and the height
setting of the Head-up Display.
Some settings can be saved in the user accounts of the personalisation function and
therefore change automatically when the user account is changed ⇒ Personalisation.
Displays
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Possible instrument cluster displays
•Open doors, bonnet and boot lid.
•Warning and information messages
•Mileage displays
The Head-up Display may detach from the guide rail as a result of applying excessive
pressure, e.g. during cleaning.
•Do not apply excessive pressure when cleaning the Head-up Display.
NOTICE
To avoid scratching the cover panel, do not place objects in the slot of the Head-
up Display.
NOTICE

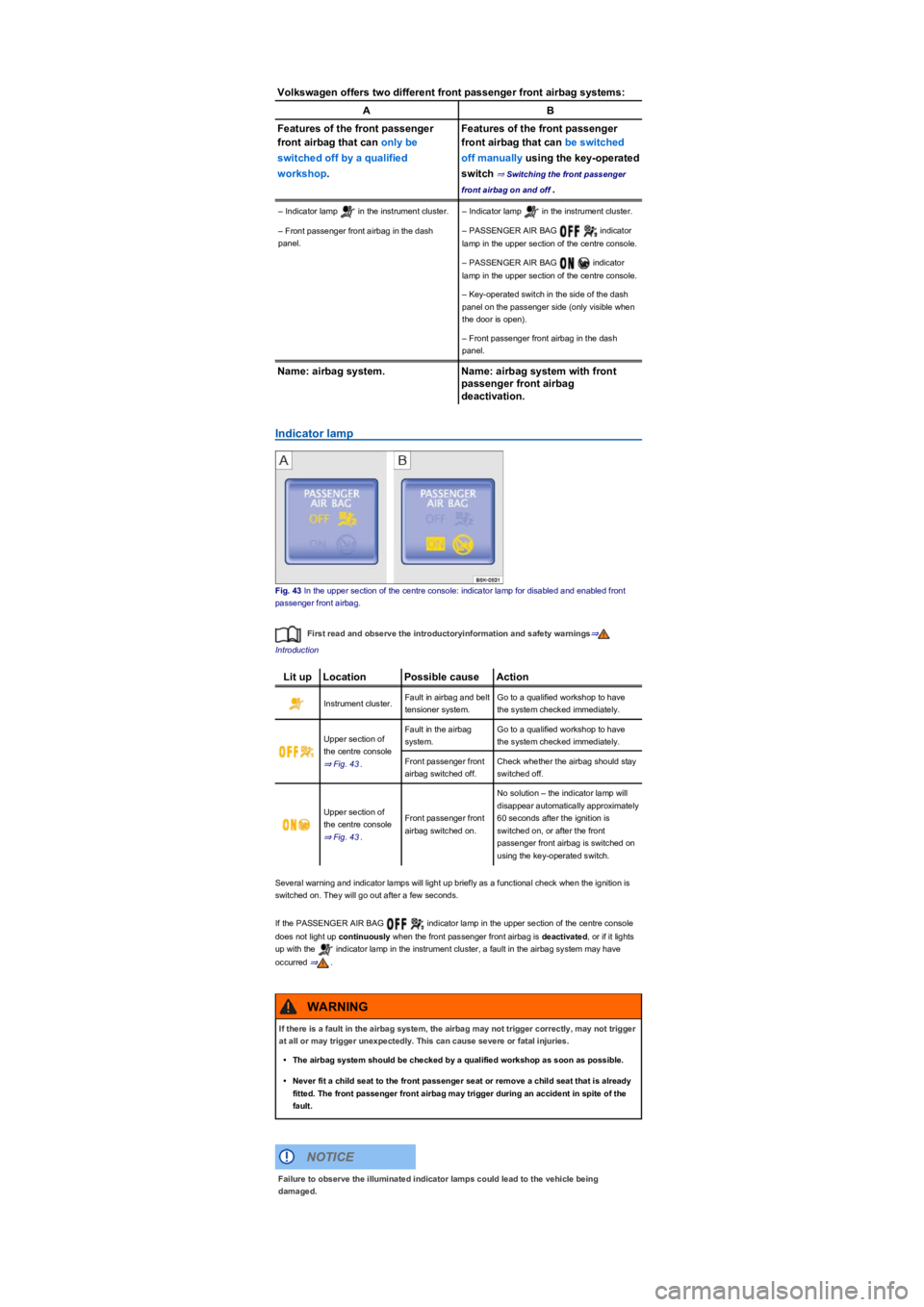

Volkswagen offers two different front passenger front airbag systems:
AB
Features of the front passenger
front airbag that can only be
switched off by a qualified
workshop.
Features of the front passenger
front airbag that can be switched
off manually using the key-operated
switch ⇒ Switching the front passenger
front airbag on and off.
– Indicator lamp in the instrument cluster.– Indicator lamp in the instrument cluster.
– Front passenger front airbag in the dash
panel.
– PASSENGER AIR BAG indicator
lamp in the upper section of the centre console.
– PASSENGER AIR BAG indicator
lamp in the upper section of the centre console.
– Key-operated switch in the side of the dash
panel on the passenger side (only visible when
the door is openyf.
– Front passenger front airbag in the dash
panel.
Name: airbag system.Name: airbag system with front
passenger front airbag
deactivation.
Indicator lamp
Fig. 43 In the upper section of the centre console: indicator lamp for disabled and enabled front
passenger front airbag.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Lit upLocationPossible causeAction
Instrument cluster.Fault in airbag and belt
tensioner system.
Go to a qualified workshop to have
the system checked immediately.
Upper section of
the centre console
⇒ Fig. 43.
Fault in the airbag
system.
Go to a qualified workshop to have
the system checked immediately.
Front passenger front
airbag switched off.
Check whether the airbag should stay
switched off.
Upper section of
the centre console
⇒ Fig. 43.
Front passenger front
airbag switched on.
No solution – the indicator lamp will
disappear automatically approximately
60 seconds after the ignition is
switched on, or after the front
passenger front airbag is switched on
using the key-operated switch.
Several warning and indicator lamps will light up briefly as a functional check when the ignition is
switched on. They will go out after a few seconds.
If the PASSENGER AIR BAG indicator lamp in the upper section of the centre console
does not light up continuously when the front passenger front airbag is deactivated, or if it lights
up with the indicator lamp in the instrument cluster, a fault in the airbag system may have
occurred ⇒.
If there is a fault in the airbag system, the airbag may not trigger correctly, may not trigger
at all or may trigger unexpectedly. This can cause severe or fatal injuries.
•The airbag system should be checked by a qualified workshop as soon as possible.
•Never fit a child seat to the front passenger seat or remove a child seat that is already
fitted. The front passenger front airbag may trigger during an accident in spite of the
fault.
WARNING
Failure to observe the illuminated indicator lamps could lead to the vehicle being
damaged.
NOTICE

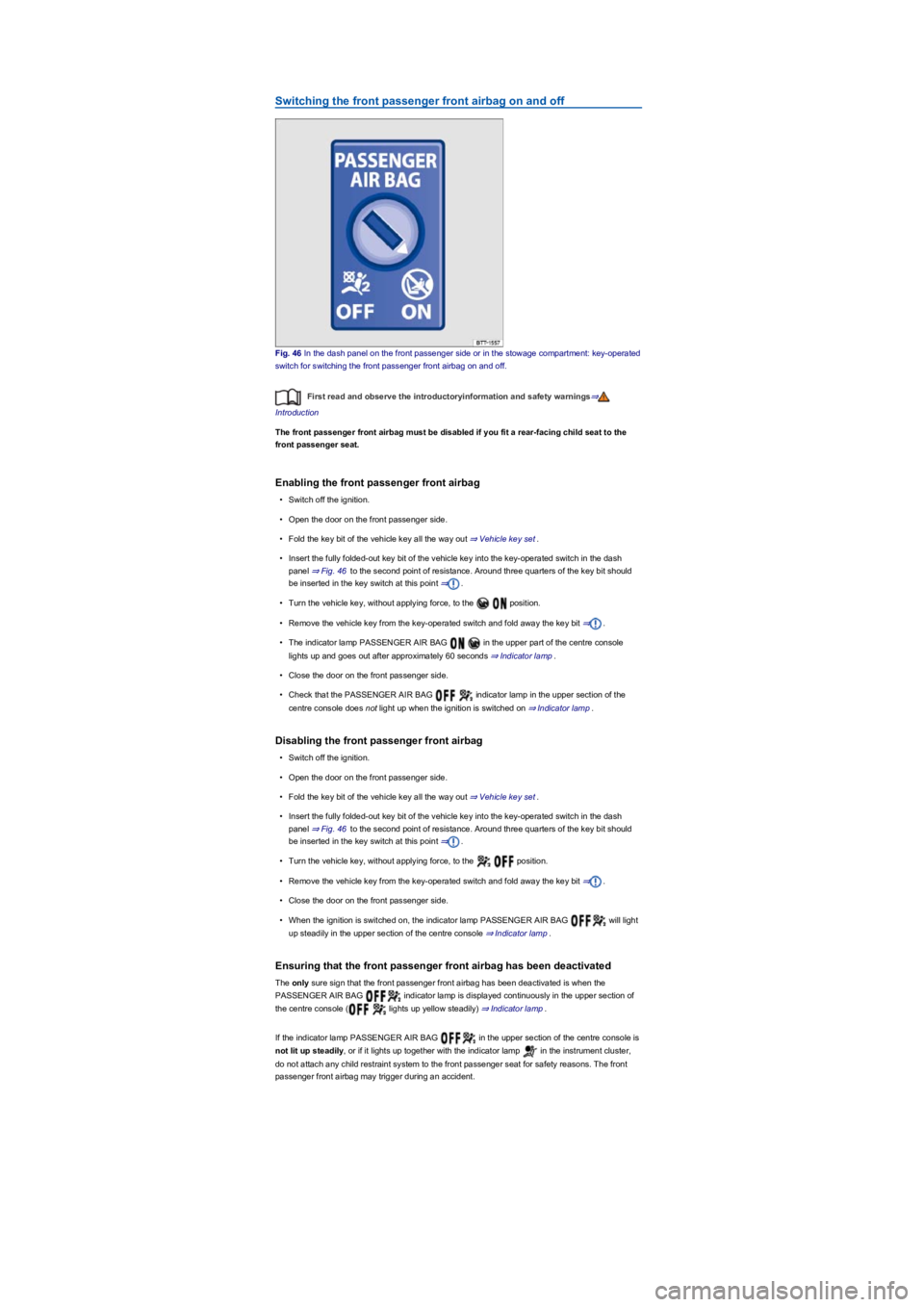

Switching the front passenger front airbag on and off
Fig. 46 In the dash panel on the front passenger side or in the stowage compartment: key-operated
switch for switching the front passenger front airbag on and off.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The front passenger front airbag must be disabled if you fit a rear-facing child seat to the
front passenger seat.
Enabling the front passenger front airbag
•Switch off the ignition.
•Open the door on the front passenger side.
•Fold the key bit of the vehicle key all the way out ⇒ Vehicle key set.
•Insert the fully folded-out key bit of the vehicle key into the key-operated switch in the dash
panel ⇒ Fig. 46 to the second point of resistance. Around three quarters of the key bit should
be inserted in the key switch at this point ⇒.
•Turn the vehicle key, without applying force, to the position.
•Remove the vehicle key from the key-operated switch and fold away the key bit ⇒.
•The indicator lamp PASSENGER AIR BAG in the upper part of the centre console
lights up and goes out after approximately 60 seconds ⇒ Indicator lamp.
•Close the door on the front passenger side.
•Check that the PASSENGER AIR BAG indicator lamp in the upper section of the
centre console does not light up when the ignition is switched on ⇒ Indicator lamp.
Disabling the front passenger front airbag
•Switch off the ignition.
•Open the door on the front passenger side.
•Fold the key bit of the vehicle key all the way out ⇒ Vehicle key set.
•Insert the fully folded-out key bit of the vehicle key into the key-operated switch in the dash
panel ⇒ Fig. 46 to the second point of resistance. Around three quarters of the key bit should
be inserted in the key switch at this point ⇒.
•Turn the vehicle key, without applying force, to the position.
•Remove the vehicle key from the key-operated switch and fold away the key bit ⇒.
•Close the door on the front passenger side.
•When the ignition is switched on, the indicator lamp PASSENGER AIR BAG will light
up steadily in the upper section of the centre console ⇒ Indicator lamp.
Ensuring that the front passenger front airbag has been deactivated
The only sure sign that the front passenger front airbag has been deactivated is when the
PASSENGER AIR BAG indicator lamp is displayed continuously in the upper section of
the centre console ( lights up yellow steadilyyf ⇒ Indicator lamp.
If the indicator lamp PASSENGER AIR BAG in the upper section of the centre console is
not lit up steadily, or if it lights up together with the indicator lamp in the instrument cluster,
do not attach any child restraint system to the front passenger seat for safety reasons. The front
passenger front airbag may trigger during an accident.

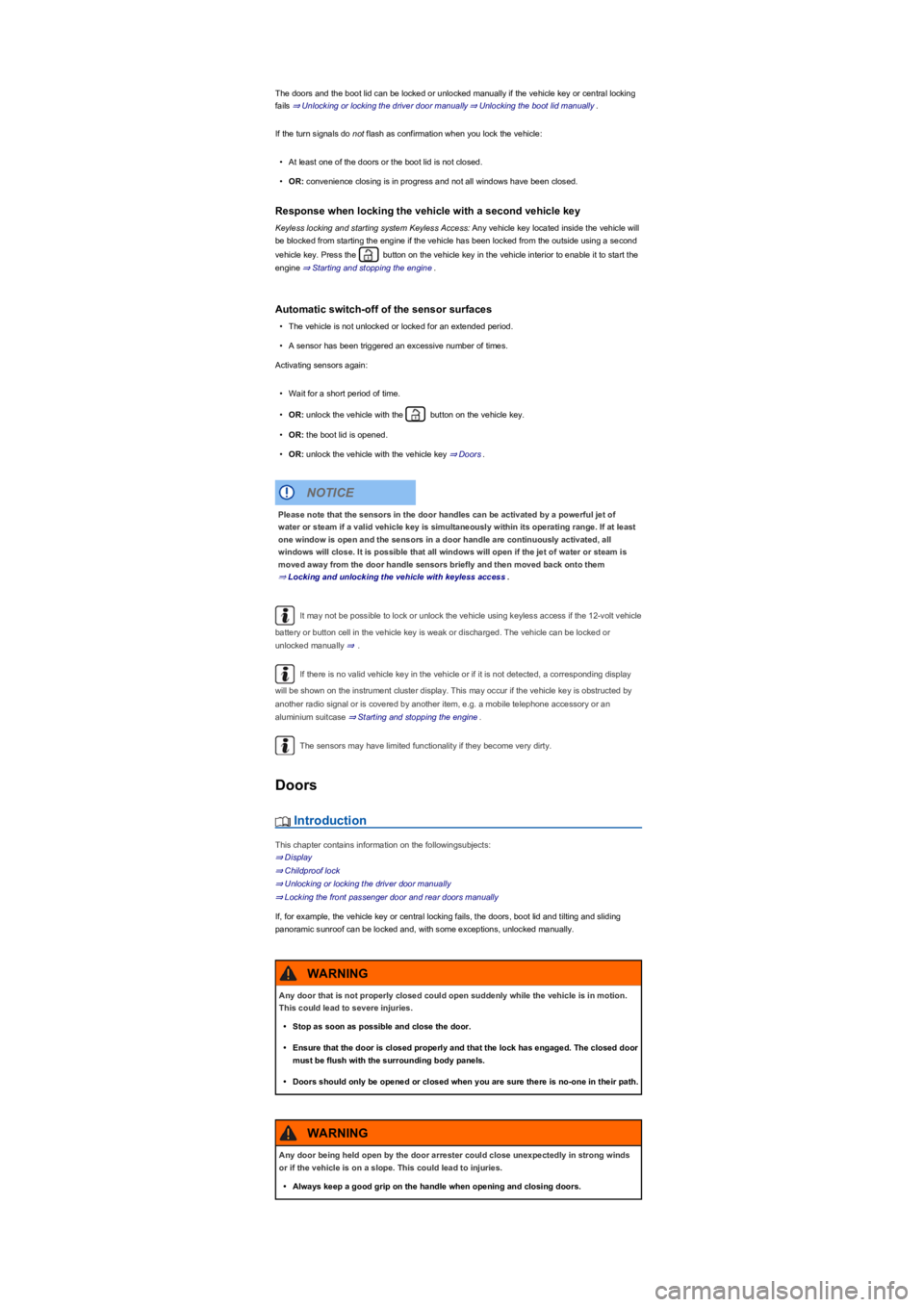

The doors and the boot lid can be locked or unlocked manually if the vehicle key or central locking
fails ⇒ Unlocking or locking the driver door manually⇒ Unlocking the boot lid manually.
If the turn signals do not flash as confirmation when you lock the vehicle:
•At least one of the doors or the boot lid is not closed.
•OR: convenience closing is in progress and not all windows have been closed.
Response when locking the vehicle with a second vehicle key
Keyless locking and starting system Keyless Access: Any vehicle key located inside the vehicle will
be blocked from starting the engine if the vehicle has been locked from the outside using a second
vehicle key. Press the button on the vehicle key in the vehicle interior to enable it to start the
engine ⇒ Starting and stopping the engine.
Automatic switch-off of the sensor surfaces
•The vehicle is not unlocked or locked for an extended period.
•A sensor has been triggered an excessive number of times.
Activating sensors again:
•Wait for a short period of time.
•OR: unlock the vehicle with the button on the vehicle key.
•OR: the boot lid is opened.
•OR: unlock the vehicle with the vehicle key ⇒ Doors.
It may not be possible to lock or unlock the vehicle using keyless access if the 12-volt vehicle
battery or button cell in the vehicle key is weak or discharged. The vehicle can be locked or
unlocked manually ⇒.
If there is no valid vehicle key in the vehicle or if it is not detected, a corresponding display
will be shown on the instrument cluster display. This may occur if the vehicle key is obstructed by
another radio signal or is covered by another item, e.g. a mobile telephone accessory or an
aluminium suitcase ⇒ Starting and stopping the engine.
The sensors may have limited functionality if they become very dirty.
Doors
Introduction
This chapter contains information on the followingsubjects:
⇒ Display
⇒ Childproof lock
⇒ Unlocking or locking the driver door manually
⇒ Locking the front passenger door and rear doors manually
If, for example, the vehicle key or central locking fails, the doors, boot lid and tilting and sliding
panoramic sunroof can be locked and, with some exceptions, unlocked manually.
Please note that the sensors in the door handles can be activated by a powerful jet of
water or steam if a valid vehicle key is simultaneously within its operating range. If at least
one window is open and the sensors in a door handle are continuously activated, all
windows will close. It is possible that all windows will open if the jet of water or steam is
moved away from the door handle sensors briefly and then moved back onto them
⇒ Locking and unlocking the vehicle with keyless access.
NOTICE
Any door that is not properly closed could open suddenly while the vehicle is in motion.
This could lead to severe injuries.
•Stop as soon as possible and close the door.
•Ensure that the door is closed properly and that the lock has engaged. The closed door
must be flush with the surrounding body panels.
•Doors should only be opened or closed when you are sure there is no-one in their path.
WARNING
Any door being held open by the door arrester could close unexpectedly in strong winds
or if the vehicle is on a slope. This could lead to injuries.
•Always keep a good grip on the handle when opening and closing doors.
WARNING

When reverse gear is engaged, the cornering light on both sides of the vehicle switches on
to provide better illumination of the area when manoeuvring.

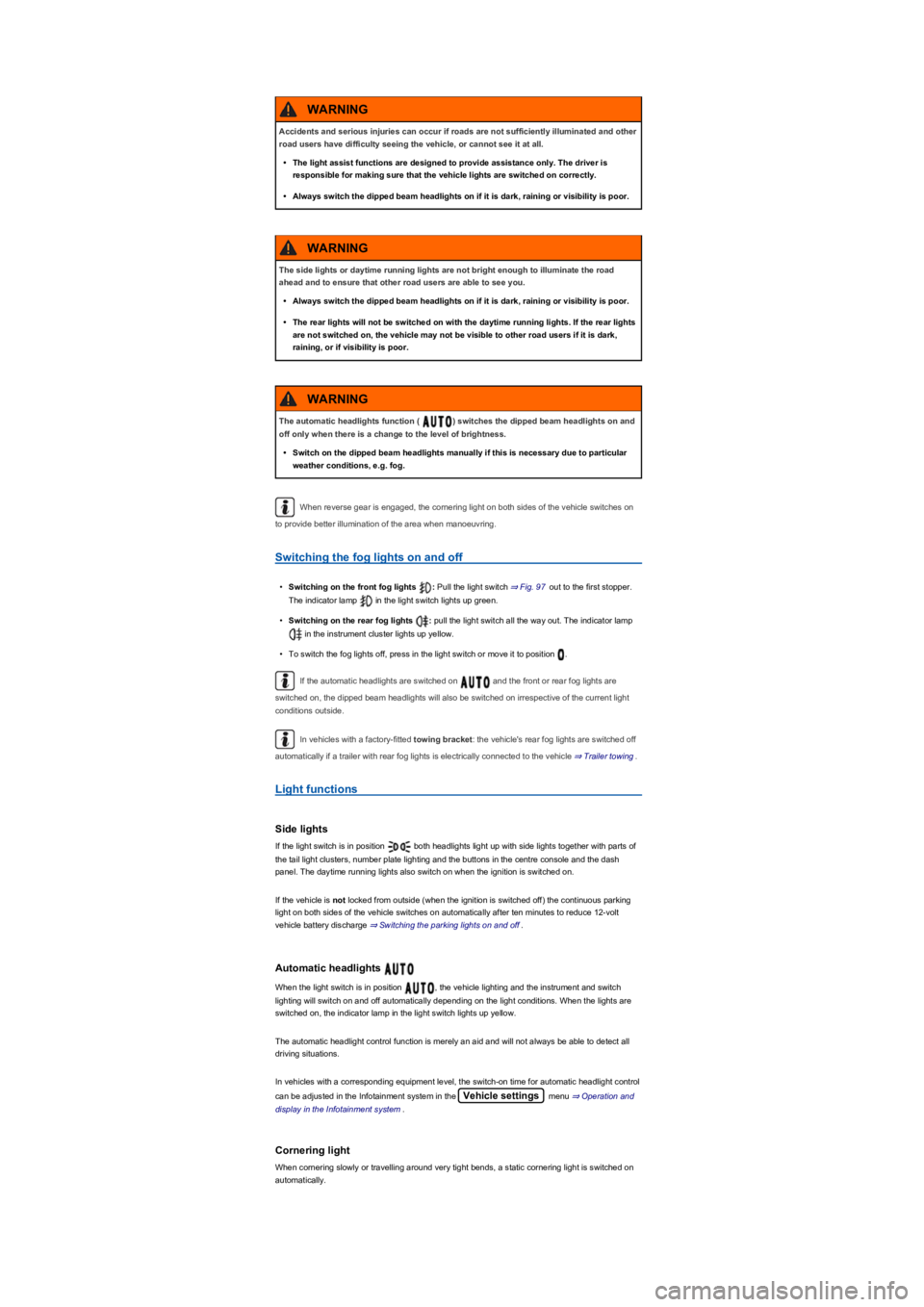

Switching the fog lights on and off
•Switching on the front fog lights : Pull the light switch ⇒ Fig. 97 out to the first stopper.
The indicator lamp in the light switch lights up green.
•Switching on the rear fog lights : pull the light switch all the way out. The indicator lamp
in the instrument cluster lights up yellow.
•To switch the fog lights off, press in the light switch or move it to position .
If the automatic headlights are switched on and the front or rear fog lights are
switched on, the dipped beam headlights will also be switched on irrespective of the current light
conditions outside.
In vehicles with a factory-fitted towing bracket: the vehicle's rear fog lights are switched off
automatically if a trailer with rear fog lights is electrically connected to the vehicle ⇒ Trailer towing.
Light functions
Side lights
If the light switch is in position both headlights light up with side lights together with parts of
the tail light clusters, number plate lighting and the buttons in the centre console and the dash
panel. The daytime running lights also switch on when the ignition is switched on.
If the vehicle is not locked from outside (when the ignition is switched offyfWKHFRQWLQXRXVSDUNLQJ
light on both sides of the vehicle switches on automatically after ten minutes to reduce 12-volt
vehicle battery discharge ⇒ Switching the parking lights on and off.
Automatic headlights
When the light switch is in position , the vehicle lighting and the instrument and switch
lighting will switch on and off automatically depending on the light conditions. When the lights are
switched on, the indicator lamp in the light switch lights up yellow.
The automatic headlight control function is merely an aid and will not always be able to detect all
driving situations.
In vehicles with a corresponding equipment level, the switch-on time for automatic headlight control
can be adjusted in the Infotainment system in the Vehicle settings menu ⇒ Operation and
display in the Infotainment system.
Cornering light
When cornering slowly or travelling around very tight bends, a static cornering light is switched on
automatically.
Accidents and serious injuries can occur if roads are not sufficiently illuminated and other
road users have difficulty seeing the vehicle, or cannot see it at all.
•The light assist functions are designed to provide assistance only. The driver is
responsible for making sure that the vehicle lights are switched on correctly.
•Always switch the dipped beam headlights on if it is dark, raining or visibility is poor.
WARNING
The side lights or daytime running lights are not bright enough to illuminate the road
ahead and to ensure that other road users are able to see you.
•Always switch the dipped beam headlights on if it is dark, raining or visibility is poor.
•The rear lights will not be switched on with the daytime running lights. If the rear lights
are not switched on, the vehicle may not be visible to other road users if it is dark,
raining, or if visibility is poor.
WARNING
The automatic headlights function ( yfVZLWFKHVWKHGLSSHGEHDPKHDGOLJKWVRQDQG
off only when there is a change to the level of brightness.
•Switch on the dipped beam headlights manually if this is necessary due to particular
weather conditions, e.g. fog.
WARNING

•If the dynamic cornering light has been deactivated.
•If travel mode is activated ⇒ Switching over headlights for driving abroad (travel modeyf.
•When the Eco driving profile is selected in vehicles with driving profile selection ⇒ Driving
profile selection and 4MOTION Active Control.

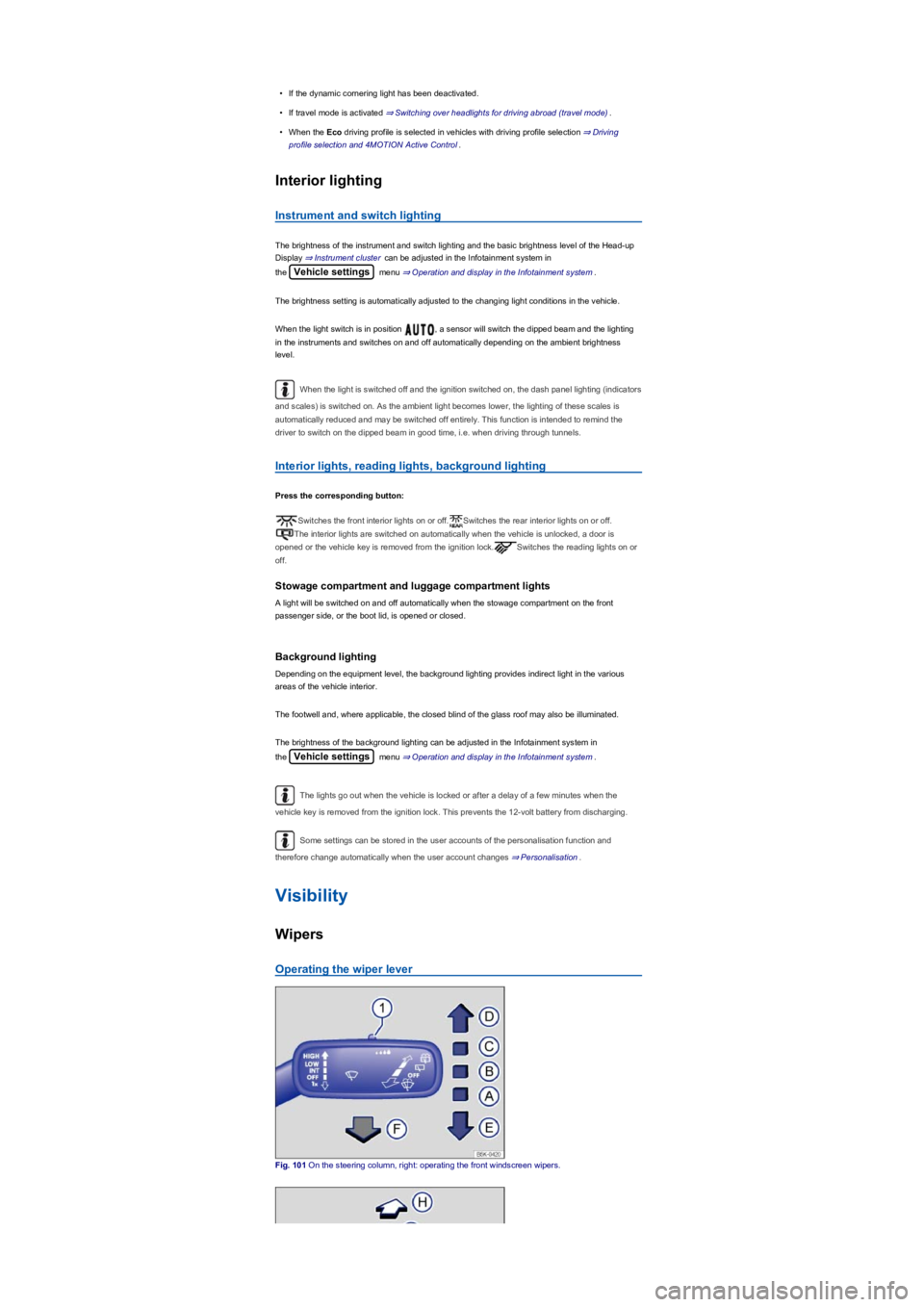

Interior lighting
Instrument and switch lighting
The brightness of the instrument and switch lighting and the basic brightness level of the Head-up
Display ⇒ Instrument cluster can be adjusted in the Infotainment system in
the Vehicle settings menu ⇒ Operation and display in the Infotainment system.
The brightness setting is automatically adjusted to the changing light conditions in the vehicle.
When the light switch is in position , a sensor will switch the dipped beam and the lighting
in the instruments and switches on and off automatically depending on the ambient brightness
level.
When the light is switched off and the ignition switched on, the dash panel lighting (indicators
and scalesyfLVVZLWFKHGRQ$VWKHDPELHQWOLJKWEHFRPHVORZHUWKHOLJKWLQJRIWKHVHVFDOHVLV
automatically reduced and may be switched off entirely. This function is intended to remind the
driver to switch on the dipped beam in good time, i.e. when driving through tunnels.
Interior lights, reading lights, background lighting
Press the corresponding button:
Switches the front interior lights on or off.Switches the rear interior lights on or off.
The interior lights are switched on automatically when the vehicle is unlocked, a door is
opened or the vehicle key is removed from the ignition lock.Switches the reading lights on or
off.
Stowage compartment and luggage compartment lights
A light will be switched on and off automatically when the stowage compartment on the front
passenger side, or the boot lid, is opened or closed.
Background lighting
Depending on the equipment level, the background lighting provides indirect light in the various
areas of the vehicle interior.
The footwell and, where applicable, the closed blind of the glass roof may also be illuminated.
The brightness of the background lighting can be adjusted in the Infotainment system in
the Vehicle settings menu ⇒ Operation and display in the Infotainment system.
The lights go out when the vehicle is locked or after a delay of a few minutes when the
vehicle key is removed from the ignition lock. This prevents the 12-volt battery from discharging.
Some settings can be stored in the user accounts of the personalisation function and
therefore change automatically when the user account changes ⇒ Personalisation.
Visibility
Wipers
Operating the wiper lever
Fig. 101 On the steering column, right: operating the front windscreen wipers.

Changing the bulb
7.Turn the bulb holder anticlockwise as far as it will go and carefully pull it out of the tail
light cluster together with the bulb.
9.Replace the defective bulb with a new bulb of the same type.
10.Carefully insert the bulb holder into the tail light cluster and turn it anticlockwise until
the bulb holder engages.
Fitting the tail light cluster
11.Carefully put the tail light cluster into the opening in the body.
12.Use one hand to hold the tail light in the fitting position while using the other hand to
screw the securing bolt firmly back in ⇒ Fig. 207③.
13.Check that the tail light cluster is positioned correctly and securely.
14.Connect the connector to the bulb holder and press into place.
15.Close the section of side trim in the luggage compartment near the tail light cluster
against the direction of the arrow
16.Close the boot lid ⇒ Boot lid.
The illustrations show the left-hand tail light cluster. The right-hand tail light cluster housing is
a mirror image of the one shown.
There are various types of tail light cluster, so the position and design of covers, bulbs and
bulb holders may vary from those shown in the illustrations.
In tail light clusters with LEDs, some light elements may be fitted with normal bulbs. These
bulbs can be changed.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Lighting
Vehicle lighting not working partially or completely. A separate display appears in the
instrument cluster if there is a cornering light fault.A trailer turn signal or all trailer lights have
stopped working.
Check the exterior lighting and change the appropriate bulb as required ⇒ Changing bulbs. If all
bulbs are OK or there is a fault in the dynamic cornering light, go to a qualified workshop.
Monitoring the lights on a connected trailer
For vehicles with a factory-fitted towing bracket, the vehicle will also monitor certain bulbs on a
trailer which has been connected properly via the trailer socket.
If a trailer turn signal or all the trailer lights fail, the indicator lamp in the instrument cluster will
go out.
Changing fuses
Introduction
This chapter contains information on the followingsubjects:
⇒ Fuses in the dash panel
⇒ Fuses in the engine compartment
⇒ Fuse table for fuses in the dash panel
⇒ Fuse tables for fuses in the engine compartment
⇒ Changing a blown fuse
At the time of print we are unable to provide an complete overview of the locations of the fuses for
the electrical consumers. This is because the vehicle is under constant development, because
fuses are assigned differently depending on the vehicle equipment level and because several
consumers may use a single fuse. You can get more information about the fuse layout from a
Volkswagen dealership.
Several electrical consumers could share a single fuse. Conversely, a single consumer could have
more than one fuse.
Therefore fuses should only be replaced when the cause of the fault has been rectified. If a new
fuse blows shortly after insertion, have the electrical system checked by a qualified workshop as
soon as possible.
