Page 256 of 341

VOLKSWAGEN TIGUAN 2018 Owners Manual ⇒ Fig. 204Dipped beam
headlights
Side
lights/daytime
running lights
Turn signalMain beam
headlights
Insert the bulb
holder ③ into
the headlight and
turn it clockwise as
far as it will go

⇒ Fig. 204Dipped beam
headlights
Side
lights/daytime
running lights
Turn signalMain beam
headlights
Insert the bulb
holder ③ into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb
holder \b into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb
holder ⑤ into
the headlight and
turn it clockwise as
far as it will go.
Insert the bulb holder
⑥ into the
headlight and turn it
clockwise as far as it
will go.
8.Fit the rubber
cover ①.
Fit the rubber
cover ①.
Fit the rubber cover
②.
9.Close the bonnet ⇒ In the engine compartment.
The illustrations show the left-hand headlight from the rear. The right-hand headlight is a
mirror image of the one shown.
There are various types of headlight, so the position and design of covers, bulbs and bulb
holders may vary from those shown in the illustrations.
It is not possible for customers to change the LEDs in daytime running lights with LED
technology. Go to a qualified workshop.
Changing bulbs in the front bumper
Fig. 205 In the front bumper, right-hand side: remove the fog light.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The actions should only be carried out in the specified order:
1.Observe and follow the instructions on the checklist ⇒ Checklist Information on
changing bulbs.
2.Take the wire hook from the tool kit and insert it in the opening in the cover
⇒ Fig. 205. Pull the cover forwards in the direction of the arrow.
3.Use the screwdriver from the vehicle tool kit to unscrew the securing screw
⇒ Fig. 205①⇒ Vehicle toolkit.
4.Pull the headlight out of the bumper towards the outside of the vehicle.
5.Release the connector and pull it off.
6.Turn the bulb holder anticlockwise as far as it will go and pull it out to the rear
along with the bulb.
7.Replace the defective bulb with a new bulb of the same type.
8.Insert the bulb holder into the headlight and turn it clockwise as far as it will go.
9.Connect the connector to the bulb holder. The connector should click into place.
10.Push the headlight from the outside into the openings and insert into the bumper.
11.Use the screwdriver to tighten the securing bolts ⇒ Fig. 205①.
12.Replace the cover in the bumper ⇒ Fig. 205.
13.Stow the wire hook and screwdriver in the vehicle tool kit.
Changing bulbs in the front bumper (R-Lineyf
•Please ensure that the electrical connection on the headlight housing is positioned
properly in order to prevent damage to the electrical system caused by water entering
the system.
•When removing and refitting the headlight, make sure that the vehicle's paintwork is
not damaged.
NOTICE

Page 257 of 341

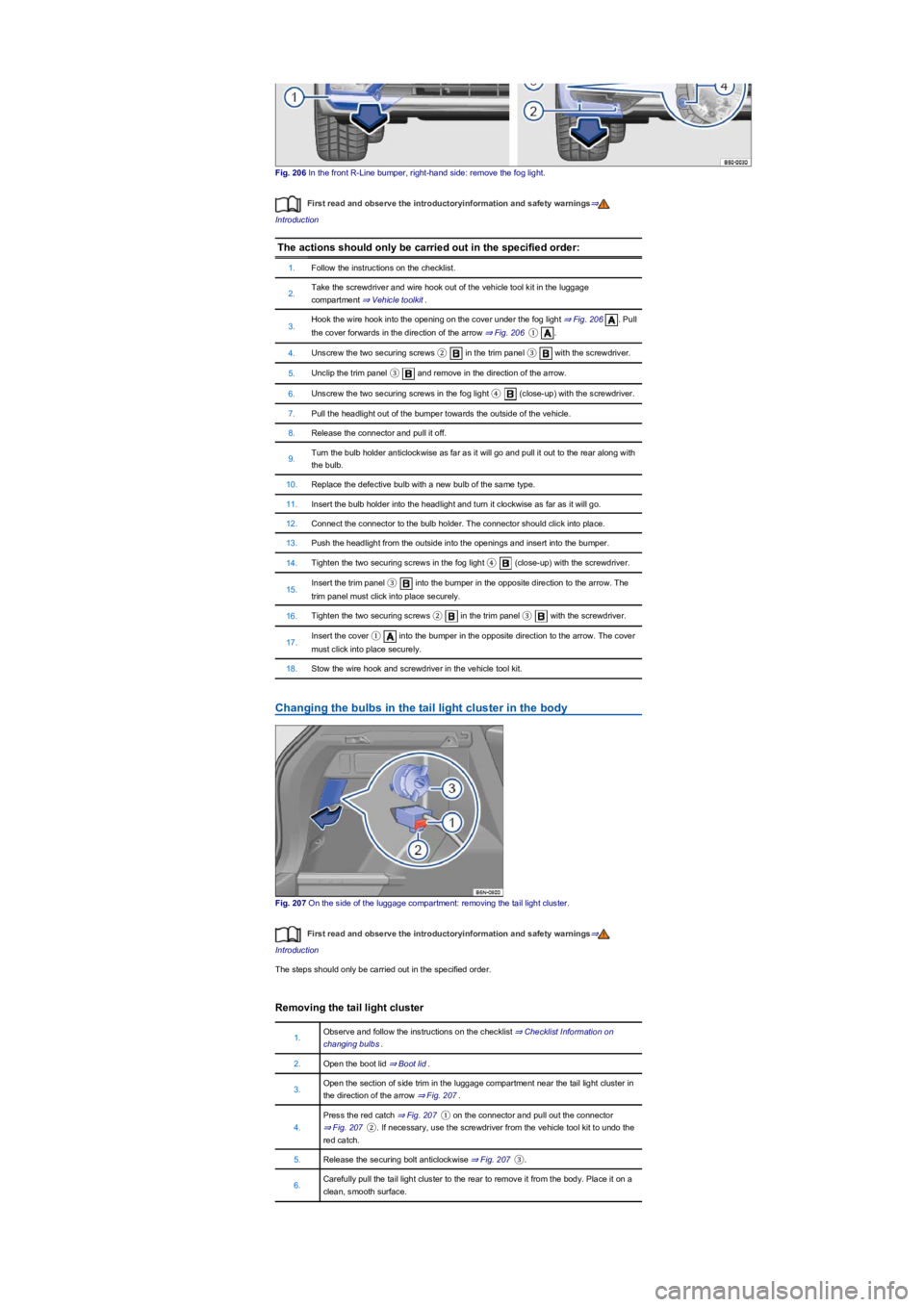

VOLKSWAGEN TIGUAN 2018 Owners Manual Fig. 206 In the front R-Line bumper, right-hand side: remove the fog light.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The actions should only be carried ou

Fig. 206 In the front R-Line bumper, right-hand side: remove the fog light.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The actions should only be carried out in the specified order:
1.Follow the instructions on the checklist.
2.Take the screwdriver and wire hook out of the vehicle tool kit in the luggage
compartment ⇒ Vehicle toolkit.
3.Hook the wire hook into the opening on the cover under the fog light ⇒ Fig. 206. Pull
the cover forwards in the direction of the arrow ⇒ Fig. 206①.
4.Unscrew the two securing screws ② in the trim panel ③ with the screwdriver.
5.Unclip the trim panel ③ and remove in the direction of the arrow.
6.Unscrew the two securing screws in the fog light \b (close-upyfZLWKWKHVFUHZGULYHU.
7.Pull the headlight out of the bumper towards the outside of the vehicle.
8.Release the connector and pull it off.
9.Turn the bulb holder anticlockwise as far as it will go and pull it out to the rear along with
the bulb.
10.Replace the defective bulb with a new bulb of the same type.
11.Insert the bulb holder into the headlight and turn it clockwise as far as it will go.
12.Connect the connector to the bulb holder. The connector should click into place.
13.Push the headlight from the outside into the openings and insert into the bumper.
14.Tighten the two securing screws in the fog light \b (close-upyfZLWKWKHVFUHZGULYHU.
15.Insert the trim panel ③ into the bumper in the opposite direction to the arrow. The
trim panel must click into place securely.
16.Tighten the two securing screws ② in the trim panel ③ with the screwdriver.
17.Insert the cover ① into the bumper in the opposite direction to the arrow. The cover
must click into place securely.
18.Stow the wire hook and screwdriver in the vehicle tool kit.
Changing the bulbs in the tail light cluster in the body
Fig. 207 On the side of the luggage compartment: removing the tail light cluster.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The steps should only be carried out in the specified order.
Removing the tail light cluster
1.Observe and follow the instructions on the checklist ⇒ Checklist Information on
changing bulbs.
2.Open the boot lid ⇒ Boot lid.
3.Open the section of side trim in the luggage compartment near the tail light cluster in
the direction of the arrow ⇒ Fig. 207.
4.
Press the red catch ⇒ Fig. 207① on the connector and pull out the connector
⇒ Fig. 207②. If necessary, use the screwdriver from the vehicle tool kit to undo the
red catch.
5.Release the securing bolt anticlockwise ⇒ Fig. 207③.
6.Carefully pull the tail light cluster to the rear to remove it from the body. Place it on a
clean, smooth surface.

Page 261 of 341

VOLKSWAGEN TIGUAN 2018 Owners Manual Fig. 211 In the dash panel: fuse layout.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The table shows the fuse locations of the electrical equipment relevant

Page 266 of 341

$VOLKSWAGEN TIGUAN 2018 Owners Manual •Connect the other end of the red jump lead to the positive terminal (+yf��R�I��W�K�H��Y�H�K�L�F�O�H��E�D�W�W�H�U�\� providing assistance ⇒ Fig. 217②. •On the vehicle with the flat 12-v$

•Connect the other end of the red jump lead to the positive terminal (+yfRIWKHYHKLFOHEDWWHU\
providing assistance ⇒ Fig. 217②.
•On the vehicle with the flat 12-volt battery, connect the other end of the black jump lead
⇒ Fig. 217③ preferably to the jump lead connection point (earth connectionyfRURWKHUZLVHWRD
solid metal part that is securely bolted onto the cylinder block, or to the cylinder block itself ⇒
.
•Position the leads in such a way that they cannot come into contact with any moving parts in the
engine compartment.
Connecting jump leads (vehicles with 12-volt battery in the luggage
compartmentyf
The jump leads should only be connected in the order A – B – C – D⇒ Fig. 218.
•Switch off the ignition in both vehicles ⇒ Starting and stopping the engine.
•Fold open the cover of the jump lead connection point in the engine compartment ⇒ Jump lead
connection point (positive terminalyf.
•Connect one end of the red jump lead to the jump lead connection point (positive terminalyf(+yf
of the vehicle with the discharged 12-volt vehicle battery ⇒ Fig. 218①⇒.
•Connect the other end of the red jump lead to the positive terminal (+yfRIWKHYHKLFOHEDWWHU\
providing assistance ⇒ Fig. 218②.
•On the vehicle with the 12-volt battery providing assistance, connect one end of the black jump
lead ⇒ Fig. 218③ preferably to the jump lead connection point (earth connectionyfRU
otherwise to a solid metal part that is securely bolted onto the cylinder block, or to the cylinder
block itself.
•On the vehicle with the flat 12-volt battery, connect the other end of the black jump lead
⇒ Fig. 218③ preferably to the jump lead connection point (earth connectionyfRURWKHUZLVHWRD
solid metal part that is securely bolted onto the cylinder block, or to the cylinder block itself ⇒
.
•Position the leads in such a way that they cannot come into contact with any moving parts in the
engine compartment.
Starting the engine
•Start the engine of the vehicle providing assistance and let it run at idle.
•Start the engine of the vehicle with the discharged 12-volt vehicle battery and wait two or three
minutes until the engine is running smoothly.
Removing the jump leads
•Before disconnecting the jump leads, switch off the dipped beam headlights if they are switched
on.
•Turn on the blower of the air conditioning system or the heating and fresh air system and the
rear window heating in the vehicle with the discharged 12-volt vehicle battery. This helps to
minimise voltage peaks which are generated when the leads are disconnected.
•When the engine is running, the jump leads should be removed only in the order
D – C – B – A⇒ Fig. 217 or ⇒ Fig. 218.
•Close the battery cover or fold back the cover of the jump lead connection point ⇒ Jump lead
connection point (positive terminalyf.
•Go to a qualified workshop and have the 12-volt vehicle battery checked.

Page 317 of 341

VOLKSWAGEN TIGUAN 2018 Owners Manual Scope of service
The scope of service includes all maintenance work that is necessary in order to keep your vehicle
roadworthy (depending on the operating conditions and vehicle equipment, e.g. engin

Page 320 of 341

VOLKSWAGEN TIGUAN 2018 Owners Manual Waxing
Waxing protects the paintwork. At the latest when water no longer clearly forms small drops and
runs off the paintwork when the vehicle is clean, you should re-wax the vehicle with a good wax

Waxing
Waxing protects the paintwork. At the latest when water no longer clearly forms small drops and
runs off the paintwork when the vehicle is clean, you should re-wax the vehicle with a good wax
solution.
Even if a preservative wax is applied regularly in the automatic car wash, Volkswagen recommends
protecting the vehicle paintwork at least twice a year using Volkswagen Genuine hard wax (-
000 096 317 -yf.
Polishing
Polishing is only necessary if the paint has lost its shine, and the gloss cannot be brought back by
applying wax.
Wash the vehicle only in specially provided wash bays This prevents waste water
contaminated with oil, grease or fuel from entering the sewerage system.
Caring for and cleaning the vehicle exterior
Fig. 251 Between the engine compartment and the windscreen: plenum chamber (illustrationyf.
Fig. 252 In the rear of the vehicle: rear view camera in the Volkswagen badge or in the number
plate lighting.
The following overview contains recommendations for cleaning and care of individual vehicle
components ⇒.
Windows, glass surfaces: remove wax residue, e.g. from care products, using the Volkswagen
Genuine cleaning cloth - 000 096 166 A - or a suitable glass cleaner.
Use a hand brush to remove snow and ice. If you use a plastic scraper, move it in one direction
only.
After the car has been washed, the braking effect could set in later than normal and extend
the braking distance as the brake discs and brake pads will be wet, or iced up in winter.
•You can dry and de-ice the brakes by performing careful braking manoeuvres. Ensure
that you do not endanger any other road users or violate any legal regulations when
doing so.
WARNING
Incorrectly washing the vehicle can cause serious damage to the vehicle.
•Always follow the instructions exactly.
•Never wash the vehicle in direct sunshine.
•Never aim a water jet directly at locks, doors or the boot lid in cold weather. The locks
and seals could freeze.
NOTICE
Painted parts and surfaces with a matt finish, unpainted plastic parts, headlight lenses and
tail light clusters can be damaged if the vehicle is not washed correctly.
•Use only brushless car washes for matt-painted surfaces.
•Do not use hard or abrasive brushes.
NOTICE

Page 321 of 341

VOLKSWAGEN TIGUAN 2018 Owners Manual Use the Volkswagen Genuine de-icing agent (- 000 096 322 -yf��W�R��U�H�P�R�Y�H��L�F�H�.
Wiper blades:⇒ Wiper blades.
Paintwork: always treat surfaces carefully in order to prevent damage to the

Use the Volkswagen Genuine de-icing agent (- 000 096 322 -yfWRUHPRYHLFH.
Wiper blades:⇒ Wiper blades.
Paintwork: always treat surfaces carefully in order to prevent damage to the paint coat. Use a
clean, soft cloth and a mild soap solution or cleaning clay to remove any light dirt immediately, e.g.
deposits, insect residue, or cosmetics.
Repair minor paint damage with a touch-up pen. Refer to the vehicle data sticker for the paint code
⇒ Technical data. Consult a qualified workshop in the event of damage to surfaces with matt paint.
•Overflowing fuel or service fluids: clean immediately.
•Flash rust deposits: moisten deposits with a soap solution. Then remove any deposits with
cleaning clay.
•Corrosion: have removed by a qualified workshop.
•Water no longer forms beads on clean paint: preserve paintwork at least twice a year using
Volkswagen Genuine hard wax (- 000 096 317 -yf.
•No gloss in spite of preservation/paint unattractive: treat the vehicle with suitable polish after
cleaning to remove dirt and dust.
Plenum chamber, engine compartment: remove leaves and other loose objects with a vacuum
cleaner or by hand ⇒ Fig. 251⇒. Cleaning of the engine compartment should always be
performed by a qualified workshop ⇒.
Water that has entered the plenum chamber via a manual process (e.g. from a high-pressure
cleaneryfFDQFDXVHFRQVLGHUDEOHGDPDJHWRWKHYHKLFOH.
Sensors, camera lenses: clean the area in front of the sensors or camera with a soft cloth and
solvent-free cleaning agent. Observe the installation locations ⇒ Vehicle overviews.
•Switch on the ignition.
•Move the selector lever to position R.
•Clean the camera lens.
Clean sensitive surfaces on the rain/light sensor and the camera window on the windscreen in the
same way as windows and glass surfaces (depending on vehicle equipmentyf.
Remove snow with a brush. Do not use warm or hot water.
Use the Volkswagen Genuine de-icing agent (- 000 096 322 -yfWRUHPRYHLFH.
Decorative films, protective films: remove soiling in the same way as for paint. Always use
Volkswagen Genuine plastic cleaner (- 000 096 314 -yfIRUPDWWGHFRUDWLYHILOPV.
Treat the vehicle with liquid hard wax every three months after washing and removing dust. Only
use clean, soft microfibre clothes to apply it. Do not use hot wax, also not in car washes!
•Stubborn dirt: remove carefully using white spirits, and then rinse using warm water.
Trim parts, trim strips, exhaust pipes made of chrome, aluminium or stainless steel: clean
only in a dust-free environment using a clean, soft cloth and a mild soap solution.
Chrome parts can be protected using Volkswagen Genuine hard wax (- 000 096 317 -yf.
Anodised surfaces: do not use chrome cleaning products.
Headlights, tail light clusters: use a soft sponge soaked with a mild soap solution. Do not use
any cleaning agents that contain alcohol or solvents.
•Stubborn dirt: remove with Volkswagen Genuine chrome and aluminium care product (-
000 096 319 D -yf.
Wheels: remove dirt and gritting salt deposits with plenty of water.
Alloy wheels: treat dirty aluminium wheels with Volkswagen Genuine wheel cleaner (- 000 096 304
-yf9RONVZDJHQUHFRPPHQGVWUHDWLQJWKHZKHHOULPVZLWK9RONVZDJHQ*HQXLQHKDUGZD[(-
000 096 317 -yfHYHU\WKUHHPRQWKV.
•Damage protective paint coating: repair immediately with a touch-up pen. Go to a qualified
workshop if necessary.
•Brake dust: use Volkswagen Genuine wheel rim cleaner (- 000 096 304 -yf.
Door lock cylinders: Volkswagen recommends using Volkswagen Genuine de-icing agent (-
000 096 322 -yfIRUGHLFLQJ'RQRWXVHGRRUORFNGHLFHUVFRQWDLQLQJVXEVWDQFHVWKDWGLVVROYH
grease.
1yf
1yf
1yf

Page 324 of 341

$VOLKSWAGEN TIGUAN 2018 Owners Manual authorization symbolyf��7�K�H�V�H��G�H�Y�L�F�H�V��L�Q�F�O�X�G�H��F�U�X�L�V�H��F�R�Q�W�U�R�O��V�\�V�W�H�P�V��R�U��D�Q��H�O�H�F�W�U�R�Q�L�F�D�O�O�\��F�R�Q�W�U�R�O�O�H�G� suspension. Any add$

authorization symbolyf7KHVHGHYLFHVLQFOXGHFUXLVHFRQWUROV\VWHPVRUDQHOHFWURQLFDOO\FRQWUROOHG
suspension.
Any additional electrical components fitted that do not serve to control the vehicle itself must
bear the mark (manufacturer conformity declaration in the European Unionyf6XFKGHYLFHV
include refrigerator boxes, laptops and ventilator fans.
Repairs and technical modifications
Repairs and technical modifications must always be carried out according to Volkswagen
specifications⇒.
Unauthorised modifications to the electronic components or software in the vehicle may cause
malfunctions. As the electronic components are linked together in networks, these faults may
indirectly affect the working of other systems. This can seriously impair safety, lead to excessive
wear of components, and also invalidate the type approval for the vehicle.
The Volkswagen dealership cannot be held liable for any damage caused by technical
modifications and/or work performed incorrectly.
The Volkswagen dealership is not responsible for damage caused by technical modifications and/or
work performed incorrectly. Such damage is not covered by the Volkswagen guarantee.
Volkswagen recommends that all repairs and technical modifications be performed by an
authorised Volkswagen workshop using Volkswagen Genuine Parts.
Volkswagen repair information
Volkswagen Service information and official Volkswagen repair information can be purchased for a
fee.
Customers in Europe, Asia, Australia, Africa, Central and South America: please contact a
Volkswagen dealership or qualified workshop or register on the online portal erWin (electronic
repair and workshop informationyf:
https://erwin.volkswagen.de
erWin is available in numerous languages.
Vehicles with special auxiliary equipment or body parts
The manufacturer of these components must ensure that these parts (fittingsyfDGKHUHWRWKH
stipulated environmental laws and regulations, particularly the EU directive 2000/53/EC concerning
end-of-life vehicles and EU directive 2003/11/EC concerning the restriction on the marketing and
use of certain dangerous substances and preparations.
The vehicle owner should keep all assembly documentation for these auxiliary fittings, and pass it
on to any scrapping company later engaged. This is to facilitate environmentally responsible
disposal for all vehicles, including refitted vehicles.
Windscreen repairs
To function properly, some items of equipment require an electrical or electronic module, which is
located on the inside of the windscreen near the interior mirror. If the windscreen has been
damaged in the viewing field of the electrical or electronic module, e.g. by stone impact, the
windscreen must be replaced. Repairing the crack can lead to malfunctions or functional faults in
the equipment.
After changing the windscreen, the camera and sensors must be set up and calibrated by a
qualified workshop.
Impairment or damage to sensors and cameras
Incorrect repairs, retrofit structural modifications to the vehicle, e.g. lowering the body, add-on parts
on the vehicle or trailer ⇒ Trailer towing, or changes to the trim may lead to the sensors or
cameras being disrupted or damaged. This can also be caused by collisions, e.g. when parking.
Failure to observe this may impair important functions (driver assist systemsyfDQGGDPDJHWKH
vehicle.
The area in front of and around the sensors and cameras must not be covered by stickers,
additional headlights, trim frames for number plates or similar.
Incorrectly performed repairs or modifications to your vehicle can impair the effectiveness
of the airbags, cause malfunctions, accidents and fatal injury.
•Never secure or mount objects such as drink holders or telephone holders either on or
next to the airbag covers or within the deployment zones of the airbag modules.
•Objects either on or next to the airbag module covers or are in the deployment zone of
the airbags can cause serious or even fatal injuries should the airbags be activated.
WARNING
®

Page: < prev 1-10 9-16 17-24 25-32

oil level radio diagram maintenance wheel alignment fuel consumption
