2018 VAUXHALL VIVARO Owner's Manual

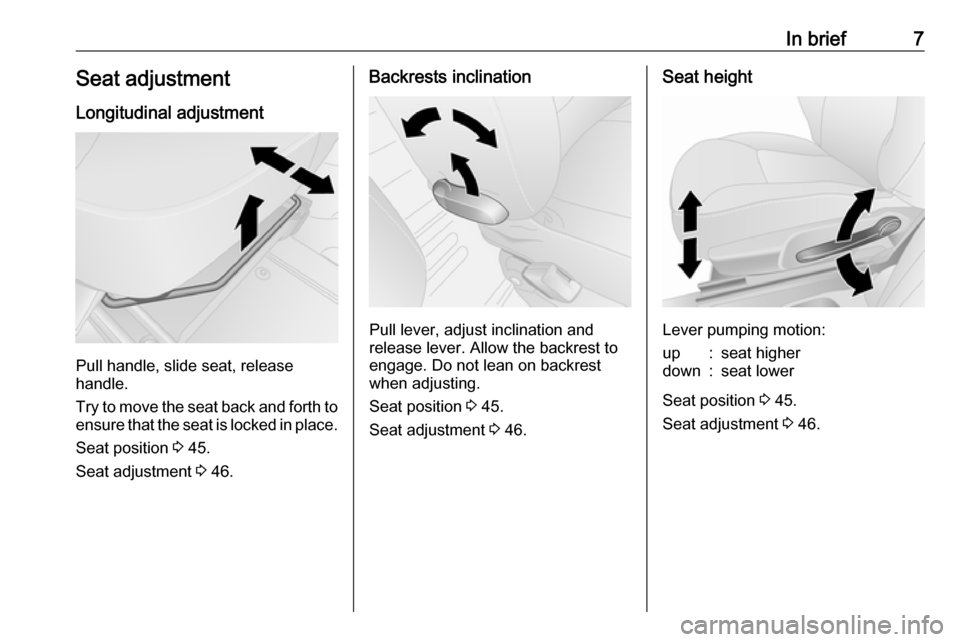

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 45.
Seat adjustment 3 46.
Backrests inclination
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage. Do not lean on backrest
when adjusting.
Seat position 3 45.
Seat adjustment 3 46.
Seat height
Lever pumping motion:
up:seat higherdown:seat lower
Seat position 3 45.
Seat adjustment 3 46.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 44.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 45.
Seat belts 3 53.
Airbag system 3 57.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, Wide view mirror
3 40.
Automatic anti-dazzle interior mirror
3 41.

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 39.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 39.
Electric adjustment 3 39.
Folding exterior mirrors 3 39.
Heated exterior mirrors 3 40.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 57.
Ignition positions 3 130.

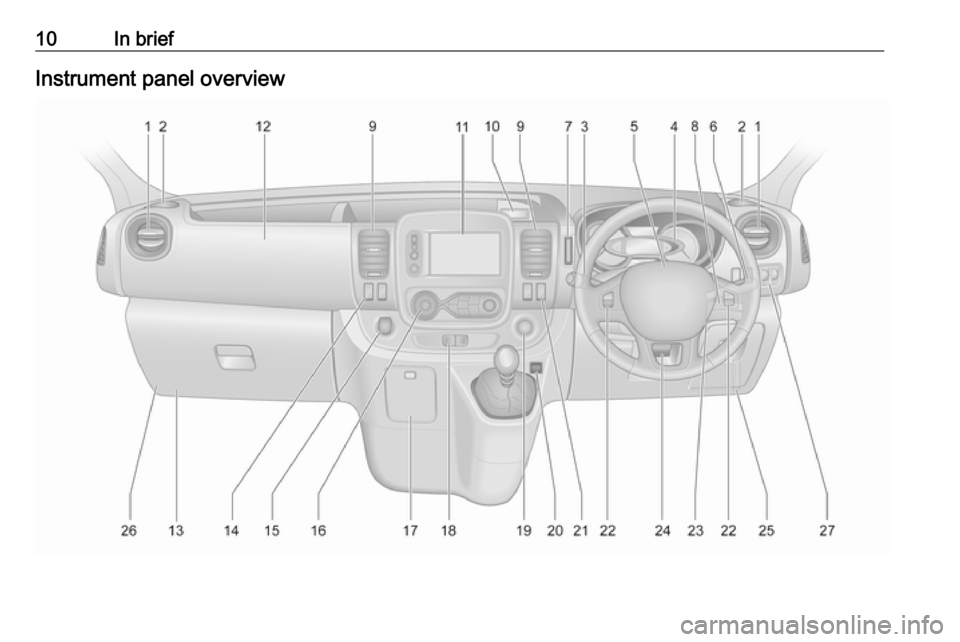

10In briefInstrument panel overview

In brief111Side air vents ...................... 125
2 Ashtray .................................. 88
Cupholder ............................ 73
3 Light switch ........................ 106
Rear fog light ....................... 110
Front fog lights ...................109
Exit lighting .......................... 112
Turn and lane-change
signals ................................. 109
Sidelights ............................ 106
Headlight flash, low beam
and high beam ....................107
4 Instruments .......................... 89
Driver Information Centre .... 100
Trip computer .....................103
5 Horn ...................................... 83
Driver airbag ......................... 616Windscreen wiper,
windscreen washer system ..84
Rear window wiper, rear
window washer system ........85
Trip computer .....................103
7 Card reader for electronic
key system ............................ 22
8 Steering column controls ......83
9 Centre air vents ................... 125
10 Power outlet .......................... 86
Cigarette lighter ..................... 88
Coin tray, USB slot ................ 71
11 Info display .......................... 100
12 Front passenger airbag .........61
13 Glovebox .............................. 72
14 Heated exterior mirrors .........40
Heated rear window ..............43
Idle speed control ...............133
15 Power outlet .......................... 86
Cigarette lighter ..................... 8816 Climate control system ........ 114
Electronic climate control
system ................................. 116
17 Ashtray .................................. 88
Cupholder ............................ 73
18 Hazard warning flashers .....109
Central locking system ..........24
19 Power button for electronic
key system .......................... 130
20 Eco button for fuel
economy mode ...................128
21 Stop-start system ................134
Cruise control and speed
limiter ................................. 150
22 Remote control on
steering wheel ......................83
Cruise control .....................150
23 Ignition switch with
steering wheel lock .............130
24 Steering wheel adjustment ...83
25 Bonnet release lever ...........164
26 Fuse box ............................. 180

12In brief27Ultrasonic parking assist ....153
Electronic Stability
Program (ESP® Plus
)............ 148
Traction Control system
(TC) ..................................... 147
Headlight range
adjustment ......................... 107
Instrument panel
illumination control ..............110
Auxiliary heater ...................120
Speed limiter ....................... 153Exterior lighting
Turn outer light switch:
7:off8:sidelights9P:headlights
Vehicles with automatic light control:
AUTO:automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 106.
Automatic light control 3 107.
Headlight warning device 3 102.
Adaptive forward lighting 3 108.

In brief13Front and rear fog lights
Turn inner light switch
>:front fog lightsø:rear fog light
Front fog lights 3 109.
Rear fog light 3 110.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 107.
High beam 3 107.
Headlight flash 3 107.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 109.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 109.
Horn
Press j.
Washer and wiper systems
Windscreen wiper7:offAUTO or P:interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 84.
Wiper blade replacement 3 172.
