2018 TOYOTA YARIS do it yourself maintenance

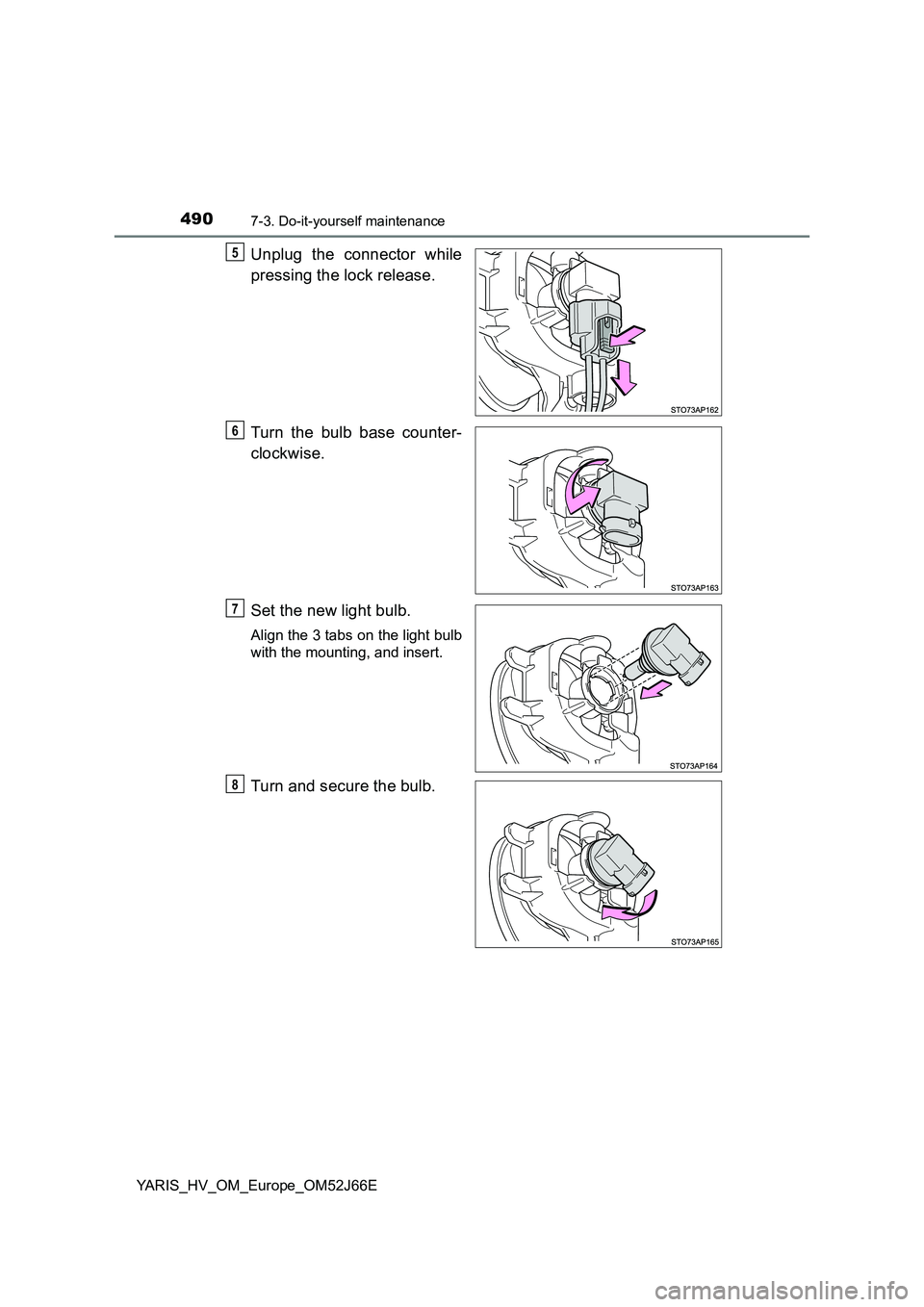

4907-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
5
6
7
8

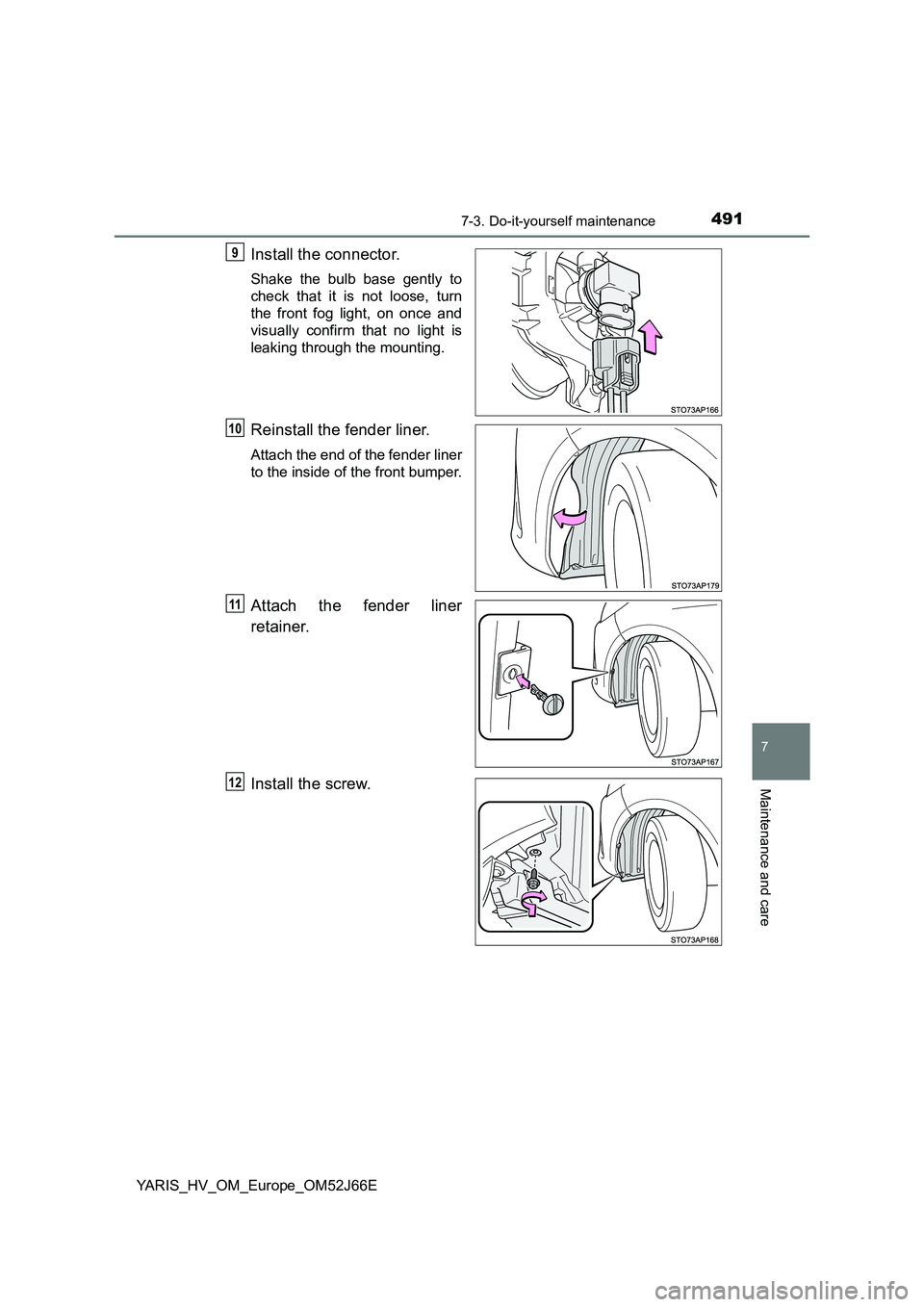

4917-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Attach the fender liner
retainer.
Install the screw.
9
10
11
12

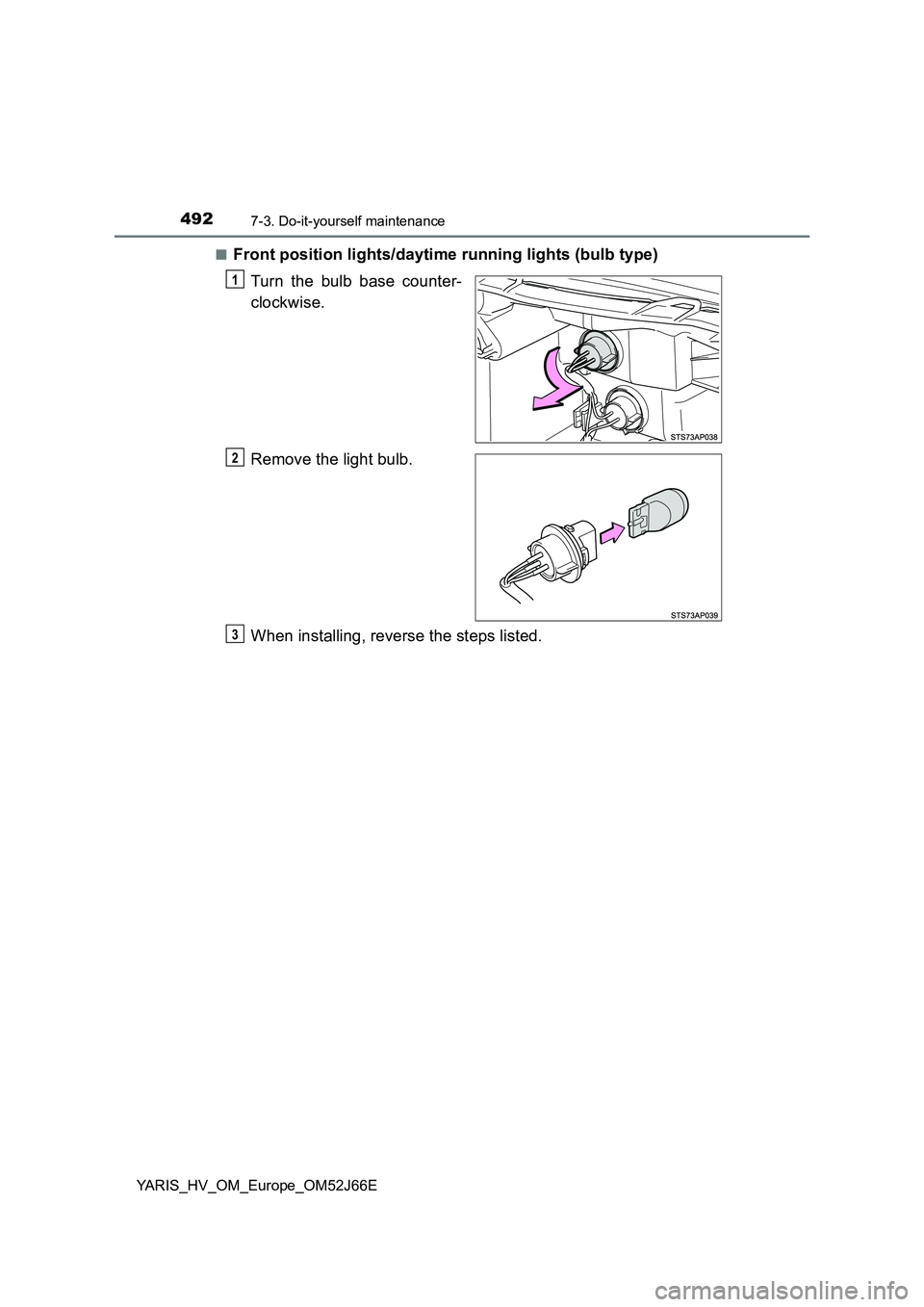

4927-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■Front position lights/daytime running lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

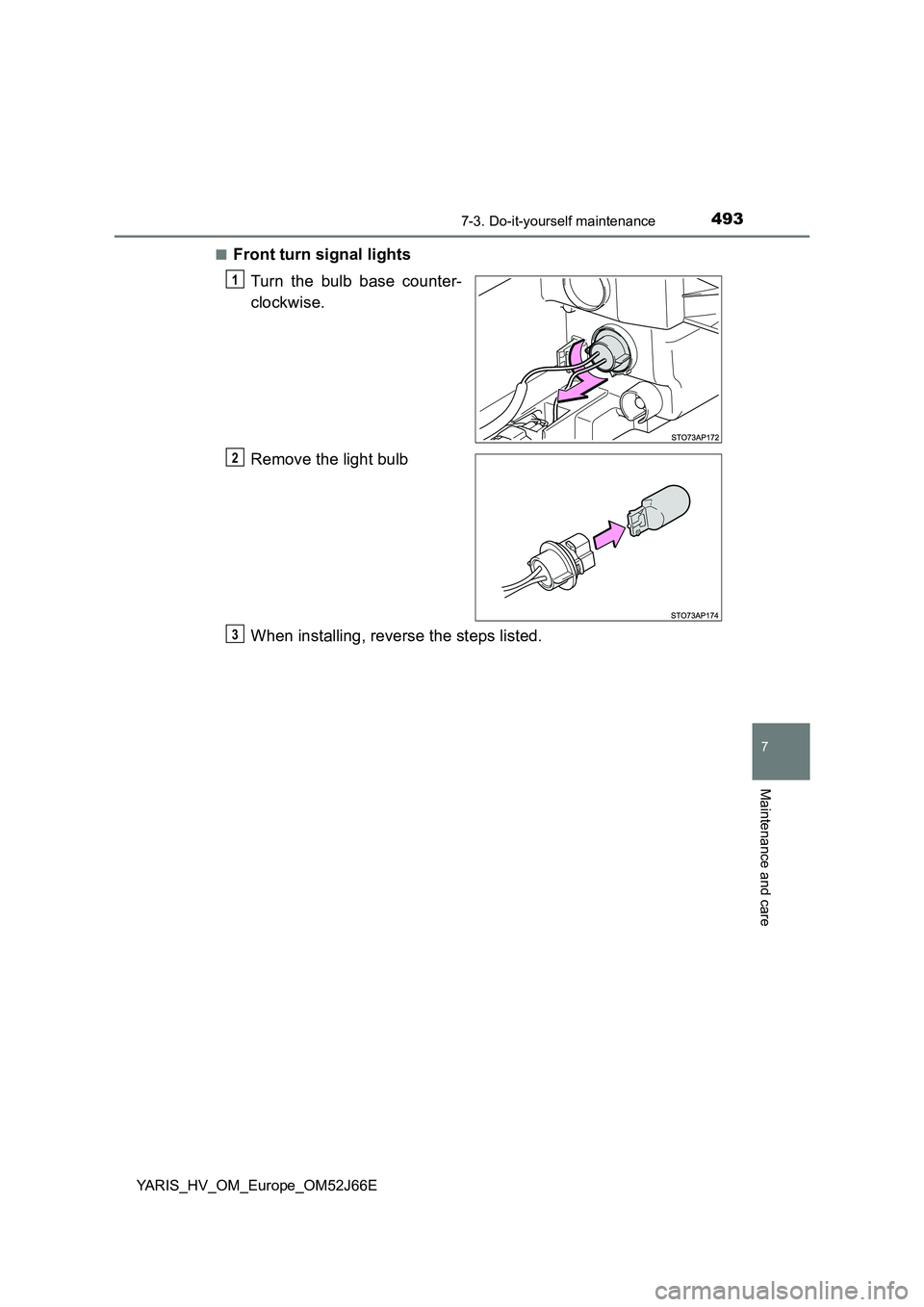

4937-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
■Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reverse the steps listed.
1
2
3

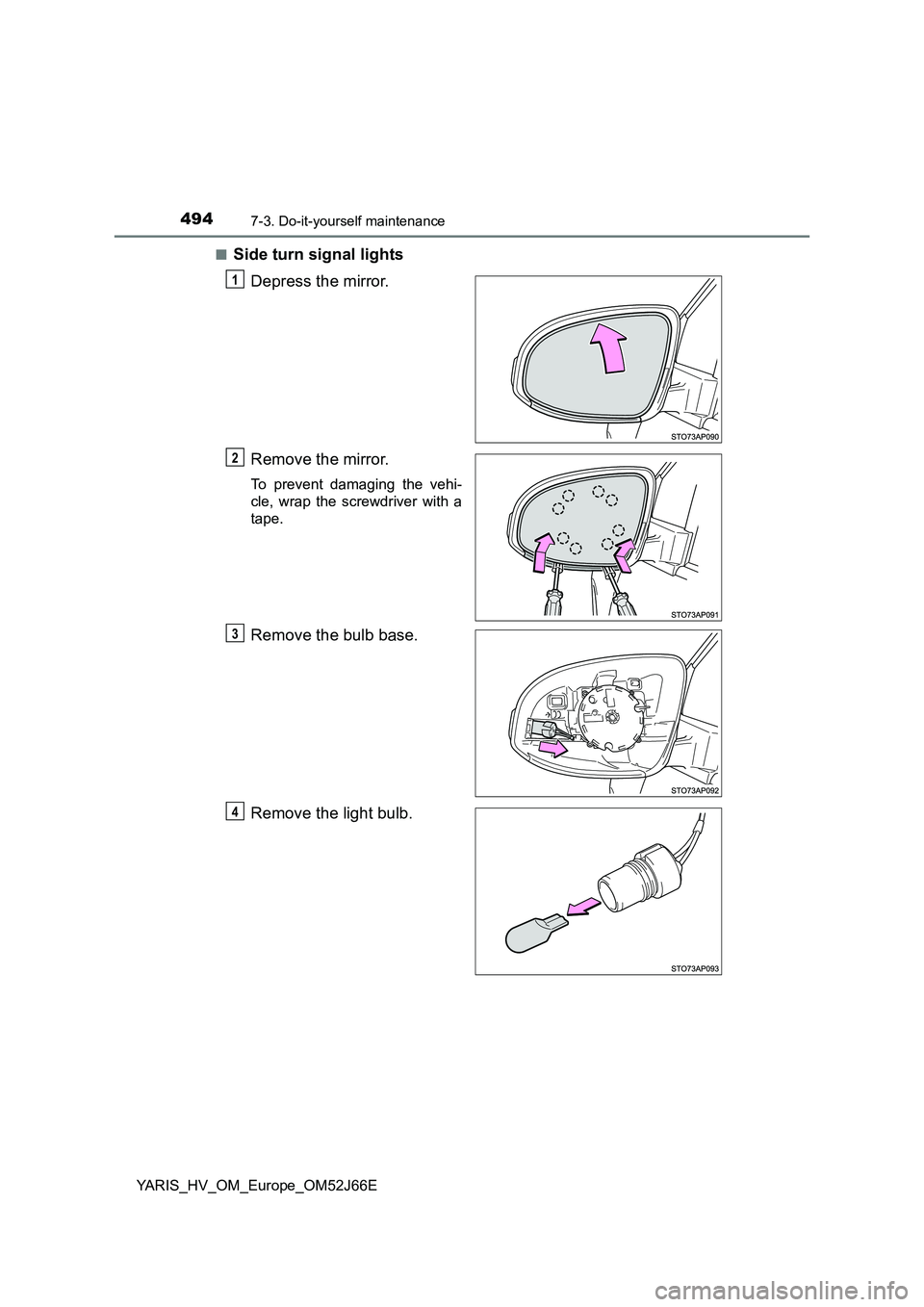

4947-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
1
2
3
4

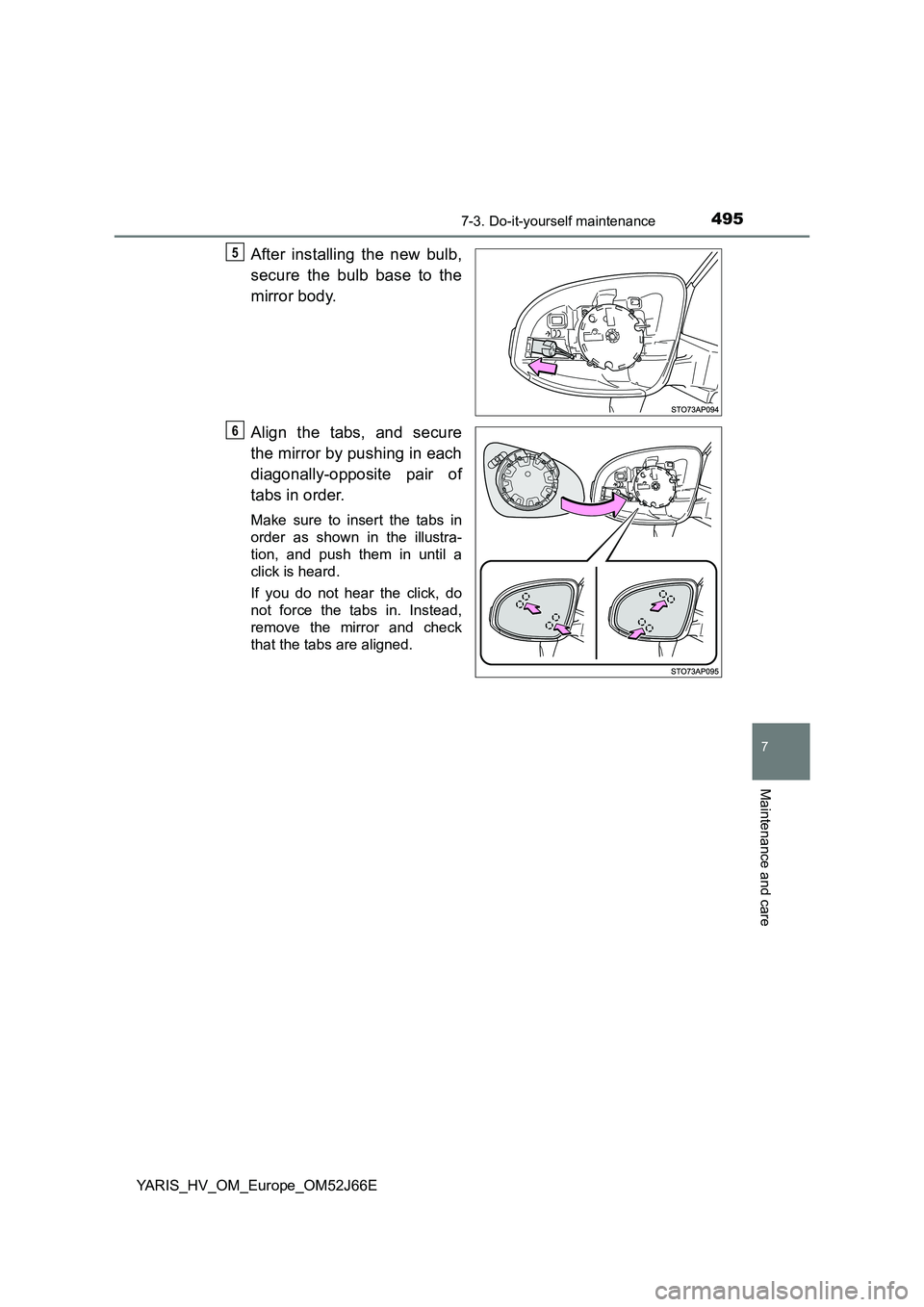

4957-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
After installing the new bulb,
secure the bulb base to the
mirror body.
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
5
6

4967-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
1
2
1
2
3
1
2

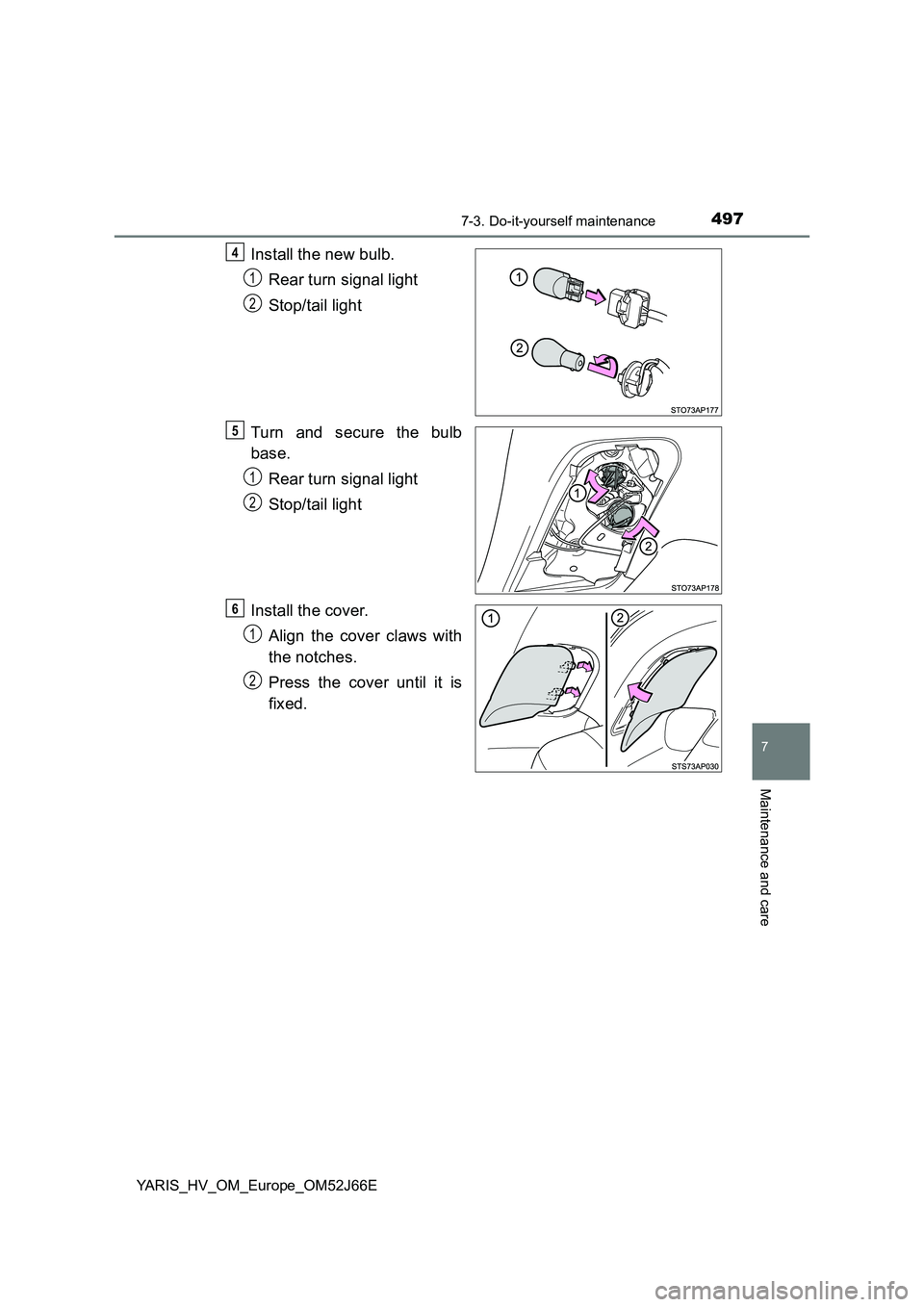

4977-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Install the new bulb.
Rear turn signal light
Stop/tail light
Turn and secure the bulb
base.
Rear turn signal light
Stop/tail light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
4
1
2
5
1
2
6
1
2
