2018 TOYOTA YARIS turn signal

4867-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 600)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
For more information about replacing other light bulbs, contact
any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
Preparing for light bulb replacement
Bulb locations
Front position lights/daytime
running lights (bulb type)
Front turn signal lights
Headlights
Front fog lights (if equipped)
Side turn signal lights
1
2
3
4
5

4877-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
■Rear
License plate lights
Back-up light
Stop/tail lights (bulb type)
Rear turn signal lights
1
2
3
4

4937-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
■Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reverse the steps listed.
1
2
3

4947-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■Side turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
1
2
3
4

4967-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
1
2
1
2
3
1
2

4977-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Install the new bulb.
Rear turn signal light
Stop/tail light
Turn and secure the bulb
base.
Rear turn signal light
Stop/tail light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
4
1
2
5
1
2
6
1
2

5068-1. Essential information
YARIS_HV_OM_Europe_OM52J66E

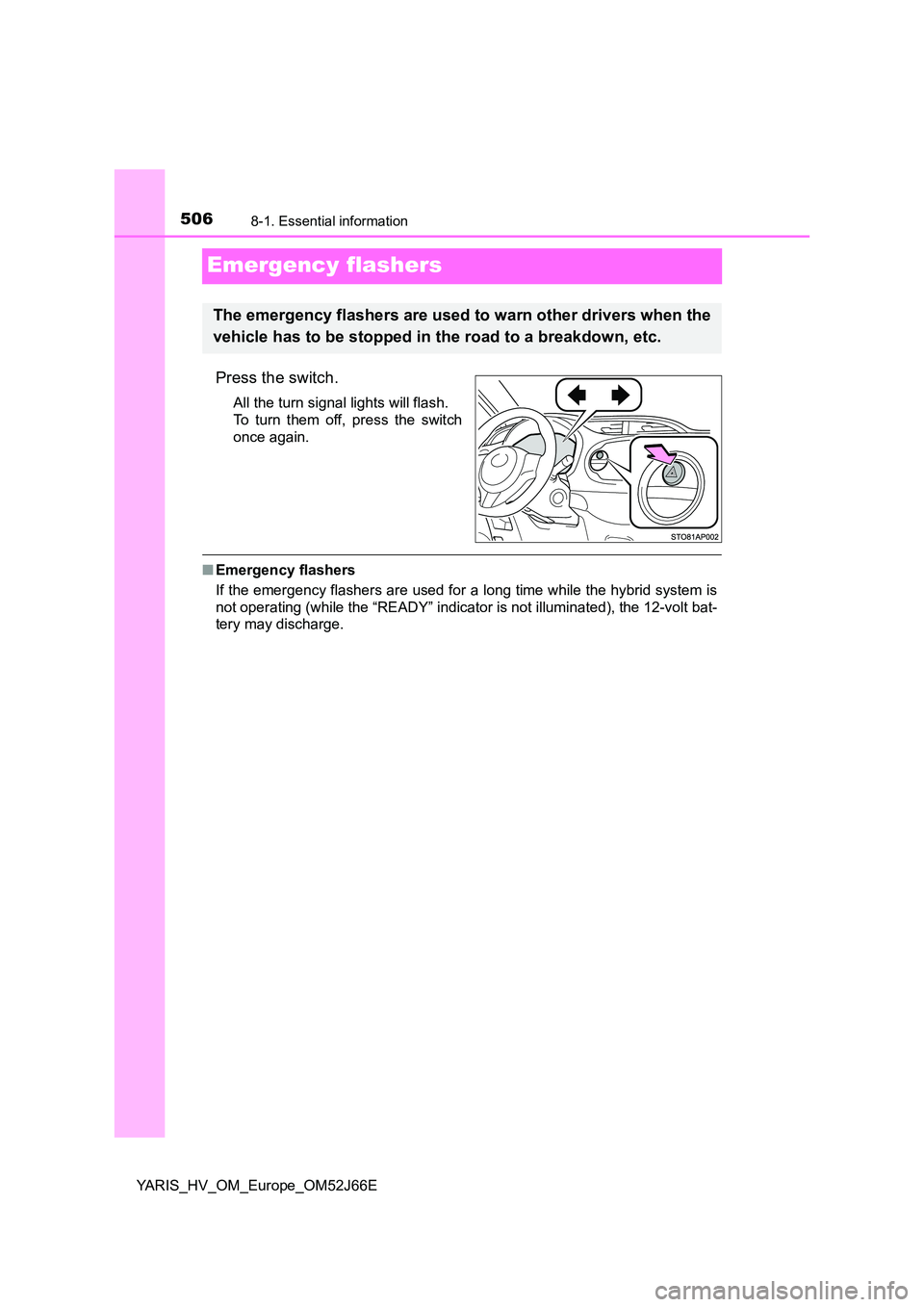

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicato r is not illuminated), the 12-volt bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

6009-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

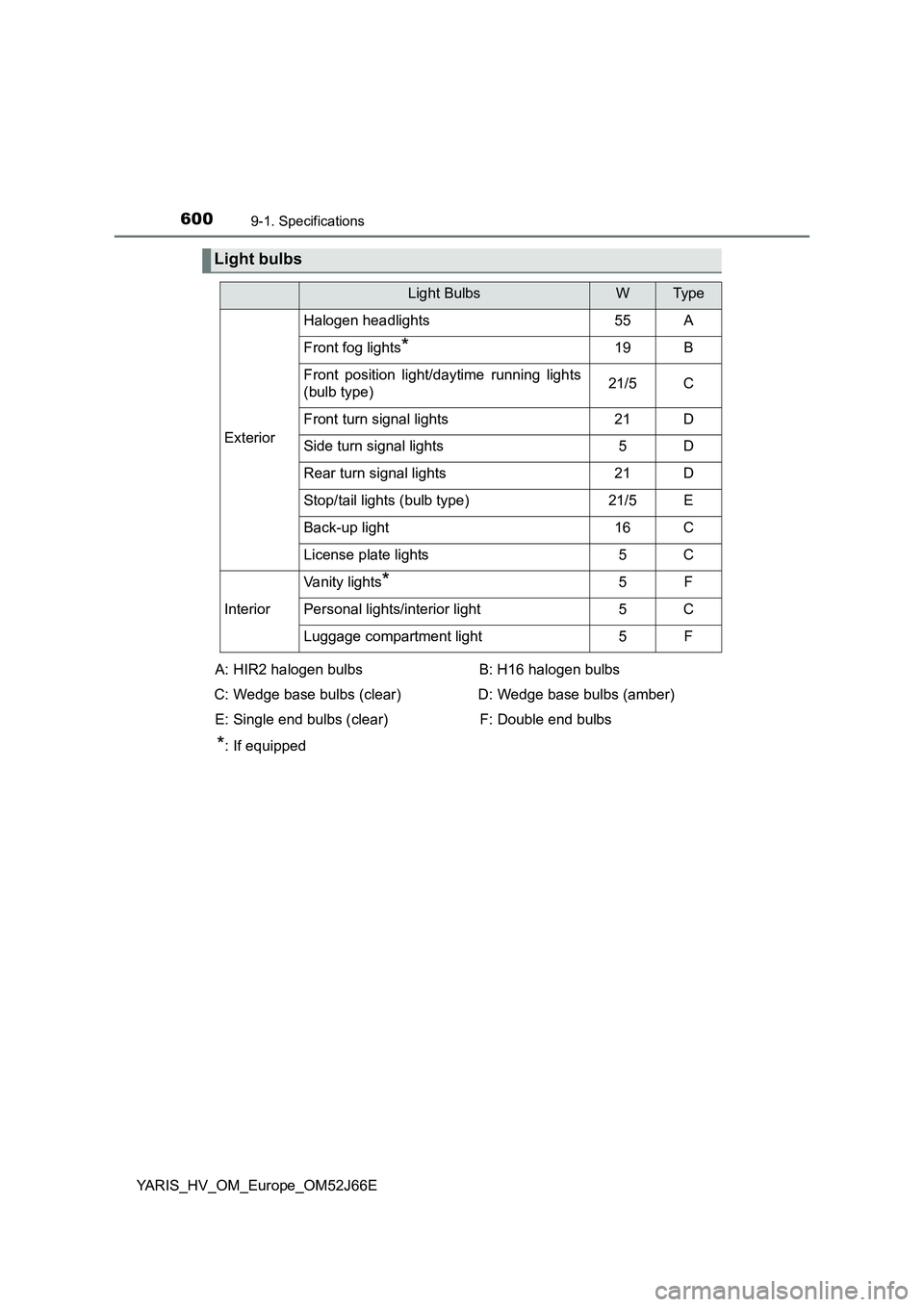

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights55A
Front fog lights*19B
Front position light/daytime running lights
(bulb type)21/5C
Front turn signal lights21D
Side turn signal lights5D
Rear turn signal lights21D
Stop/tail lights (bulb type)21/5E
Back-up light16C
License plate lights5C
Interior
Vanity lights*5F
Personal lights/interior light5C
Luggage compartment light5F
A: HIR2 halogen bulbs
C: Wedge base bulbs (clear)
E: Single end bulbs (clear)
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Double end bulbs
*: If equipped
