2018 TOYOTA YARIS light

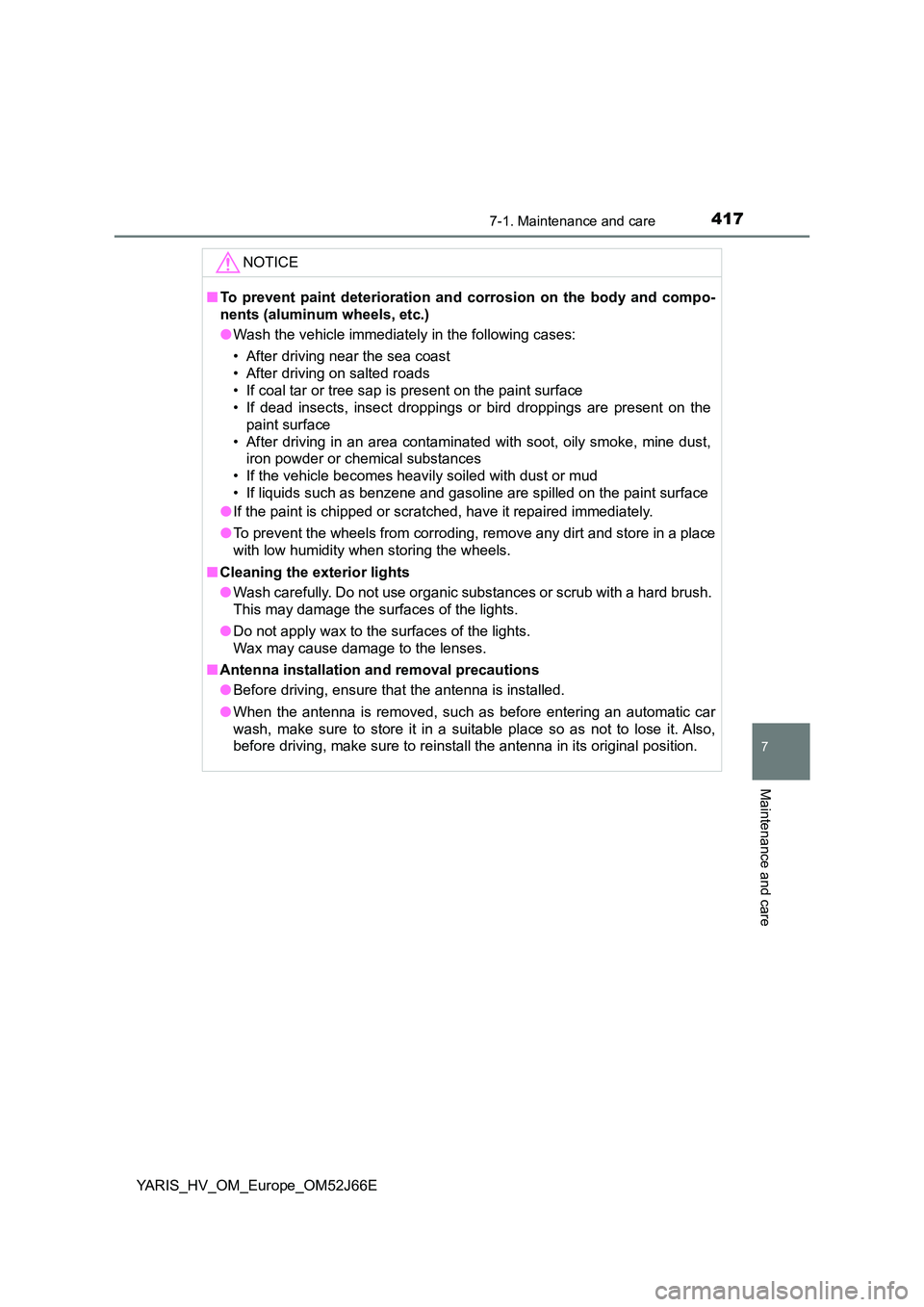

4177-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ Antenna installation and removal precautions
● Before driving, ensure that the antenna is installed.
● When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

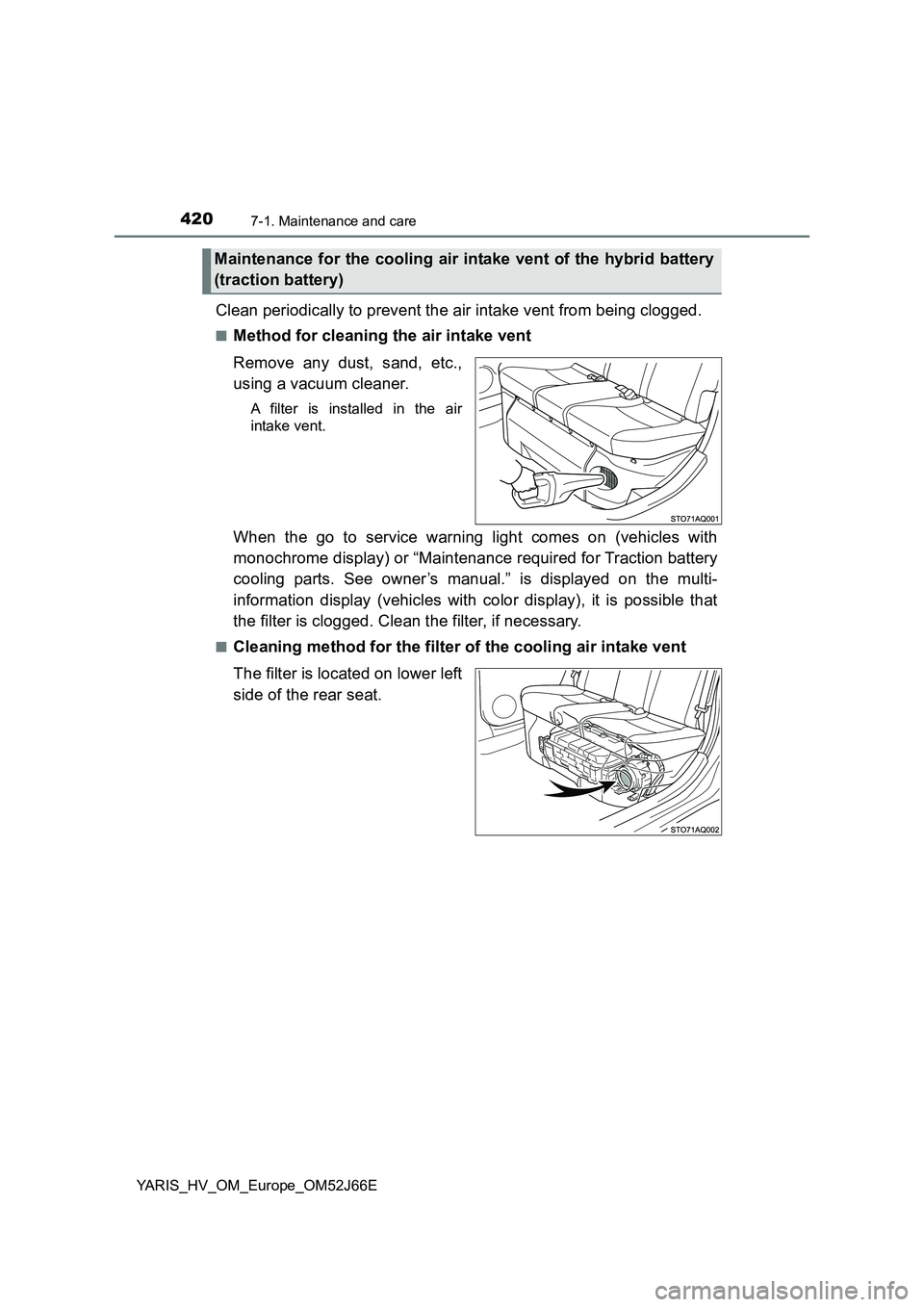

4207-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Clean periodically to prevent the air intake vent from being clogged.
■Method for cleaning the air intake vent
Remove any dust, sand, etc.,
using a vacuum cleaner.
A filter is installed in the air
intake vent.
When the go to service warning light comes on (vehicles with
monochrome display) or “Maintenance required for Traction battery
cooling parts. See owner’s manual.” is displayed on the multi-
information display (vehicles with color display), it is possible that
the filter is clogged. Clean the filter, if necessary.
■Cleaning method for the filter of the cooling air intake vent
The filter is located on lower left
side of the rear seat.
Maintenance for the cooling air intake vent of the hybrid battery
(traction battery)

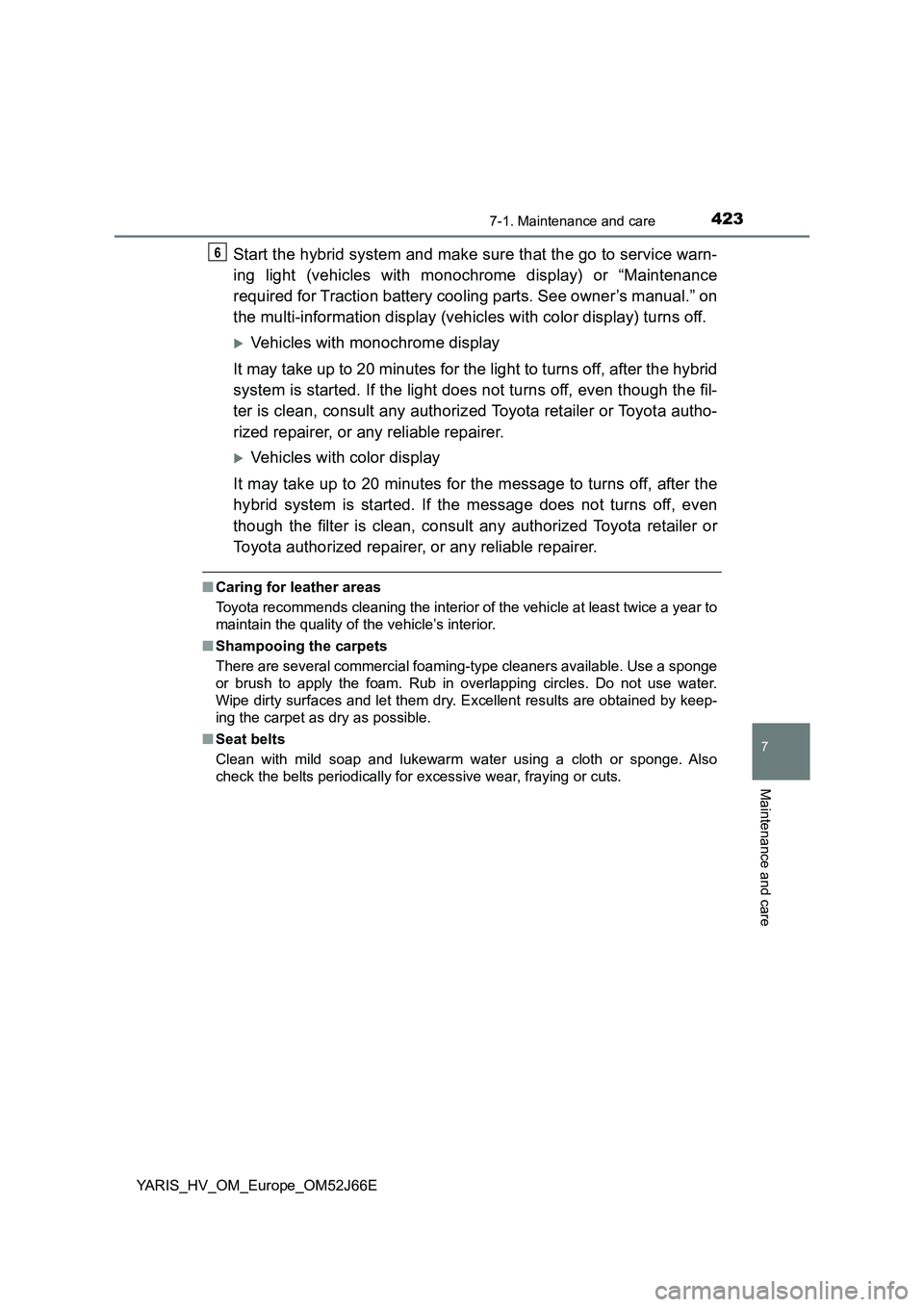

4237-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Start the hybrid system and make sure that the go to service warn-
ing light (vehicles with monochrome display) or “Maintenance
required for Traction battery cooling parts. See owner’s manual.” on
the multi-information display (vehicles with color display) turns off.
Vehicles with monochrome display
It may take up to 20 minutes for the light to turns off, after the hybrid
system is started. If the light does not turns off, even though the fil-
ter is clean, consult any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Vehicles with color display
It may take up to 20 minutes for the message to turns off, after the
hybrid system is started. If the message does not turns off, even
though the filter is clean, consult any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
6

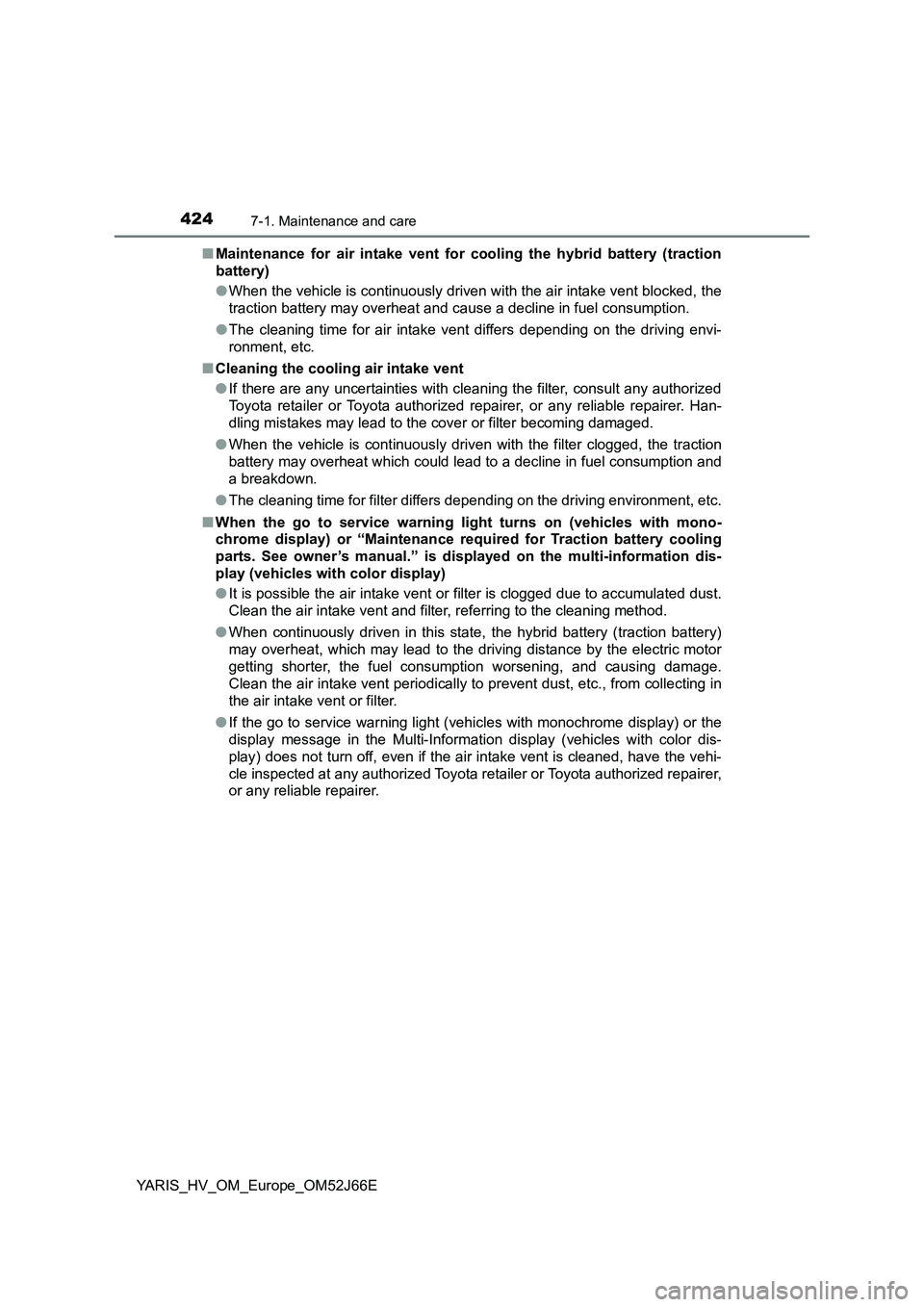

4247-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
■ Maintenance for air intake vent for cooling the hybrid battery (traction
battery)
● When the vehicle is continuously driven with the air intake vent blocked, the
traction battery may overheat and cause a decline in fuel consumption.
● The cleaning time for air intake vent differs depending on the driving envi-
ronment, etc.
■ Cleaning the cooling air intake vent
● If there are any uncertainties with cleaning the filter, consult any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer. Han-
dling mistakes may lead to the cover or filter becoming damaged.
● When the vehicle is continuously driven with the filter clogged, the traction
battery may overheat which could lead to a decline in fuel consumption and
a breakdown.
● The cleaning time for filter differs depending on the driving environment, etc.
■ When the go to service warning light turns on (vehicles with mono-
chrome display) or “Maintenance re quired for Traction battery cooling
parts. See owner’s manual.” is displayed on the multi-information dis-
play (vehicles with color display)
● It is possible the air intake vent or filter is clogged due to accumulated dust.
Clean the air intake vent and filter, referring to the cleaning method.
● When continuously driven in this state, the hybrid battery (traction battery)
may overheat, which may lead to the driving distance by the electric motor
getting shorter, the fuel consumption worsening, and causing damage.
Clean the air intake vent periodically to prevent dust, etc., from collecting in
the air intake vent or filter.
● If the go to service warning light (vehicles with monochrome display) or the
display message in the Multi-Informat ion display (vehicles with color dis-
play) does not turn off, even if the air intake vent is cleaned, have the vehi-
cle inspected at any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.

4267-1. Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■Cleaning detergents
● Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ When cleaning the inside of the windshield (vehicles with Toyota
Safety Sense system)
Be careful not to touch the front sensor ( P. 257).
If the camera is accidentally scratched or hit, Toyota Safety Sense system
may not operate properly or may cause a malfunction.
■ Cleaning the inside of the rear window
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.

4307-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
( P. 445)
• Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power
control unit
coolant level
( P. 441)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 438)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P. 481)• Fuse with same amperage rating as original
Hybrid battery
(traction battery)
cooling air intake
vent
( P. 420)
• Vacuum cleaner
Light bulbs
( P. 486)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and
condenser
( P. 443)

Tire inflation
pressure
( P. 468)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 443)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4327-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52J66E
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

4337-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3
