2018 TOYOTA YARIS light

3986-2. Using the interior lights
YARIS_HV_OM_Europe_OM52J66E

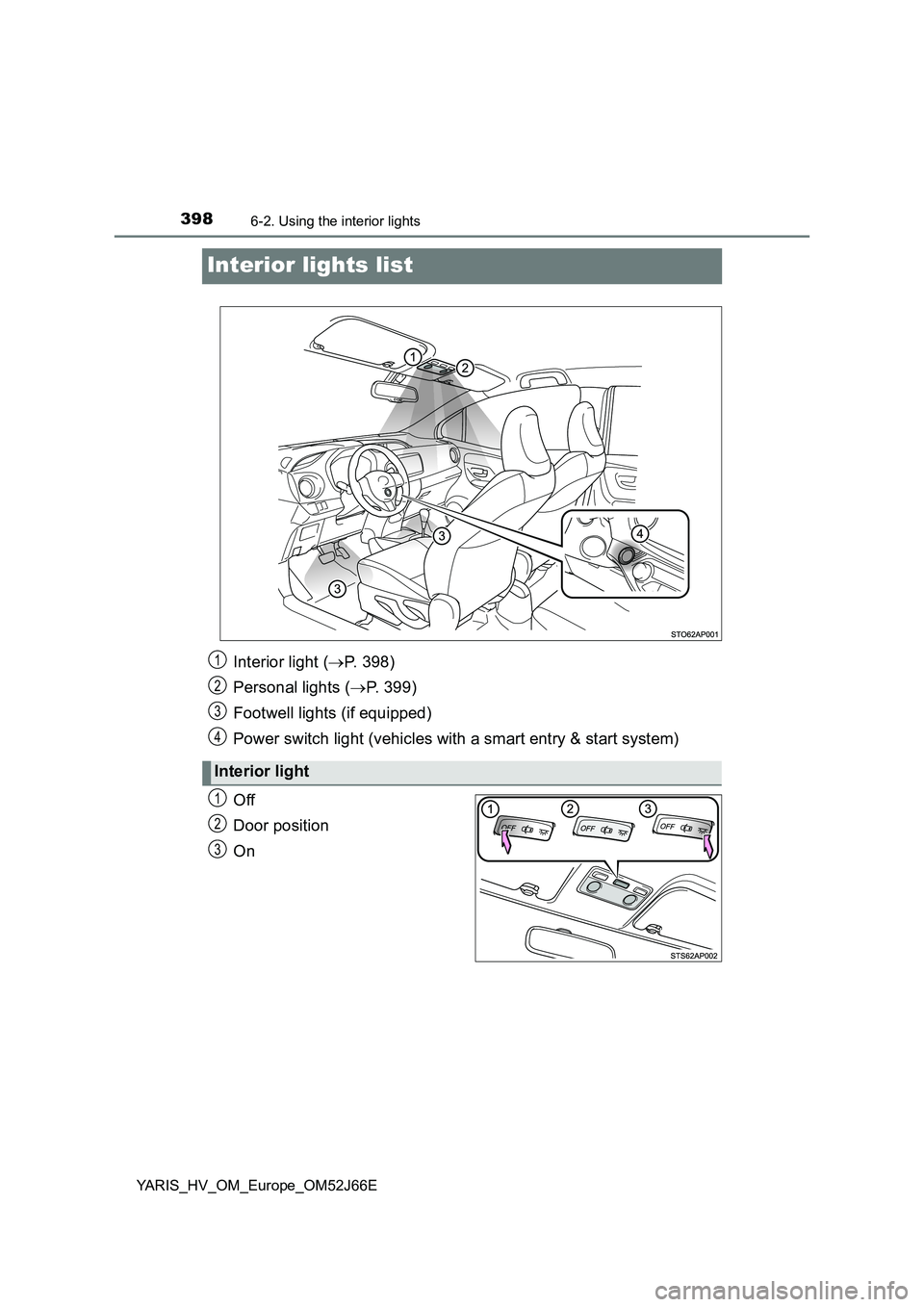

Interior lights list
Off
Door position
On
Interior light ( P. 398)
Personal lights ( P. 399)
Footwell lights (if equipped)
Power switch light (vehicles with a smart entry & start system)
Interior light
1
2
3
4
1
2
3

3996-2. Using the interior lights
6
Interior features
YARIS_HV_OM_Europe_OM52J66E
On
Off
■ Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the power switch position,
whether the doors are locked/unloc ked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to power switch mode, the pres-
ence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
■ To prevent 12-volt battery from being discharged
If the following lights remain on when the door is not fully closed, the lights will
go off automatically after 20 minutes:
● Interior/personal lights (when the switch is in the door position)
● Luggage compartment light
● Power switch light (vehicles with a smart entry & start system)
● Footwell lights (if equipped)
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 608)
Personal lights
1
2

4006-3. Using the storage features
YARIS_HV_OM_Europe_OM52J66E

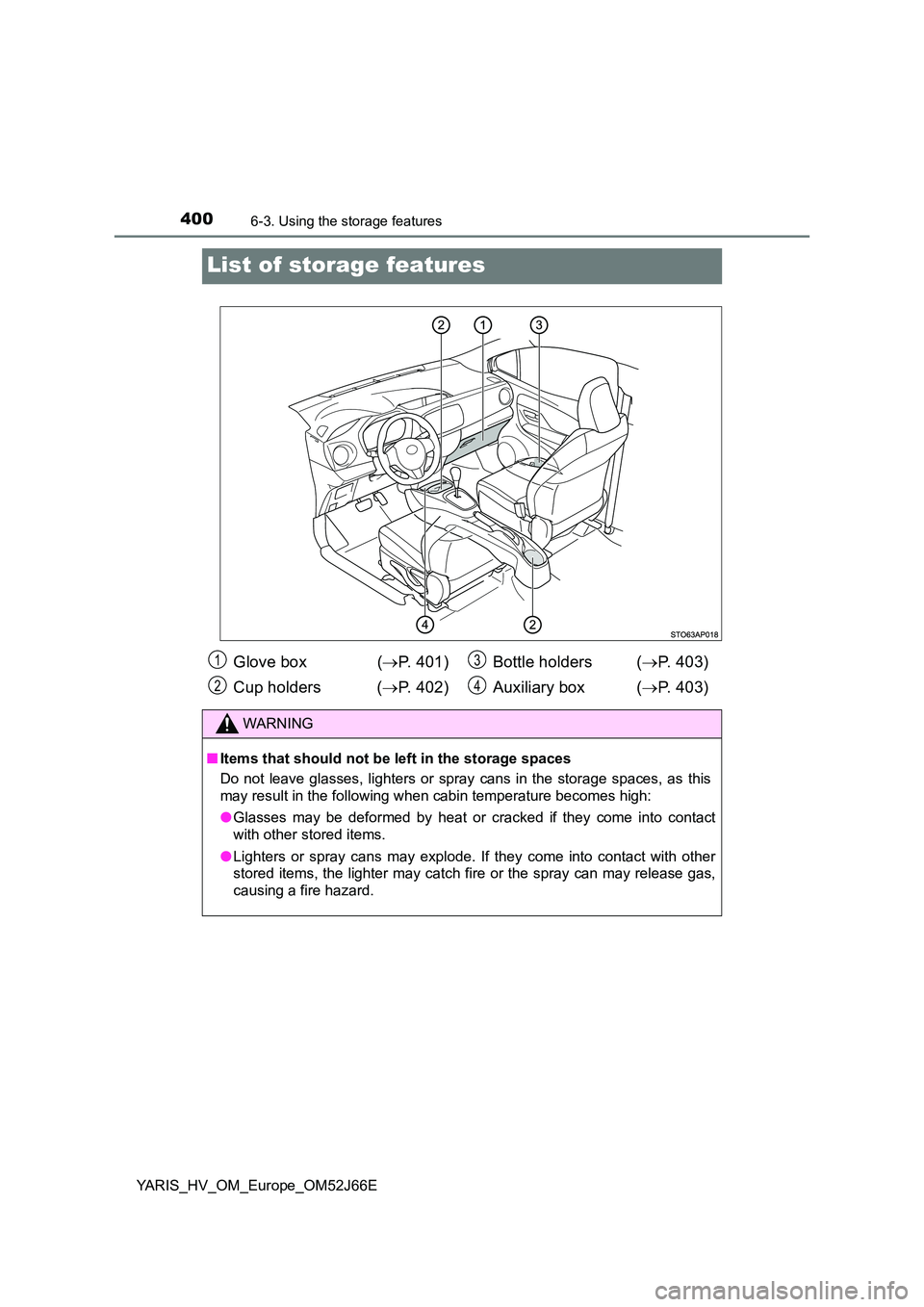

List of storage features
Glove box (P. 401)
Cup holders ( P. 402)
Bottle holders ( P. 403)
Auxiliary box ( P. 403)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

4076-4. Using the other interior features
6
Interior features
YARIS_HV_OM_Europe_OM52J66E

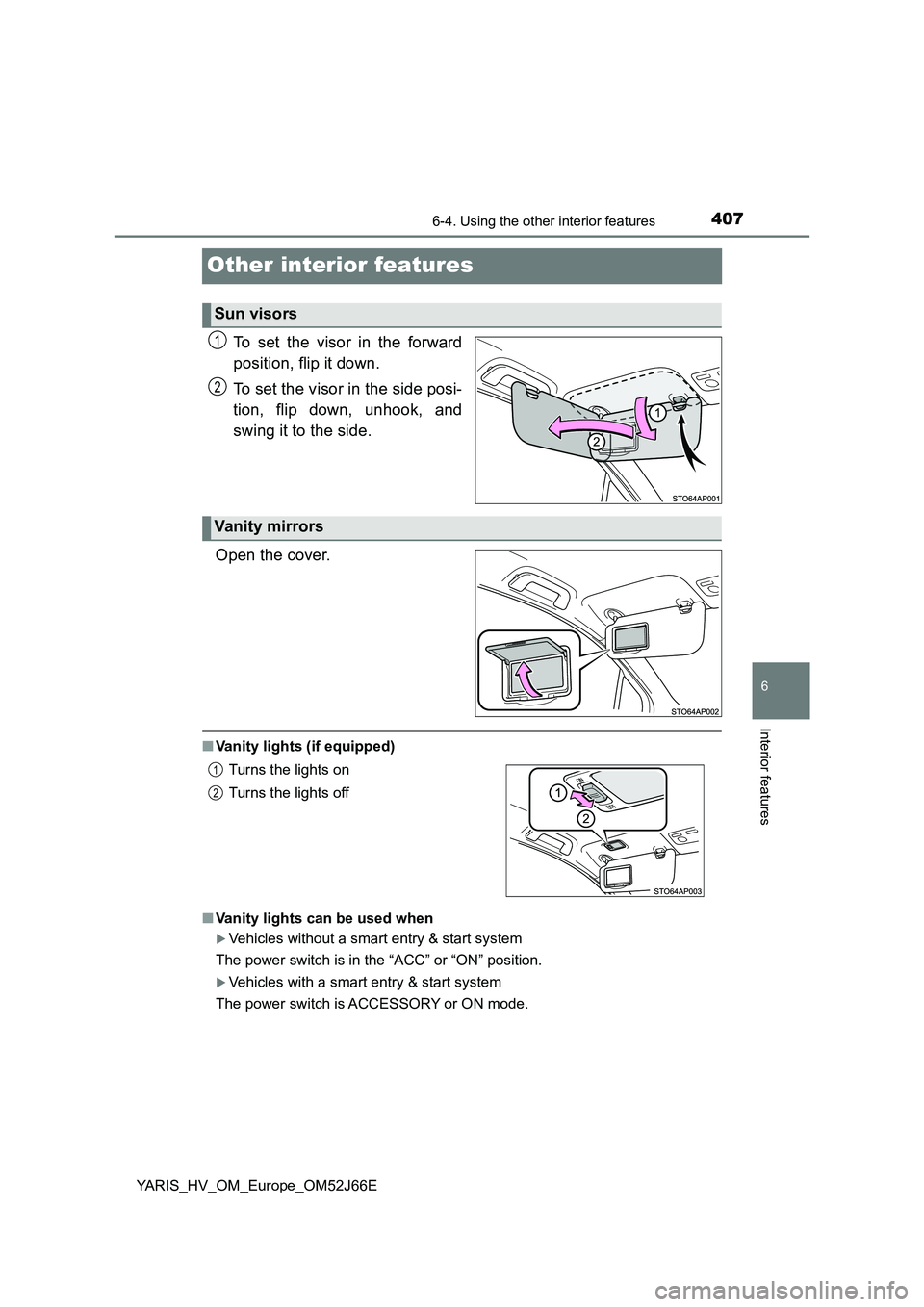

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
■ Vanity lights (if equipped)
■ Vanity lights can be used when
Vehicles without a smart entry & start system
The power switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The power switch is ACCESSORY or ON mode.
Sun visors
1
2
Vanity mirrors
Turns the lights on
Turns the lights off
1
2

4086-4. Using the other interior features
YARIS_HV_OM_Europe_OM52J66E

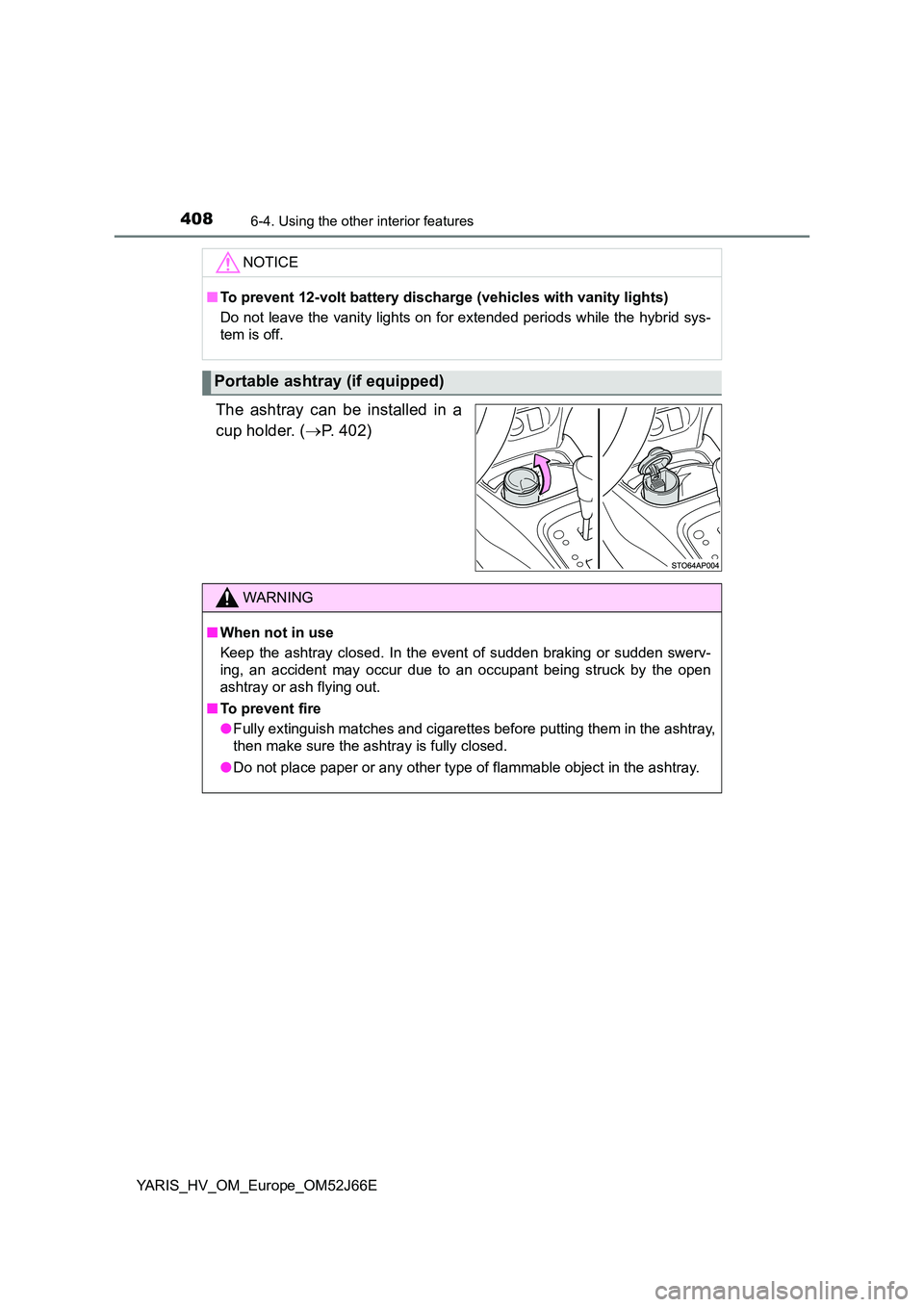

The ashtray can be installed in a
cup holder. ( P. 402)
NOTICE
■To prevent 12-volt battery discharge (vehicles with vanity lights)
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Portable ashtray (if equipped)
WARNING
■ When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
ashtray or ash flying out.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

4096-4. Using the other interior features
6
Interior features
YARIS_HV_OM_Europe_OM52J66E

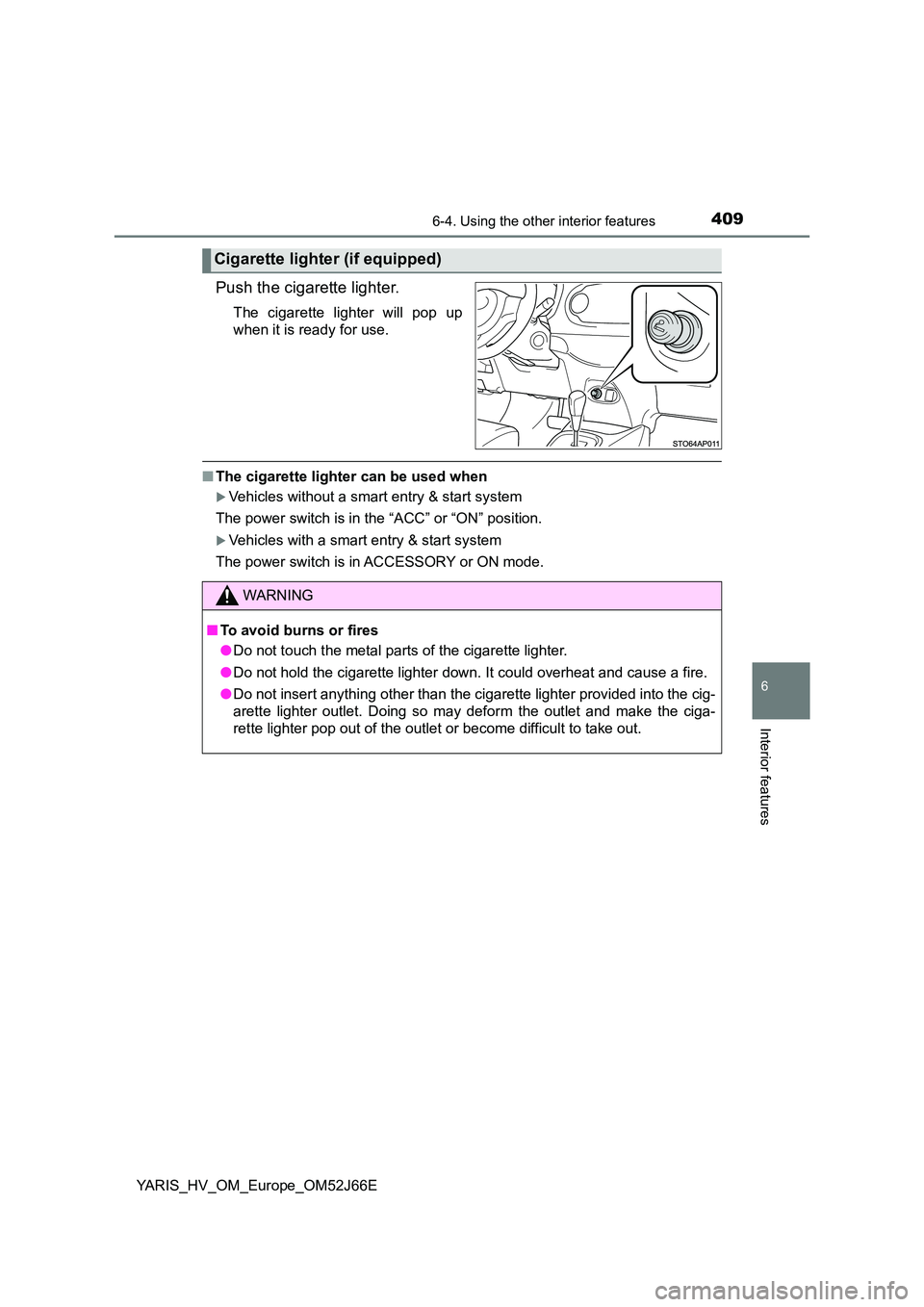

Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.
■ The cigarette lighter can be used when
Vehicles without a smart entry & start system
The power switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The power switch is in ACCESSORY or ON mode.
Cigarette lighter (if equipped)
WARNING
■ To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.

413
7Maintenance and care
YARIS_HV_OM_Europe_OM52J66E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 414
Cleaning and protecting
the vehicle interior ........... 419
7-2. Maintenance
Maintenance
requirements.................... 427
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 430
Hood .................................. 433
Positioning a floor jack ....... 435
Engine compartment.......... 437
12-volt battery .................... 445
Tires ................................... 451
Tire inflation pressure ........ 468
Wheels ............................... 470
Air conditioning filter .......... 474
Wireless remote control/
electronic key battery....... 477
Checking and replacing
fuses ................................ 481
Light bulbs ......................... 486

4157-1. Maintenance and care
7
Maintenance and care
YARIS_HV_OM_Europe_OM52J66E

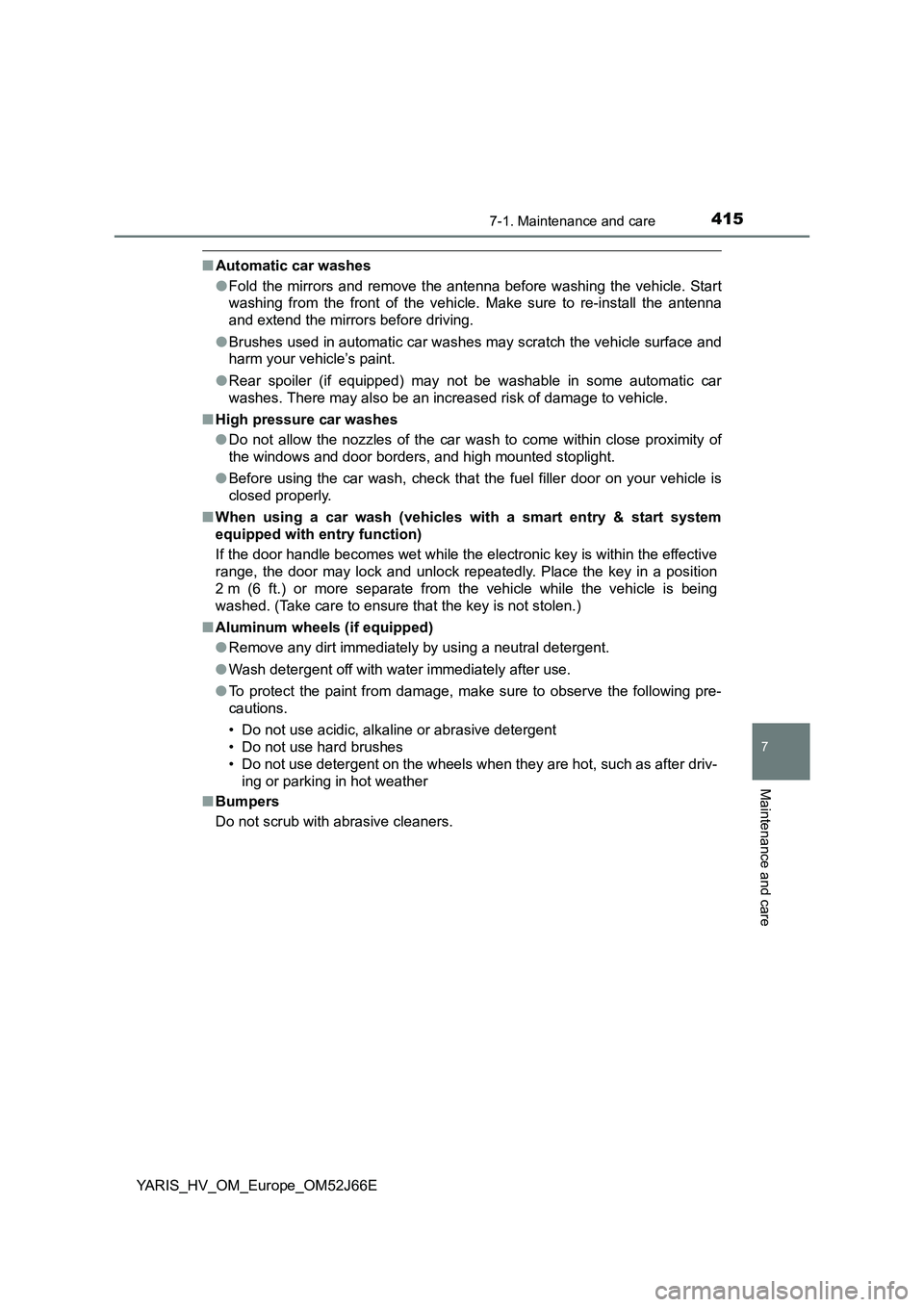

■Automatic car washes
● Fold the mirrors and remove the antenna before washing the vehicle. Start
washing from the front of the vehicle. Make sure to re-install the antenna
and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● Rear spoiler (if equipped) may not be washable in some automatic car
washes. There may also be an increased risk of damage to vehicle.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows and door borders, and high mounted stoplight.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ When using a car wash (vehicles with a smart entry & start system
equipped with entry function)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position
2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
■ Aluminum wheels (if equipped)
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
■ Bumpers
Do not scrub with abrasive cleaners.
