2018 TOYOTA PROACE VERSO traction control

.
.
Over view
Instrument panels 13Indicator and warning lamps 15Distance recorders 36Lighting dimmer 37Trip computer 38Touch screen 41Setting the date and time 44
Key 45Key, remote control 45"Smart Entry & Start System" 52Locking / unlocking from inside 64Front doors 65Manual sliding side d o o r (s) 6 6Electric sliding side d o o r (s) 6 8Kick-activated side doors opening and locking 75Rear wing doors with glass windows 79Rear tailgate 81Tailgate rear screen 82Alarm 83Electric windows 86
Steering wheel adjustment 87Front seats 872-seat front bench seat 93Fixed one-piece bench seat 95Fixed rear seat and bench seat 98Rear seat and bench seat on rails 101Captain seat(s) on rails 105Interior fittings 110Seating area fittings 115Skyview® 120Folding and sliding table 121Manual air conditioning 125Dual-zone automatic air conditioning 127Front demist - defrost 131Door mirrors demist - defrost 132Rear screen demist - def rost 13 3Rear Heating - Air Conditioning 136Fuel burner heater/Remote controlled fuel burner heater 137Courtesy lamps 140
M i r r o r s 141Lighting control stalk 144Daytime running lamps 147Automatic illumination of headlamps 147Automatic headlamp dipping 151Interior mood lighting 153Manual headlamp beam height adjustment 153Wiper control stalk 154Automatic rain sensitive wipers 155
Hazard warning lamps 158ERA-GLONASS emergency call system 15 8Hor n 159Electronic stability control (ESC) 159Toyota Traction Select 162Seat belts 164Airbags 168Child seats 173Deactivating the passenger's front airbag 176ISOFIX mountings 183Manual child lock 190Electric child lock 190Child lock on rear windows 191
Eco-driving
Instruments
Access
Ease of use and comfortLighting and visibility
Safety
Labels 10
Contents

4
Exterior
Filler cap, fuel tank 261-262Misfuel prevention 262-263Running out of Diesel fuel, priming 322
Tyre Pressure Warning System(TPWS) 258-260Tyres, pressures 259 -260, 327ESC system 159 -161ABS, EBFD 159 -160DSC, ASR 161Toyota Traction Select 161, 162-163Snow chains 264
Front doors 65AdBlue® tank 278 -281Tool box 282-284
Automatic illumination of headlamps 147Automatic headlamp dipping 151-152Direction indicators 146Adjusting the headlamp beam height 153Changing front bulbs 298 -304Headlamp wash 156
Skyview® 120Accessories 267-268
Opening the bonnet 271
Key 45Key, remote control 45 -50Changing the battery, reinitialisation 51Smart Entry & Start System 52- 62Changing the battery, reinitialisation 62Starting - switching off the engine 198-200- key, remote control
- Smart Entry & Start System remote control
Locking - unlocking from inside 64Alarm 83-85
Road Sign Assist 221-224For ward collision warning 239 -242Autonomous emergency braking 242-244
Changing a wiper blade 269Automatic wiping 155 -156Front demisting, defrosting 131
Front foglamps 145, 299, 304Daytime running lamps 147, 300Cornering lighting 150
Parking sensors 252-253Towing 320-321
Over view

7
Locking - unlocking from inside 64Electric sliding d o o r (s) 6 8 -71Electric child lock 190Hazard warning lamps 158Tyre Pressure Warning System (TPWS) 258-260Deactivating Stop & Start 216Deactivating the DSC/ASR system 161
Adjusting the steering wheel 87Hor n 159
Head-up display 218 -219
Instruments and controls (cont.)
Wiper control 154-156Trip computer 38 - 40
Memorising speeds 220Speed limiter 225 -227Cruise control 228 -231Dynamic cruise control 232-238
Instrument panel 13 -14Warning lamps 15-28Coolant temperature 29Service indicator 29 -31Oil level indicator 32AdBlue® range indicators 33 -35Distance recorder 36Gear efficiency indicator 204Lighting dimmer 37Trip computer 38 - 40Setting the time and date 44Driver Attention Alert 247-248
Electric windows 86Adjusting the electric mirrors 141
Toyota Traction Select 161, 162-163Fuel burner heater/Remote controlled fuel burner heater 137-139Alarm 83-85Adjusting the headlamp beam height 153Lane Departure Alert 245 -246Blind Spot Monitoring System 249 -251Automatic headlamp dipping 151-152
Setting the time and date (touch screen) 44Setting the time and date (audio system) 44Rear vision 255 -257Adjustable Speed Limiter (ASL) 220Road Sign Assist 221-224, 227, 230, 234For ward collision warning 239 -242Autonomous emergency braking 242-244Deactivating Stop & Start 216
Lighting control 144-147Direction indicators 146
.
Over view

23
Warning / indicator lampStateCauseAction / Observations
Power steeringfixed.The power steering has a fault.Drive carefully at reduced speed.Have it checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
Dynamic stability control (DSC/ASR)
flashing.The DSC/ASR regulation is operating.The system optimises traction and improves the directional stability of the vehicle in the event of loss of grip or trajectory.
fixed.The DSC/ASR system has a fault.Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional immediately.
Dynamic stability control (DSC/ASR)
fixed.The button is pressed and the indicator lamp comes on.The DSC/ASR is deactivated.DSC: dynamic stability control.ASR: anti-slip regulation.
Press the button to activate the DSC/ASR. Its indicator lamp goes off.The DSC/ASR system is activated automatically when the vehicle is started.If deactivated, the system is reactivated automatically from around 30 mph (50 km/h).For more information on the Electronic stability programme (ESC) and in particular, DSC/ASR, refer to the corresponding section.
1
Instruments

159

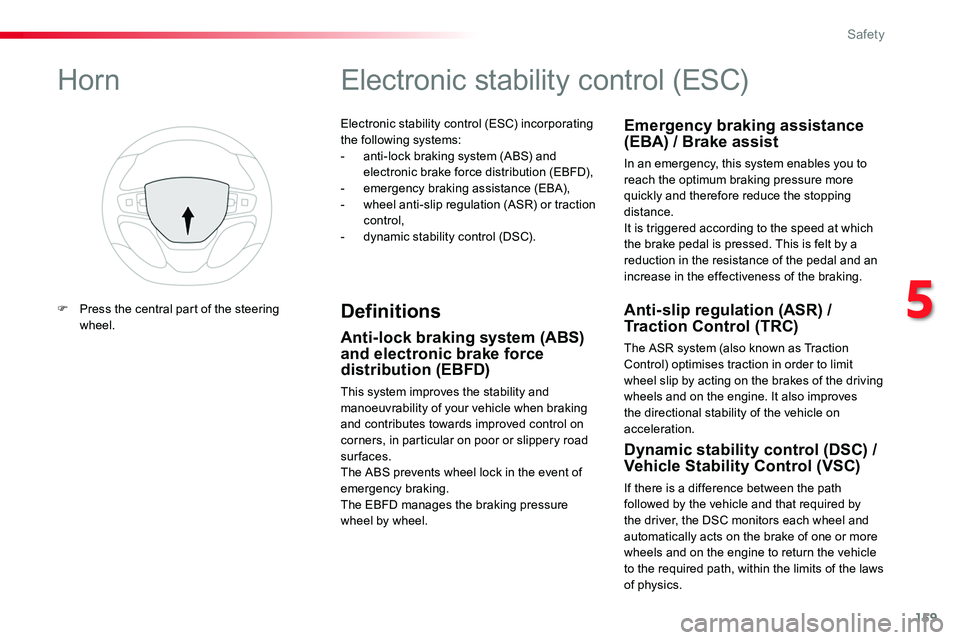

Electronic stability control (ESC) incorporating the following systems:- anti-lock braking system (ABS) and electronic brake force distribution (EBFD),- emergency braking assistance (EBA),- wheel anti-slip regulation (ASR) or traction control,- dynamic stability control (DSC).
Electronic stability control (ESC)
Definitions
Anti-lock braking system (ABS) and electronic brake force distribution (EBFD)
This system improves the stability and manoeuvrability of your vehicle when braking and contributes towards improved control on corners, in particular on poor or slippery road surfaces.The ABS prevents wheel lock in the event of emergency braking.The EBFD manages the braking pressure wheel by wheel.
Emergency braking assistance (EBA) / Brake assist
In an emergency, this system enables you to reach the optimum braking pressure more quickly and therefore reduce the stopping distance.It is triggered according to the speed at which the brake pedal is pressed. This is felt by a reduction in the resistance of the pedal and an increase in the effectiveness of the braking.
Anti-slip regulation (ASR) / Traction Control (TRC)
The ASR system (also known as Traction Control) optimises traction in order to limit wheel slip by acting on the brakes of the driving wheels and on the engine. It also improves the directional stability of the vehicle on acceleration.
Dynamic stability control (DSC) / Vehicle Stability Control (VSC)
If there is a difference between the path followed by the vehicle and that required by the driver, the DSC monitors each wheel and automatically acts on the brake of one or more
wheels and on the engine to return the vehicle to the required path, within the limits of the laws of physics.
Horn
F Press the central part of the steering wheel.
5
Safety

160

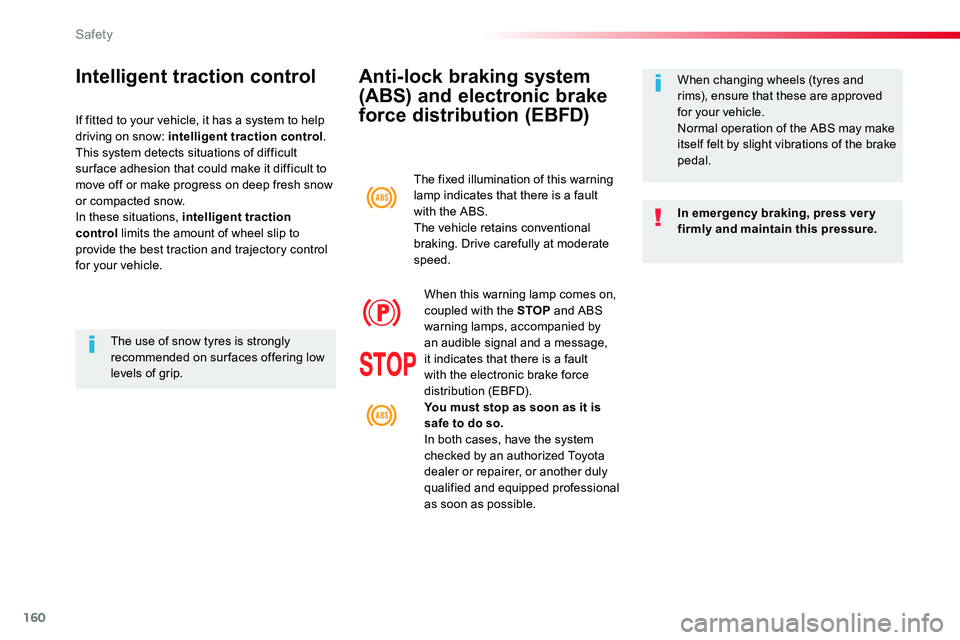

Anti-lock braking system
(ABS) and electronic brake
force distribution (EBFD)
In emergency braking, press ver y firmly and maintain this pressure.
When changing wheels (tyres and rims), ensure that these are approved for your vehicle.Normal operation of the ABS may make itself felt by slight vibrations of the brake pedal.
The fixed illumination of this warning lamp indicates that there is a fault with the ABS.The vehicle retains conventional braking. Drive carefully at moderate speed.
When this warning lamp comes on, coupled with the STOP and ABS warning lamps, accompanied by an audible signal and a message, it indicates that there is a fault with the electronic brake force distribution (EBFD).You must stop as soon as it is safe to do so.In both cases, have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Intelligent traction control
If fitted to your vehicle, it has a system to help driving on snow: intelligent traction control.This system detects situations of difficult sur face adhesion that could make it difficult to move off or make progress on deep fresh snow or compacted snow.In these situations, intelligent traction control limits the amount of wheel slip to provide the best traction and trajectory control for your vehicle.
The use of snow tyres is strongly recommended on sur faces offering low levels of grip.
Safety

162

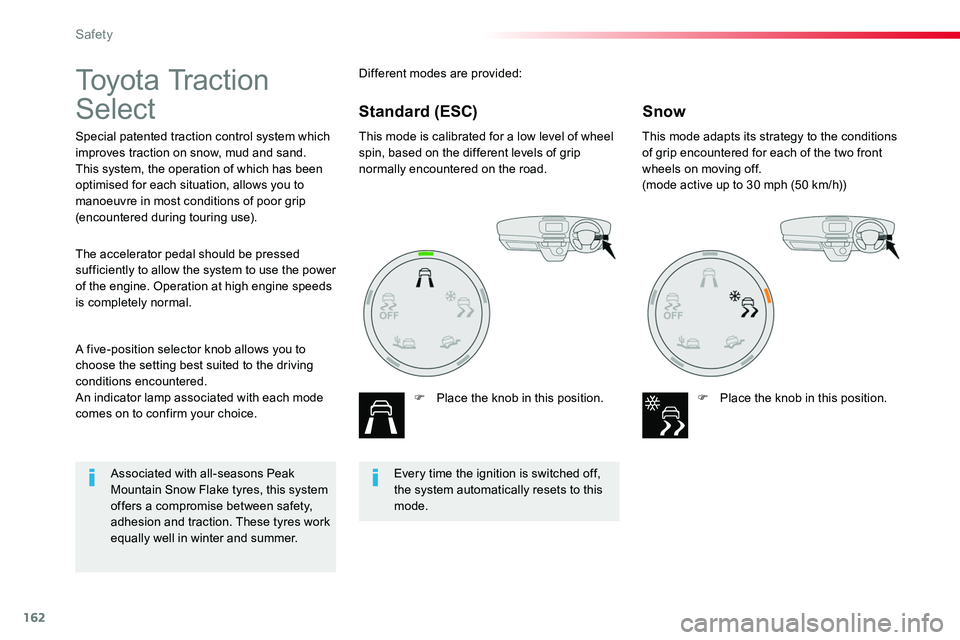

To y o t a Tr a c t i o n
Select
Special patented traction control system which improves traction on snow, mud and sand.This system, the operation of which has been optimised for each situation, allows you to manoeuvre in most conditions of poor grip (encountered during touring use).
This mode is calibrated for a low level of wheel spin, based on the different levels of grip normally encountered on the road.
F Place the knob in this position.
This mode adapts its strategy to the conditions of grip encountered for each of the two front wheels on moving off.(mode active up to 30 mph (50 km/h))
F Place the knob in this position.
A five-position selector knob allows you to choose the setting best suited to the driving conditions encountered.An indicator lamp associated with each mode comes on to confirm your choice.
The accelerator pedal should be pressed sufficiently to allow the system to use the power of the engine. Operation at high engine speeds is completely normal.
Different modes are provided:
SnowStandard (ESC)
Every time the ignition is switched off, the system automatically resets to this mode.
Associated with all-seasons Peak Mountain Snow Flake tyres, this system offers a compromise between safety, adhesion and traction. These tyres work equally well in winter and summer.
Safety

498
G
I
Head restraints, front .........................................................91, 93Head-up display ............................................218Heated bench seat ..........................................94Heating ..........................................125, 127, 136Heating, programmable ..........................83, 137Hill start assist control ..................................202Horn...............................................................159
Gauge, fuel........................................13, 14, 261Gearbox, automatic ...................13, 14, 19, 195, 200, 202, 205, 214, 215, 229, 233, 277, 316Gearbox, electronic .................................13, 14, 198, 202, 210, 214, 215, 277
Identification, vehicle ....................................327Ignition on..............................................195, 198Immobiliser, electronic ................49, 59, 63, 201Indicator, AdBlue® range .................................33Indicator, coolant temperature ........................29Indicator, engine oil level ................................32Indicator lamps, operation ........................15-28Indicators, direction ......................................146Inflating tyres ..........................................11, 237Inflating tyres and accessories (using the kit) ..............................................285Instrument panel, LCD text .............................13Instrument panel, matrix .................................14Intelligent Traction Control ............................160ISOFIX ...................................................183 -18 6
Gearbox, manual ...................................19, 202, 203, 214, 215, 229, 233, 277Gear shift indicator .......................................204Gear lever, automatic gearbox .......................................................205Gear lever, electronic gearbox .......................................................277Gear lever, manual gearbox .........................203Glove box ......................................................111G . P. S . ...................................................342, 358Grab handles ................................................115Guide-me-home ............................................148
Hazard warning lamps ..........................15 8, 282Headlamp beam height .................................153Headlamps, automatic dipping ..................................................27, 151Headlamps, automatic illumination ..........................................14 4, 147Headlamps, dipped beam .............................27, 14 4, 299, 301, 303Headlamps, halogen .............................299, 301Headlamps, main beam ............................27, 14 4, 299, 302, 303Headlamps, Xenon ..............................299, 303Headlamp wash ............................................15 6
H
Filling the fuel tank ................................261, 263Filter, air ........................................................276Filter, oil .........................................................276Filter, particle ........................................275, 276Filter, passenger compartment ..............................................276Finisher, wheel trim .......................................297Fitting a wheel ...............................................296Fitting roof bars .............................................268Fittings, interior .....................................11 0 , 115Fitting the mats .............................................11 0Flap, fuel filler ................................................261Flashing indicators ........................................146Foglamps, rear .............................145, 305, 308Foglamps, front ....................145, 150, 299, 304Foglamps, rear .............................145, 305, 308Forward collision warning ........21, 239-2 41, 243Frequency (radio) .........................384, 440, 478Fuel..........................................................11, 263Fuel consumption ......................................11, 40Fuel tank..........................................................18Fuses .............................................................311
F

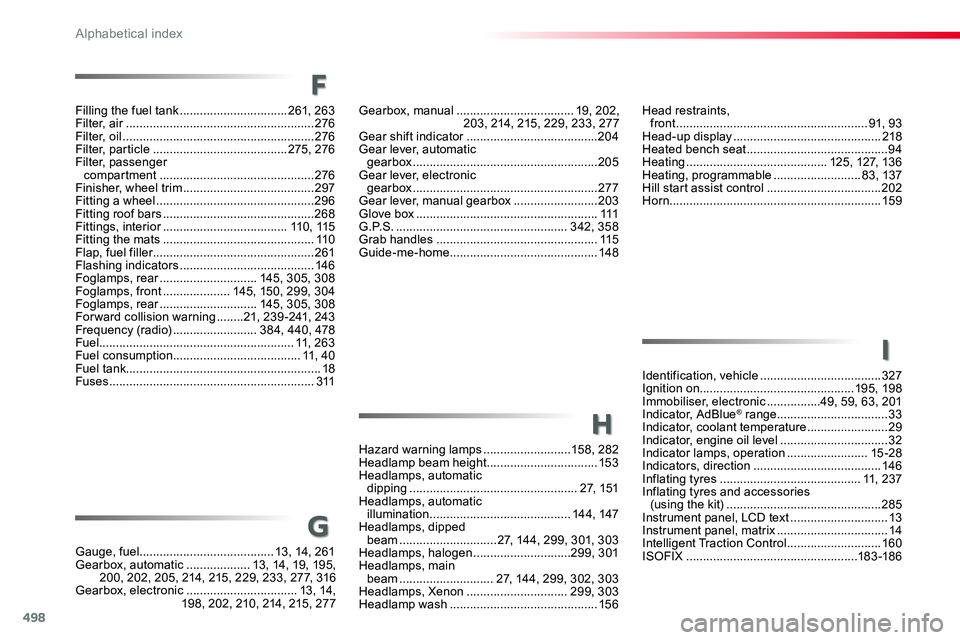

Alphabetical index
