2018 TOYOTA PROACE stop start

42
A few definitions
Range
(miles or km)The distance which can still be travelled with the fuel remaining in the tank (related to the average fuel consumption over the last few miles (kilometres) travelled).
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 8 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed continuously while driving in place of the digits, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
This function is only displayed from 20 mph (30 km/h).
Current fuel consumption
(mpg or l/100 km or km/l)Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)Calculated since the last trip reset.
Average speed
(mph or km/h)Calculated since the last trip reset.
Distance travelled
(miles or km)Calculated since the last trip reset.
Stop & Start time counter
(minutes / seconds or hours / minutes)
If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey.It resets to zero every time the ignition is switched on.
Instruments

52
Electronic engine immobiliser
The remote control contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.This electronic engine immobiliser locks the engine management system a few moments after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
F Press this button
Locating your vehicle
This function allows you to identify your vehicle from a distance, particularly in poor light. Your vehicle must have been locked for more than five seconds.
This switches on the courtesy lamps and the direction indicators flash for about ten seconds.
Remote operation of lighting
A short press on this button switches on the lighting remotely (sidelamps, dipped beam headlamps and number plate lamps).
A second press on this button before the end of the timed period cancels the remote lighting.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen.
Keep safely, away from your vehicle, the label attached to the keys given to you on acquisition of the vehicle.
In this case, your vehicle will not start; contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.
If fitted to your vehicle.
Ensure that no person or object could prevent the correct closing of the windows.Be particularly aware of children when operating the windows.
If fitted to your vehicle, pressing and holding this button allows the windows to be closed. The window stops when you release the button.
Access

59
The unlocking, locking or power door locking does not take place:- if the ignition is on,- if one of the doors or the boot is still open,- if the key for the Smart Entry & Start System has been left inside the vehicle.When the vehicle is locked (with the remote control or Smart Entry & Start System), if it is unlocked inadvertently, it will lock itself again automatically after about thirty seconds unless a door has been opened.And if your vehicle has an alarm, this will be reactivated (with volumetric monitoring, even if this had been deactivated).
"Smart Entry & Start
System" on your person
This allows the unlocking, locking and starting the vehicle while keeping the remote control on your person.
As a safety measure (children on board), never leave the vehicle without taking your Smart Entry & Start System remote control, even for a short period.Guard against theft when the Smart Entry & Start System remote control is in the recognition zone with the vehicle unlocked.In order to preserve the charge of the cell battery in the remote control, the "hands-free" functions go into extended stand-by after 21 days of non-use.To restore these functions, press one of the remote control buttons or start the engine with the remote control at the reader.
The folding and unfolding of the door mirrors by the remote control can be deactivated by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
In the ignition on (accessories) position, with the "START/STOP" button, the hands-free function is deactivated.For more information on "Smart Entry & Start System" and in particular the "ignition on" position, refer to the corresponding section.
2
Access

70
Changing the battery
Battery ref.: CR2032 / 3 volts.This replacement battery is available from an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.A message appears in the instrument panel screen when replacement of the battery is needed.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.Take them to an approved collection
point.
F Place the remote control against the reader.F Keeping it in place, switch on the ignition by pressing "START/STOP".The remote control is fully operational again.
Reinitialisation
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.F First, use the integral key in the door lock to unlock or lock your vehicle.F Then, reinitialise the remote control.
If the problem persists, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
F Unlock the driver's door using the integral key.
F Press one of the remote control buttons.
F Place the integral key in the lock to unlock your vehicle.
F Unclip the cover using a small screwdriver at the cutout.F Lift off the cover.F Remove the flat battery from its location.F Fit the new battery into its location observing the original direction of fitment.F Clip the cover onto the casing.
Access

71

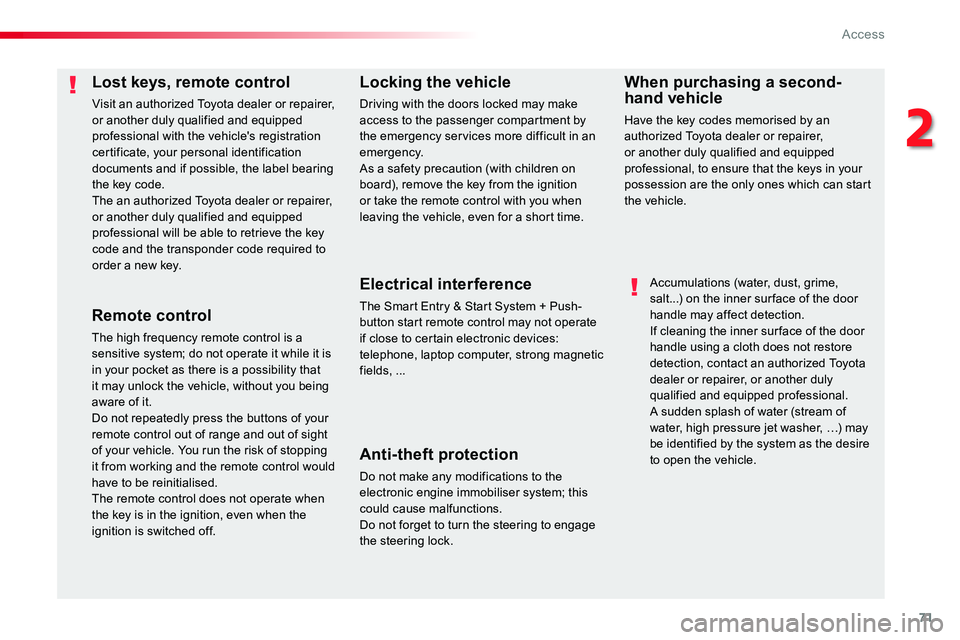

Lost keys, remote control
Visit an authorized Toyota dealer or repairer, or another duly qualified and equipped professional with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the key code.The an authorized Toyota dealer or repairer, or another duly qualified and equipped professional will be able to retrieve the key code and the transponder code required to order a new key.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.As a safety precaution (with children on board), remove the key from the ignition or take the remote control with you when leaving the vehicle, even for a short time.
When purchasing a second-hand vehicle
Have the key codes memorised by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional, to ensure that the keys in your possession are the only ones which can start the vehicle.
Electrical interference
The Smart Entry & Start System + Push-button start remote control may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Accumulations (water, dust, grime, salt...) on the inner sur face of the door handle may affect detection.If cleaning the inner sur face of the door handle using a cloth does not restore detection, contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional.A sudden splash of water (stream of water, high pressure jet washer, …) may be identified by the system as the desire to open the vehicle.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.Do not forget to turn the steering to engage the steering lock.
2
Access

84
General
recommendations
The doors must only be operated when the vehicle is stationary.For your safety and for that of your
passengers, as well as for correct operation of the doors, you are strongly advised not to drive with a door open.Always check that it is safe to operate the door and in particular, be sure not to leave children or animals near the door controls without supervision.The audible warning, illumination of the "door open" warning lamp and the message in the multifunction screen are there to remind you. Contact an authorized Toyota dealer or repairer, or another duly qualified and equipped professional to deactivate these warnings.Lock your vehicle when using an automatic car wash.
Before any opening or closing and during any movement of the doors, ensure that no person, animal or object is protruding through the window frame or might prevent the intended manoeuvre, either inside or outside the vehicle.
If this advice is not followed, injuries or damage may occur if a person or an object is trapped or caught.Electric closing and opening of the doors is not possible above 2 mph (3 km/h):- If you set off with the door(s) open, you must slow down to below 20 mph (30 km/h) in order to close the door(s).- Any attempt to open a door electrically using the interior handle while driving, results in only being possible to open the door manually.- This situation is accompanied by the audible warning, illumination of the "door open" warning lamp and the message in the multifunction screen. To release the door and be able to operate it again, it is necessary to stop the vehicle.
Manual or electric sliding side door(s)
The electric controls are inhibited in the event of an impact. Manual opening and closing remain possible.
While starting the engine, the movement of a door is interrupted and restored once the engine is running.
Depending on the engine, in Stop mode of Stop & Start, if the door is closed and you initiate opening of the door, the door opens partially and stops. When the
engine changes automatically to Start mode, the door continues its movement.
Access

91
If the left-hand door is not fully closed (the right-hand door is not detected):- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
Rear wing doors
with glass windows
The rear wing doors with glass windows are asymmetrical.The left-hand door is fitted with a lock.
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment) pull the door handle.
F After first opening the left-hand door, pull the lever A towards you to open the right-hand door.
From outside
Closing
F Close first the right-hand door, then the left-hand door.
If the left-hand door is closed first, a buffer stop located on the edge of the right-hand door prevents it closing.
2
Access

96
Deactivation
F Press this unlocking button on the remote control.
or
F Unlock the vehicle using the "Smart Entry & Start System".
If the vehicle locks itself automatically (this occurs after 30 seconds if one of the doors is not opened), the monitoring system is reactivated automatically.
The monitoring system is deactivated: the indicator lamp in the button is off and the direction indicators flash for about 2 seconds.
Protection - exterior
perimeter monitoring only
Deactivate the interior volumetric monitoring to avoid unwanted triggering of the alarm in certain cases such as:- occupant(s) present in the vehicle,- leaving a window partially open,- washing your vehicle,- changing a wheel,- towing your vehicle,- transport on a ferry.
Volumetric monitoring
Deactivation
F Switch off the ignition and within ten seconds press this button until its indicator lamp is on fixed.
F Get out of the vehicle.
Reactivation
The indicator lamp in the button goes off.
F Immediately lock the vehicle using the remote control or the "Smart Entry & Start System".
Only the exterior perimeter protection system is active: the indicator lamp in the button flashes once per second.To be effective, this deactivation must be done every time the ignition is switched off.
F Deactivate the exterior perimeter monitoring by unlocking the vehicle using the remote control or the "Smart Entry & Start System".
F Reactivate the full alarm system by locking the vehicle using the remote control or the "Smart Entry & Start System".
The indicator lamp in the button flashes once per second again.
Triggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty seconds.The monitoring functions remain active until the alarm has been triggered eleven times in succession.
When the vehicle is unlocked using the remote control or the "Smart Entry & Start System", rapid flashing
of the indicator lamp in the button informs you that the alarm was triggered during your absence.When the ignition is switched on, this flashing stops immediately.
Access
