2018 TOYOTA PROACE Owners Manual

9

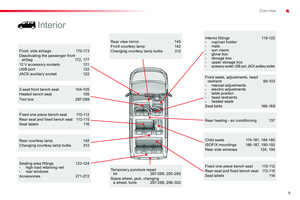

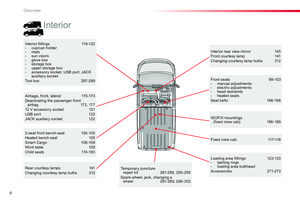

Interior fittings 119 -122- cup/can holder- mats- sun visors- glove box- storage box- upper storage box- accessory socket, USB port, JACK auxiliary socket

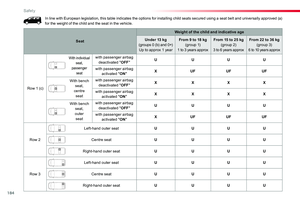

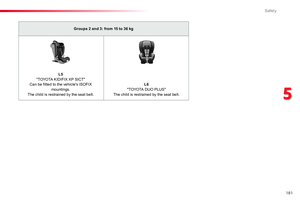

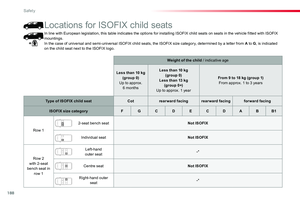

Child seats 174-181, 184-185ISOFIX mountings 186 -187, 190 -192Rear side windows 124, 195

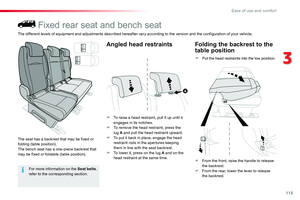

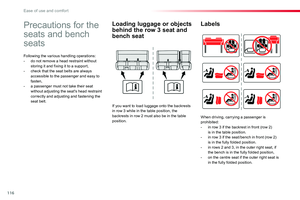

Fixed one-piece bench seat 110 -112Rear seat and fixed bench seat 113 -115Seat labels 116
2-seat front bench seat 104-105Heated bench seat 105

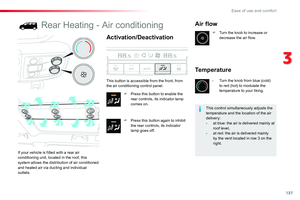

Rear heating - air conditioning 137

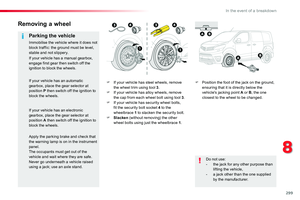

Temporary puncture repair kit 287-289, 290 -295Spare wheel, jack, changing a wheel, tools 287-289, 296 -302

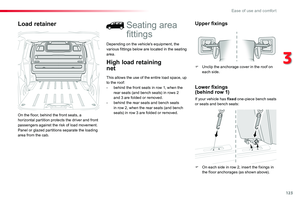

Seating area fittings 123 -124- high load retaining net- rear windowsAccessories 271-272

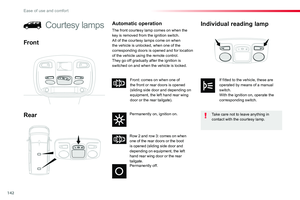

Rear courtesy lamp 142Changing courtesy lamp bulbs 312

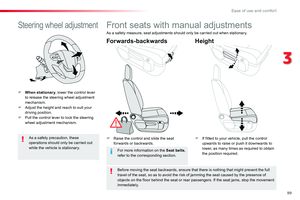

Rear view mirror 145Front courtesy lamp 142Changing courtesy lamp bulbs 312Front, side airbags 170 -173Deactivating the passenger front airbag 172, 17712 V accessory sockets 121USB port 122JACK auxiliary socket 122Front seats, adjustments, head restraint 99-103- manual adjustments- electric adjustments- table positon- head restraints- heated seatsSeat belts 166 -168
Fixed one-piece bench seat 110 -112Rear seat and fixed bench seat 113 -115Seat labels 116
Interior

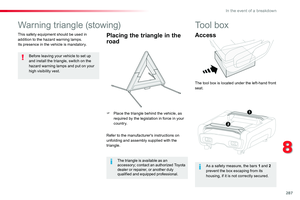

Tool box 287-289
.
Over view

10
Maintenance - Technical data
Dimensions 328-331Identification markings 337

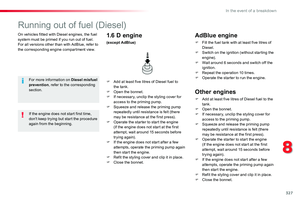

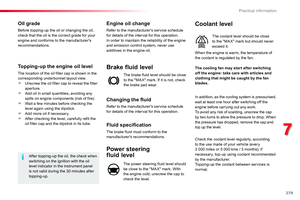

Running out of fuel (priming pump) 327Checking levels 278 -280- oil- brake fluid- power steering fluid- coolant- screenwash, headlamp wash fluid- additive (Diesel with particle filter)
Checking components 281-282- battery- air / passenger compartment filter- oil filter- particle filter- brake pads / discs

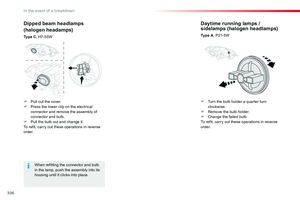

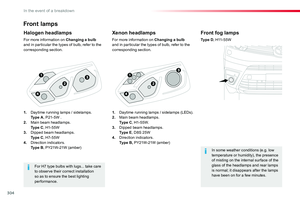

Changing bulbs 303-315- front- rear

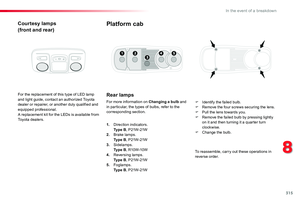

Platform cab
Changing rear lamp bulbs 315Dimension 331

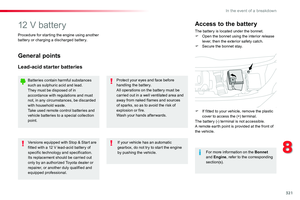

12V battery 321-325

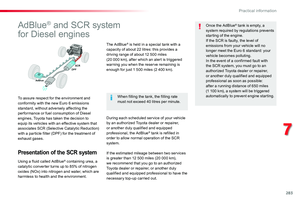

Opening the bonnet 276Under the bonnet 277Engines 332-336AdBlue® 283-286

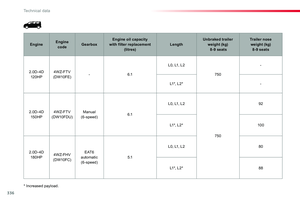

Weights 332-336

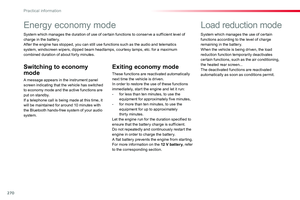

Load reduction, economy mode 270
Engine compartment fuses 316 -317, 320
Over view

11
92
109
177
11 6
194
186
140323
27611 6
107
107

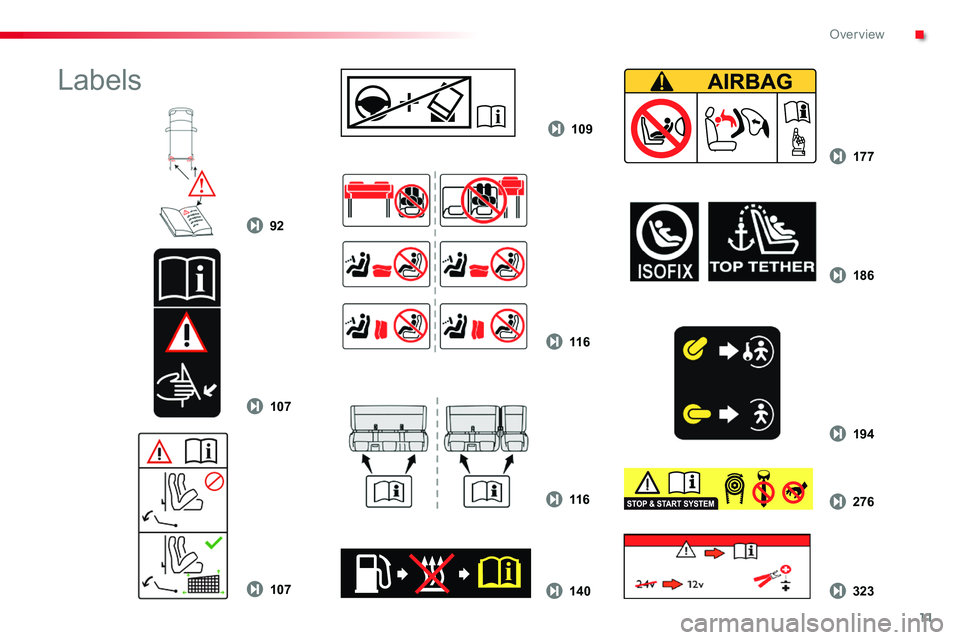

Labels
.
Over view

12
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Eco-driving
Optimise the use of your
gearboxWith a manual gearbox, move off gently and change up without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to engage the most suitable gear: as soon as the indication is displayed in the instrument panel, follow it straight away.For vehicles fitted with an electronic or automatic gearbox, this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel
consumption and CO2 emissions and also help to reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your
electrical equipment
Switch off the demisting and defrosting controls, if not automatic.Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light does not require their use.
Avoid running the engine before moving off, particularly in winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting the consumption of electrical energy, and so of fuel.Disconnect your portable devices before leaving the vehicle.
Before moving off, if the passenger compartment is
too warm, ventilate it by opening the windows and air vents before using the air conditioning.Above 30 mph (50 km/h), close the windows and leave the air vents open.Remember to make use of equipment that can help keep the temperature in the passenger compartment down (sunroof and window blinds...).Switch off the air conditioning, unless it has automatic regulation, as soon as the desired temperature is attained.
Eco-driving

13
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats.Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in the door aperture, driver's side.Carry out this check in particular:- before a long journey,- at each change of season,- after a long period out of use.Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter, passenger compartment filter...) and observe the schedule of operations recommended in the manufacturer's service schedule.

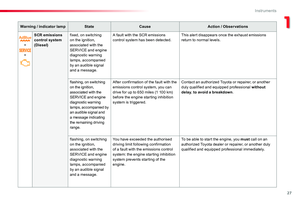

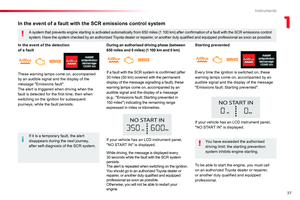

With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle becomes polluting; go to an authorized Toyota dealer or repairer, or another duly qualified and equipped professional without delay to have the emissions of nitrogen oxides brought back to the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settle down to a consistent average.
.
Eco-driving

14

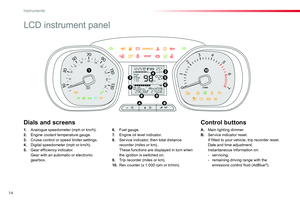

LCD instrument panel
1. Analogue speedometer (mph or km/h).
2. Engine coolant temperature gauge.3. Cruise control or speed limiter settings.4. Digital speedometer (mph or km/h).5. Gear efficiency indicator. Gear with an automatic or electronic gearbox.
A. Main lighting dimmer.
B. Service indicator reset. If fitted to your vehicle, trip recorder reset. Date and time adjustment. Instantaneous information on:- servicing,- remaining driving range with the emissions control fluid (AdBlue®).
6. Fuel gauge.
7. Engine oil level indicator.8. Service indicator, then total distance recorder (miles or km). These functions are displayed in turn when the ignition is switched on.9. Trip recorder (miles or km).10. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
Instruments

15
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.3. Engine coolant temperature gauge.4. Cruise control or speed limiter settings.5. Digital speedometer (mph or km/h).
A. Service indicator reset.
Recall of instantaneous information on:- servicing,- remaining driving range with the emissions fluid (AdBlue®).B. Main lighting dimmer.C. Trip recorder reset.
6. Gear efficiency indicator.
Gear with an automatic or electronic gearbox.7. Service indicator, then total distance recorder (miles or km), trip recorder (miles or km), display of messages, ...8. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
LCD text instrument panel
1
Instruments

16
Matrix instrument panel
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.3. Engine coolant temperature gauge.4. Cruise control or speed limiter settings.5. Gear efficiency indicator. Gear with an automatic or electronic gearbox.
A. Service indicator reset.
Alert log display. Recall of information on:- servicing,- remaining driving range with the emissions fluid (AdBlue®).B. Main lighting dimmer.C. Trip recorder reset.
6. Display area: alert or state of function
messages, trip computer, digital speedometer (mph or km/h), ...7. Service indicator, then total distance recorder (miles or km). These functions are displayed in turn when the ignition is switched on.8. Trip recorder (miles or km).9. Rev counter (x 1 000 rpm or tr/min).
Dials and screensControl buttons
Instruments
