2018 TOYOTA PRIUS PRIME Owners Manual (in English)

PRIUS PRIME_QG_OM47C25U_(U)
1Charging operation
2Plug-in Hybrid Applications
3Basic operation
4Things you must know
The quick guide is not intended as a substitute for your “OWNER’S
MANUAL”. We strongly encourage you to review the “OWNER’S MANUAL”
and supplementary manuals so you will have a better understanding of your
vehicle’s capabilities and limitations.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.

2
PRIUS PRIME_QG_OM47C25U_(U)
1. Charging operation

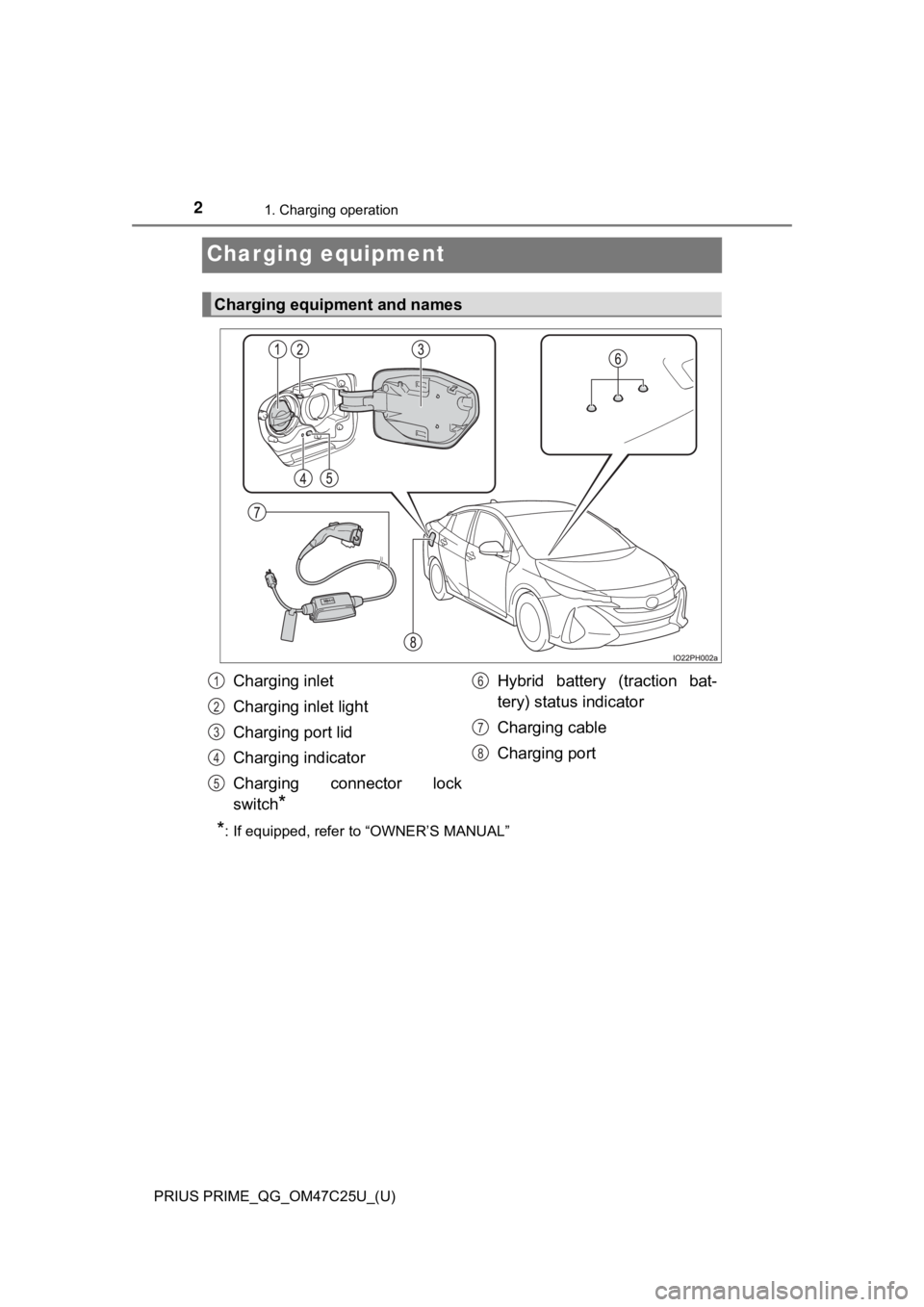

Charging equipment
*: If equipped, refer to “OWNER’S MANUAL”
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
Charging indicator
Charging connector lock
switch
*
Hybrid battery (traction bat-
tery) status indicator
Charging cable
Charging port1
2
3
4
5
6
7
8

PRIUS PRIME_QG_OM47C25U_(U)
31. Charging operation
1
Charging operation
The names of each part of the charging cable
Charging connector
Latch release button
Plug
Plug-cord
CCID (Charging Circuit Inter-
rupting Device)Power indicator
Charging indicator
Error warning indicator1
2
3
4
5
6
7
8

4
PRIUS PRIME_QG_OM47C25U_(U)
1. Charging operation
■Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
●Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
●Automatic check function
This is an automatic system check that is run before charging
begins to check for problems in the operation of the electrical
leakage detection function.
●Temperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the outlet side
etc., this function suppresses heat by controlling the charging
current.
●Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging
connector when it is not connected to the vehicle, even if the plug
is inserted into the outlet.
●The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.
●If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.
●When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.

PRIUS PRIME_QG_OM47C25U_(U)
51. Charging operation
1
Charging operation
WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your local code.
Use of a 15A individual circuit is strongly recommended.
●Use of a block heater for charging is prohibited.
●Make sure to connect the charging connector and charging inlet directly.
Do not connect a converting adaptor or extension cord between the
charging connector and charging inlet.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
●Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-Inter-
rupter (GFCI).
●Do not connect to a power strip.
ITO12P109
ITO12P110

6
PRIUS PRIME_QG_OM47C25U_(U)
1. Charging operation
■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration).
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
Vehicles with smart lid & con-
nector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away to slightly open the charging port lid.
Then open the lid fully by hand.
While the doors are locked, only the charging port lid can be unlocked
by carrying an electronic key and pressing the charging port lid.
Opening and closing the charging port lid

PRIUS PRIME_QG_OM47C25U_(U)
71. Charging operation
1
Charging operation
■Closing the charging port lid
Close the charging port lid and
press the rear edge of the
charging port lid (the position
shown in the illustration).
Vehicles with smart lid & con-
nector locking system:
• When the doors are locked
with the smart key system,
wireless remote control or
door lock switch, the charging
port lid is also locked.
• If the charging port lid is
closed with the doors locked,
the charging port lid locks.

8
PRIUS PRIME_QG_OM47C25U_(U)
1. Charging operation
When the charging cable is con-
nected to the charging inlet, the
user is informed of the charging
status of the hybrid battery (trac-
tion battery) by the statuses of 3
indicators (turned off, illuminated
or flashing).
■When the hybrid battery (traction battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (traction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
The illumination/flashing pattern
changes to inform the user of the
charging status.
Hybrid battery (traction battery) status indicator
Charging indicator
