2018 TOYOTA AVENSIS engine coolant

6028-2. Steps to take in an emergency
AVENSIS_OM_OM20C79E_(EE)

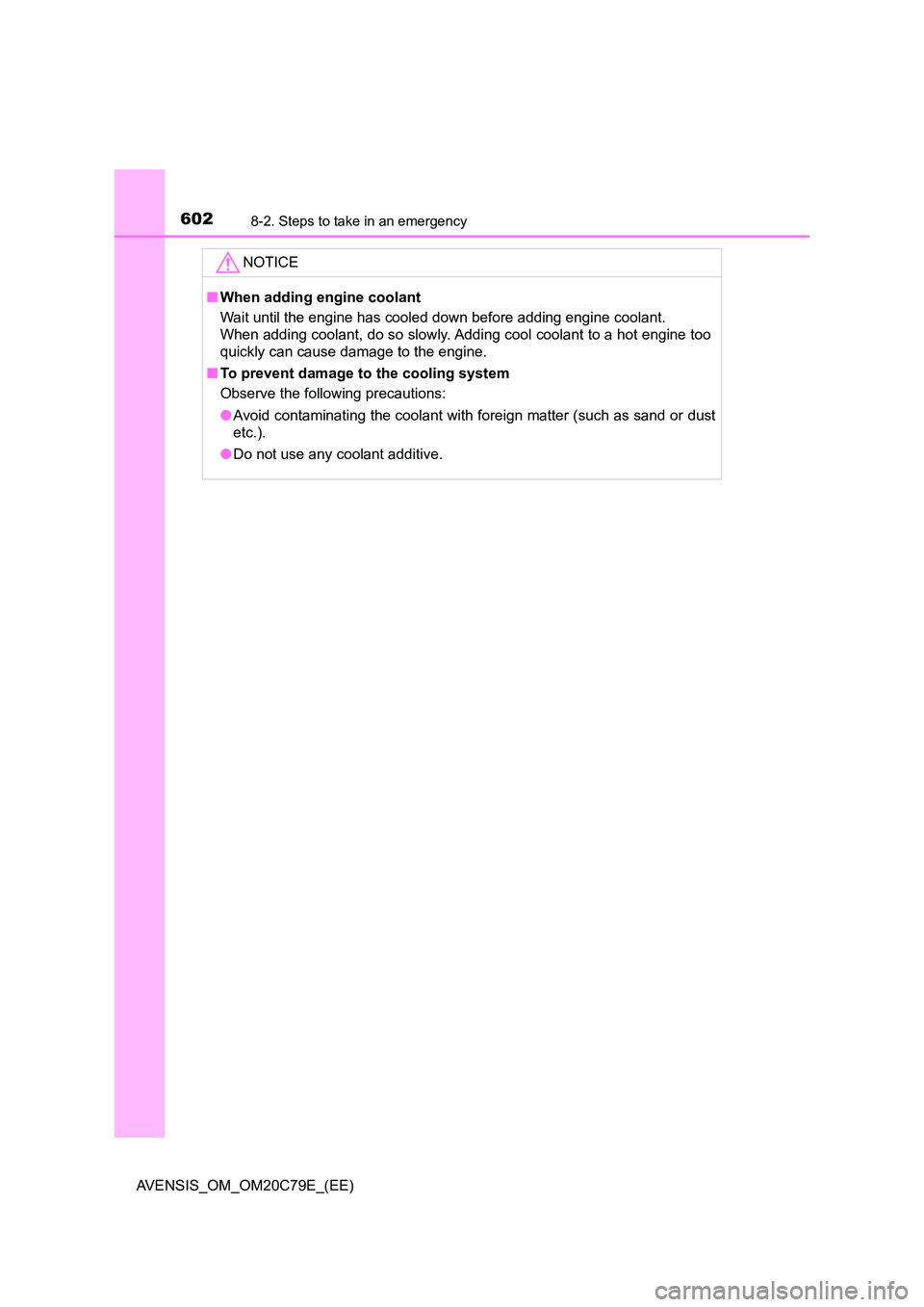

NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

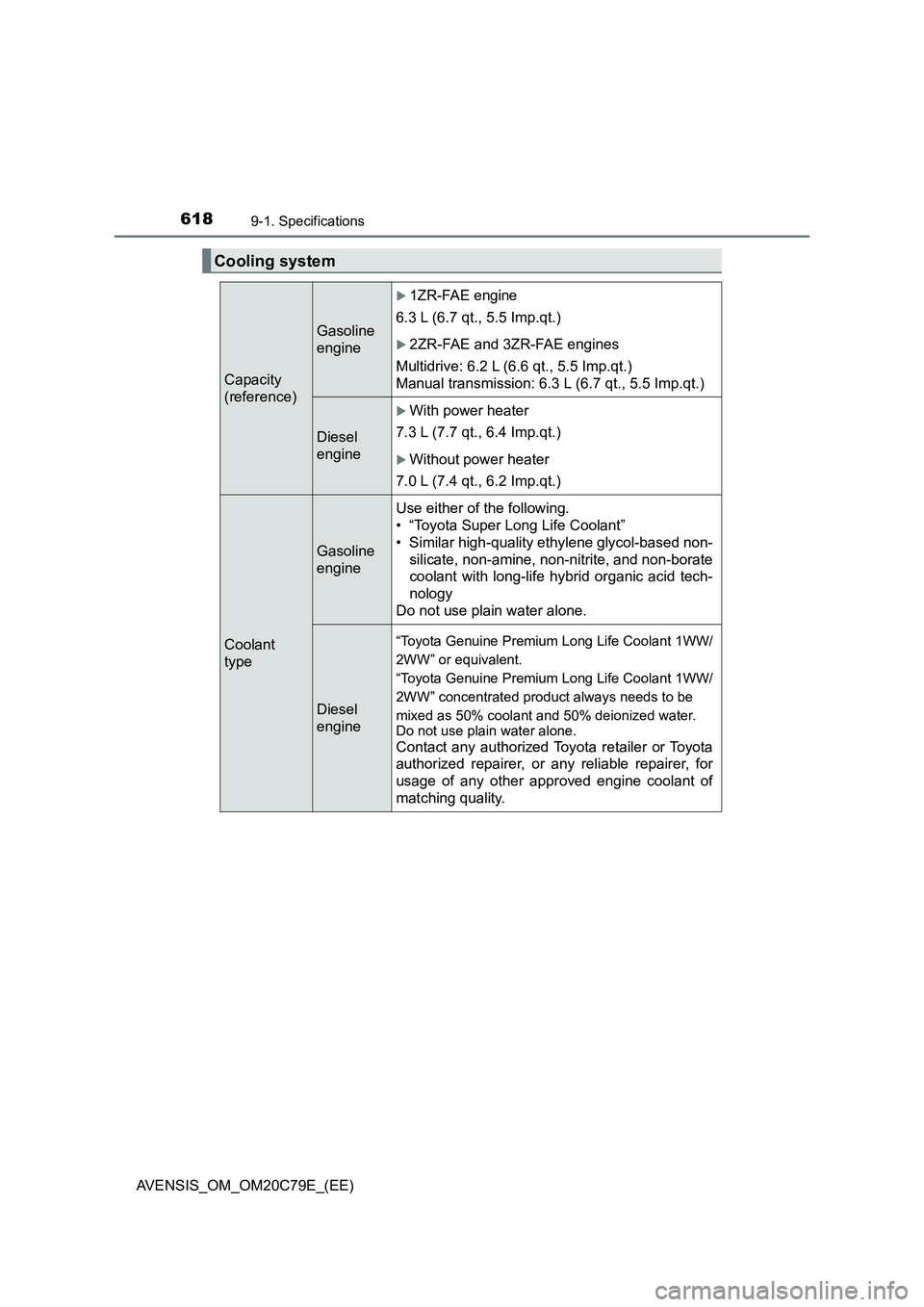

6189-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engine
1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.5 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
With power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant
type
Gasoline
engineUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Diesel
engine
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” or equivalent.
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs to be
mixed as 50% coolant and 50% deionized water.
Do not use plain water alone.
Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, for
usage of any other approved engine coolant of
matching quality.

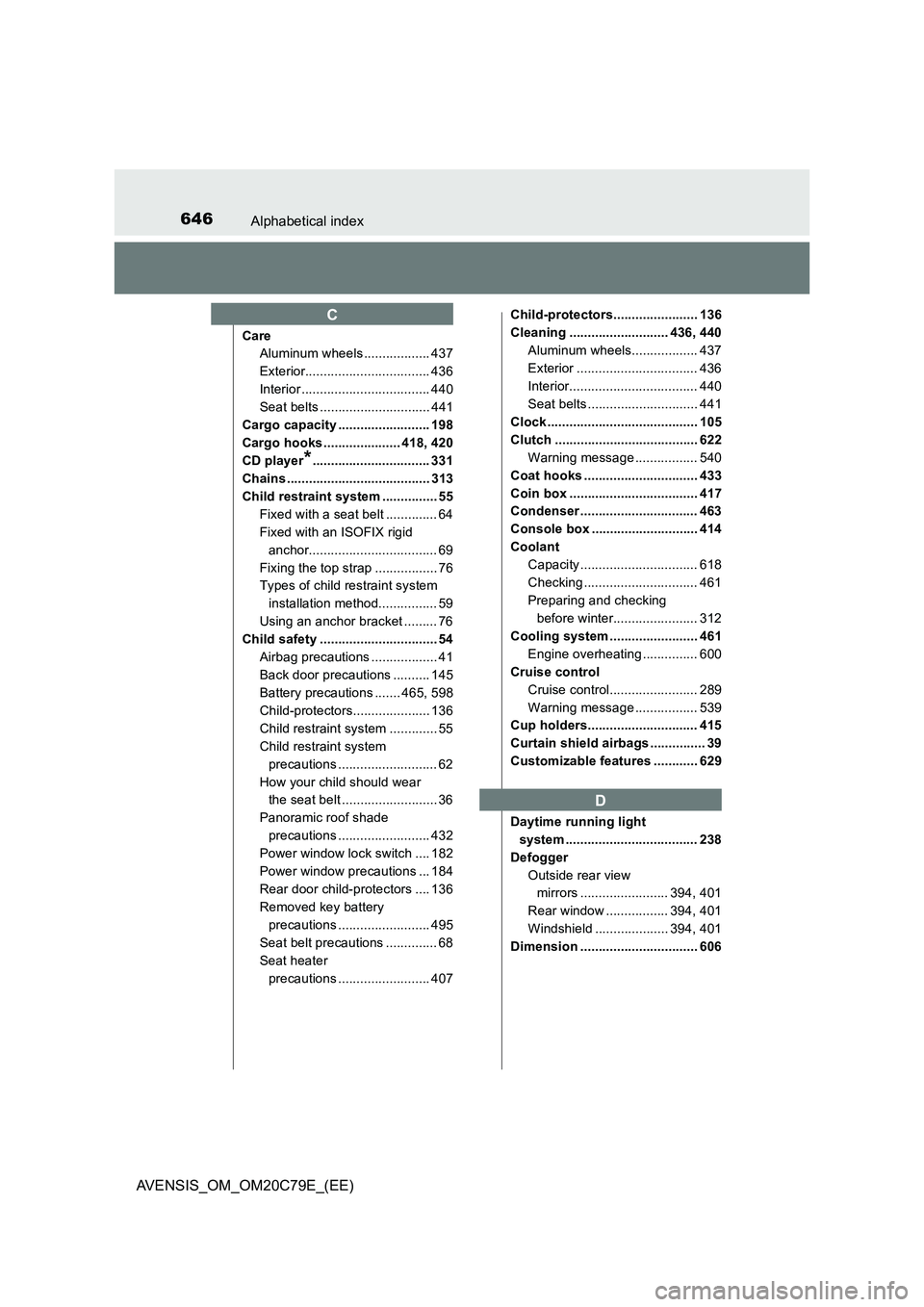

646Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Care
Aluminum wheels .................. 437
Exterior.................................. 436
Interior ................................... 440
Seat belts .............................. 441
Cargo capacity ......................... 198
Cargo hooks ..................... 418, 420
CD player
*................................ 331
Chains ....................................... 313
Child restraint system ............... 55
Fixed with a seat belt .............. 64
Fixed with an ISOFIX rigid
anchor................................... 69
Fixing the top strap ................. 76
Types of child restraint system
installation method................ 59
Using an anchor bracket ......... 76
Child safety ................................ 54
Airbag precautions .................. 41
Back door precautions .......... 145
Battery precautions ....... 465, 598
Child-protectors..................... 136
Child restraint system ............. 55
Child restraint system
precautions ........................... 62
How your child should wear
the seat belt .......................... 36
Panoramic roof shade
precautions ......................... 432
Power window lock switch .... 182
Power window precautions ... 184
Rear door child-protectors .... 136
Removed key battery
precautions ......................... 495
Seat belt precautions .............. 68
Seat heater
precautions ......................... 407Child-protectors....................... 136
Cleaning ........................... 436, 440
Aluminum wheels.................. 437
Exterior ................................. 436
Interior................................... 440
Seat belts .............................. 441
Clock ......................................... 105
Clutch ....................................... 622
Warning message ................. 540
Coat hooks ............................... 433
Coin box ................................... 417
Condenser ................................ 463
Console box ............................. 414
Coolant
Capacity ................................ 618
Checking ............................... 461
Preparing and checking
before winter....................... 312
Cooling system ........................ 461
Engine overheating ............... 600
Cruise control
Cruise control........................ 289
Warning message ................. 539
Cup holders.............................. 415
Curtain shield airbags ............... 39
Customizable features ............ 629
Daytime running light
system .................................... 238
Defogger
Outside rear view
mirrors ........................ 394, 401
Rear window ................. 394, 401
Windshield .................... 394, 401
Dimension ................................ 606
C
D

648Alphabetical index
AVENSIS_OM_OM20C79E_(EE)
Emergency tire puncture
repair kit ................................. 554
Engine
“ACC” position....................... 210
Accessory mode ................... 215
Before stopping the engine
(diesel engine) .................... 189
Compartment ........................ 453
Engine switch ................ 209, 212
Hood ..................................... 450
How to start the
engine......................... 209, 212
Identification number............. 608
Idling time.............................. 189
If the engine will not start ...... 586
If your vehicle has to be
stopped in an emergency ... 519
Ignition switch
(engine switch) ........... 209, 212
Overheating .......................... 600
Engine compartment
cover ....................................... 455
Engine coolant
Capacity ................................ 618
Checking ............................... 461
Preparing and checking
before winter....................... 312
Engine coolant temperature
gauge ...................................... 106
Engine immobilizer system ...... 78
Engine oil
Capacity ................................ 612
Checking ............................... 456
Oil pressure warning
message ............................. 537
Preparing and checking
before winter....................... 312Engine oil maintenance
data ......................................... 459
Engine switch .................. 209, 212
Auto power off function ......... 216
Changing the engine switch
mode .................................. 215
Changing the engine
switch position .................... 210
If your vehicle has to be
stopped in an emergency ... 519
Starting the engine........ 209, 212
Engine switch light
(ignition switch)..................... 409
EPS (Electronic Power Steering)
Function ................................ 306
Warning light ......................... 531
Warning message ................. 541
First-aid kit storage belt .......... 418
Flat tire.............................. 570, 554
Floor mat .................................... 30
Fluid
Brake .................................... 622
Clutch.................................... 622
Multidrive .............................. 620
Steering ................................ 622
Transmission ........................ 620
Washer ................................. 466
Fog lights
Replacing light bulbs..... 505, 515
Switch ................................... 241
Wattage ................................ 625
Follow me home system ......... 237
Front fog lights
Replacing light bulbs............. 505
Switch ................................... 241
Wattage ................................ 625
F
