UK AURIS_HV_HB_EE (OM12M49E)
6
4-1. Before driving
Driving the vehicle .............190
Cargo and luggage ............200
Trailer towing .....................201
4-2. Driving procedures
Power (ignition) switch .......211
EV drive mode ...................217
Hybrid transmission ...........219
Turn signal lever ................227
Parking brake.....................228
4-3. Operating the lights
and wipers
Headlight switch.................229
Fog light switch ..................235
Windshield wipers
and washer ......................237
Rear window wiper
and washer ......................241
4-4. Refueling
Opening the fuel tank
cap ...................................243
4-5. Toyota Safety Sense
Toyota Safety Sense ......... 246
PCS
(Pre-Crash Safety
system) ........................... 252
LDA
(Lane Departure Alert) .... 265
Automatic High Beam ....... 270
RSA (Road Sign Assist) .... 274
4-6. Using the driving
support systems
Cruise control .................... 280
Toyota parking
assist-sensor ................... 284
Simple-IPA
(Simple-Intelligent
Parking Assist) ................ 291
Driving assist systems....... 305
4-7. Driving tips
Hybrid vehicle driving
tips .................................. 311
Winter driving tips.............. 314
4Driving

27Pictorial index
UK AURIS_HV_HB_EE (OM12M49E)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Sun visors*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Vanity lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 391
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 391, 392
Panoramic roof shade switch*2. . . . . . . . . . . . . . . . . . . . . . P. 409
Intrusion sensor cancel switch . . . . . . . . . . . . . . . . . . . . . . . P. 92
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
1
2
3
4
5
6
7
8
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 68)
*2: If equipped

391-1. For safe use
1
For safety and security
UK AURIS_HV_HB_EE (OM12M49E)
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
SRS airbag system components
Airbag manual on-off switch
Front passenger airbag
Front side airbags
Curtain shield airbags
“PASSENGER AIR BAG” indi-
cator
SRS warning light
Side impact sensors (rear)
Driver airbag
Side impact sensors (front)
Seat belt pretensioners and
force limiters
Driver’s knee airbag
Front impact sensors
Airbag sensor assembly
1
2
3
4
5
6
7
8
9
10
11
12
13

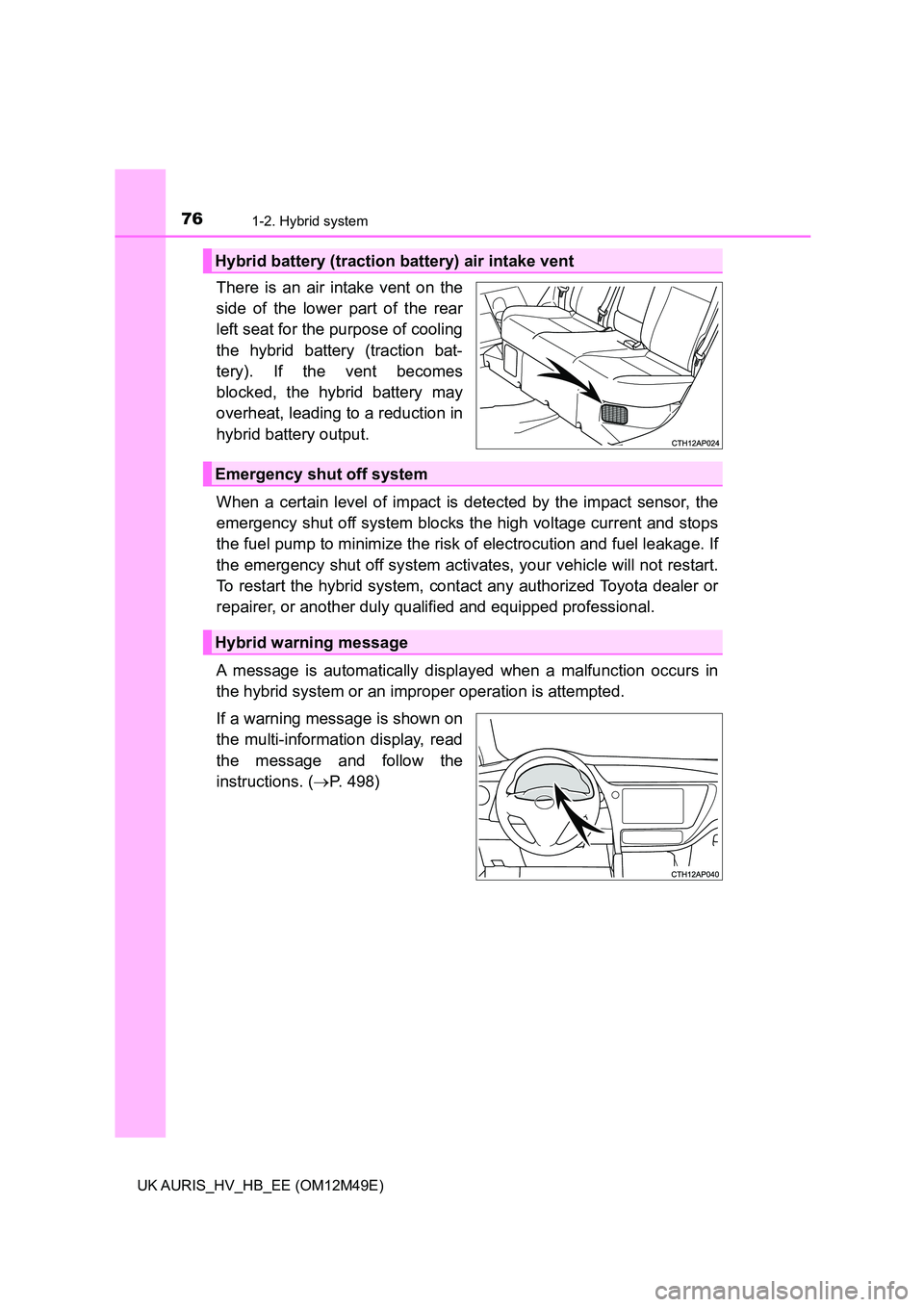

761-2. Hybrid system
UK AURIS_HV_HB_EE (OM12M49E)
There is an air intake vent on the
side of the lower part of the rear
left seat for the purpose of cooling
the hybrid battery (traction bat-
tery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off sy stem activates, your vehicle will not restart.
To restart the hybrid system, cont act any authorized Toyota dealer or
repairer, or another duly qua lified and equipped professional.
A message is automatically displa yed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. ( P. 498)
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message

891-3. Theft deterrent system
1
For safety and security
UK AURIS_HV_HB_EE (OM12M49E)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the follo wing situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function or wireless re mote control. (The doors will lock
again automatically.)
● The hood is opened.
● The intrusion sensor detects something moving inside the vehicle.
(An intruder gets in the vehicle.)
● The back door window is tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Alarm
: If equipped
The alarm
Setting the alarm system

921-3. Theft deterrent system
UK AURIS_HV_HB_EE (OM12M49E)
The intrusion sensor detects intruders or movement in the vehicle.
When an intruder or movement is detected, the alarm will be trig-
gered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set au tomatically when the alarm is set.
( P. 89)
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to stop the intrusion sensor before setting the alarm, as
they will respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor
cancel switch.
To set the alarm with the intru-
sion sensor disabled, the alarm
must be set within 5 minutes
after canceling the sensor.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor
1
2

931-3. Theft deterrent system
1
For safety and security
UK AURIS_HV_HB_EE (OM12M49E)
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
● The intrusion sensor will automatically be re-enabled if the alarm system is
not set within 5 minutes after the intrusion sensor is canceled.
■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
● Persons or pets are in the vehicle.
● A window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the
vehicle
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

941-3. Theft deterrent system
UK AURIS_HV_HB_EE (OM12M49E)
● The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
NOTICE
■ To ensure the intrusion sensor function correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.
