Page 11 of 33
9
Slip indicator
Vehicle Stability Control OFF
CHECK engine/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag OFF/ON
Headlight leveler
(if equipped)
TRAC OFF indicator
Incline start assist
TRACK indicator
Keyless Access with
Push Button Start System
Turn signals
Front fog light indicator
light (if equipped)
Cruise control
indicator light
Cruise control SET
indicator light
SPORT indicator
(Automatic Transmission)
Gauges
Digital speedometer
Multi-information display
Fuel gauge
3156598_18a_BRZ_QRG_100217.indd 910/3/17 8:56 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 13 of 33
11
Trunk Lid Cancel Button
Prevent unauthorized entry into the trunk by locking the trunk release lever. Press
the trunk lid cancel button to lock the trunk release lever. The trunk can only be
opened using the master key. Press the button in to unlock the trunk release lever.
km/h - MPH, ODO - TRIP and DISP Buttons
1. Press this button to change the digital display from km/h to MPH. Press again
to switch back.
2. Press this button to cycle through the odometer, trip meter A, trip meter B,
the setting screen for the tachometer needle or the setting screen for the shift
position indicator.
3. For BRZ Premium, press this button to cycle through the outside temperature,
current fuel consumption or average fuel consumption. For BRZ Limited, see
page 17.
11
22
3
Personalize
BRZ Limited
BRZ Premium
3156598_18a_BRZ_QRG_100217.indd 1110/3/17 8:57 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 17 of 33
15

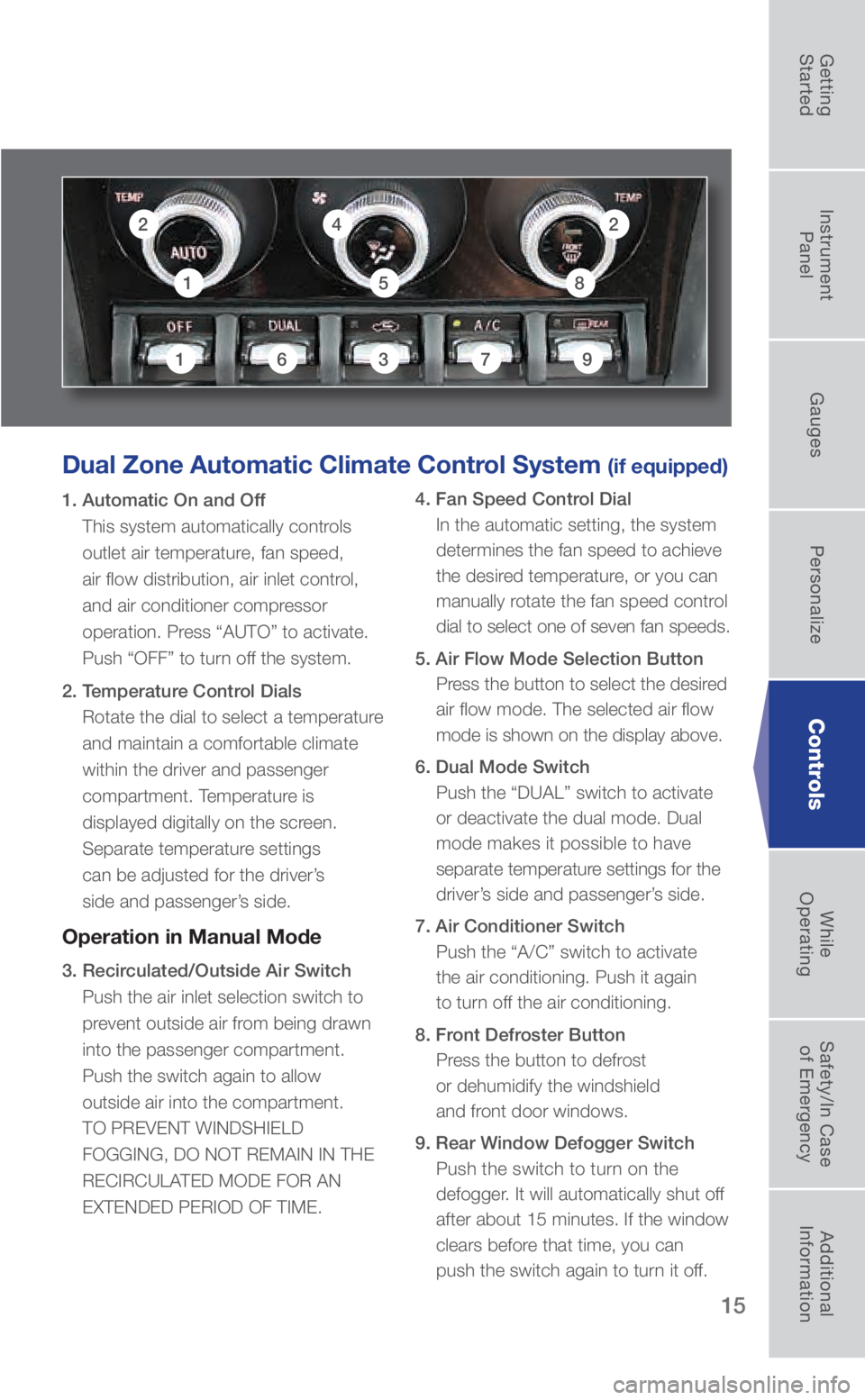

Dual Zone Automatic Climate Control System (if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Push “OFF” to turn off the system.
2. Temperature Control Dials
Rotate the dial to select a temperature
and maintain a comfortable climate
within the driver and passenger
compartment. Temperature is
displayed digitally on the screen.
Separate temperature settings
can be adjusted for the driver’s
side and passenger’s side.
Operation in Manual Mode
3. Recirculated/Outside Air Switch Push the air inlet selection switch to
prevent outside air from being drawn
into the passenger compartment.
Push the switch again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.
4. Fan Speed Control Dial
In the automatic setting, the system
determines the fan speed to achieve
the desired temperature, or you can
manually rotate the fan speed control
dial to select one of seven fan speeds.
5. Air Flow Mode Selection Button Press the button to select the desired
air flow mode. The selected air flow
mode is shown on the display above.
6. Dual Mode Switch Push the “DUAL” switch to activate
or deactivate the dual mode. Dual
mode makes it possible to have
separate temperature settings for the
driver’s side and passenger’s side.
7. Air Conditioner Switch Push the “A/C” switch to activate
the air conditioning. Push it again
to turn off the air conditioning.
8. Front Defroster Button Press the button to defrost
or dehumidify the windshield
and front door windows.
9. Rear Window Defogger Switch Push the switch to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
push the switch again to turn it off.
2
36917
4
158
2
Controls
3156598_18a_BRZ_QRG_100217.indd 1510/3/17 8:58 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 19 of 33
17
Controls
Multi-Information Display Control Switches (if equipped)
For more information about the meter control switches, please refer to the
“Multi-information display (color display)” section in your Owne\
r’s Manual.Press the switch left or right to
select menu icons.
Enter
button.
Press the top or bottom
of the switch to change
the displayed content,
scroll up or down, or
move the cursor.Press to return to
the previous screen.
3156598_18a_BRZ_QRG_100217.indd 1710/3/17 8:58 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 26 of 33
24
Additional Information
Fuel
Use premium unleaded gasoline with an octane rating of 91 AKI or higher. Consult the
Owner’s Manual for more detailed information.
Fuel Capacity
• 13.2 US gal (50 liters, 11 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
1.8 US gal (7.0 liters, or 1.5 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the
instrument panel may stay on due to a missing or loose fuel filler cap\
(the cap should be tightened until a click is heard).
Fuel Filler Lid Release
The fuel filler lid release is located on the floor to the left of the driver’s seat. To open the fuel
filler lid, pull the fuel filler lever up and release.
3156598_18a_BRZ_QRG_100217.indd 2410/3/17 8:59 AM
Page 32 of 33
Steering Wheel & Instrument Panel
Master and Valet Keys, Keyless Access System* operation,
Push Button Start* and Remote Start*
Tilt/Telescopic Steering Column Adjustments and Paddle Shift operation*
Steering Wheel Controls
Headlights, DRL, Parking Lights, Hazard Lights, Interior Lights,
Fog Lights*, Autolights* and Welcome/Goodbye Lighting*
Front & Rear* Wiper and Washer Controls
Gauges, Warning Lights, Multi Function Display*, Information Display settings
and Parking Brake operation
Safety, Comfort & Convenience
All Wheel Drive System, Emergency towing of AWD, VDC, X-MODE®*,
Hill Holder™*, Incline Start Assist*, and Auto Vehicle Hold* operation
Rear Vision Camera
All Weather Package operation — Heated Seats,
Exterior Mirrors & Windshield Wiper De-icer
Review operation of climate control system
Power windows, locks, exterior mirrors, seat including Memory Function*
and Power Moonroof* operation
Hood Release and fluid reservoir locations
Fuel Filler Door, Trunk Release, Rear Gate operation
and location of Spare Tire*, Jack & Tools
STARLINK Audio System, Bluetooth & Safety/Security
Bluetooth — Pair owner’s phone(s) & show operation
(Download SUBARU STARLINK and MySubaru Apps*)
STARLINK Audio and Navigation* system controls
Driver Assist Technologies
EyeSight™ System*
Reverse Automatic Braking System*
Blind Spot Detection*, Lane Change Assist* and Rear Cross Traffic Alert*
High Beam Assist*, Steering Responsive Foglights* and
Steering Responsive Headlights*
*If Applicable
Owner Signature(s) ________________________________________________________________
Subaru Sales Consultant ___________________________________________________________
Subaru Sales Manager _____________________________________________________________
