2018 Seat Tarraco Owner's manual

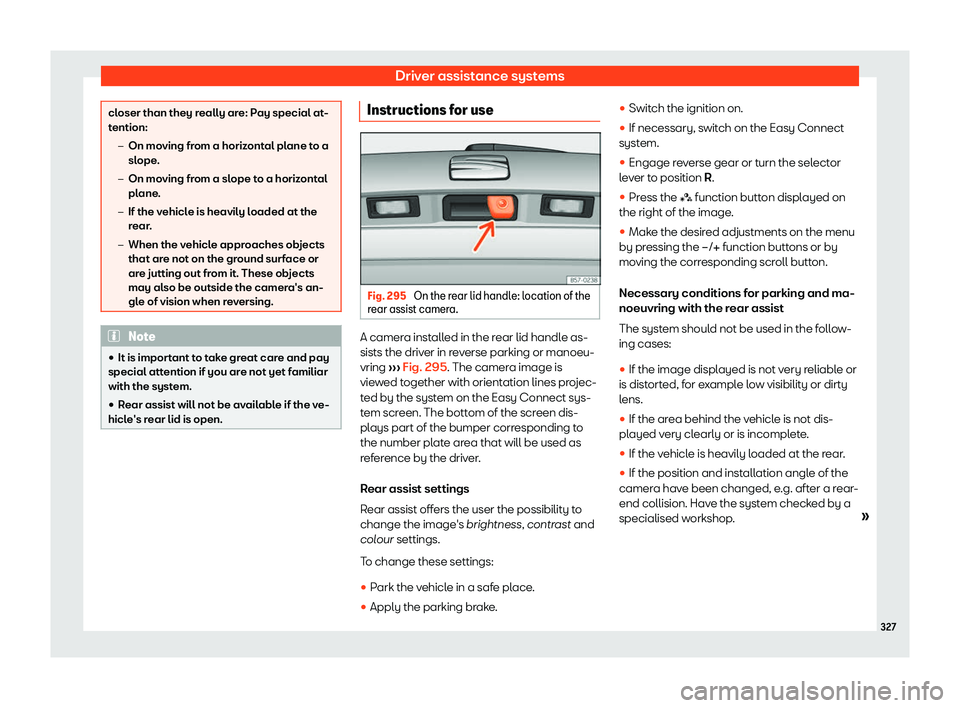

Driver assistance systems
closer than they really are: Pay special at-
tention:

Driving
Familiarising yourself with the system
T o f
amiliarise yourself with the syst
em, the
orientation lines and their function, SEAT rec-
ommends practising parking and manoeu-
vring with the rear assist in a place without
too much traffic or in a car park when there
are good weather and visibility conditions.
Cleaning the camera lens
Keep the camera lens clean and clear of
snow and ice:

Towing bracket device*
Meaning of the orientation lines

Driving

Towing bracket device*

Driving
detached from the vehicle and cause seri-
ous injury.
CAUTION

Towing bracket device*

Driving
Key to the Fig. 298:
Pin Meaning
4 Right turn signal5 Rear light, right
6 Brake lights 7 Rear light, left
8 Reverse lights
9 Permanent live
10 Live charge cable 11 Earth for pin 10
12 Unassigned
13 Earth for pin 9 Trailer power socket
The v
ehicl
e is fitt
ed with a 13-pole power
socket for the electrical connection between
the trailer and the vehicle. With the engine
running, electrical devices on the trailer re-
ceive power from the electrical connection
(pin 9 and pin 10 of the trailer power socket).
If the system detects that a trailer has been
connected electrically, the electrical equip-
ment on the trailer will receive voltage
through this connection (pins 9 and 10). Pin 9
has a permanent live. This powers, for exam-
ple, the trailer
