2018 Seat Leon MEDIA SYSTEM PLUS - NAVI SYSTEM - NAVI SYSTEM PLUS

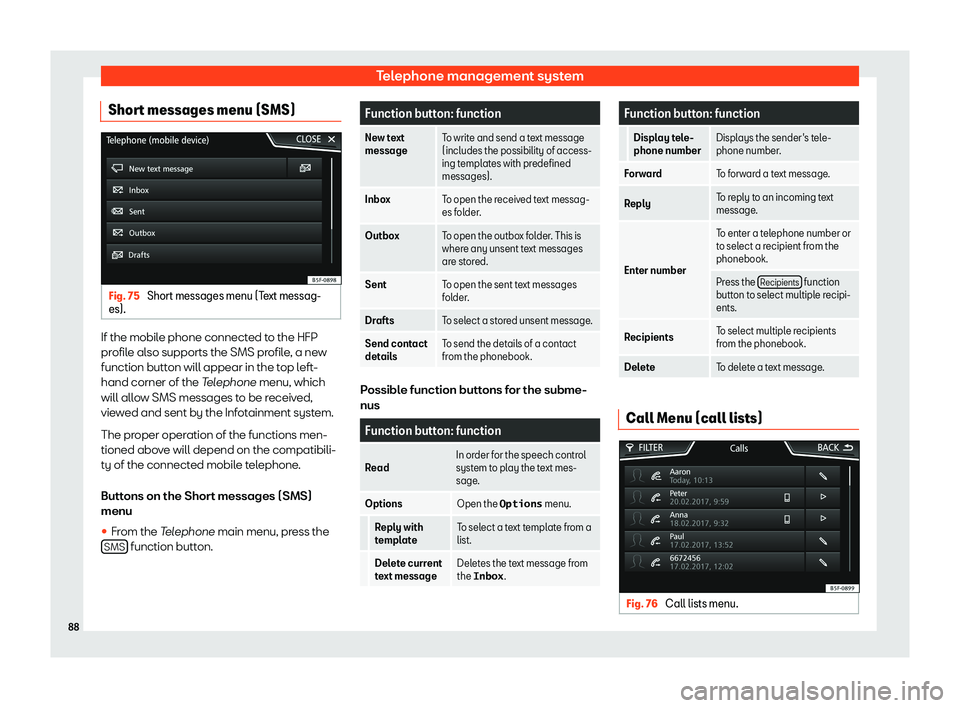

Telephone management systemShort messages menu (SMS)Fig. 75
Short messages menu (Text messag-
es).
If the mobile phone connected to the HFP
profile also supports the SMS profile, a newfunction button will appear in the top left-
hand corner of the Telephone menu, which
will allow SMS messages to be received,
viewed and sent by the Infotainment system.
The proper operation of the functions men- tioned above will depend on the compatibili-ty of the connected mobile telephone.
Buttons on the Short messages (SMS)menu

Telephone management system

Telephone management systemTelephone settings
Press the SETTINGS function button from the
Telephone main menu.
Function button: functionPrivate mode: Private mode can only be activated
during an active call. With the private mode disabled
(by default) the sound of the call is managed by the vehicle. With the private mode enabled the sound ofthe call is managed by the phone.Select mobile phone: From the list, select the mobile
telephone to be connected to the hands-free profile
with the Infotainment system.OR: Press Find telephone to connect a new mobile tel-
ephone.Bluetooth

Telephone management systemConnectivity Box* / Wireless
Charger*Fig. 78
Centre console: slot for mobile phone
connection.
The Connectivity Box includes different func-
tions that will help to use your mobile device.
They are the “ Wireless Charger ” and the
“ Mobile Signal Amplifier ”.
The Wireless Charger only features the
“ Wireless Charger ” function.
“Wireless Charger”
The “ Wireless Charger ” allows mobile devi-
ces with Qi 1)
technology to be charged with-
out a cable.
To charge your mobile phone wirelessly:

Telephone management system

SetupSetupMenu and system settings Main menu System settings
The selection of possible settings will dependon the country, the unit in question and the
vehicle equipment.

SetupFunction button: functionSystem information: Viewing system information (de-
vice number, hardware and software versions). Update: To update navigation data

Setupexternal audio source. If this is not enough,
change the input volume to medium or high .
If the sound from the connected external au-
dio source is too loud or distorted , lower the
output volume on the external audio source.
If this is not sufficient, set the input volume to
Medium or Quiet
.95
