Page 41 of 94
Audio and Media ModeThe reading time may vary considerably de-pending on the condition of the data medium
(copying and deleting actions), folder struc- ture and file type.
Playlists only determine a certain playing or-
der. There are no files stored in a playlist. The
unit will not play a playlist if the files are not
on the data medium at the locations referred
to by the playlist (relative file paths).
A cover can only be displayed when the name starts with “ Cover”, “Folder ” or “Al-
bum ”.Note
Page 42 of 94
Audio and Media ModeMEDIA main menuFig. 30
MEDIA main menu.
Using the MEDIA main menu, different media
sources can be selected and played.
Page 43 of 94
Audio and Media ModeMessages and symbols on the MEDIA main
menuDisplay: MeaningADisplays information about the artist
name, album name and song title (CD
text , ID3 tag on compressed audio
files).Audio CD: displays track information. If no data is available, it only displays
T r a c k and the number corresponding to
the position it occupies on the data stor- age device.BAlbum cover display: If there are various
covers within the same folder/album, the
system only displays one of them.It prioritizes displaying the covers in the following manner:
1. Cover embedded in the file(s).
2. Image in file folder.
3. Default icon of the connected device.CThe playing time so far and time remain- ing in minutes and seconds. In the case
of audio files with variable bit rates (VBR)the remaining time may vary. T P a)The TP function is active and can be
tuned in
Page 44 of 94
Audio and Media ModeChanging track in the MEDIA main
menuFig. 32
MEDIA main menu.
It is possible to browse through the tracks of
the Media source that is currently playing us-
ing the arrow buttons.
It is not possible to exit a playlist or start the
playback of a playlist using the arrow but-
tons. Both actions must be performed man-
ually from the track selection menu
Page 45 of 94
Audio and Media ModeSelection of a track from a list of
tracksFig. 34
Media mode: list of folders on a media
source.
Fig. 35
Media mode: list of tracks on a media
source.
Opening a track list
Page 46 of 94
Audio and Media ModeDatabase viewFig. 36
Media mode: database view
From the track list, press theShow database view option. The content of the
current Media source will be displayed clas-
sified by Playlists
, Artists, Albums, Genres,
Tracks and Videos
Page 47 of 94
Audio and Media ModeInserting a memory card
Insert the compatible memory card, bevelled
edge first and with the label face up (con- tacts face down), into slot
Page 48 of 94

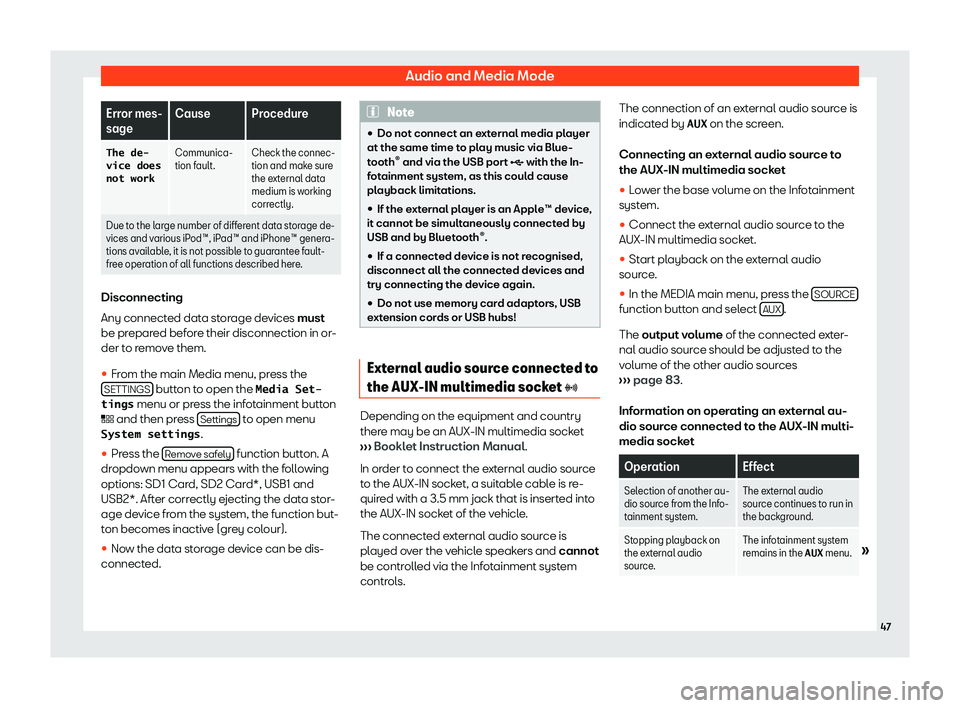

Audio and Media ModeError mes-
sageCauseProcedure T h e d e -
v i c e d o e s
n o t w o r kCommunica-
tion fault.Check the connec-
tion and make sure
the external data
medium is working correctly.Due to the large number of different data storage de- vices and various iPod
