2018 Ram 4500 Chassis Cab fuses

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............320
 ASSIST AND SOS MIRROR — IF EQUIPPED . . . .320
 BULB REPLACEMENT ....................325
▫ Replacement Bulbs .....................325
▫ Replacing Exterior Bulbs ..................326
 FUSES ............................... .331
▫ Power Distribution Center ................332
 JACKING AND TIRE CHANGING ...........339
▫ 4500/5500 Models ..................... .339
▫ Preparations For Jacking ..................339
▫ Jacking Instructions 4500 And 5500 Series ......340
▫ To Stow The Flat Or Spare — If Equipped .....344
▫ Hub Caps/Wheel Covers — If Equipped ......344
JUMP STARTING ....................... .345
▫ Preparations For Jump Start ...............346
▫ Jump Starting Procedure ..................347
 IF YOUR ENGINE OVERHEATS .............348
 GEAR SELECTOR OVERRIDE ..............349
 FREEING A STUCK VEHICLE ..............350
 TOWING A DISABLED VEHICLE ............352
▫ Two-Wheel Drive Models .................353
▫ Four-Wheel Drive Models .................353
▫ Emergency Tow Hooks — If Equipped ........354
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .355
 EVENT DATA RECORDER (EDR) ............355
7

3. Pull the bulb straight from it’s socket and replace.FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.
• Before replacing a fuse, make sure that the ignition is
off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.
Removing The Bulb From The Bulb Socket
7
IN CASE OF EMERGENCY 331

Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to the
following chart.
CavityCartridge Fuse Micro Fuse Description
F01 80 Amp Black –Rad Fan Control Module – If Equipped
F03 60 Amp Yellow –Rad Fan – If Equipped
F05 40 Amp Green –Compressor for Air Suspension – If
Equipped
F06 40 Amp Green –Antilock Brakes/Electronic Stability Control
Pump
F07 40 Amp Green –Starter Solenoid
Power Distribution Center Location
332 IN CASE OF EMERGENCY

Preparations For Jump Start
The battery in your vehicle is located in the front of the
engine compartment, behind the left headlight assembly.
NOTE:The positive battery post may be covered with a
protective cap if equipped. Lift up on the cap to gain access
to the positive battery post. Do not jump off fuses. Only
jump directly off positive post which has a positive (+)
symbol on or around the post.
WARNING!
• Take care to avoid the radiator cooling fan whenever
the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.
• Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
• Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Apply the parking brake, shift the automatic transmis- sion into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electrical accessories.
3. If using another vehicle to jump start the battery, park the vehicle within the jumper cables reach, apply the
parking brake and make sure the ignition is OFF.
Correct Positive Jumping Location
346 IN CASE OF EMERGENCY

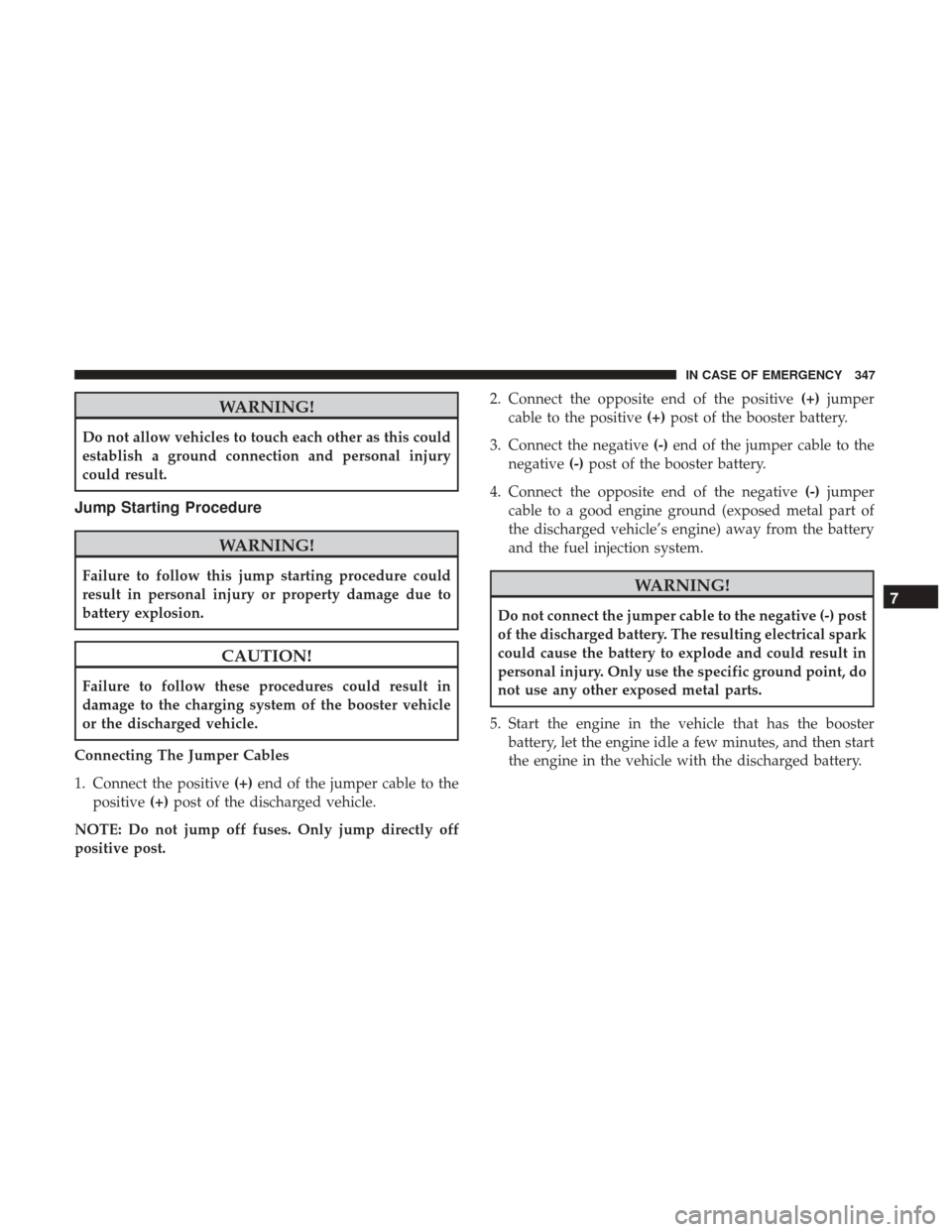

WARNING!
Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
Jump Starting Procedure
WARNING!
Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
Connecting The Jumper Cables
1. Connect the positive (+)end of the jumper cable to the
positive (+)post of the discharged vehicle.
NOTE: Do not jump off fuses. Only jump directly off
positive post. 2. Connect the opposite end of the positive
(+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative (-)end of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to a good engine ground (exposed metal part of
the discharged vehicle’s engine) away from the battery
and the fuel injection system.
WARNING!
Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
7
IN CASE OF EMERGENCY 347

CAUTION!
Do not connect jumper cable to any of the fuses on the
positive battery terminal. The resulting electrical cur-
rent will blow the fuse.
6. Once the engine is started, remove the jumper cables in the reverse sequence:
Disconnecting The Jumper Cables
1. Disconnect the negative (-)end of the jumper cable from
the engine ground of the vehicle with the discharged
battery.
2. Disconnect the opposite end of the negative (-)jumper
cable from the negative (-)post of the booster battery.
3. Disconnect the positive (+)end of the jumper cable from
the positive (+)post of the booster battery.
4. Disconnect the opposite end of the positive (+)jumper
cable from the positive (+)post of the vehicle with the
discharged battery.
If frequent jump starting is required to start your vehicle
you should have the battery and charging system in-
spected at an authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission in
NEUTRAL, but do not increase the engine idle speed
while preventing vehicle motion with the brakes.
NOTE: There are steps that you can take to slow down an
impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
348 IN CASE OF EMERGENCY

ENGINE COMPARTMENT
6.4L Engine
1 — Coolant Pressure Bottle6 — Battery
2 — Transmission Dipstick 7 — Power Distribution Center (Fuses)
3 — Engine Oil Fill 8 — Washer Solvent
4 — Engine Oil Dipstick 9 — Power Steering Fluid Reservoir
5 — Brake Fluid Reservoir 10 — Air Cleaner Filter
364 SERVICING AND MAINTENANCE

Exterior Lights......................... .69, 236
Filters Air Cleaner ............................ .368
Air Conditioning ..................... .97, 372
Engine Fuel ........................... .435
Engine Oil ......................... .368, 435
Engine Oil Disposal ...................... .368
Flashers Turn Signal ...................... .75, 158, 236
Flash-To-Pass ..............................72
Flat Tire Stowage .......................... .344
Flooded Engine Starting ..................... .243
Fluid, Brake ............................. .437
Fluid Capacities ........................... .434
Fluid Leaks .............................. .236
Fluid Level Checks Automatic Transmission ....................390
Brake ................................ .388
Power Steering ......................... .269
Fluids And Lubricants ...................... .435
Fog Lights ......................... .74, 157, 328
Fold Flat Load Floor ........................117
Folding Rear Seat ...........................43
Four-Way Hazard Flasher .....................320 Four Wheel Drive
......................... .257
Freeing A Stuck Vehicle ..................... .350
Front Axle (Differential) ..................... .392
Fuel ................................... .429
Adding .............................. .289
Additives .......................... .290, 430
Clean Air ............................. .430
Ethanol .............................. .431
Filler Cap (Gas Cap) ..................... .290
Filter ................................ .435
Gasoline .............................. .429
Light ................................ .156
Materials Added ..................... .290, 430
Methanol ............................. .431
Octane

Rating .......................... .429
Requirements .......................... .429
Tank Capacity .......................... .434
Fuses .................................. .331
Garage Door Opener (HomeLink) ............102, 108
Gas Cap (Fuel Filler Cap) .....................290
Gasoline, Clean Air ........................ .430
Gasoline, Reformulated ..................... .430
Gear Ranges ............................. .249
Gear Select Lever Override ....................349
516 INDEX
