236

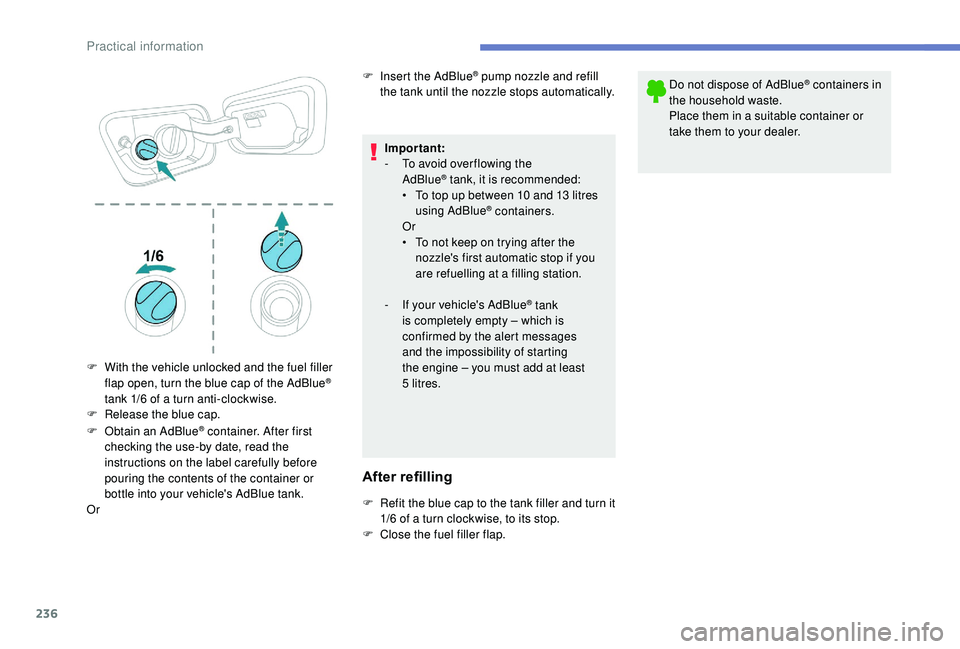

F Obtain an AdBlue® container. After first
checking the use-by date, read the
instructions on the label carefully before
pouring the contents of the container or
bottle into your vehicle's AdBlue tank.
Or F

I
nsert the AdBlue
® pump nozzle and refill
the tank until the nozzle stops automatically.
Important:
-

T

o avoid over flowing the
AdBlue
® tank, it is recommended:
•
T
o top up between 10 and 13 litres
using AdBlue
® containers.
Or
•

T

o not keep on trying after the
nozzle's first automatic stop if you
are refuelling at a filling station.
-
I

f your vehicle's AdBlue
® tank
is completely empty – which is
confirmed by the alert messages
and the impossibility of starting
the engine – you must add at least
5


litres.
After refilling
F Refit the blue cap to the tank filler and turn it 1/6 of a turn clockwise, to its stop.
F

C
lose the fuel filler flap. Do not dispose of AdBlue
® containers in
the household waste.
Place them in a suitable container or
take them to your dealer.
F

W

ith the vehicle unlocked and the fuel filler
flap open, turn the blue cap of the AdBlue
®
tank 1/6 of a turn anti-clockwise.
F

R

elease the blue cap.
Practical information

248
Changing a bulb must only be done with
the ignition off and after the headlamp
has been switched off for several
minutes – Risk of serious burns!
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Light emitting diodes (LED)
For the replacement of this type of bulb,
you must contact a PEUGEOT dealer or a
qualified workshop. Halogen bulbs
To ensure good quality lighting, check
that the bulb is correctly positioned in its
housing.
Front lamps
Model with "Full LED" headlamps
1.
Direction indicators (LED).
2.
Main beam/dipped beam headlamps (LED).
3.Daytime running lamps/sidelamps (LED).
4. Light-emitting diodes (LED) .
Do not touch the "Full LED" headlamps.
Risk of electrocution!
Call on a PEUGEOT dealer or a qualified
workshop.
Model with halogen headlamps
1. Daytime running lamps / sidelamps
(LED).
2. Dipped beam headlamps (H7).
3. Main beam headlamps (HB3).
4. Direction indicators (PWY24W).
5. Fo g l a m p s ( H11) .
Opening the bonnet / Access to bulbs
Engine warm, proceed with caution
–
Risk of burns!
Take care with objects or clothing that
could be caught in the blades of the
engine fan


– Risk of strangulation!
In the event of a breakdown

258

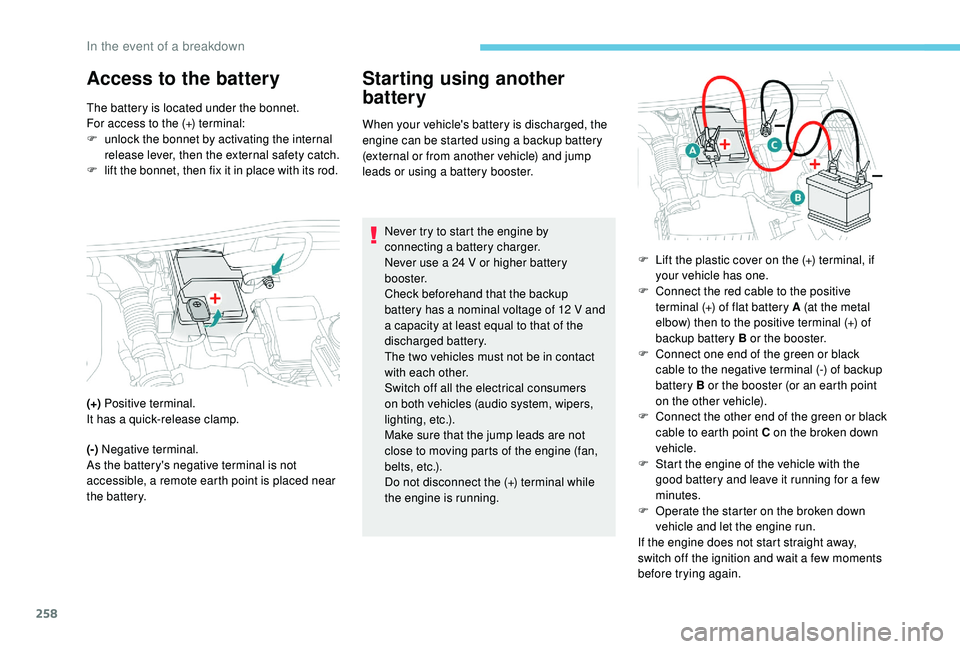

Access to the battery Starting using another battery
When your vehicle's battery is discharged, the
engine can be started using a backup battery
(external or from another vehicle) and jump
leads or using a battery booster.
Never try to start the engine by
connecting a battery charger.
Never use a 24
V or higher battery
b o o s t e r.
Check beforehand that the backup
battery has a nominal voltage of 12
V and
a capacity at least equal to that of the
discharged battery.
The two vehicles must not be in contact
with each other.
Switch off all the electrical consumers
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are not
close to moving parts of the engine (fan,
belts, etc.).
Do not disconnect the (+) terminal while
the engine is running.
The battery is located under the bonnet.
For access to the (+) terminal:
F
u
nlock the bonnet by activating the internal
release lever, then the external safety catch.
F
l

ift the bonnet, then fix it in place with its rod.
(+) Positive terminal.
It has a quick-release clamp.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is placed near
the battery. F

L
ift the plastic cover on the (+) terminal, if
your vehicle has one.
F

C
onnect the red cable to the positive
terminal (+) of flat battery A (at the metal
elbow) then to the positive terminal (+) of
backup battery B or the booster.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of backup
battery B or the booster (or an earth point
on the other vehicle).
F

C
onnect the other end of the green or black
cable to earth point C on the broken down
vehicle.
F

S
tart the engine of the vehicle with the
good battery and leave it running for a few
minutes.
F

O
perate the starter on the broken down
vehicle and let the engine run.
If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.
In the event of a breakdown

260

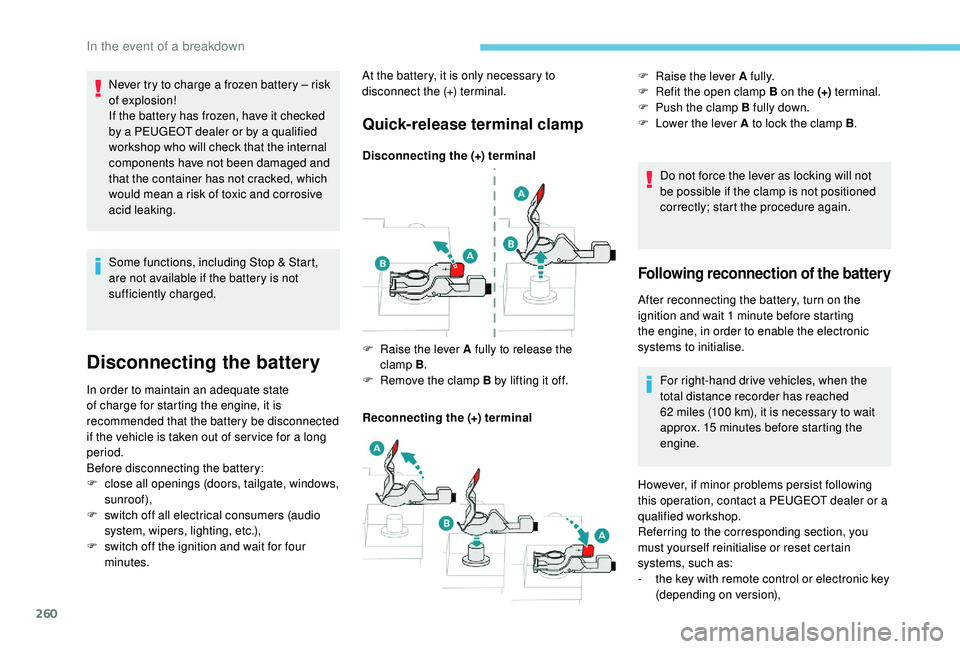

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of ser vice for a long
period.
Before disconnecting the battery:
F
c
lose all openings (doors, tailgate, windows,
sunroof),
F

s
witch off all electrical consumers (audio
system, wipers, lighting, etc.),
F

s
witch off the ignition and wait for four
minutes.
Quick-release terminal clamp
Disconnecting the (+) terminal
Reconnecting the (+) terminal Do not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.
F

Ra
ise the lever A fully to release the
clamp


B.
F

R
emove the clamp B by lifting it off. F

Ra
ise the lever A fully.
F
R
efit the open clamp B on the (+)
terminal.
F
P
ush the clamp B fully down.
F
L
ower the lever A to lock the clamp B
.
Following reconnection of the battery
After reconnecting the battery, turn on the
ignition and wait 1
minute before starting
the engine, in order to enable the electronic
systems to initialise.
For right-hand drive vehicles, when the
total distance recorder has reached
62
miles (100 km), it is necessary to wait
approx. 15
minutes before starting the
engine.
Never try to charge a frozen battery

– risk
of explosion!
If the battery has frozen, have it checked
by a PEUGEOT dealer or by a qualified
workshop who will check that the internal
components have not been damaged and
that the container has not cracked, which
would mean a risk of toxic and corrosive
acid leaking. At the battery, it is only necessary to
disconnect the (+) terminal.
However, if minor problems persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-
t
he key with remote control or electronic key
(depending on version),
In the event of a breakdown

38
Settings

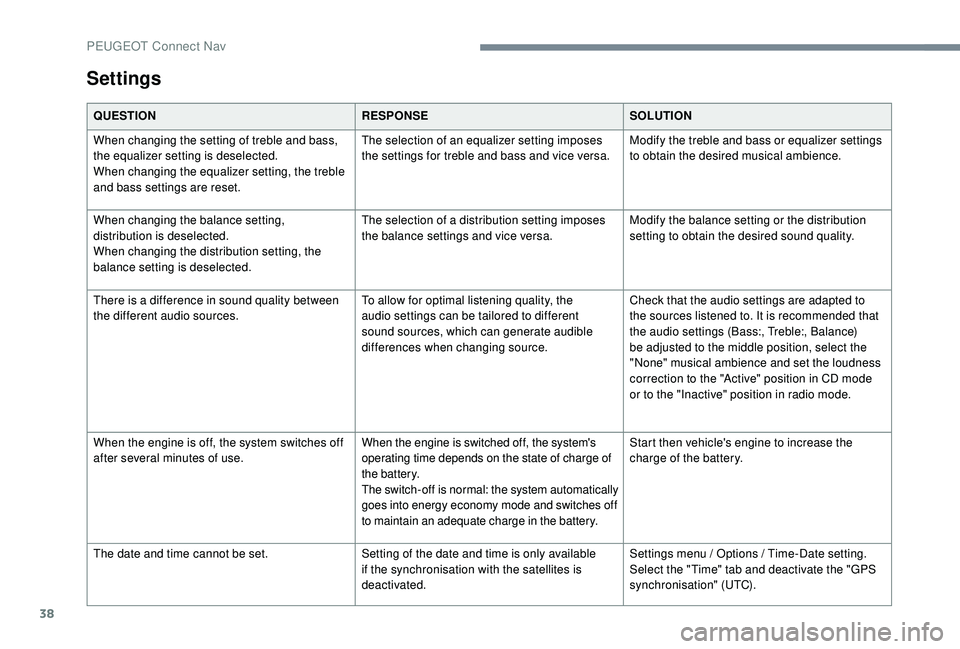

QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the equalizer setting is deselected.
When changing the equalizer setting, the treble
and bass settings are reset. The selection of an equalizer setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted to
the sources listened to. It is recommended that
the audio settings (Bass:, Treble:, Balance)
be adjusted to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode
or to the "Inactive" position in radio mode.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.Start then vehicle's engine to increase the
charge of the battery.
The date and time cannot be set. Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.Settings menu / Options / Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
PEUGEOT Connect Nav

22
Settings

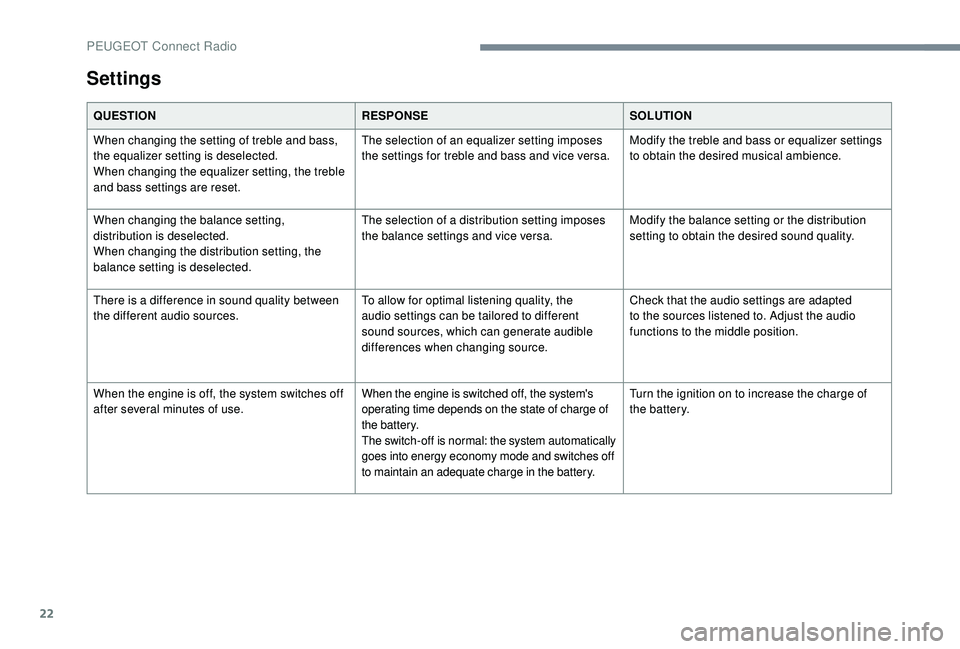

QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the equalizer setting is deselected.
When changing the equalizer setting, the treble
and bass settings are reset. The selection of an equalizer setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or equalizer settings
to obtain the desired musical ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted
to the sources listened to. Adjust the audio
functions to the middle position.
When the engine is off, the system switches off
after several minutes of use. When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.Turn the ignition on to increase the charge of
the battery.
PEUGEOT Connect Radio

15

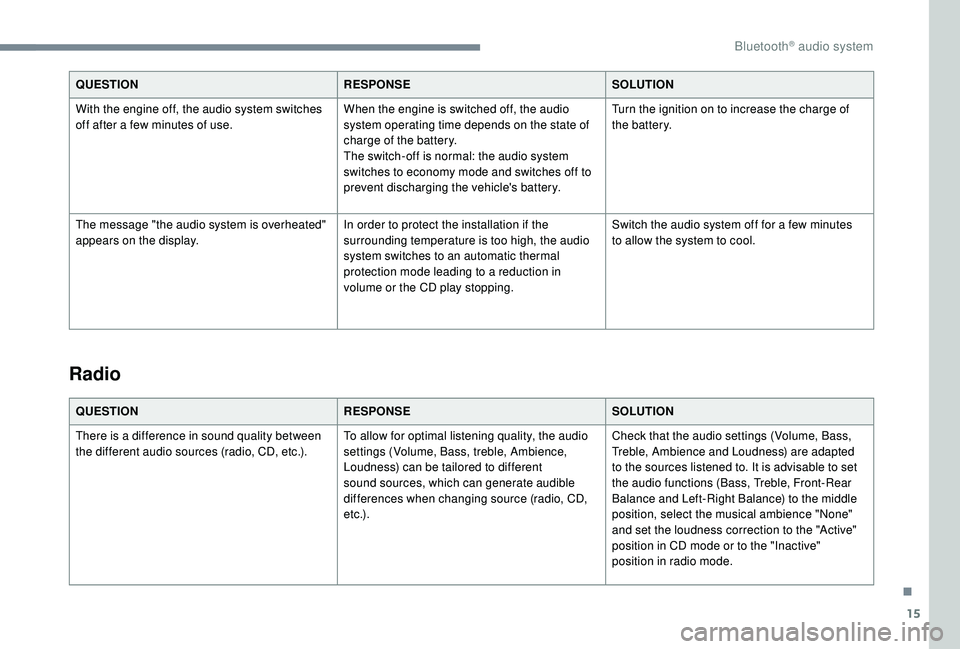

QUESTIONRESPONSESOLUTION
With the engine off, the audio system switches
off after a few minutes of use. When the engine is switched off, the audio
system operating time depends on the state of
charge of the battery.
The switch-off is normal: the audio system
switches to economy mode and switches off to
prevent discharging the vehicle's battery.Turn the ignition on to increase the charge of
the battery.
The message "the audio system is overheated"
appears on the display. In order to protect the installation if the
surrounding temperature is too high, the audio
system switches to an automatic thermal
protection mode leading to a reduction in
volume or the CD play stopping.Switch the audio system off for a few minutes
to allow the system to cool.
Radio
QUESTION
RESPONSESOLUTION
There is a difference in sound quality between
the different audio sources (radio, CD, etc.). To allow for optimal listening quality, the audio
settings (Volume, Bass, treble, Ambience,
Loudness) can be tailored to different
sound sources, which can generate audible
differences when changing source (radio, CD,
e t c .) .Check that the audio settings (Volume, Bass,
Treble, Ambience and Loudness) are adapted
to the sources listened to. It is advisable to set
the audio functions (Bass, Treble, Front-Rear
Balance and Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive"
position in radio mode.
.
Bluetooth® audio system

267
A
180° rear vision .....................................20 6-207
Accessories .......................................... 121, 15 6
Active Safety Brake..................... 16 -17, 18 9 -191
AdBlue
® ............................................ 20, 32, 234
Additive, Diesel ............................................. 232
Adjusting headlamps


.................................... 112
Adjusting head restraints


................................ 73
Adjusting seats


........................................... 71-73
Adjusting the air distribution


.....................87- 8 9
Adjusting the air flow
................................. 8

7- 8 9
Adjusting the date


......................... 38-40, 31, 18
Adjusting the height and reach of the steering wheel


.................................... 76
Adjusting the lumbar support
..................... 71

-73
Adjusting the seat belt height
................ 1

2 9 -13 0
Adjusting the temperature


........................87- 8 9
Adjusting the time


......................... 38-40, 31, 17
Advanced Grip Control


.......................... 127-128
Advice on driving


................................... 151-152
Airbags
...............................

.............18, 13 3 , 13 8
Airbags, curtain


...................................... 13 4 -13 6
Airbags, front .................................. 13 3 -13 4, 13 6
Airbags, lateral


...................................... 13 4, 13 6
Air conditioning


......................................... 84-86
Air conditioning, automatic


.............................83
Air conditioning, dual-zone automatic


.....86, 90
Air conditioning, manual
..................... 83

-84, 90
Air conditioning, mono-zone


...............84-86, 90
Air intake


................................................... 87- 8 9
Air vents


.................................................... 81- 82
Alarm


............................................................... 58
Amplifier, audio
...............................

................98
Anti-lock braking system (ABS)
..............15, 124
Apple CarPlay connection


........................16, 12
Armrest, front
................................................ 10 0
Armrest, rear
...............................

..................105
Assistance call
...............................

........12 2-123
Assistance, emergency braking


...........124, 19 0
Audio streaming (Bluetooth)


...................24, 9 , 9
B
Backrest, folding ........................................ 7 2-73
Battery ..................... 13, 223 , 231, 257-258 , 260
Battery charge (warning lamp)


.......................13
Battery, charging


................................... 259-260
Battery, remote control


.............................54, 56
Blind
..............................

..................................67
Blind spot monitoring system
..........24, 200-202
Blind spot monitoring system, active
......24, 202
Blind spot sensors


..........................24, 200-201
BlueHDi


............................. 32, 35 , 234 , 237-238
Bluetooth (hands-free)
........ 2

5 -26, 13 -14 , 1 0 -11
Bluetooth (telephone)
......................

25 -27, 13 -15
Bonnet


................................................... 226-227
Boot


............................................. 61- 62, 64, 108
Brake discs


............................................ 232-233
Brake lamps
...............................

...................250
Brakes


........................................ 14 -15, 232-233
Braking assistance system
...........................124
Braking, automatic emergency


...16 -17 , 18 9 -191
Braking, emergency
...................................... 16

0
Brightness


....................................................... 16
Bulbs


............................................................. 248
Bulbs (changing)


....................247-248, 250-252
C
Cable, audio ................................................ 23, 9
Cable, Jack ................................................. 23, 9
Capacity, fuel tank


........................................ 216
Cartridge, fragrance
.............................. 10

0 -101
CD


..................................................... 23 -24, 9, 9
CD, MP3


............................................ 23 -24, 9, 9
Central locking
.......................................... 51,

57
Changing a bulb
..................... 24

7-248, 250-252
Changing a fuse
............................ 25

3-254, 256
Changing a wheel
......................... 2

38-240, 243 Changing a wiper blade
.................
11
9
, 252-253
Changing the remote control battery

..............
56
Charger, induction

.....................................
98-99
Charger, wireless
...................................... 98
-99
Checking the engine oil level
.............................31
Checking the levels .................................. 229 -231
Checking tyre pressures (using the kit)
...240 , 242
Checks .......................................... 228, 231-233
Child lock ................................................ 14 9 -15 0
Children


.................................................. 142-14 6
Children (safety)


..................................... 14 9 -15 0
Child seats

.............13

2, 137-13 8 , 141-142, 148
Child seats, conventional


.......................141-142
Child seats, i-Size
......................................... 14 6
Child seats, ISOFIX
...............................143 -14 6
Cigarette lighter


.............................................. 97
Closing the boot
.................................. 49, 52 , 61
Closing the doors


..........................49, 51- 5 2 , 61
Configuration, vehicle
......................... 3

8-43, 46
Connection, Bluetooth
........ 19,

25 -27, 13 -15 , 11
Connection, MirrorLink


.........................17, 11 -12
Connection, Wi-Fi network


.............................20
Connectivity


.................................................... 98
Container, AdBlue
® ....................................... 23 5
Control, emergency boot release ...................62
Control, emergency door
................................ 54
C

ontrol, heated seats

...................................... 75
Controls, steering mounted


................... 161-165
Control stalk, lighting


................. 25 -26, 109, 111
Control stalk, wipers

.............................. 11

7-12 0
Courtesy lamps

...................................... 102-103
Cover, load space

......................................... 10 6
Cruise control ....172 , 174 -175 , 178 -18 4 , 187 , 189Cruise control, adaptive with
Stop function .........174 -175 , 18 0 -18 4 , 187, 189
Cruise control by speed limit recognition
...............................

............174 -175
Cup holder
....................................................... 96
Customisation


................................................... 9
.
Alphabetical index
