Instrument panel
Speedometer
Analogue speedometer (mph or km/h).
Coolant temperature and
fuel level indicators
1.Fuel gauge.
2. Engine coolant fluid temperature gauge.
Display screen
When travelling abroad, you may have
to change the distance unit: the display
of road speed must be in the official
units (miles or km) for the country. The
change of units is done via the screen
configuration menu, with the vehicle
stationary.
1. Engine oil level indicator.
2. Gear shift indicator.
State of the automatic gearbox.
3. Digital speedometer (mph or km/h).
4. Cruise control or speed limiter settings.
With display screen 2:
Instrument panel display screen:
-
G ear shift indicator.
-

S
tate of the automatic gearbox.
-

S
tate of the speed limiter or cruise control.
-

S
peed limit sign.
-

T
otal distance recorder.
-

T
rip distance recorder.
-
S

ervice spanner.
According to the page selected with the control
stalk (end of the wiper control stalk):
-
D

igital speedometer.
-

T
rip computer.
-

D
ynamic vehicle parameters (Driver Sport
Pack).
-

E
co mode.
-

D
riving aids.
-

R
epeat of the navigation instructions.
With display screen 1:
5.Ser vice indicator, then total distance
recorder (miles or km).
These functions are displayed successively
on switching on the ignition.
6. Trip distance recorder (miles or km).
Instruments

9
Control buttons
A.General lighting dimmer.
B. Reset the trip distance recorder or the
ser vice indicator (according to context).
Rev counter
Rev counter (x 1,000 rpm).
Warning and indicator lamps
Associated warnings
The illumination of a lamp can be accompanied
by an audible signal and/or a message
displayed in a screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or a fault has occurred:
refer to the description of each lamp for further
information.
When the ignition is switched on
Certain red or orange warning lamps come on
for a few seconds when the ignition is switched
on. These warning lamps should go off as soon
as the engine is started.
Persistent warning lamp
When the engine is running or the vehicle is
being driven, the illumination of a red or orange
warning lamp indicates a fault that needs
further investigation, using any associated
message and the description of the warning
lamp in the documentation.
Where a warning lamp remains lit
The references (1) , (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a qualified professional
in addition to the immediate recommended
actions.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
(3) : Go to a PEUGEOT dealer or a qualified
workshop.
Temporary display:
-

S

er vice indicator (when the ignition is
switched on).
-

O

il level indicator (when ignition first
switched on, depending on version).
-

R

ange indicators related to the AdBlue and
to the SCR system.
-
A

lert messages.
With display screen

2 , pressing button
B briefly enables a manual CHECK to be
per formed (reminder of ser vice due date, the
driving range for the AdBlue and the SCR
system for BlueHDi versions and current
a l e r t s). Displayed as symbols, visual indicators
which inform the driver of the occurrence of a
malfunction (warning lamps) or of the operating
status of a system (operation or deactivation
indicator lamps). Certain lamps light up in
two ways (fixed or flashing) and/or in several
colours.
1
Instruments

13

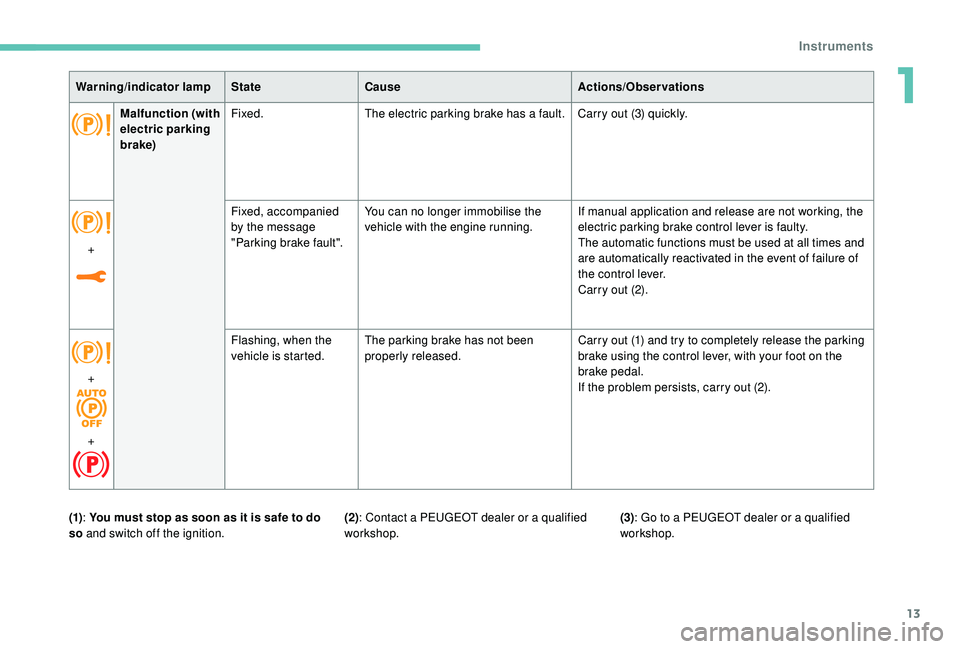

Warning/indicator lampStateCause Actions/Observations
Malfunction (with
electric parking
brake) Fixed.
The electric parking brake has a fault. Carry out (3) quickly.
+ Fixed, accompanied
by the message
"Parking brake fault".
You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
+


+ Flashing, when the
vehicle is started.
The parking brake has not been
properly released. Carry out (1) and try to completely release the parking
brake using the control lever, with your foot on the
brake pedal.
If the problem persists, carry out (2).
1
Instruments

14
Under-inflationFixed, accompanied by an audible
signal and a message. The pressure in one or more wheels
is too low.Check the pressure of the tyres as
soon as possible.
Reinitialise the detection system
after adjusting the pressure.
+ Under-inflation warning lamp
flashing then fixed and Ser vice
warning lamp fixed.
The system is faulty: tyre pressures
are no longer monitored.
As soon as possible, check the
pressure of the tyres and carry out
(3).
AdBlue
®
(access via the boot) Fixed, on switching on the ignition,
accompanied by an audible signal
and a message indicating the
remaining driving range. The remaining driving range is
between 1,500 and 375
miles
(2,400 and 600 km).Top up the AdBlue
® as soon as
possible, or carry out (3).

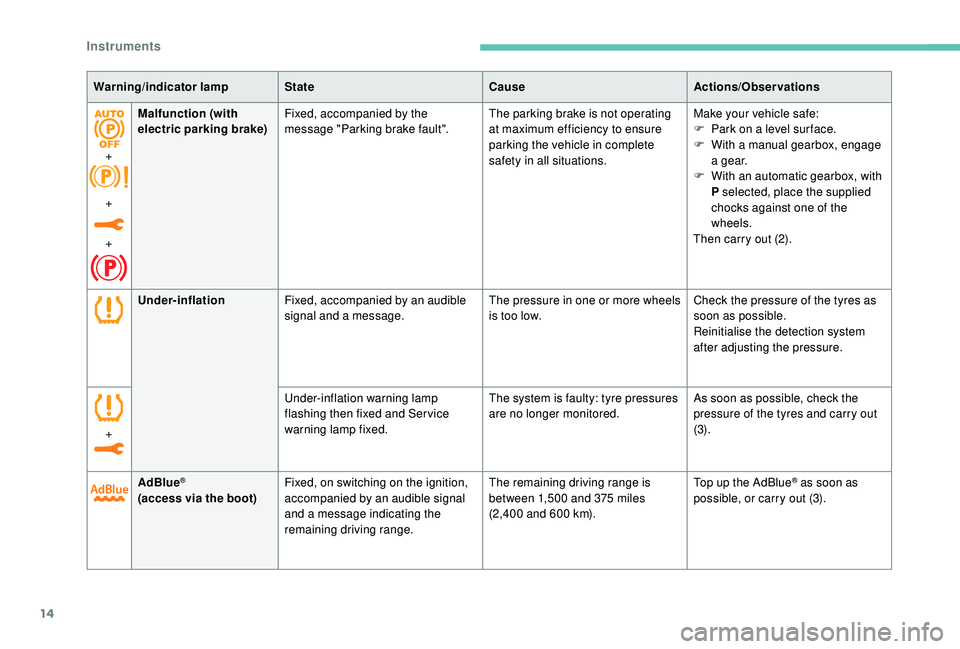

Warning/indicator lamp
State CauseActions/Observations
+
+
+ Malfunction (with
electric parking brake)
Fixed, accompanied by the
message "Parking brake fault". The parking brake is not operating
at maximum efficiency to ensure
parking the vehicle in complete
safety in all situations.Make your vehicle safe:
F

P

ark on a level sur face.
F

W

ith a manual gearbox, engage
a g e a r.
F

W

ith an automatic gearbox, with
P selected, place the supplied
chocks against one of the
wheels.
Then carry out (2).
Instruments

15

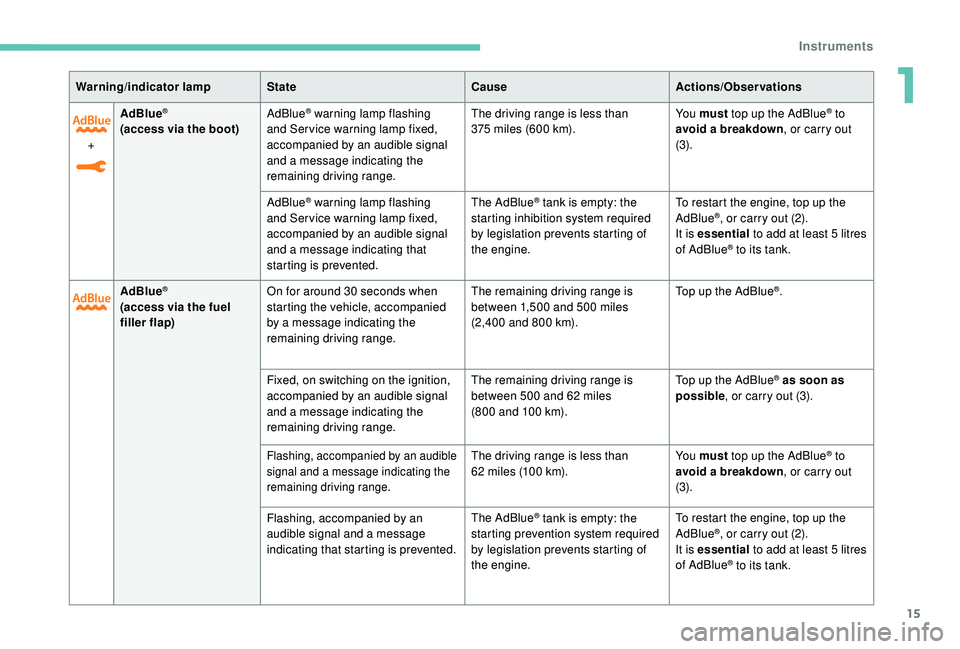

+AdBlue
®
(access via the boot)
AdBlue
® warning lamp flashing
and Ser vice warning lamp fixed,
accompanied by an audible signal
and a message indicating the
remaining driving range. The driving range is less than
375
miles (600 km).Yo u must
top up the AdBlue® to
avoid a breakdown , or carry out
(3).
AdBlue
® warning lamp flashing
and Service warning lamp fixed,
accompanied by an audible signal
and a message indicating that
starting is prevented. The AdBlue® tank is empty: the
starting inhibition system required
by legislation prevents starting of
the engine. To restart the engine, top up the
AdBlue®, or carry out (2).
It is essential to add at least 5
litres
of AdBlue
® to its tank.
AdBlue
®
(access via the fuel
filler flap) On for around 30
seconds when
starting the vehicle, accompanied
by a message indicating the
remaining driving range. The remaining driving range is
between 1,500 and 500
miles
(2,400 and 800 km).Top up the AdBlue
®.
Fixed, on switching on the ignition,
accompanied by an audible signal
and a message indicating the
remaining driving range. The remaining driving range is
between 500 and 62 miles
(800 and 100 km).
Top up the AdBlue
® as soon as
possible , or carry out (3).
Flashing, accompanied by an audible
signal and a message indicating the
remaining driving range.The driving range is less than
62
miles (100 km). Yo u must
top up the AdBlue® to
avoid a breakdown , or carry out
(3).
Flashing, accompanied by an
audible signal and a message
indicating that starting is prevented. The AdBlue
® tank is empty: the
starting prevention system required
by legislation prevents starting of
the engine. To restart the engine, top up the
AdBlue®, or carry out (2).
It is essential to add at least 5
litres
of AdBlue
® to its tank.
Warning/indicator lamp
State CauseActions/Observations
1
Instruments

16
Warning/indicator lampState CauseActions/Observations
+
+ SCR emissions
control system
Fixed when the ignition is switched
on, accompanied by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the
exhaust emissions return to normal
levels.
AdBlue® warning lamp flashing, on
switching on the ignition, associated
with the fixed Ser vice and engine
diagnostic warning lamps, accompanied
by an audible signal and a message
indicating the remaining driving range.Depending on the message
displayed, you can continue driving
for up to 685
miles (1,100 km) before
the engine starting prevention system
is triggered. Carry out (3) as soon as possible to
avoid breaking down
.
AdBlue
® warning lamp flashing,
on switching on the ignition,
associated with the fixed Ser vice and
engine diagnostic warning lamps,
accompanied by an audible signal
and a message. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a fault with the
emissions control system).
To restart the engine, carry out (2).
Distance Alert/
Active Safety
Brake * Fixed, accompanied by a message.
The system has been deactivated via
the vehicle configuration menu.
*

O

nly with display screen 2 .Flashing.
The system is operating.The vehicle brakes briefly so as to
reduce the speed of collision with the
vehicle ahead.
Fixed, accompanied by a message
and an audible signal. The system has a fault.
Carry out (3).
Instruments

17
Diesel engine pre-
heatingTemporarily on.
When switching on the ignition,
if the weather conditions and
the engine temperature make it
necessary. Wait until the warning lamp goes off before starting.
With the
K eyless Entry and Starting system, when the
warning lamp goes off, starting is immediate if you
press and hold:
-

t
he clutch pedal with a manual gearbox,
-

t
he brake pedal with an automatic gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Warning/indicator lamp
StateCause Actions/Observations
Anti-lock braking
system (ABS) Fixed.
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry out (3).
Dynamic stability
control (DSC)
and anti-slip
regulation (ASR) Fixed.
With audio system or GT/GTi
versions:
The DSC/ASR systems have
been disabled by a press of the
disable button.
With touch screen, except GT/
GTi versions:
The ASR system has been
disabled via the Driving
functions menu. These systems reactivate automatically above 31
mph
(50
km/h), except the GT/GTi versions, as well as
when the ignition is switched off.
To reactivate them below 31
mph (50 km/h),
depending on the version, press the button again or go
to the Driving functions menu.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
1
Instruments

18
Dynamic stability
control (DSC)
and anti-slip
regulation (ASR)Flashing.
The DSC/ASR regulation is activated
if there is a loss of grip or trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
Warning/indicator lamp
StateCause Actions/Observations
+ Emergency
brake anomaly
(with electric
parking brake) Fixed, accompanied
by the message
"Parking brake fault".
Emergency braking does not have full
p o w e r.
If automatic release is not available, use manual
release.
Airbags Fixed. One of the airbags or seat belt
pretensioners is faulty. Carry out (3).
Front passenger
airbag (ON) Fixed.
The front passenger airbag is
activated.
The control is in the "ON" position. In this case, do NOT install a "
rearward facing"
child seat on the front passenger seat – Risk of
serious injury!
Front passenger
airbag (OFF) Fixed.
The front passenger airbag is
deactivated.
The control is in the "OFF" position. You can install a "rear ward facing" child seat, unless
there is a fault with the airbags (Airbags warning lamp
o n).
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2)
: Contact a PEUGEOT dealer or a qualified
workshop.
Instruments
