2018 Peugeot 308 headlamp

206
Front lamps
With halogen headlamps
1.Daytime running lamps/sidelamps (LED).
2. Dipped beam headlamps (H7).
3. Main beam headlamps (HB3).
4. Direction indicators (PY21W).
5. Foglamps (H11 or LED for GT/GT Line
ve r s i o n s).
With "full LED" technology
headlamps
1.Daytime running lamps/sidelamps (LED).
2. Dipped beam headlamps (LED).
3. Main beam headlamps (LED).
4. Direction indicators (LED).
5. Foglamps (H11 or LED for GT/GT Line
ve r s i o n s).
Do not touch the "Full LED" technology
headlamps. Risk of electrocution!
Call on a PEUGEOT dealer or a qualified
workshop.
Access to headlamps (halogen
model)
Opening of bonnet /Access to bulbs
With the engine hot, proceed with caution
– Risk of burns!
Take care with objects or clothing that
could be caught in the blades of the
engine fan – Risk of strangulation!
To facilitate access to the front lamps, the
headlamp must first be moved for ward a few
centimetres:
F

M
ove the orange clip towards the rear then
while pressing on the black part (located
above the orange clip) pull on the connector.
F

R
emove the two screws that hold the
headlamp.
F

D
isengage the rear pin then the front centre
piece.
F

M
ove the headlamp for wards.
In the event of a breakdown

207

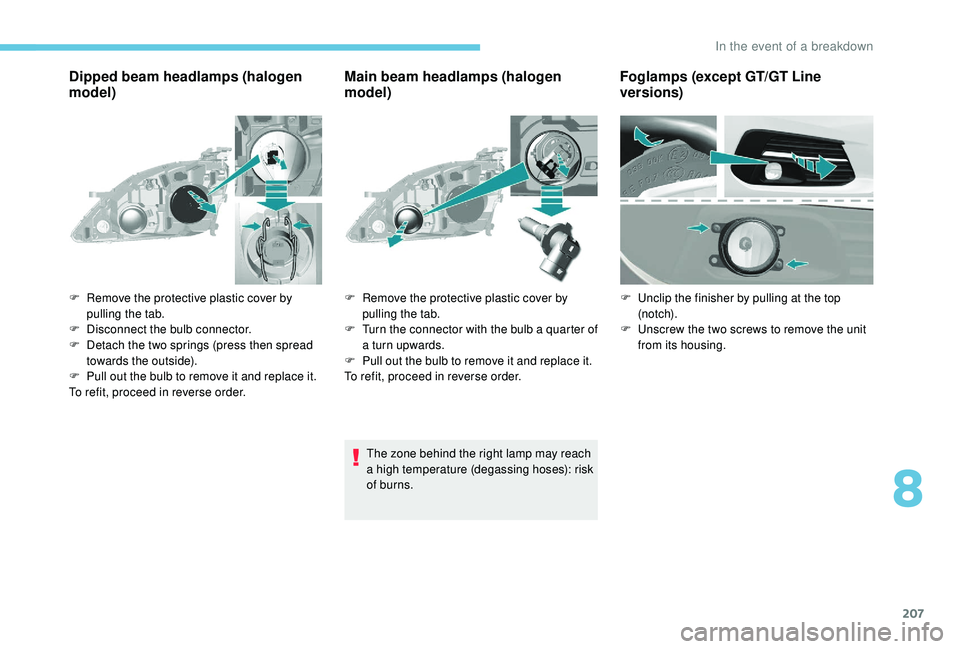

Dipped beam headlamps (halogen
model)Main beam headlamps (halogen
model)
The zone behind the right lamp may reach
a high temperature (degassing hoses): risk
of burns.
F

R

emove the protective plastic cover by
pulling the tab.
F

D

isconnect the bulb connector.
F

D

etach the two springs (press then spread
towards the outside).
F

P

ull out the bulb to remove it and replace it.
To refit, proceed in reverse order. F

R
emove the protective plastic cover by
pulling the tab.
F

T
urn the connector with the bulb a quarter of
a turn upwards.
F

P
ull out the bulb to remove it and replace it.
To refit, proceed in reverse order.
Foglamps (except GT/GT Line
versions)
F Unclip the finisher by pulling at the top (n otc h).
F

U
nscrew the two screws to remove the unit
from its housing.
8
In the event of a breakdown

208

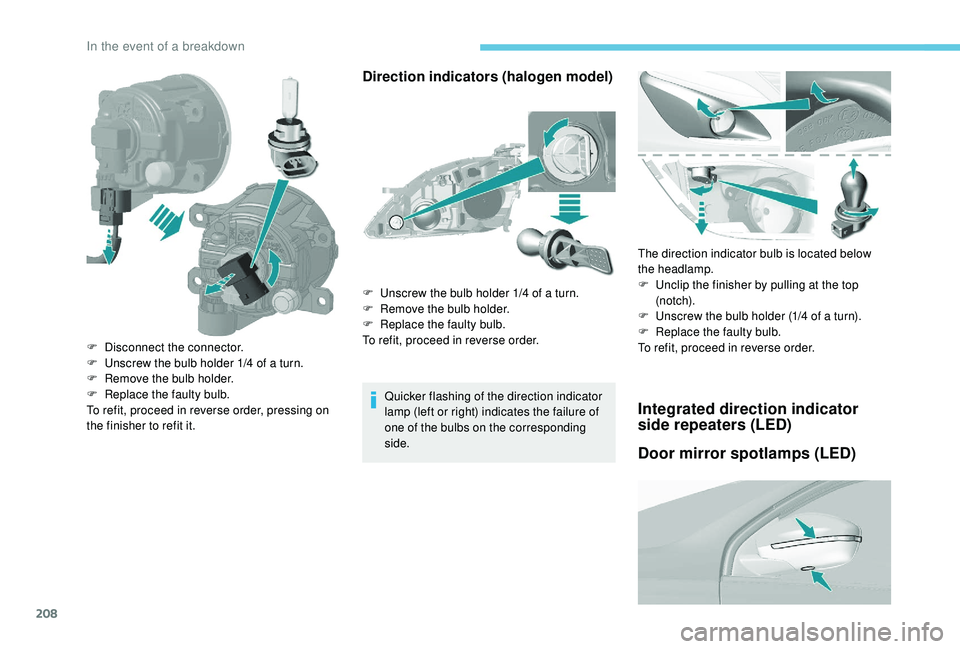

Direction indicators (halogen model)
Quicker flashing of the direction indicator
lamp (left or right) indicates the failure of
one of the bulbs on the corresponding
side.The direction indicator bulb is located below
the headlamp.
F

U
nclip the finisher by pulling at the top
(n otc h).
F
U
nscrew the bulb holder (1/4 of a turn).
F
R
eplace the faulty bulb.
To refit, proceed in reverse order.Integrated direction indicator
side repeaters (LED)
Door mirror spotlamps (LED)
F Disconnect the connector.
F U nscrew the bulb holder 1/4 of a turn.
F

R
emove the bulb holder.
F

R
eplace the faulty bulb.
To refit, proceed in reverse order, pressing on
the finisher to refit it. F

U
nscrew the bulb holder 1/4 of a turn.
F
R
emove the bulb holder.
F
R
eplace the faulty bulb.
To refit, proceed in reverse order.
In the event of a breakdown

214
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fusesTable of fuses
Fuse
No. Rating
(A) Functions
F13 5Built-in systems inter face.
F16 15Front foglamps.
F18 10Right-hand main beam headlamp.
F19 10Left-hand main beam headlamp.
F25 40Headlamp washer relay (after-market).
F27 25Built-in systems inter face.
F28 30Diesel emissions control system (AdBlue
®).
F29 30Front wiper motor.
F30 80Pre-heater plugs (Diesel), additional programmable heating
(after-market), headlamp wash pump.
F

U

nclip the cover.
F

C

hange the fuse.
F

W

hen you have finished, close the cover
very carefully to ensure correct sealing of
the fusebox.
In the event of a breakdown
