2018 OPEL ZAFIRA C Manual user

Seats, restraints63Child restraint installation locations
Permissible options for fastening a child restraint system with a three-point seat belt
Weight class
On front passenger seatOn outboard seats in
the second rowOn centre seat
in the second
rowOn seats in the
third rowactivated airbagdeactivated airbagGroup 0: up to 10 kgXU 1,2U/L 3XU/L3Group 0+: up to 13 kgXU1,2U/L 3XU/L3Group I: 9 to 18 kgXU1,2U/L 3,4XU/L3,4Group II: 15 to 25 kgXXU/L3,4XU/L3,4Group III: 22 to 36 kgXXU/L3,4XU/L3,4U:universal suitability in conjunction with three-point seat beltL:suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint
system)X:no child restraint system permitted in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensurethat the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if required

64Seats, restraintsPermissible options for fitting an ISOFIX child restraint system with ISOFIX bracketsThis table relates to all ISOFIX child restraint systemsWeight classSize classFixtureOn front passenger
seatOn outboard seats
in the second rowOn centre seat in
the second rowOn the seats in
the third rowGroup 0: up to 10 kgG
F
EISO/L2
ISO/L1
ISO/R1X
X
XX
X
IL 3X
X
XX
X
XGroup 0+: up to 13 kgEISO/R1XIL 3XXDISO/R2XIL3XXCISO/R3XIL3XXGroup I: 9 to 18 kgDISO/R2XIL 3,4XXCISO/R3XIL 3,4XXBISO/F2XIL, IUF 3,4XXB1ISO/F2XXIL, IUF3,4XXAISO/F3XIL, IUF 3,4XXGroup II: 15 to 25 kgXIL3,4XXGroup III: 22 to 36 kgXIL3,4XX

Seats, restraints65IL:suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight classX:no ISOFIX child restraint system approved in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if requiredA – ISO//F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO//F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO//F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO//R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO//R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO//R1:rear-facing child restraint system for young children in the weight class up to 13 kg.
Permissible options for fitting an i-Size child restraint system with ISOFIX brackets
On front passenger seatOn outboard seats in
the second rowOn centre seat in the
second rowOn the seats in the
third rowactivated airbagdeactivated airbagi-Size child
restraint
systemsXXi - UXXi - U:suitable for i-Size 'universal' forward and rearward facing child restraint systemsX:seating position not suitable for i-Size 'universal' child restraint systems

66StorageStorageStorage compartments................66
Glovebox ................................... 66
Cupholders ................................ 66
Front storage ............................. 68
Door panel storage ....................68
Overhead console .....................68
Underseat storage .....................68
Armrest storage .........................69
Centre console storage .............69
Rear carrier system ...................70
Load compartment .......................79
Rear storage .............................. 81
Load compartment cover ...........81
Rear floor storage cover ............83
Load rails and hooks .................88
Lashing eyes ............................. 88
Cargo management system ......88
Safety net .................................. 90
Folding tray ................................ 92
Warning triangle ........................92
First aid kit ................................. 92
Roof rack system .........................93
Roof rack ................................... 93
Loading information .....................94Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
To open the glovebox pull the handle.
The glovebox features an adapter for the locking wheel nuts.
The glovebox should be closed whilst
driving.
Cupholders
Front cupholder
Cupholders are located in the centre
console between the front seats.

Storage67Slidable cupholder in
FlexConsole armrest
The cupholder can be moved in guide rails in the FlexConsole armrest or
completely removed.
Push the handle in front of cupholder
to slide.
Armrest 3 42.
Remove cupholder
Pull the handle in front of cupholder
and remove it vertically out of the
console.
Installation in reverse order.
Note
Install the cupholder in the direction as shown in the illustration.
Otherwise the cupholder may not engage properly.
Rear cupholder
Additional cupholder are located
between the seats in the third row.
Bottleholder
The door pockets of front and rear
doors are designed to carry bottles.

68StorageFront storage
A storage compartment is located
next to the steering wheel.
Door panel storage On front door trim there are small
pockets for e. g. mobile phones.
Overhead console
Press button to open storage box.
The box may be loaded with max.
0.2 kg.
Underseat storage
Storage box
There is a storage box under the
passenger's seat. Slide the rollo to
open or close the box. Maximum load: 1.5 kg.

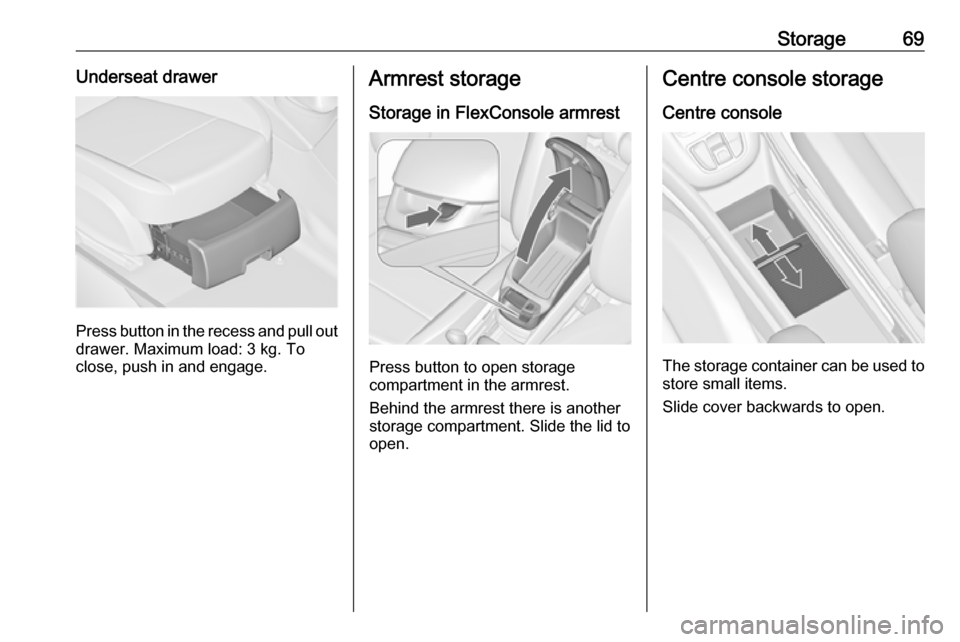

Storage69Underseat drawer
Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.
Armrest storage
Storage in FlexConsole armrest
Press button to open storage
compartment in the armrest.
Behind the armrest there is another
storage compartment. Slide the lid to
open.
Centre console storage
Centre console
The storage container can be used to
store small items.
Slide cover backwards to open.

70StorageRear console
At the rear side of the FlexConsole
there is a storage drawer. Pull out to
open.
Caution
Do not use for ashes or for other
glowing items.
Rear carrier system
Rear carrier system for four
bicycles
The rear carrier system (Flex-Fix
system) allows two bicycles to be
attached to an extendable carrier
integrated into the vehicle floor. It is
possible to attach two further bicycles
on an adapter. The transportation of
other objects is not permitted.
The maximum load of the rear carrier
system is 80 kg with attached adapter and 60 kg without attached adapter.The maximum load per bicycle on the
rear carrier system is 30 kg. This
allows the attachment of electrically-
powered bicycles to the rear carrier system. The maximum load per
bicycle on the adapter is 20 kg.
The wheelbase of a bicycle must not
exceed 1.15 metres. Otherwise the
secure fastening of a bicycle is not
possible.
If not in use, the rear carrier system must be slid back into the vehiclefloor.
There must not be any objects on the bicycles that could become loose
during transportation.Caution
If the rear carrier system is
extended and the vehicle is fully loaded, the chassis clearance will
be reduced.
Drive carefully whenever the road has a steep inclination or when
driving over a ramp, bump, etc.
