2018 OPEL ASTRA GTC low beam

12In brief1Power windows .....................34
2 Exterior mirrors .....................31
3 Cruise control .....................159
Speed limiter ....................... 161
Adaptive cruise control .......162
Forward collision alert .........169
4 Side air vents ...................... 137
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................123
Exit lighting ......................... 127
Parking lights ...................... 124
Buttons for Driver
Information Centre ................93
6 Instruments .......................... 80
7 Steering wheel controls .......73
8 Driver Information Centre ...... 93
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 7410 Sport mode ........................ 157
Central locking system ..........24
Fuel selector ......................... 81
Hazard warning flashers ....123
Control indicator for airbag
deactivation .......................... 87
Control indicator for front
passenger seat belt .............87
Tour mode .......................... 157
11 Info-Display .......................... 97
12 Anti-theft alarm system
status LED ........................... 29
13 Centre air vents .................. 137
14 Glovebox .............................. 60
15 Traction Control system
(TC) ..................................... 155
Electronic Stability Control (ESC) .................................. 155
Parking assist systems .......175
Lane departure warning .....187Eco button for stop-start
system ................................. 142
Unlock button for boot lid ......27
16 Climate control system ........ 129
17 AUX input, USB input, SD
card slot ................................ 11
18 Power outlet .......................... 78
19 Selector lever, manual
transmission ....................... 151
Automatic transmission ......147
20 Electric parking brake .........153
21 Ignition switch with
steering wheel lock ............141
22 Horn ..................................... 74
Driver airbag ........................ 52
23 Bonnet release lever ..........201
24 Storage compartment,
fuse box ............................. 225
25 Steering wheel adjustment ..73
26 Light switch ........................ 116
Headlight range
adjustment ......................... 119
Front fog lights ...................124

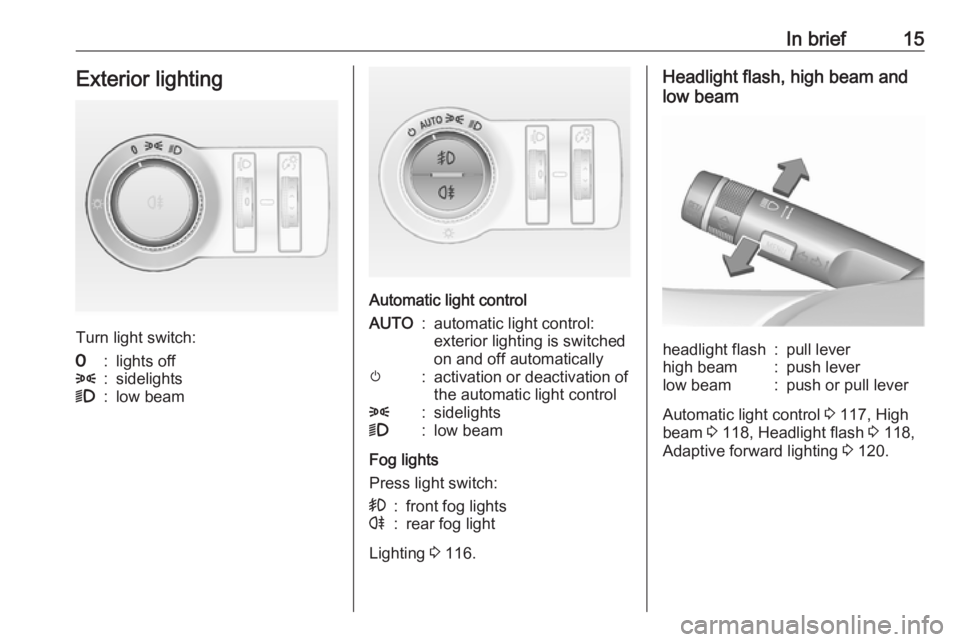

In brief15Exterior lighting
Turn light switch:
7:lights off8:sidelights9:low beam
Automatic light control
AUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:low beam
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 116.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 117, High
beam 3 118, Headlight flash 3 118,
Adaptive forward lighting 3 120.

72Instruments and controlsInstruments and
controlsControls ....................................... 73
Steering wheel adjustment ........73
Steering wheel controls .............73
Heated steering wheel ...............73
Horn ........................................... 74
Windscreen wiper/washer .........74
Rear window wiper/washer .......76
Outside temperature ..................76
Clock ......................................... 77
Power outlets ............................. 78
Cigarette lighter ......................... 79
Ashtrays .................................... 79
Warning lights, gauges and indi‐ cators ........................................... 80
Instrument cluster ......................80
Speedometer ............................. 80
Odometer .................................. 80
Trip odometer ............................ 80
Tachometer ............................... 80
Fuel gauge ................................ 81
Fuel selector .............................. 81
Engine coolant temperature gauge ....................................... 83
Service display .......................... 83Control indicators ......................84
Turn signal ................................. 87
Seat belt reminder .....................87
Airbag and belt tensioners .........87
Airbag deactivation ....................87
Charging system .......................88
Malfunction indicator light ..........88
Service vehicle soon .................88
Brake and clutch system ...........88
Operate pedal ............................ 88
Electric parking brake ................88
Electric parking brake fault ........89
Antilock brake system (ABS) .....89
Upshift ....................................... 89
Power steering .......................... 89
Lane departure warning ............89
Ultrasonic parking assist ...........90
Electronic Stability Control off ...90
Electronic Stability Control and Traction Control system ...........90
Traction Control system off .......90
Preheating ................................. 90
Diesel particle filter ....................90
Tyre pressure monitoring system ...................................... 91
Engine oil pressure ....................91
Low fuel ..................................... 91
Immobiliser ................................ 92
Reduced engine power .............92
Exterior light .............................. 92High beam................................. 92
High beam assist .......................92
Adaptive forward lighting ...........92
Fog light ..................................... 92
Rear fog light ............................. 92
Low washer fluid ........................92
Cruise control ............................ 92
Adaptive cruise control ..............92
Vehicle detected ahead .............93
Door open .................................. 93
Information displays .....................93
Driver Information Centre ..........93
Graphic-Info-Display, Colour- Info-Display .............................. 97
Smartphone controller ...............99
Vehicle messages ........................99
Warning chimes .......................102
Battery voltage ........................ 102
Trip computer ............................. 103
Vehicle personalisation ..............105
Telematics service .....................110
OnStar ..................................... 110
ERA GLONASS .......................113

86Instruments and controlsControl indicators in the centre
console
Overview
OTurn signal 3 87XSeat belt reminder 3 87vAirbag and belt tensioners
3 87VAirbag deactivation 3 87pCharging system 3 88ZMalfunction indicator light
3 88gService vehicle soon 3 88RBrake and clutch system
3 88-Operate pedal 3 88mElectric parking brake 3 88jElectric parking brake fault
3 89uAntilock brake system (ABS)
3 89[Upshift 3 89cPower steering 3 89)Lane departure warning 3 89rUltrasonic parking assist
3 90nElectronic Stability Control off
3 90bElectronic Stability Control and
Traction Control system 3 90kTraction Control system off
3 90!Preheating 3 90%Diesel particle filter 3 90wTyre pressure monitoring
system 3 91IEngine oil pressure 3 91iLow fuel 3 91dImmobiliser 3 92#Reduced engine power 3 928Exterior light 3 92CHigh beam 3 92lHigh beam assist 3 92fAdaptive forward lighting
3 92>Fog light 3 92rRear fog light 3 92GLow washer fluid 3 92mCruise control 3 92 / Adaptive
cruise control 3 92AVehicle detected ahead 3 93hDoor open 3 93

92Instruments and controlsImmobiliserd flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Reduced engine power # illuminates yellow.
The engine power is limited. Consult
a workshop.
Exterior light 8 illuminates green.
The exterior lights are on 3 116.
High beam C illuminates blue.
Illuminates when high beam is on or
during headlight flash 3 118 , or when
high beam is on with high beam assist
or intelligent light range 3 120.
High beam assist l illuminates green.The high beam assist or intelligent
light range is activated 3 118,
3 120.
Adaptive forward lighting
f illuminates or flashes yellow.
Illuminates
Fault in system.
Seek the assistance of a workshop.
Flashes
System switched to symmetrical low
beam.
Control indicator f flashes for approx.
four seconds after the ignition is
switched on as a reminder that the
system has been activated 3 119.
Automatic light control 3 117.
Fog light
> illuminates green.
The front fog lights are on 3 124.Rear fog light
r illuminates yellow.
The rear fog light is on 3 124.
Low washer fluid G illuminates yellow.
The washer fluid level is low.
Washer fluid 3 204.
Cruise control
m illuminates white or green.
Illuminates white The system is on.
Illuminates green
Cruise control is active.
Cruise control 3 159.
Adaptive cruise control m illuminates white or green.
Illuminates white The system is on.

100Instruments and controlsVehicle messages on the
Midlevel-Display
The vehicle messages are displayed
as code numbers.
No.Vehicle message2No radio remote control
detected, depress clutch pedal
to restart4Air conditioning off5Steering wheel is locked6Depress brake pedal to release
electric parking brakeNo.Vehicle message7Turn steering wheel, switch ignition off then on9Turn steering wheel, restart
engine12Vehicle overloaded13Compressor overheated15Centre high-mounted brake
light failure16Brake light failure17Headlight levelling malfunction18Left low beam failure19Rear fog light failure20Right low beam failure21Left sidelight failure22Right sidelight failure23Reversing light failure24Number plate light failure25Left front turn signal failureNo.Vehicle message26Left rear turn signal failure27Right front turn signal failure28Right rear turn signal failure29Check trailer brake light30Check trailer reversing light31Check left trailer turn signal32Check right trailer turn signal33Check trailer rear fog light34Check trailer rear light35Replace battery in radio remote
control48Clean side blind spot alert
system49Lane departure warning
unavailable53Tighten fuel filler cap54Water in diesel fuel filter55Diesel particle filter is full
3 146

116LightingLightingExterior lighting.......................... 116
Light switch .............................. 116
Automatic light control .............117
High beam ............................... 118
High beam assist .....................118
Headlight flash ......................... 118
Headlight range adjustment ....119
Headlights when driving abroad .................................... 119
Daytime running lights .............120
Adaptive forward lighting .........120
Hazard warning flashers ..........123
Turn and lane-change signals . 123
Front fog lights ......................... 124
Rear fog lights ......................... 124
Parking lights ........................... 124
Reversing lights .......................125
Misted light covers ...................125
Interior lighting ........................... 125
Instrument panel illumination control ..................................... 125
Interior lights ............................ 125
Reading lights .......................... 126
Sunvisor lights ......................... 126Lighting features ........................127
Centre console lighting ............127
Entry lighting ............................ 127
Exit lighting .............................. 127
Battery discharge protection ....128Exterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:low beam
Control indicator 8 3 92.

Lighting117Light switch with automatic light
control
Turn light switch:
AUTO:automatic light control: low
beam is switched on and off automatically depending on
external lighting conditionsm:activation or deactivation of
the automatic light control.
Switch turns back to AUTO8:sidelights9:low beam
In the Driver Information Centre with
Uplevel-Combi-Display, the current
status of the automatic light control is
displayed.
When switching on the ignition,
automatic light control is active.
When low beam is on, 8 illuminates.
Control indicator 8 3 92.
Tail lights
Tail lights are illuminated together with low/high beam and sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
light and headlights automatically
depending on the lighting conditions
and information given by the rain
sensor system.
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights and headlights automatically
depending on the external lighting
conditions.
Daytime running light 3 120.
Automatic headlight activation During poor lighting conditions the
headlights are switched on.
Furthermore the headlights are
switched on if the windscreen wipers
have been activated for several
wipes.
Tunnel detection When a tunnel is entered the
headlights are switched on
immediately.
Adaptive forward lighting 3 120.
