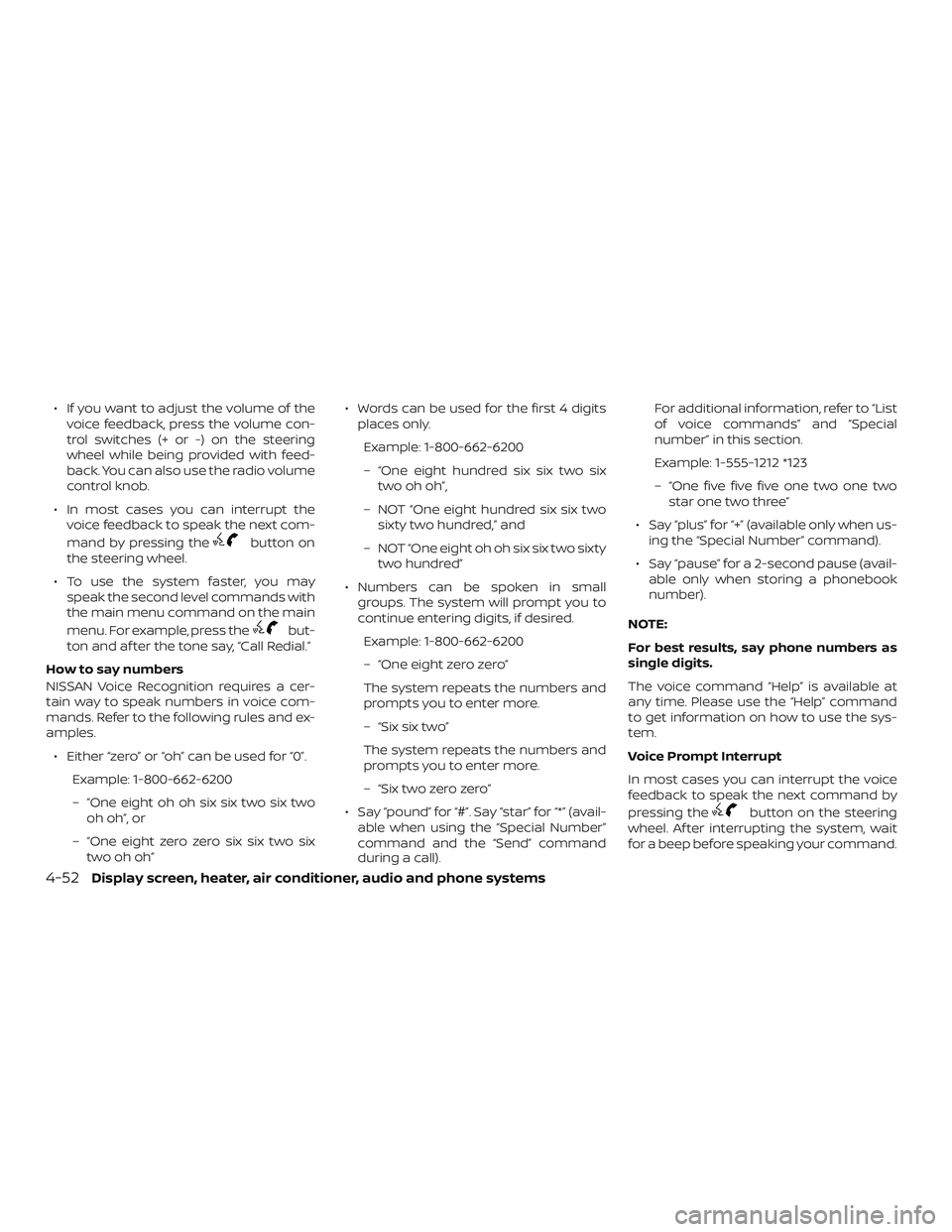

∙ If you want to adjust the volume of the
voice feedback, press the volume con-
trol switches (+ or -) on the steering
wheel while being provided with feed-
back. You can also use the radio volume
control knob.
∙ In most cases you can interrupt the
voice feedback to speak the next com-
mand by pressing the
button on
the steering wheel.
∙ To use the system faster, you may
speak the second level commands with
the main menu command on the main
menu. For example, press the
but-
ton and af ter the tone say, “Call Redial.”
How to say numbers
NISSAN Voice Recognition requires a cer-
tain way to speak numbers in voice com-
mands. Refer to the following rules and ex-
amples.
∙ Either “zero” or “oh” can be used for “0”.
Example: 1-800-662-6200
– “One eight oh oh six six two six two
oh oh”, or
– “One eight zero zero six six two six
two oh oh”∙ Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
– “One eight hundred six six two six
two oh oh”,
– NOT “One eight hundred six six two
sixty two hundred,” and
– NOT “One eight oh oh six six two sixty
two hundred”
∙ Numbers can be spoken in small
groups. The system will prompt you to
continue entering digits, if desired.
Example: 1-800-662-6200
– “One eight zero zero”
The system repeats the numbers and
prompts you to enter more.
– “Six six two”
The system repeats the numbers and
prompts you to enter more.
– “Six two zero zero”
∙ Say “pound” for “#”. Say “star” for “*” (avail-
able when using the “Special Number”
command and the “Send” command
during a call).For additional information, refer to “List
of voice commands” and “Special
number” in this section.
Example: 1-555-1212 *123
– “One five five five one two one two
star one two three”
∙ Say “plus” for “+” (available only when us-
ing the “Special Number” command).
∙ Say “pause” for a 2-second pause (avail-
able only when storing a phonebook
number).
NOTE:
For best results, say phone numbers as
single digits.
The voice command “Help” is available at
any time. Please use the “Help” command
to get information on how to use the sys-
tem.
Voice Prompt Interrupt
In most cases you can interrupt the voice
feedback to speak the next command by
pressing the
button on the steering
wheel. Af ter interrupting the system, wait
for a beep before speaking your command.
4-52Display screen, heater, air conditioner, audio and phone systems

One Shot Call
To use the system faster, you may speak
the second level commands with the main
menu command on the main menu. For
example, press the
button and af ter
the tone say, “Call Redial”.
CONTROL BUTTONS
The control buttons for the Bluetooth®
Hands-Free Phone System are located on
the steering wheel.
PHONE/SEND
Press the
button to initi-
ate a Voice Recognition ses-
sion or answer an incoming
call.You can also use the
but-
ton to interrupt the system
feedback and give a com-
mand at once. For additional
information, refer to “List of
voice commands” and “During
a call” in this section.
PHONE/END
While the Voice Recognition
system is active, press and
hold the
button for
5 seconds to quit the Voice
Recognition system at any
time.
TUNING SWITCH
While using the Voice Recogni-
tion system, tilt the tuning
switch up or down to manu-
ally control the phone system.
LHA3002
Display screen, heater, air conditioner, audio and phone systems4-53

GETTING STARTED
The following procedures will help you get
started using the Bluetooth® Hands-Free
Phone System with NISSAN Voice Recogni-
tion. For additional information, refer to “List
of voice commands” in this section.
Choosing a language
You can interact with the Bluetooth®
Hands-Free Phone System using English,
Spanish or French.
To change the language, perform the fol-
lowing.
1. Press and hold the
button for
more than 5 seconds.
2. The system announces: “Press the
PHONE/SEND
button for the
hands-free phone system to enter the
voice adaptation mode or press the
PHONE/END
button to select a
different language.”
3. Press the
button.
For information on voice adaptation,
refer to “Voice adaptation (VA) mode” in
this section.4. The system announces the current
language and gives you the option to
change the language to Spanish (in
Spanish) or French (in French). To select
the current language, press the
PHONE/SEND
button. To select a
different language, tilt the tuning
switch
orlef t or right.
NOTE:
You must press the
button within
5 seconds to change the language.
5. If you decide not to change the lan-
guage, do not press either button. Af ter
5 seconds, the Voice Recognition ses-
sion will end, and the language will not
be changed.
Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.
Main Menu
“Connect phone”
A
“Add phone”B
Initiate from handsetC
Name phoneD
1. Press thebutton on the steering
wheel. The system announces the
available commands.
2. Say: “Connect phone”
A. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
3. Say: “Add phone”
B. The system ac-
knowledges the command and asks
you to initiate connecting from the
phone handset
C.
The connecting procedure of the cellu-
lar phone varies according to each cel-
lular phone model. For additional infor-
mation, refer to the cellular phone
Owner’s Manual. You can also visit
www.nissanusa.com/bluetooth for in-
structions on connecting NISSAN rec-
ommended cellular phones.
4-54Display screen, heater, air conditioner, audio and phone systems

When prompted for a pin code, enter
“1234” from the handset. The pin code
“1234” has been assigned by NISSAN
and cannot be changed.
4. The system asks you to say a name for
the phone
D.
If the name is too long or too short, the
system tells you, then prompts you for
a name again.
Also, if more than one phone is con-
nected and the name sounds too
much like a name already used, the
system tells you, then prompts you for
a name again.
Making a call by entering a phone
number
Main Menu
“Call”
A
“Phone Number”B
Speak the digitsC
“Dial”D
1. Press thebutton on the steering
wheel. A tone will sound.2. Say: “Call”
A. The system acknowl-
edges the command and announces
the next set of available commands.
3. Say “Phone Number”
B. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
Say: “Special Number” to dial more
than 10 digits or any special charac-
ters.
4. Say the number you wish to call start-
ing with the area code in single digit
format
C. If the system has trouble
recognizing the correct phone number,
try entering the number in the follow-
ing groups: 3-digit area code, 3-digit
prefix and the last 4-digits. For ex-
ample, 555-121-3354 can be said as “five
five five” as the 1st group, then “one two
one” as the 2nd group, and “three three
five four” as the 3rd group. For dialing
more than 10 digits or any special char-
acters, say “Special Number”. For addi-
tional information refer to “How to say
numbers” in this section.
5. When you have finished speaking the
phone number, the system repeats it
back and announces the available
commands.6. Say: “Dial”
D. The system acknowl-
edges the command and makes the
call.
For additional command options, refer to
“List of voice commands” in this section.
Receiving a call
When you hear the ring tone, press
the
button on the steering wheel.
Once the call has ended, press the
button on the steering wheel.
NOTE:
If you do not wish to take the call when
you hear the ring tone, press the
button on the steering wheel.
For additional command options, refer to
“List of voice commands” in this section.
LIST OF VOICE COMMANDS
Main Menu
“Call”
“Phonebook”
“Recent Calls”
“Connect Phone”
Display screen, heater, air conditioner, audio and phone systems4-55

When you press and release thebut-
ton on the steering wheel, you can choose
from the commands on the Main Menu.
The following pages describe these com-
mands and the commands in each sub-
menu.
Remember to wait for the tone before
speaking.
Af ter the main menu, you can say “Help” to
hear the list of commands currently avail-
able any time the system is waiting for a
response.
If you want to end an action without com-
pleting it, you can say “Cancel” or “Quit” at
any time the system is waiting for a re-
sponse. The system will end the Voice Rec-
ognition session. Whenever the Voice Rec-
ognition session is canceled, a double beep
is played to indicate you have exited the
system.
If you want to go back to the previous com-
mand, you can say “Go back” or “Correction”
any time the system is waiting for a re-
sponse.“Call”
Main Menu
“Call”
(Speak name)
A
“Phone Number”
(Speak Digits)
B
“Special Number”C
“Redial”D
“Call Back”E
(Speak name)A
If you have stored entries in the phone-
book, you can dial a number associated
with a name.
For additional information, refer to “Phone-
book (phones without automatic phone-
book download function)” in this section.
When prompted by the system, say the
name of the phone book entry you wish to
call. The system acknowledges the name.
If there are multiple numbers associated
with the name, the system asks you to
choose the correct number.
Once you have confirmed the name and
location, the system begins the call.(Speak Digits)
B
When prompted by the system, say the
number you wish to call. For additional in-
formation, refer to “How to say numbers”
and “Making a call by entering a phone
number” in this section.
“Special Number”
C
For dialing more than 10 digits or any spe-
cial characters, say “Special Number”. When
the system acknowledges the command,
the system will prompt you to speak the
number.
“Redial”
D
Use the Redial command to call the last
number that was dialed.
The system acknowledges the command,
repeats the number and begins dialing.
If a redial number does not exist, the sys-
tem announces, “There is no number to
redial” and ends the NISSAN Voice Recogni-
tion System session.
“Call Back”
E
Use the Call Back command to dial the
number of the last incoming call within the
vehicle.
4-56Display screen, heater, air conditioner, audio and phone systems

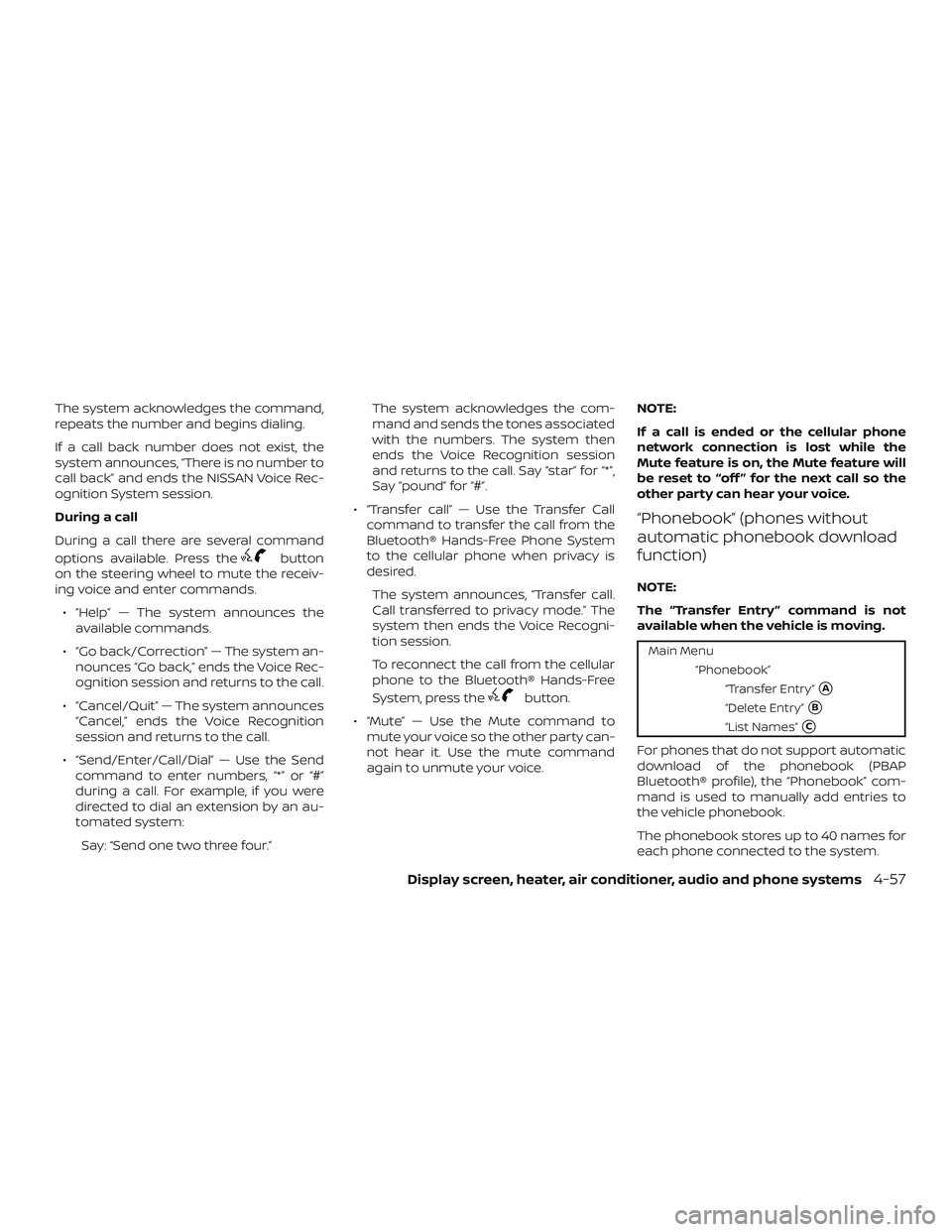

The system acknowledges the command,
repeats the number and begins dialing.
If a call back number does not exist, the
system announces, “There is no number to
call back” and ends the NISSAN Voice Rec-
ognition System session.
During a call
During a call there are several command
options available. Press the
button
on the steering wheel to mute the receiv-
ing voice and enter commands.
∙ “Help” — The system announces the
available commands.
∙ “Go back/Correction” — The system an-
nounces “Go back,” ends the Voice Rec-
ognition session and returns to the call.
∙ “Cancel/Quit” — The system announces
“Cancel,” ends the Voice Recognition
session and returns to the call.
∙ “Send/Enter/Call/Dial” — Use the Send
command to enter numbers, “*” or “#”
during a call. For example, if you were
directed to dial an extension by an au-
tomated system:
Say: “Send one two three four.”The system acknowledges the com-
mand and sends the tones associated
with the numbers. The system then
ends the Voice Recognition session
and returns to the call. Say “star” for “*”,
Say “pound” for “#”.
∙ “Transfer call” — Use the Transfer Call
command to transfer the call from the
Bluetooth® Hands-Free Phone System
to the cellular phone when privacy is
desired.
The system announces, “Transfer call.
Call transferred to privacy mode.” The
system then ends the Voice Recogni-
tion session.
To reconnect the call from the cellular
phone to the Bluetooth® Hands-Free
System, press the
button.
∙ “Mute” — Use the Mute command to
mute your voice so the other party can-
not hear it. Use the mute command
again to unmute your voice.NOTE:
If a call is ended or the cellular phone
network connection is lost while the
Mute feature is on, the Mute feature will
be reset to “off ” for the next call so the
other party can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”
“Transfer Entry”
A
“Delete Entry”B
“List Names”C
For phones that do not support automatic
download of the phonebook (PBAP
Bluetooth® profile), the “Phonebook” com-
mand is used to manually add entries to
the vehicle phonebook.
The phonebook stores up to 40 names for
each phone connected to the system.
Display screen, heater, air conditioner, audio and phone systems4-57

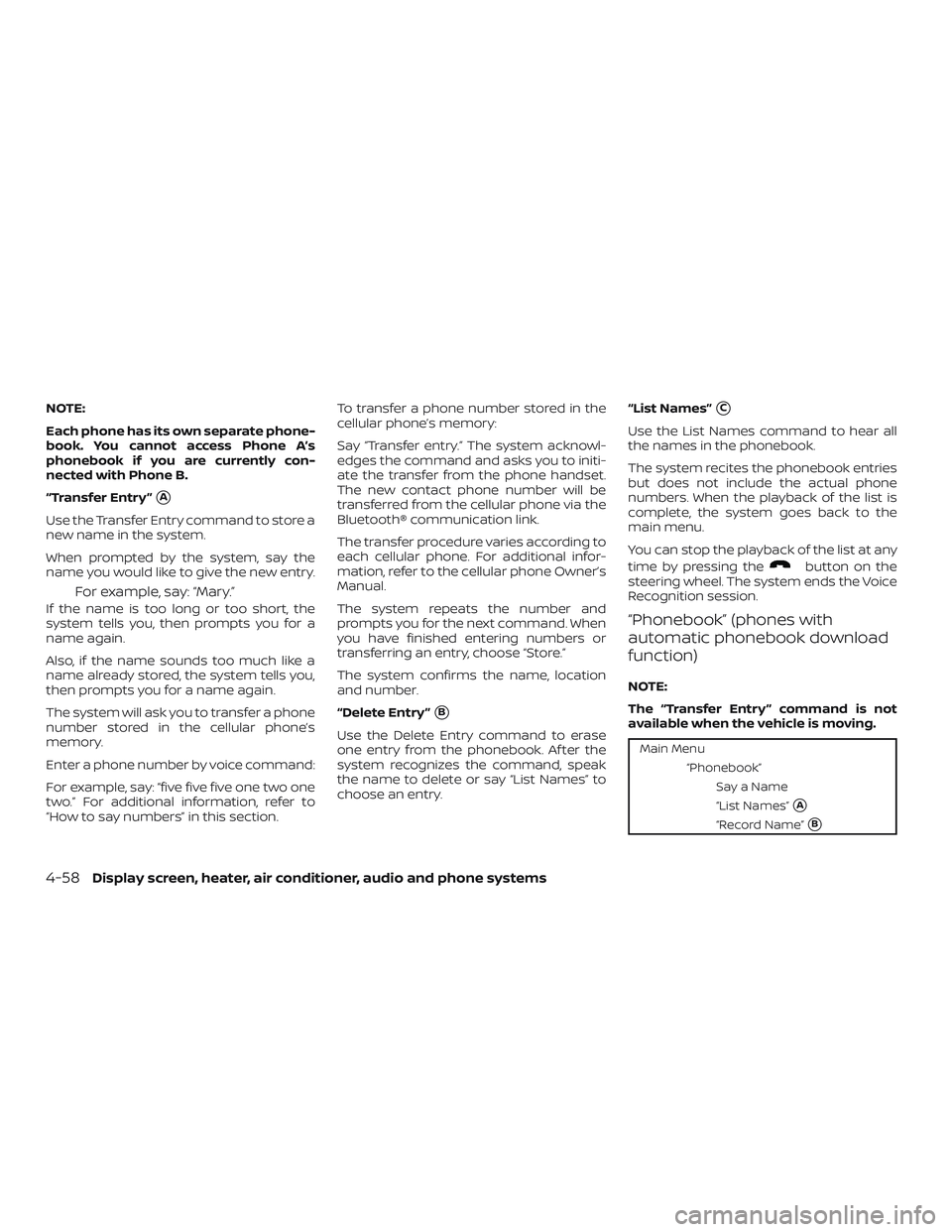

NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B.
“Transfer Entry ”
A
Use the Transfer Entry command to store a
new name in the system.
When prompted by the system, say the
name you would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if the name sounds too much like a
name already stored, the system tells you,
then prompts you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s
memory.
Enter a phone number by voice command:
For example, say: “five five five one two one
two.” For additional information, refer to
“How to say numbers” in this section.To transfer a phone number stored in the
cellular phone’s memory:
Say “Transfer entry.” The system acknowl-
edges the command and asks you to initi-
ate the transfer from the phone handset.
The new contact phone number will be
transferred from the cellular phone via the
Bluetooth® communication link.
The transfer procedure varies according to
each cellular phone. For additional infor-
mation, refer to the cellular phone Owner’s
Manual.
The system repeats the number and
prompts you for the next command. When
you have finished entering numbers or
transferring an entry, choose “Store.”
The system confirms the name, location
and number.
“Delete Entry ”
B
Use the Delete Entry command to erase
one entry from the phonebook. Af ter the
system recognizes the command, speak
the name to delete or say “List Names” to
choose an entry.“List Names”
C
Use the List Names command to hear all
the names in the phonebook.
The system recites the phonebook entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the Voice
Recognition session.
“Phonebook” (phones with
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”
Say a Name
“List Names”
A
“Record Name”B
4-58Display screen, heater, air conditioner, audio and phone systems

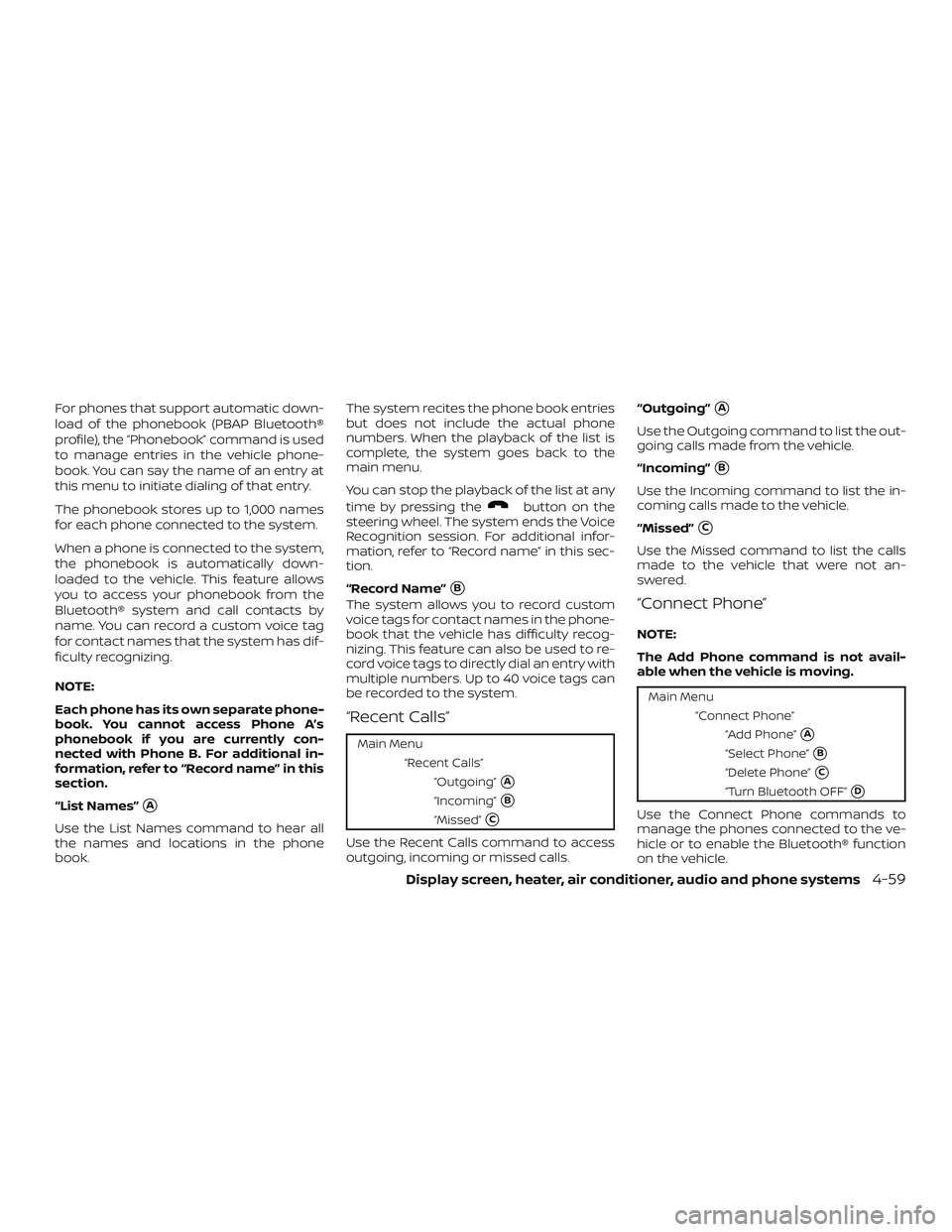

For phones that support automatic down-
load of the phonebook (PBAP Bluetooth®
profile), the “Phonebook” command is used
to manage entries in the vehicle phone-
book. You can say the name of an entry at
this menu to initiate dialing of that entry.
The phonebook stores up to 1,000 names
for each phone connected to the system.
When a phone is connected to the system,
the phonebook is automatically down-
loaded to the vehicle. This feature allows
you to access your phonebook from the
Bluetooth® system and call contacts by
name. You can record a custom voice tag
for contact names that the system has dif-
ficulty recognizing.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B. For additional in-
formation, refer to “Record name” in this
section.
“List Names”
A
Use the List Names command to hear all
the names and locations in the phone
book.The system recites the phone book entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the Voice
Recognition session. For additional infor-
mation, refer to “Record name” in this sec-
tion.
“Record Name”
B
The system allows you to record custom
voice tags for contact names in the phone-
book that the vehicle has difficulty recog-
nizing. This feature can also be used to re-
cord voice tags to directly dial an entry with
multiple numbers. Up to 40 voice tags can
be recorded to the system.
“Recent Calls”
Main Menu
“Recent Calls”
“Outgoing”
A
“Incoming”B
“Missed”C
Use the Recent Calls command to access
outgoing, incoming or missed calls.“Outgoing”
A
Use the Outgoing command to list the out-
going calls made from the vehicle.
“Incoming”
B
Use the Incoming command to list the in-
coming calls made to the vehicle.
“Missed”
C
Use the Missed command to list the calls
made to the vehicle that were not an-
swered.
“Connect Phone”
NOTE:
The Add Phone command is not avail-
able when the vehicle is moving.
Main Menu
“Connect Phone”
“Add Phone”
A
“Select Phone”B
“Delete Phone”C
“Turn Bluetooth OFF”D
Use the Connect Phone commands to
manage the phones connected to the ve-
hicle or to enable the Bluetooth® function
on the vehicle.
Display screen, heater, air conditioner, audio and phone systems4-59
