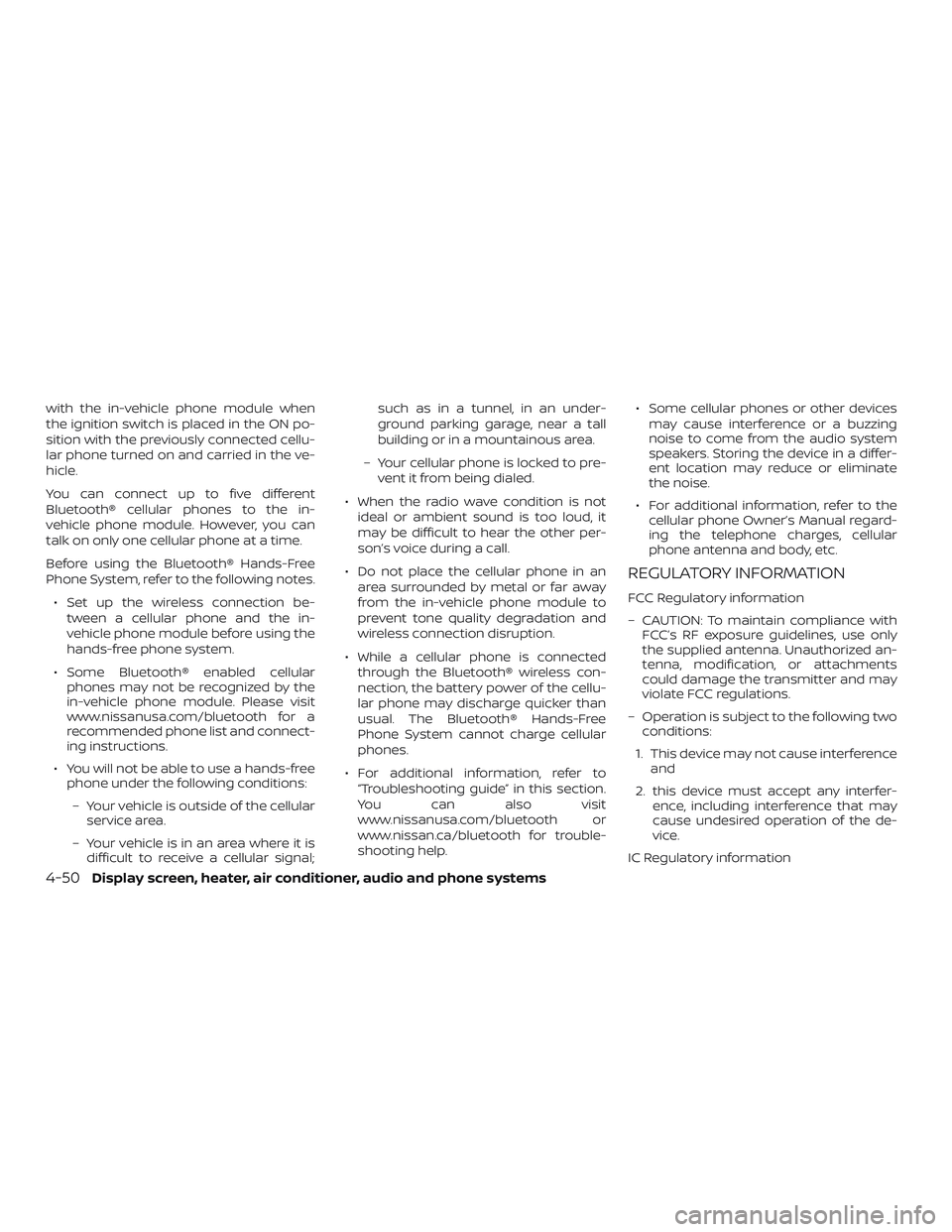

with the in-vehicle phone module when
the ignition switch is placed in the ON po-
sition with the previously connected cellu-
lar phone turned on and carried in the ve-
hicle.
You can connect up to five different
Bluetooth® cellular phones to the in-
vehicle phone module. However, you can
talk on only one cellular phone at a time.
Before using the Bluetooth® Hands-Free
Phone System, refer to the following notes.
∙ Set up the wireless connection be-
tween a cellular phone and the in-
vehicle phone module before using the
hands-free phone system.
∙ Some Bluetooth® enabled cellular
phones may not be recognized by the
in-vehicle phone module. Please visit
www.nissanusa.com/bluetooth for a
recommended phone list and connect-
ing instructions.
∙ You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the cellular
service area.
– Your vehicle is in an area where it is
difficult to receive a cellular signal;such as in a tunnel, in an under-
ground parking garage, near a tall
building or in a mountainous area.
– Your cellular phone is locked to pre-
vent it from being dialed.
∙ When the radio wave condition is not
ideal or ambient sound is too loud, it
may be difficult to hear the other per-
son’s voice during a call.
∙ Do not place the cellular phone in an
area surrounded by metal or far away
from the in-vehicle phone module to
prevent tone quality degradation and
wireless connection disruption.
∙ While a cellular phone is connected
through the Bluetooth® wireless con-
nection, the battery power of the cellu-
lar phone may discharge quicker than
usual. The Bluetooth® Hands-Free
Phone System cannot charge cellular
phones.
∙ For additional information, refer to
“Troubleshooting guide” in this section.
You can also visit
www.nissanusa.com/bluetooth or
www.nissan.ca/bluetooth for trouble-
shooting help.∙ Some cellular phones or other devices
may cause interference or a buzzing
noise to come from the audio system
speakers. Storing the device in a differ-
ent location may reduce or eliminate
the noise.
∙ For additional information, refer to the
cellular phone Owner’s Manual regard-
ing the telephone charges, cellular
phone antenna and body, etc.
REGULATORY INFORMATION
FCC Regulatory information
– CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized an-
tenna, modification, or attachments
could damage the transmitter and may
violate FCC regulations.
– Operation is subject to the following two
conditions:
1. This device may not cause interference
and
2. this device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.
IC Regulatory information
4-50Display screen, heater, air conditioner, audio and phone systems

– Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.
– This Class B digital apparatus meets all
requirements of the Canadian
Interference-Causing Equipment Regu-
lations.
BLUETOOTH® is a
trademark owned
by Bluetooth SIG,
Inc. and licensed
to Visteon.
USING THE SYSTEM
The NISSAN Voice Recognition system al-
lows hands-free operation of the
Bluetooth® Hands-Free Phone System.
If the vehicle is in motion, some commands
may not be available so full attention may
be given to vehicle operation.
Initialization
When the ignition switch is placed in the ON
position, NISSAN Voice Recognition is initial-ized, which takes a few seconds. If the
button is pressed before the initialization
completes, the system will announce
“Hands-free phone system not ready” and
will not react to voice commands.
Operating tips
To get the best performance out of the
NISSAN Voice Recognition system, observe
the following:
∙ Keep the interior of the vehicle as quiet
as possible. Close the windows to elimi-
nate surrounding noises (traffic noises,
vibration sounds, etc.), which may pre-
vent the system from recognizing voice
commands correctly.
∙ Wait until the tone sounds before
speaking a command. Otherwise, the
command will not be received properly.
∙ Start speaking a command within
5 seconds af ter the tone sounds.
∙ Speak in a natural voice without paus-
ing between words.
Giving voice commands
To operate NISSAN Voice Recognition,
press and release the
button located
on the steering wheel. Af ter the tone
sounds, speak a command.The command given is picked up by the
microphone, and voice feedback is given
when the command is accepted.
∙ If you need to hear the available com-
mands for the current menu again, say
“Help” and the system will repeat them.
∙ If a command is not recognized, the
system announces, “Command not
recognized. Please try again.” Make sure
the command is said exactly as
prompted by the system and repeat
the command in a clear voice.
∙ If you want to go back to the previous
command, you can say “Go back” or
“Correction” any time the system is
waiting for a response.
∙ You can cancel a command when the
system is waiting for a response by say-
ing, “Cancel” or “Quit.” The system an-
nounces “Cancel” and ends the Voice
Recognition session. You can also press
and hold the
button on the steer-
ing wheel for 5 seconds at any time to
end the Voice Recognition session.
Whenever the Voice Recognition ses-
sion is canceled, a double beep is
played to indicate you have exited the
system.
Display screen, heater, air conditioner, audio and phone systems4-51

∙ If you want to adjust the volume of the
voice feedback, press the volume con-
trol switches (+ or -) on the steering
wheel while being provided with feed-
back. You can also use the radio volume
control knob.
∙ In most cases you can interrupt the
voice feedback to speak the next com-
mand by pressing the
button on
the steering wheel.
∙ To use the system faster, you may
speak the second level commands with
the main menu command on the main
menu. For example, press the
but-
ton and af ter the tone say, “Call Redial.”
How to say numbers
NISSAN Voice Recognition requires a cer-
tain way to speak numbers in voice com-
mands. Refer to the following rules and ex-
amples.
∙ Either “zero” or “oh” can be used for “0”.
Example: 1-800-662-6200
– “One eight oh oh six six two six two
oh oh”, or
– “One eight zero zero six six two six
two oh oh”∙ Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
– “One eight hundred six six two six
two oh oh”,
– NOT “One eight hundred six six two
sixty two hundred,” and
– NOT “One eight oh oh six six two sixty
two hundred”
∙ Numbers can be spoken in small
groups. The system will prompt you to
continue entering digits, if desired.
Example: 1-800-662-6200
– “One eight zero zero”
The system repeats the numbers and
prompts you to enter more.
– “Six six two”
The system repeats the numbers and
prompts you to enter more.
– “Six two zero zero”
∙ Say “pound” for “#”. Say “star” for “*” (avail-
able when using the “Special Number”
command and the “Send” command
during a call).For additional information, refer to “List
of voice commands” and “Special
number” in this section.
Example: 1-555-1212 *123
– “One five five five one two one two
star one two three”
∙ Say “plus” for “+” (available only when us-
ing the “Special Number” command).
∙ Say “pause” for a 2-second pause (avail-
able only when storing a phonebook
number).
NOTE:
For best results, say phone numbers as
single digits.
The voice command “Help” is available at
any time. Please use the “Help” command
to get information on how to use the sys-
tem.
Voice Prompt Interrupt
In most cases you can interrupt the voice
feedback to speak the next command by
pressing the
button on the steering
wheel. Af ter interrupting the system, wait
for a beep before speaking your command.
4-52Display screen, heater, air conditioner, audio and phone systems

One Shot Call
To use the system faster, you may speak
the second level commands with the main
menu command on the main menu. For
example, press the
button and af ter
the tone say, “Call Redial”.
CONTROL BUTTONS
The control buttons for the Bluetooth®
Hands-Free Phone System are located on
the steering wheel.
PHONE/SEND
Press the
button to initi-
ate a Voice Recognition ses-
sion or answer an incoming
call.You can also use the
but-
ton to interrupt the system
feedback and give a com-
mand at once. For additional
information, refer to “List of
voice commands” and “During
a call” in this section.
PHONE/END
While the Voice Recognition
system is active, press and
hold the
button for
5 seconds to quit the Voice
Recognition system at any
time.
TUNING SWITCH
While using the Voice Recogni-
tion system, tilt the tuning
switch up or down to manu-
ally control the phone system.
LHA3002
Display screen, heater, air conditioner, audio and phone systems4-53

GETTING STARTED
The following procedures will help you get
started using the Bluetooth® Hands-Free
Phone System with NISSAN Voice Recogni-
tion. For additional information, refer to “List
of voice commands” in this section.
Choosing a language
You can interact with the Bluetooth®
Hands-Free Phone System using English,
Spanish or French.
To change the language, perform the fol-
lowing.
1. Press and hold the
button for
more than 5 seconds.
2. The system announces: “Press the
PHONE/SEND
button for the
hands-free phone system to enter the
voice adaptation mode or press the
PHONE/END
button to select a
different language.”
3. Press the
button.
For information on voice adaptation,
refer to “Voice adaptation (VA) mode” in
this section.4. The system announces the current
language and gives you the option to
change the language to Spanish (in
Spanish) or French (in French). To select
the current language, press the
PHONE/SEND
button. To select a
different language, tilt the tuning
switch
orlef t or right.
NOTE:
You must press the
button within
5 seconds to change the language.
5. If you decide not to change the lan-
guage, do not press either button. Af ter
5 seconds, the Voice Recognition ses-
sion will end, and the language will not
be changed.
Connecting procedure
NOTE:
The connecting procedure must be per-
formed when the vehicle is stationary. If
the vehicle starts moving during the pro-
cedure, the procedure will be canceled.
Main Menu
“Connect phone”
A
“Add phone”B
Initiate from handsetC
Name phoneD
1. Press thebutton on the steering
wheel. The system announces the
available commands.
2. Say: “Connect phone”
A. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
3. Say: “Add phone”
B. The system ac-
knowledges the command and asks
you to initiate connecting from the
phone handset
C.
The connecting procedure of the cellu-
lar phone varies according to each cel-
lular phone model. For additional infor-
mation, refer to the cellular phone
Owner’s Manual. You can also visit
www.nissanusa.com/bluetooth for in-
structions on connecting NISSAN rec-
ommended cellular phones.
4-54Display screen, heater, air conditioner, audio and phone systems

When prompted for a pin code, enter
“1234” from the handset. The pin code
“1234” has been assigned by NISSAN
and cannot be changed.
4. The system asks you to say a name for
the phone
D.
If the name is too long or too short, the
system tells you, then prompts you for
a name again.
Also, if more than one phone is con-
nected and the name sounds too
much like a name already used, the
system tells you, then prompts you for
a name again.
Making a call by entering a phone
number
Main Menu
“Call”
A
“Phone Number”B
Speak the digitsC
“Dial”D
1. Press thebutton on the steering
wheel. A tone will sound.2. Say: “Call”
A. The system acknowl-
edges the command and announces
the next set of available commands.
3. Say “Phone Number”
B. The system
acknowledges the command and an-
nounces the next set of available com-
mands.
Say: “Special Number” to dial more
than 10 digits or any special charac-
ters.
4. Say the number you wish to call start-
ing with the area code in single digit
format
C. If the system has trouble
recognizing the correct phone number,
try entering the number in the follow-
ing groups: 3-digit area code, 3-digit
prefix and the last 4-digits. For ex-
ample, 555-121-3354 can be said as “five
five five” as the 1st group, then “one two
one” as the 2nd group, and “three three
five four” as the 3rd group. For dialing
more than 10 digits or any special char-
acters, say “Special Number”. For addi-
tional information refer to “How to say
numbers” in this section.
5. When you have finished speaking the
phone number, the system repeats it
back and announces the available
commands.6. Say: “Dial”
D. The system acknowl-
edges the command and makes the
call.
For additional command options, refer to
“List of voice commands” in this section.
Receiving a call
When you hear the ring tone, press
the
button on the steering wheel.
Once the call has ended, press the
button on the steering wheel.
NOTE:
If you do not wish to take the call when
you hear the ring tone, press the
button on the steering wheel.
For additional command options, refer to
“List of voice commands” in this section.
LIST OF VOICE COMMANDS
Main Menu
“Call”
“Phonebook”
“Recent Calls”
“Connect Phone”
Display screen, heater, air conditioner, audio and phone systems4-55

When you press and release thebut-
ton on the steering wheel, you can choose
from the commands on the Main Menu.
The following pages describe these com-
mands and the commands in each sub-
menu.
Remember to wait for the tone before
speaking.
Af ter the main menu, you can say “Help” to
hear the list of commands currently avail-
able any time the system is waiting for a
response.
If you want to end an action without com-
pleting it, you can say “Cancel” or “Quit” at
any time the system is waiting for a re-
sponse. The system will end the Voice Rec-
ognition session. Whenever the Voice Rec-
ognition session is canceled, a double beep
is played to indicate you have exited the
system.
If you want to go back to the previous com-
mand, you can say “Go back” or “Correction”
any time the system is waiting for a re-
sponse.“Call”
Main Menu
“Call”
(Speak name)
A
“Phone Number”
(Speak Digits)
B
“Special Number”C
“Redial”D
“Call Back”E
(Speak name)A
If you have stored entries in the phone-
book, you can dial a number associated
with a name.
For additional information, refer to “Phone-
book (phones without automatic phone-
book download function)” in this section.
When prompted by the system, say the
name of the phone book entry you wish to
call. The system acknowledges the name.
If there are multiple numbers associated
with the name, the system asks you to
choose the correct number.
Once you have confirmed the name and
location, the system begins the call.(Speak Digits)
B
When prompted by the system, say the
number you wish to call. For additional in-
formation, refer to “How to say numbers”
and “Making a call by entering a phone
number” in this section.
“Special Number”
C
For dialing more than 10 digits or any spe-
cial characters, say “Special Number”. When
the system acknowledges the command,
the system will prompt you to speak the
number.
“Redial”
D
Use the Redial command to call the last
number that was dialed.
The system acknowledges the command,
repeats the number and begins dialing.
If a redial number does not exist, the sys-
tem announces, “There is no number to
redial” and ends the NISSAN Voice Recogni-
tion System session.
“Call Back”
E
Use the Call Back command to dial the
number of the last incoming call within the
vehicle.
4-56Display screen, heater, air conditioner, audio and phone systems

The system acknowledges the command,
repeats the number and begins dialing.
If a call back number does not exist, the
system announces, “There is no number to
call back” and ends the NISSAN Voice Rec-
ognition System session.
During a call
During a call there are several command
options available. Press the
button
on the steering wheel to mute the receiv-
ing voice and enter commands.
∙ “Help” — The system announces the
available commands.
∙ “Go back/Correction” — The system an-
nounces “Go back,” ends the Voice Rec-
ognition session and returns to the call.
∙ “Cancel/Quit” — The system announces
“Cancel,” ends the Voice Recognition
session and returns to the call.
∙ “Send/Enter/Call/Dial” — Use the Send
command to enter numbers, “*” or “#”
during a call. For example, if you were
directed to dial an extension by an au-
tomated system:
Say: “Send one two three four.”The system acknowledges the com-
mand and sends the tones associated
with the numbers. The system then
ends the Voice Recognition session
and returns to the call. Say “star” for “*”,
Say “pound” for “#”.
∙ “Transfer call” — Use the Transfer Call
command to transfer the call from the
Bluetooth® Hands-Free Phone System
to the cellular phone when privacy is
desired.
The system announces, “Transfer call.
Call transferred to privacy mode.” The
system then ends the Voice Recogni-
tion session.
To reconnect the call from the cellular
phone to the Bluetooth® Hands-Free
System, press the
button.
∙ “Mute” — Use the Mute command to
mute your voice so the other party can-
not hear it. Use the mute command
again to unmute your voice.NOTE:
If a call is ended or the cellular phone
network connection is lost while the
Mute feature is on, the Mute feature will
be reset to “off ” for the next call so the
other party can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”
“Transfer Entry”
A
“Delete Entry”B
“List Names”C
For phones that do not support automatic
download of the phonebook (PBAP
Bluetooth® profile), the “Phonebook” com-
mand is used to manually add entries to
the vehicle phonebook.
The phonebook stores up to 40 names for
each phone connected to the system.
Display screen, heater, air conditioner, audio and phone systems4-57
