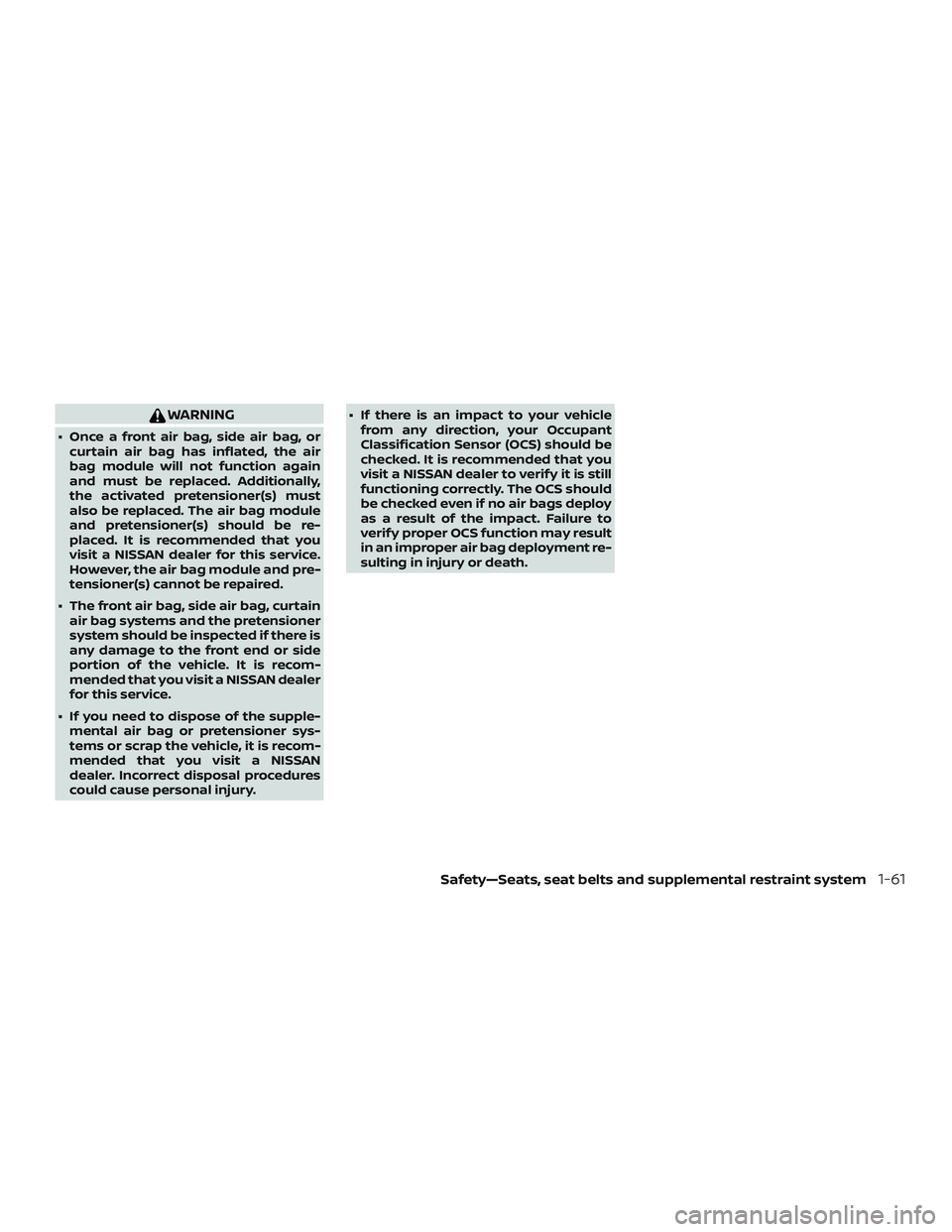

WARNING
∙ Once a front air bag, side air bag, or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner(s) must
also be replaced. The air bag module
and pretensioner(s) should be re-
placed. It is recommended that you
visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.
∙ The front air bag, side air bag, curtain
air bag systems and the pretensioner
system should be inspected if there is
any damage to the front end or side
portion of the vehicle. It is recom-
mended that you visit a NISSAN dealer
for this service.
∙ If you need to dispose of the supple-
mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you visit a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.∙ If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked. It is recommended that you
visit a NISSAN dealer to verif y it is still
functioning correctly. The OCS should
be checked even if no air bags deploy
as a result of the impact. Failure to
verif y proper OCS function may result
in an improper air bag deployment re-
sulting in injury or death.
Safety—Seats, seat belts and supplemental restraint system1-61

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges..............................2-3
Speedometer and odometer.................2-5
Tachometer..................................2-8
Engine coolant temperature gauge
(if so equipped)...............................2-8
Fuel gauge...................................2-9
Trip computer...............................2-10
Warning lights, indicator lights and audible
reminders......................................2-12
Checking lights..............................2-12
Warning lights...............................2-13
Indicator lights..............................2-18
Audible reminders...........................2-20
Wiper and washer switch.......................2-21
Switch operation............................2-21
Rear window defroster switch..................2-22
Headlight and turn signal switch...............2-22
Headlight control switch.....................2-22Instrument brightness control...............2-23
Turn signal switch...........................2-24
Fog light switch (if so equipped).............2-25
Horn...........................................2-25
Vehicle Dynamic Control (VDC) OFF switch......2-25
Power outlets..................................2-26
Storage ........................................2-27
Front-door pockets..........................2-27
Seatback pocket (if so equipped)............2-27
Storagetray.................................2-28
Glovebox....................................2-28
Cup holders.................................2-29
Windows.......................................2-30
Power windows (if so equipped).............2-30
Manual windows (if so equipped)............2-32
Interior lights...................................2-32
Map light (if so equipped)....................2-33
Trunk light......................................2-34

1. Headlight/turn signal switch/fog
light switch (if so equipped)
(P. 2-22)
2. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-25)
3. Meters and gauges (P. 2-3)
Warning and indicator lights
(P. 2-12)
4. Wiper and washer switch (P. 2-21)
5. Vents (P. 4-9)
6. Rear window defroster switch
(P. 2-22)
7. Front passenger air bag status
light (P. 1-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Climate controls (P. 4-9)
10. Audio system (P. 4-17)
11. Passenger’s supplemental air bag
(P. 1-42)
12. Glove box (P. 2-27)
13. Power outlet (P. 2-26)
14. USB connection port and AUX IN
jack (P. 4-42)
15. Shif t lever (P. 5-11)
16. Cup holders (P. 2-27)
17. Ignition switch (P. 5-8)
LII2542
INSTRUMENT PANEL
2-2Instruments and controls

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips.
Changing the display
Press the change/reset button
3to
change the display as follows:Odometer (ODO)→Trip
→Trip→Instant fuel consumption→Average fuel
consumption→DTE (cruising range)→
Odometer (ODO)
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently dis-
played trip odometer to zero.
Average fuel economy and distance to
empty information is also available. For ad-
ditional information, refer to “Trip com-
puter” in this section.
Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Type A (if so equipped)
LIC3305
Type B (if so equipped)
LIC2139
Type A (if so equipped)
LIC3306
2-6Instruments and controls

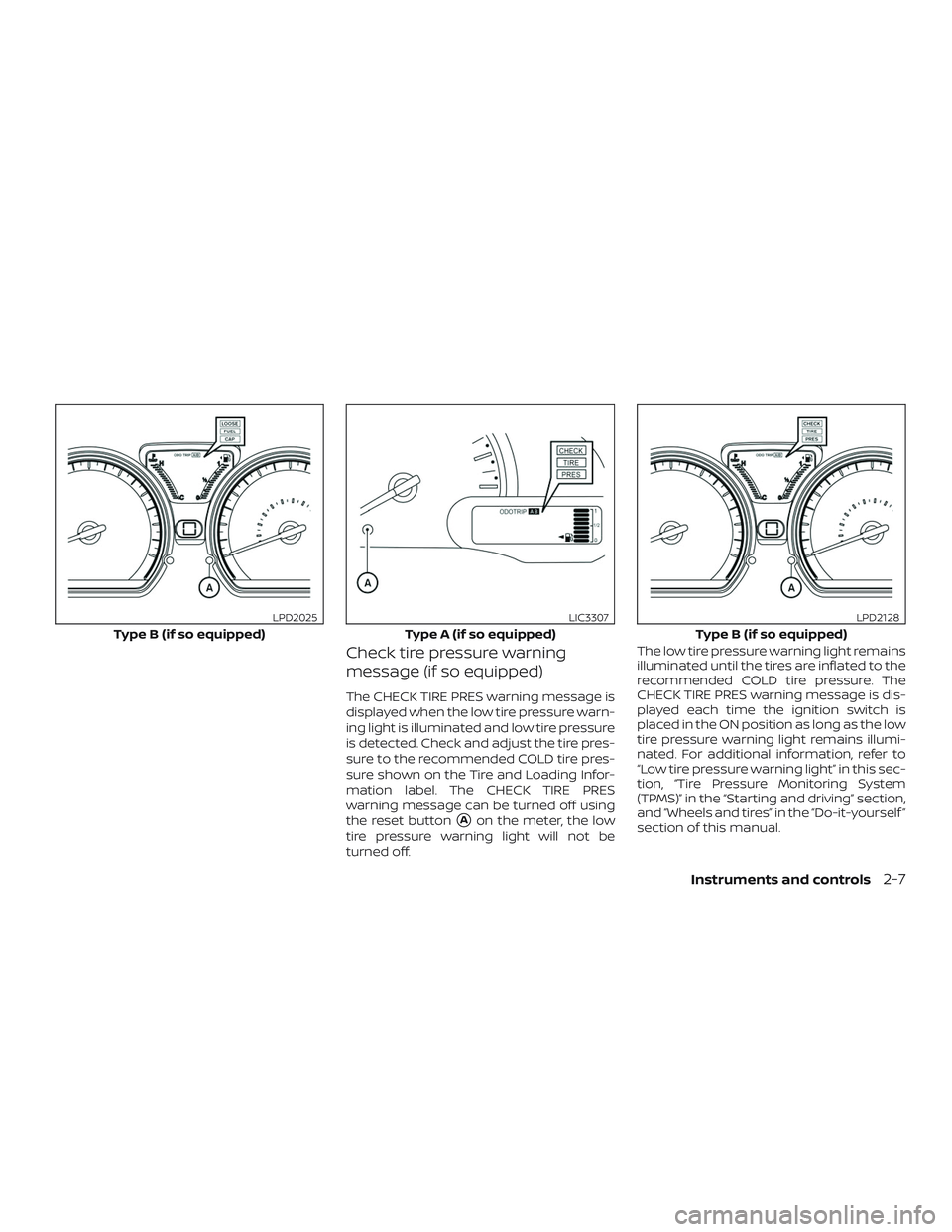

Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warn-
ing light is illuminated and low tire pressure
is detected. Check and adjust the tire pres-
sure to the recommended COLD tire pres-
sure shown on the Tire and Loading Infor-
mation label. The CHECK TIRE PRES
warning message can be turned off using
the reset button
Aon the meter, the low
tire pressure warning light will not be
turned off.The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The
CHECK TIRE PRES warning message is dis-
played each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. For additional information, refer to
“Low tire pressure warning light” in this sec-
tion, “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section,
and “Wheels and tires” in the “Do-it-yourself ”
section of this manual.
Type B (if so equipped)
LPD2025
Type A (if so equipped)
LIC3307
Type B (if so equipped)
LPD2128
Instruments and controls2-7

TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm).
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shif t to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE (if so equipped)
Type A (if so equipped)
Engine coolant temperature monitoring is
performed by the high temperature warn-
ing light. For additional information, refer to
“High temperature warning light” in this
section.
Type A (if so equipped)
LIC3598
Type B (if so equipped)
LIC2151
Type B (if so equipped)
LIC2501
2-8Instruments and controls

Odometer
The odometer records the total distance
the vehicle has been driven.
Trip A
Measures the distance of one specific trip.
Trip B
Measures the distance of a second specific
trip.
Instant fuel consumption
The instant fuel consumption mode shows
the instant fuel economy. The display up-
dates instantly when driving.
Average fuel consumption (mpg
or l (liter)/100 km)
The average fuel consumption mode
shows the average fuel consumption since
the last reset. Resetting is done by pressing
the trip or change button for more than
approximately 1 second. The display is up-
dated every 30 seconds. At about the first
1/3 mi (500 m) af ter a reset, the display
shows (----).
Distance to empty
The distance to empty mode provides you
with an estimation of the distance that can
be driven before refueling. The range is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
The distance to empty includes a low
range warning feature: when the fuel level
is low, the distance to empty is automati-
cally selected and the digits blink in order
to draw the driver’s attention. Press the trip
computer change/reset button
Aif you
wish to return to the mode that was se-
lected before the warning occurred.
When the fuel level drops even lower, the
distance to empty will display (----).
Outside air temperature (°F or °C)
(if so equipped)
The outside air temperature is displayed in
°F or °C.
The ambient temperature sensor is lo-
cated in front of the radiator. The sensor
may be affected by road or engine heat,
wind directions and other driving condi-
tions. The display may differ from the ac-
tual ambient temperature or the tempera-
ture displayed on various signs or
billboards.
Trip computer reset
Pressing the change/reset button for
more than 3 seconds will reset all modes
except Trip A and distance to empty.
Instruments and controls2-11

orAnti-lock Braking System
(ABS) warning lightPower steering warning lightMalfunction Indicator Light (MIL)
orBrake warning lightSeat belt warning light and chime (if so
equipped)Overdrive OFF indicator light (if so
equipped)
Charge warning lightSupplemental air bag warning lightSide light and headlight indicator light
(green) (if so equipped)
Door open warning lightContinuously Variable Transmission (CVT)
position indicator lightSlip indicator light
Engine oil pressure warning lightCruise main switch indicator light (if so
equipped)Turn signal/hazard indicator lights
High temperature warning light (red) (if
so equipped)Front fog light indicator light (if so
equipped)Vehicle Dynamic Control (VDC) OFF indica-
tor light
orLow fuel warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light (blue)
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position withoutstarting the engine. The following lights (if
so equipped) will come on:
or,,,,
The following lights (if so equipped) will
come on briefly and then go off:
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
2-12Instruments and controls
