4. Say the number you wish to call start-ing with the area code in single digit
format
C. If the system has trouble
recognizing the correct phone number,
try entering the number in the follow-
ing groups: 3-digit area code, 3-digit
prefix and the last 4-digits. For ex-
ample, 555-121-3354 can be said as “five
five five” as the 1st group, then “one two
one” as the 2nd group, and “three three
five four” as the 3rd group. For dialing
more than 10 digits or any special char-
acters, say “Special Number”. For addi-
tional information refer to “How to say
numbers” in this section.
5. When you have finished speaking the phone number, the system repeats it
back and announces the available
commands.
6. Say: “Dial”
D. The system acknowl-
edges the command and makes the
call.
For additional command options, refer to
“List of voice commands” in this section.
Receiving a call
When you hear the ring tone, press
the
button on the steering wheel. Once the call has ended, press the
button on the steering wheel.
NOTE:
If you do not wish to take the call when
you hear the ring tone, press the
button on the steering wheel.
For additional command options, refer to
“List of voice commands” in this section.
LIST OF VOICE COMMANDS
Main Menu
“Call”
“Phonebook”
“Recent Calls”
“Connect Phone”
When you press and release thebut-
ton on the steering wheel, you can choose
from the commands on the Main Menu. The
following pages describe these commands
and the commands in each sub-menu.
Remember to wait for the tone before
speaking.
Af ter the main menu, you can say “Help” to
hear the list of commands currently avail-
able any time the system is waiting for a
response. If you want to end an action without com-
pleting it, you can say “Cancel” or “Quit” at
any time the system is waiting for a re-
sponse. The system will end the Voice Rec-
ognition session. Whenever the Voice Rec-
ognition session is canceled, a double beep
is played to indicate you have exited the
system.
If you want to go back to the previous com-
mand, you can say “Go back” or “Correction”
any time the system is waiting for a re-
sponse.
“Call”
Main Menu
“Call” (Speak name)
A
“Phone Number”(Speak Digits)
B
“Special Number”C
“Redial”D
“Call Back”E
(Speak name)A
If you have stored entries in the phone-
book, you can dial a number associated
with a name.
4-88Monitor, climate, audio, phone and voice recognition systems

For additional information, refer to “Phone-
book (phones without automatic phone-
book download function)” in this section.
When prompted by the system, say the
name of the phone book entry you wish to
call. The system acknowledges the name.
If there are multiple numbers associated
with the name, the system asks you to
choose the correct number.
Once you have confirmed the name and
location, the system begins the call.
(Speak Digits)
B
When prompted by the system, say the
number you wish to call. For additional in-
formation, refer to “How to say numbers”
and “Making a call by entering a phone
number” in this section.
“Special Number”
C
For dialing more than 10 digits or any spe-
cial characters, say “Special Number”. When
the system acknowledges the command,
the system will prompt you to speak the
number.
“Redial”
D
Use the Redial command to call the last
number that was dialed.The system acknowledges the command,
repeats the number and begins dialing.
If a redial number does not exist, the sys-
tem announces, “There is no number to
redial” and ends the Voice Recognition ses-
sion.
“Call Back”
E
Use the Call Back command to dial the
number of the last incoming call within the
vehicle.
The system acknowledges the command,
repeats the number and begins dialing.
If a call back number does not exist, the
system announces, “There is no number to
call back” and ends the Voice Recognition
session.
During a call
During a call there are several command
options available. Press the
button
on the steering wheel to mute the receiv-
ing voice and enter commands.
∙ “Help” — The system announces the available commands.
∙ “Go back/Correction” — The system an- nounces “Go back,” ends the Voice Rec-
ognition session and returns to the call. ∙ “Cancel/Quit” — The system announces
“Cancel,” ends the Voice Recognition
session and returns to the call.
∙ “Send/Enter/Call/Dial” — Use the Send command to enter numbers, “*” or “#”
during a call. For example, if you were
directed to dial an extension by an au-
tomated system:
Say: “Send one two three four.”
The system acknowledges the com-
mand and sends the tones associated
with the numbers. The system then
ends the Voice Recognition session
and returns to the call. Say “star” for “*”,
Say “pound” for “#”.
∙ “Transfer call” — Use the Transfer Call command to transfer the call from the
Bluetooth® Hands-Free Phone System
to the cellular phone when privacy is
desired.
The system announces, “Transfer call.
Call transferred to privacy mode.” The
system then ends the Voice Recogni-
tion session.
To reconnect the call from the cellular
phone to the Bluetooth® Hands-Free
Phone System, press the
button.
Monitor, climate, audio, phone and voice recognition systems4-89

∙ “Mute” — Use the Mute command tomute your voice so the other party can-
not hear it. Use the mute command
again to unmute your voice.
NOTE:
If a call is ended or the cellular phone
network connection is lost while the
Mute feature is on, the Mute feature will
be reset to “off ” for the next call so the
other party can hear your voice.
“Phonebook” (phones without
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu “Phonebook”“Transfer Entry”
A
“Delete Entry”B
“List Names”C
For phones that do not support automatic
download of the phonebook (PBAP
Bluetooth® profile), the “Phonebook” com- mand is used to manually add entries to
the vehicle phonebook.
The phonebook stores up to 40 names for
each phone connected to the system.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B.
“Transfer Entry ”
A
Use the Transfer Entry command to store a
new name in the system.
When prompted by the system, say the
name you would like to give the new entry.
For example, say: “Mary.”
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if the name sounds too much like a
name already stored, the system tells you,
then prompts you for a name again.
The system will ask you to transfer a phone
number stored in the cellular phone’s
memory.
Enter a phone number by voice command:For example, say: “five five five one two one
two.” For additional information, refer to
“How to say numbers” in this section.
To transfer a phone number stored in the
cellular phone’s memory:
Say “Transfer entry.” The system acknowl-
edges the command and asks you to initi-
ate the transfer from the phone handset.
The new contact phone number will be
transferred from the cellular phone via the
Bluetooth® communication link.
The transfer procedure varies according to
each cellular phone. For additional infor-
mation, refer to the cellular phone Owner’s
Manual.
The system repeats the number and
prompts you for the next command. When
you have finished entering numbers or
transferring an entry, choose “Store.”
The system confirms the name, location
and number.
“Delete Entry ”
B
Use the Delete Entry command to erase
one entry from the phonebook. Af ter the
system recognizes the command, speak
the name to delete or say “List Names” to
choose an entry.
4-90Monitor, climate, audio, phone and voice recognition systems

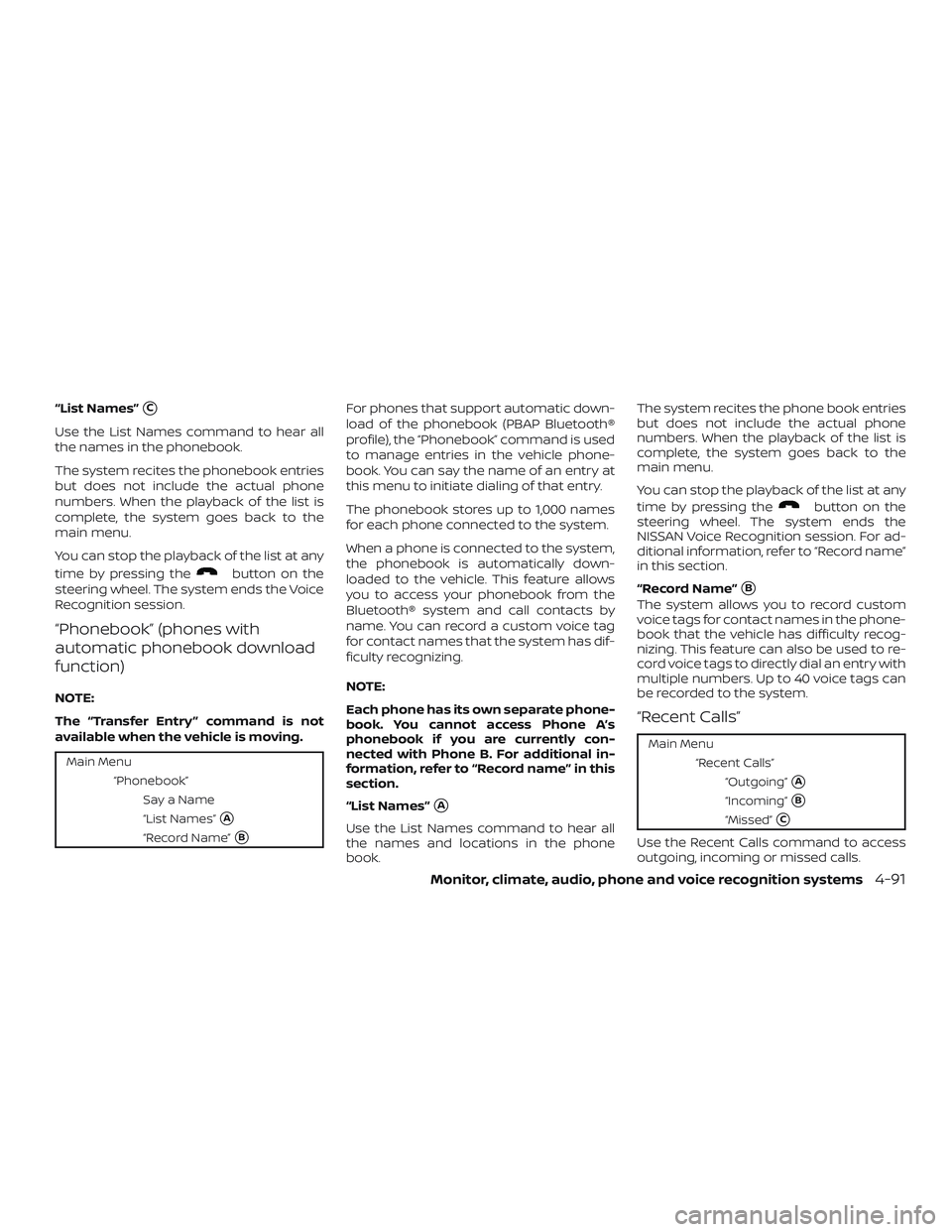

“List Names”C
Use the List Names command to hear all
the names in the phonebook.
The system recites the phonebook entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the Voice
Recognition session.
“Phonebook” (phones with
automatic phonebook download
function)
NOTE:
The “Transfer Entry ” command is not
available when the vehicle is moving.
Main Menu
“Phonebook”Say a Name
“List Names”
A
“Record Name”B
For phones that support automatic down-
load of the phonebook (PBAP Bluetooth®
profile), the “Phonebook” command is used
to manage entries in the vehicle phone-
book. You can say the name of an entry at
this menu to initiate dialing of that entry.
The phonebook stores up to 1,000 names
for each phone connected to the system.
When a phone is connected to the system,
the phonebook is automatically down-
loaded to the vehicle. This feature allows
you to access your phonebook from the
Bluetooth® system and call contacts by
name. You can record a custom voice tag
for contact names that the system has dif-
ficulty recognizing.
NOTE:
Each phone has its own separate phone-
book. You cannot access Phone A’s
phonebook if you are currently con-
nected with Phone B. For additional in-
formation, refer to “Record name” in this
section.
“List Names”
A
Use the List Names command to hear all
the names and locations in the phone
book. The system recites the phone book entries
but does not include the actual phone
numbers. When the playback of the list is
complete, the system goes back to the
main menu.
You can stop the playback of the list at any
time by pressing the
button on the
steering wheel. The system ends the
NISSAN Voice Recognition session. For ad-
ditional information, refer to “Record name”
in this section.
“Record Name”
B
The system allows you to record custom
voice tags for contact names in the phone-
book that the vehicle has difficulty recog-
nizing. This feature can also be used to re-
cord voice tags to directly dial an entry with
multiple numbers. Up to 40 voice tags can
be recorded to the system.
“Recent Calls”
Main Menu
“Recent Calls”“Outgoing”
A
“Incoming”B
“Missed”C
Use the Recent Calls command to access
outgoing, incoming or missed calls.
Monitor, climate, audio, phone and voice recognition systems4-91

“Outgoing”A
Use the Outgoing command to list the out-
going calls made from the vehicle.
“Incoming”
B
Use the Incoming command to list the in-
coming calls made to the vehicle.
“Missed”
C
Use the Missed command to list the calls
made to the vehicle that were not an-
swered.
“Connect Phone”
NOTE:
The Add Phone command is not avail-
able when the vehicle is moving.
Main Menu“Connect Phone”“Add Phone”
A
“Select Phone”B
“Delete Phone”C
“Replace Phone”D
“Bluetooth OFF”E
“Phonebook Download OFF”F
“Display Settings”G
Use the Connect Phone commands to
manage the phones connecting to the ve-
hicle or to enable the Bluetooth® function
on the vehicle.
“Add Phone”
A
Use the Add Phone command to add a
phone to the vehicle. For additional infor-
mation, refer to “Connecting procedure” in
this section.
“Select Phone”
B
Use the Select Phone command to select
from a list of phones connected to the ve-
hicle. The system will list the names as-
signed to each phone and then prompt
you for the phone you wish to select. Only
one phone can be active at a time.
“Delete Phone”
C
Use the Delete Phone command to delete
a phone that is connected to the vehicle.
The system will list the names assigned to
each phone and then prompt you for the
phone you wish to delete. Deleting a phone
from the vehicle will also delete the phone-
book for that phone.
“Replace Phone”
D
Use the Replace Phone command to re-
place an existing phone pairing with a new phone. The system will keep all voice tags
assigned to your phonebook.
“Bluetooth OFF”
E
Use the Bluetooth OFF command to pre-
vent a wireless connection to your phone.
“Phonebook Download OFF”
F
Use the Phonebook Download OFF com-
mand to turn off the automatic download-
ing of the handset phonebook to the avail-
able (if supported by the cellular phone).
When the command is recognized, “Sync
Contacts OFF” will appear on the audio dis-
play.
To turn the feature back on, say “Phone-
book Download”. When the command is
recognized, “Sync Contacts ON” will appear
on the audio display.
VOICE ADAPTATION (VA) MODE
Voice Adaptation (VA) allows up to two out-
of-dialect users to train the system to im-
prove recognition accuracy. By repeating a
number of commands, the users can cre-
ate a voice model of their own voice that is
stored in the system. The system is ca-
pable of storing a different Voice Adapta-
tion model for each connected phone.
4-92Monitor, climate, audio, phone and voice recognition systems

Training procedure
The procedure for training a voice is as fol-
lows.1. Position the vehicle in a reasonably quiet outdoor location.
2. Sit in the driver’s seat with the engine running, the parking brake on, and the
transmission in P (Park).
3. Press and hold the
button for
more than 5 seconds.
4. The system announces: “Press the PHONE/SEND
button for the
hands-free phone system to enter the
voice adaptation mode or press the
PHONE/END
button to select a
different language.”
5. Press the
button.
For additional information on selecting
a different language, refer to “Choosing
a language” in this section.
6. Voice memory A or memory B is se- lected automatically. If both memory
locations are already in use, the system
will prompt you to overwrite one. Fol-
low the instructions provided by the
system. 7. When preparation is complete and you
are ready to begin, press the
but-
ton.
8. The Voice Adaptation mode will be ex- plained. Follow the instructions pro-
vided by the system.
9. When training is finished, the system will tell you an adequate number of
phrases have been recorded.
10. The system will announce that voice adaptation has been completed and
the system is ready.
The Voice Adaptation mode will stop if:
∙ The
button is pressed for more
than 5 seconds in Voice Adaptation
mode.
∙ The vehicle begins moving during Voice Adaptation mode.
∙ The ignition switch is placed in the OFF or LOCK position.
Training phrases
During the Voice Adaptation mode, the sys-
tem instructs the trainer to say the follow-
ing phrases. The system will prompt you for
each phrase.
∙ phonebook transfer entry ∙ dial three oh four two nine
∙ delete call back number
∙ incoming
∙ transfer entry
∙ eight pause nine three two pause seven
∙ delete all entries
∙ call seven two four zero nine
∙ phonebook delete entry
∙ next entry
∙ dial star two one seven oh
∙yes
∙no
∙ select
∙ missed
∙ dial eight five six nine two
∙ Bluetooth on
∙ outgoing
∙ call three one nine oh two
∙ nine seven pause three oh eight
∙ cancel
∙ call back number
Monitor, climate, audio, phone and voice recognition systems4-93

∙ call star two zero nine five
∙ delete phone
∙ dial eight three zero five one
∙ record name
∙ four three pause two nine pause zero
∙ delete redial number
∙ phonebook list names
∙ call eight oh five four one
∙ correction
∙ connect phone
∙ dial seven four oh one eight
∙ previous entry
∙ delete
∙ dial nine seven two six six
∙ call seven six three oh one
∙ go back
∙ call five six two eight zero
∙ dial six six four three sevenMANUAL CONTROL
While using the voice recognition system, it
is possible to select menu options by using
the steering wheel controls instead of
speaking voice commands. The manual
control mode does not allow dialing a
phone number by digits. The user may se-
lect an entry from the Phonebook or Re-
cent Calls lists. To re-activate voice recog-
nition, exit the manual control mode by
pressing and holding the
PHONE/END
button. At that time,
pressing the PHONE/SEND
button
will start the Hands Free Phone System.
Operating tips
∙ To enter manual control mode, start the voice recognition system and tilt
the
tuning switch up or down. The
system will speak "Showing Manual Op-
tions" when manual controls are initially
activated.
∙ To browse the menu options, tilt the
tuning switch up or down. The
system will always speak the current
menu option. Depending on the audio
display, it will also show the current
menu option. ∙ To select the current menu option,
press
button.
∙ To go back to the previous menu, press the
button. If the current menu is
the Main Menu, pressing
the
button will exit the Phone sys-
tem.
∙ To exit the manual control mode, press and hold the
button for 5 seconds.
TROUBLESHOOTING GUIDE
The system should respond correctly to all
voice commands without difficulty. If prob-
lems are encountered, try the following so-
lutions.
Where the solutions are listed by number,
try each solution in turn, starting with num-
ber 1, until the problem is resolved.
4-94Monitor, climate, audio, phone and voice recognition systems

SymptomSolution
System fails to interpret the command correctly. 1. Ensure that the command is valid. For additional information, refer to “List of voice commands” in this
section.
2. Ensure that the command is spoken af ter the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in
the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on).
NOTE: If it is too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be car-
ried out to improve the recognition response for the speaker. For additional information, refer to “Voice
Adaptation (VA) mode” in this section.
The system consistently selects the wrong entry from
the phone book. 1. Ensure that the phone book entry name requested matches what was originally stored. This can be
confirmed by using the “List Names” command. For additional information, refer to “Phonebook” in this
section.
2. Replace one of the names being confused with a new name.
Monitor, climate, audio, phone and voice recognition systems4-95
