2018 NISSAN LEAF headrest

1. Supplemental air bags (P. 1-42)
2. Occupant classification sensor
(weight sensor) (P. 1-42)
3. Head restraints/headrests (P. 1-5)
4. Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-42)
5. Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-10, 1-42)
6. Top tether anchor (located on
seatback) (P. 1-21)
7. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-21)
8. Rear seats (P. 1-2) 9. Front seat side-mounted side-
impact supplemental air bags
(P. 1-42)
10. Front seats (P. 1-2) 11. Driver supplemental knee air bag
(P. 1-42)
Refer to the page number indicated in
parentheses for operating details.
LIC3960
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment ................1-3
Armrest (driver’s side only) .................... 1-4
Folding rear seat ............................. 1-4
Head restraints/headrests ...................... 1-5
Adjustable head restraint/headrest
components ................................. 1-6
Non-adjustable head restraint/
headrest components ........................ 1-6
Remove.......................................1-7
Removable (without Bose head
restraint/headrest speaker system
only)...........................................1-7
Install ......................................... 1-8
Adjust ........................................ 1-8
Seatbelts ....................................... 1-10
Precautions on seat belt usage ...............1-10
Seat belt warning light ........................ 1-13
Pregnant women ............................. 1-13
Injured persons ............................... 1-13
Three-point type seat belt with
retractor ..................................... 1-13
Seat belt extenders ........................... 1-17Seat belt maintenance
.......................1-17
Child safety ...................................... 1-18
Infants ....................................... 1-19
Small children ................................ 1-19
Larger children ............................... 1-19
Child restraints .................................. 1-21
Precautions on child restraints ...............1-21
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-23
Rear-facing child restraint installation
using LATCH ................................. 1-26
Rear-facing child restraint installation
using the seat belts ......................... 1-28
Forward-facing child restraint
installation using LATCH .....................1-30
Forward-facing child restraint
installation using the seat belts ..............1-34
Booster seats ............................... 1-39
Supplemental Restraint System (SRS) ...........1-42
Precautions on SRS .......................... 1-42
Supplemental air bag warning labels ........1-63
Supplemental air bag warning light ..........1-63

∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision. The illustration shows the seating posi-
tions equipped with head
restraints/headrests.

Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
LRS2695
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-5

∙ Adjustable head restraints/headrestshave multiple notches along the stalk(s)
to lock them in a desired adjustment
position.
∙ The non-adjustable head restraints/ headrests have a single locking notch
to secure them to the seat frame.
∙ Proper Adjustment: – For the adjustable type, align thehead restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
LRS2300LRS2299
1-6Safety—Seats, seat belts and supplemental restraint system

REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not
loose in the vehicle. 5. Reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position.
REMOVABLE (without Bose head
restraint/headrest speaker
system only)
CAUTION
Do not remove head restraint/headrest
from vehicles equipped with Bose head
restraint/headrest speaker system. Re-
moval may damage the system wiring.
LRS2302LRS2302
Safety—Seats, seat belts and supplemental restraint system1-7

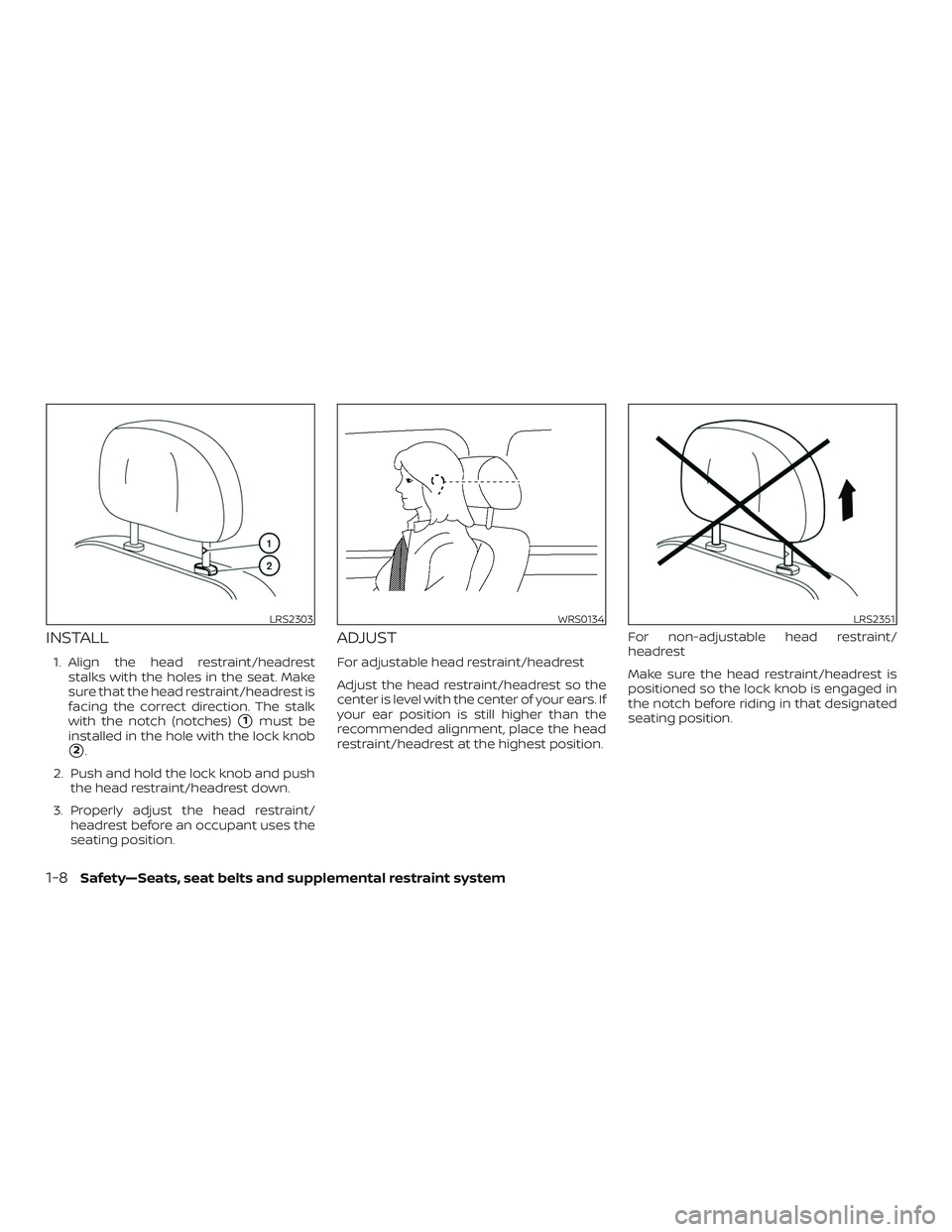

INSTALL
1. Align the head restraint/headreststalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the notch (notches)
1must be
installed in the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position. For non-adjustable head restraint/
headrest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
LRS2303WRS0134LRS2351
1-8Safety—Seats, seat belts and supplemental restraint system

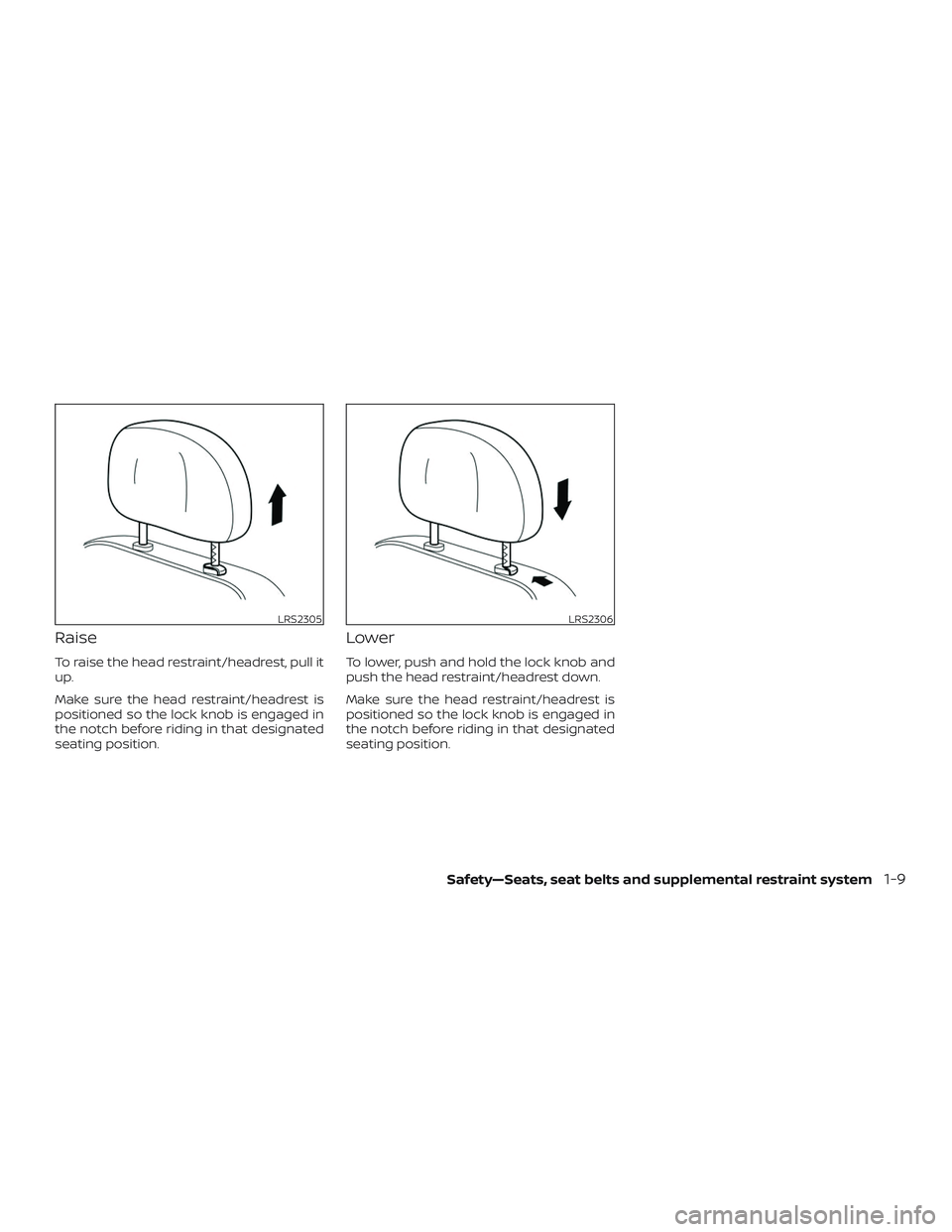

Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
LRS2305LRS2306
Safety—Seats, seat belts and supplemental restraint system1-9

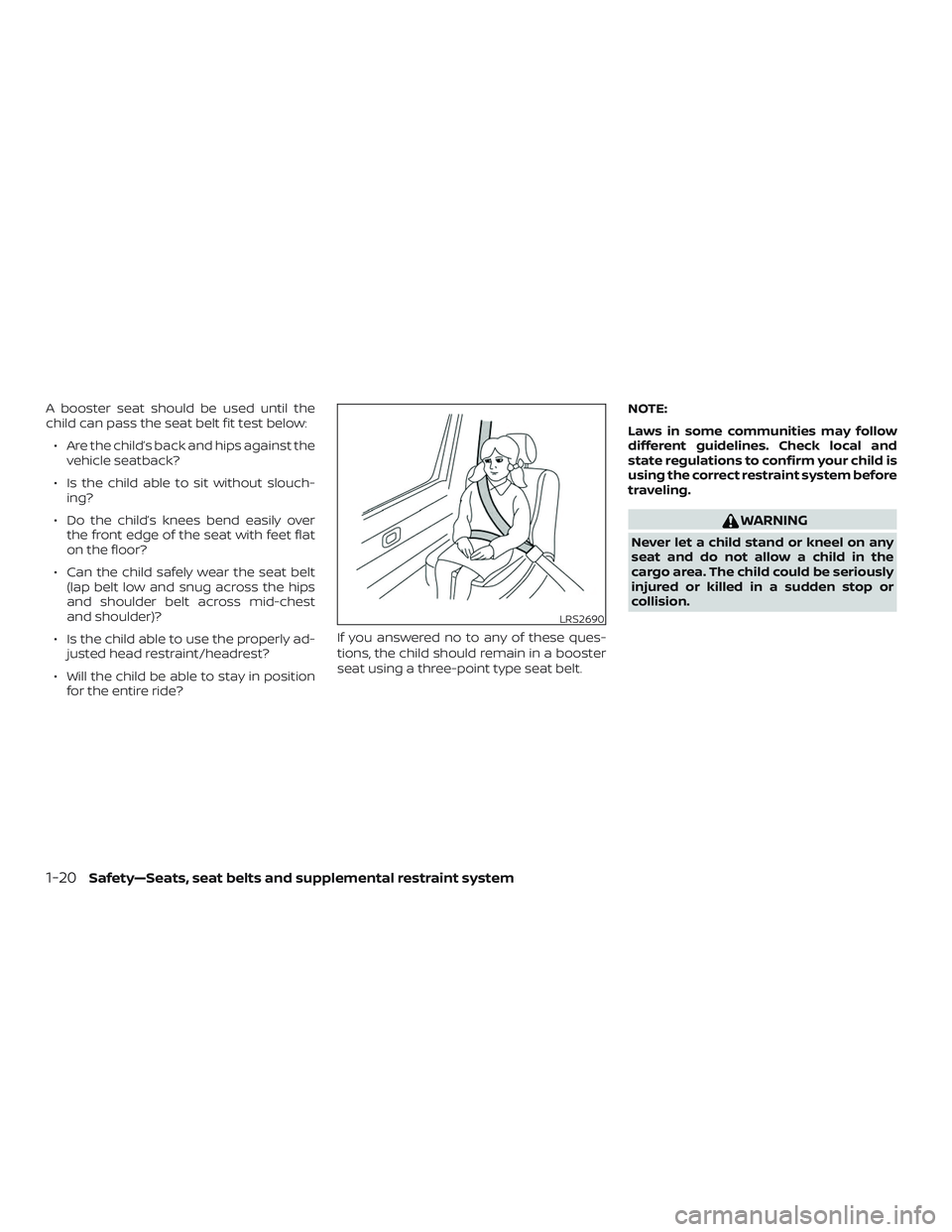

A booster seat should be used until the
child can pass the seat belt fit test below:∙ Are the child’s back and hips against the vehicle seatback?
∙ Is the child able to sit without slouch- ing?
∙ Do the child’s knees bend easily over the front edge of the seat with feet flat
on the floor?
∙ Can the child safely wear the seat belt (lap belt low and snug across the hips
and shoulder belt across mid-chest
and shoulder)?
∙ Is the child able to use the properly ad- justed head restraint/headrest?
∙ Will the child be able to stay in position for the entire ride? If you answered no to any of these ques-
tions, the child should remain in a booster
seat using a three-point type seat belt. NOTE:
Laws in some communities may follow
different guidelines. Check local and
state regulations to confirm your child is
using the correct restraint system before
traveling.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo area. The child could be seriously
injured or killed in a sudden stop or
collision.
LRS2690
1-20Safety—Seats, seat belts and supplemental restraint system
