2018 NISSAN LEAF display

1. Vents (P. 4-30)
2. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-41)
3. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-45)
4. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-10)
Trip computer (if so equipped)
(P. 2-9)
Vehicle information display
(if so equipped) (P. 2-21)
5. Wiper and washer switch (P. 2-37)
6. Front passenger airbag status
light (P. 1-42)
7. Center display controls (if so
equipped) (P. 4-2, 4-3, 4-42)
Audio controls (P. 4-2, 4-3, 4-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Center display (P. 4-2, 4-3, 4-42)
10. Passenger’s supplemental air bag
(P. 1-42)
11. Glove box (P. 2-49)
LIC3974
INSTRUMENT PANEL
0-6Illustrated table of contents

12. Climate controls (P. 4-31, 4-39)Heated seat switches (if so
equipped) (P. 2-45)
13. Shif t lever (P. 5-15)
14. Push-button ignition switch (P. 5-9)
15. Power outlet (P. 2-47) USB connection port (P. 4-2, 4-42)
AUX jack (P. 4-2, 4-42)
16. Bluetooth® Hands-Free Phone
System (P. 4-2, 4-68)
Cruise control switches (P. 5-39)
17. Tilt and telescopic steering wheel
lock lever (P. 3-26)
18. Hood release (P. 3-21) Fuel-filler door release (P. 3-24)
Automatic Emergency Braking
(AEB) switch (if so equipped)
(P 2-46)
19. Steering wheel switches for audio
control (P. 4-2, 4-63)
Control panel and vehicle informa-
tion display switches
(if so equipped) (P. 2-21)
20. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Enter/select switch for trip com-
puter (if so equipped) (P. 2-9)* Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

1. SRS Air Bag Warning Labels (lo-cated on the sun visors)
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.
WARNING
Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the Air bag Control
Unit (ACU), satellite sensors, crash zone
sensor, occupant classification sensor, the
supplemental front-impact air bag, front
seat-mounted side-impact supplemental
air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt preten-
sioner systems. The monitored circuits in-
clude air bag systems, pretensioner(s) and
all related wiring. When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
knee air bag and pretensioner systems
need servicing:
∙ The supplemental air bag warning light remains on af ter approximately 7 sec-
onds.
∙ The supplemental air bag warning light flashes intermittently.
∙ The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag,
side air bag, curtain air bag, knee air bag or
pretensioner systems may not operate
properly. They must be checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.
LRS2617LRS0100
Safety—Seats, seat belts and supplemental restraint system1-63

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges ..............................2-4
Speedometer and odometer .................2-5
Tachometer .................................. 2-7
Fuel gauge ...................................2-8
Trip computer (if so equipped) ................2-9
Warning lights, indicator lights and audible
reminders ...................................... 2-10
Checking lights ............................... 2-11
Warning lights ................................ 2-11
Indicator lights .............................. 2-17
Audible reminders ........................... 2-20
Vehicle information display (if so equipped) .....2-21
How to use the vehicle information
display ...................................... 2-21
Startup display .............................. 2-22
Settings ..................................... 2-22
Vehicle information display warnings
and indicators ............................... 2-30
Security systems (if so equipped) ...............2-34
Vehicle security system .....................2-34
NISSAN Anti-Thef t System (NATS)
(if so equipped) .............................. 2-35NISSAN Vehicle Immobilizer System
(if so equipped)
.............................. 2-36
Wiper and washer switch .......................2-37
Switch operation ............................ 2-37
Rear switch operation .......................2-39
Rear window and/or outside mirror defroster
switch (if so equipped) .......................... 2-40
Headlight and turn signal switch ...............2-41
Headlight control switch .....................2-41
Daytime Running Lights (DRL) system
(if so equipped) .............................. 2-43
Instrument brightness control ...............2-44
Turn signal switch ........................... 2-44
Fog light switch (if so equipped) .............2-45
Horn ........................................... 2-45
Heated seat switches (if so equipped) ..........2-45
Automatic Emergency Braking (AEB) switch
(if so equipped) ................................. 2-46
Vehicle Dynamic Control (VDC) OFF switch ......
2-47
Power outlets ..................................2-47
12v outlets ...................................2-47
Extended storage switch .......................2-48
Storage ........................................ 2-49

1. Vents (P. 4-30)
2. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-41)
3. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-45)
4. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-10)
Trip computer (if so equipped)
(P. 2-9)
Vehicle information display
(if so equipped) (P. 2-21)
5. Wiper and washer switch (P. 2-37)
6. Front passenger airbag status
light (P. 1-42)
7. Center display controls (if so
equipped) (P. 4-2, 4-3, 4-42)
Audio controls (P. 4-2, 4-3, 4-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Center display (P. 4-2, 4-3, 4-42)
10. Passenger’s supplemental air bag
(P. 1-42)
11. Glove box (P. 2-49)
LIC3974
INSTRUMENT PANEL
2-2Instruments and controls

12. Climate controls (P. 4-31, 4-39)Heated seat switches (if so
equipped) (P. 2-45)
13. Shif t lever (P. 5-15)
14. Push-button ignition switch (P. 5-9)
15. Power outlet (P. 2-47) USB connection port (P. 4-2, 4-42)
AUX jack (P. 4-2, 4-42)
16. Bluetooth® Hands-Free Phone
System (P. 4-2, 4-68)
Cruise control switches (P. 5-39)
17. Tilt and telescopic steering wheel
lock lever (P. 3-26)
18. Hood release (P. 3-21) Fuel-filler door release (P. 3-24)
Automatic Emergency Braking
(AEB) switch (if so equipped)
(P 2-46)
19. Steering wheel switches for audio
control (P. 4-2, 4-63)
Control panel and vehicle informa-
tion display switches
(if so equipped) (P. 2-21) 20. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-47)
Enter/select switch for trip com-
puter (if so equipped) (P. 2-9)
* Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).
Refer to the page number indicated in
parentheses for operating details.
Instruments and controls2-3

1. TachometerVehicle information display
Odometer
Twin trip odometer
Fuel gauge
Engine coolant temperature gauge 2. Warning and indicator lights
3. Speedometer
4. Trip reset switch
Instrument brightness control
knob
Type A (if so equipped)
LIC3561
METERS AND GAUGES
2-4Instruments and controls

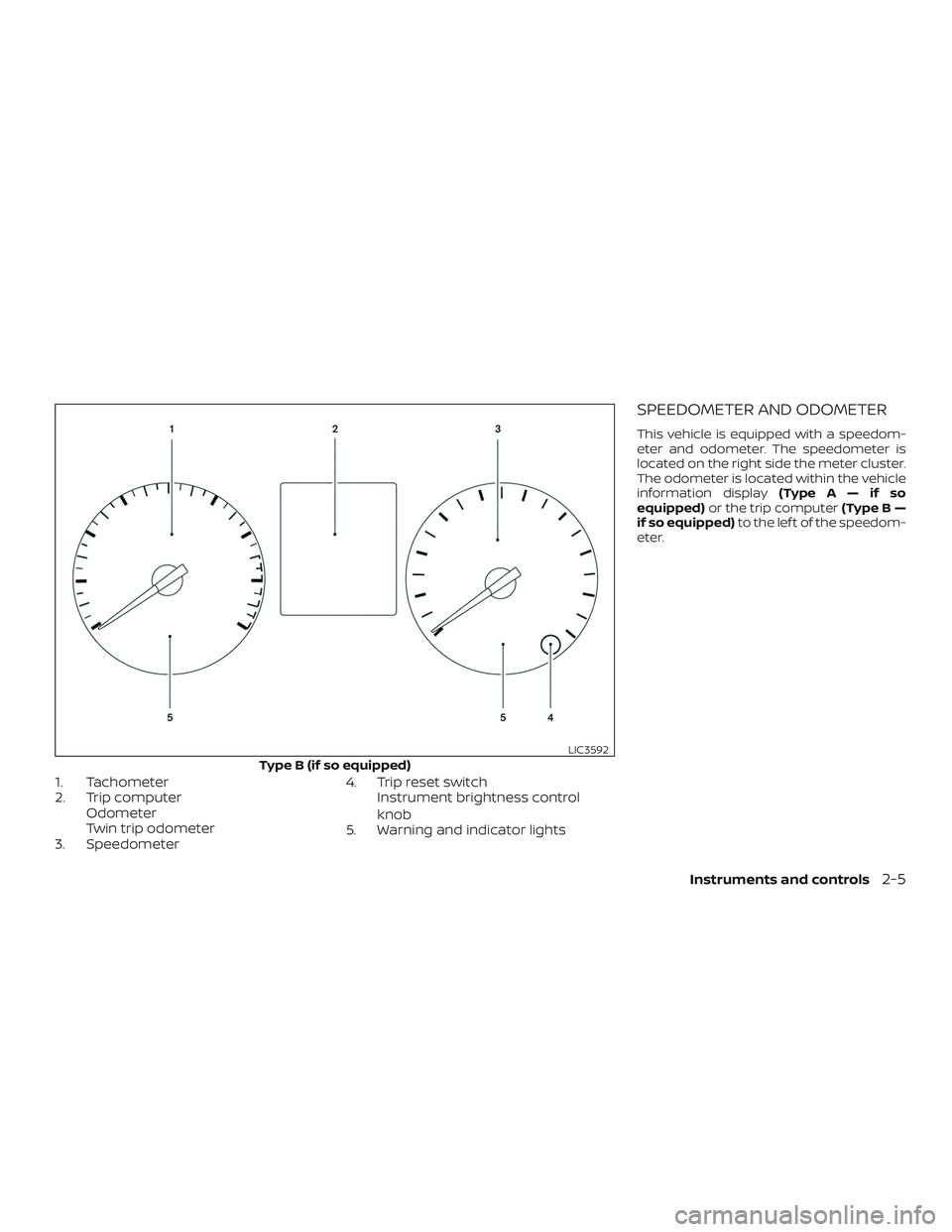

1. Tachometer
2. Trip computerOdometer
Twin trip odometer
3. Speedometer 4. Trip reset switch
Instrument brightness control
knob
5. Warning and indicator lights
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side the meter cluster.
The odometer is located within the vehicle
information display (TypeA—ifso
equipped) or the trip computer (Type B —
if so equipped) to the lef t of the speedom-
eter.
Type B (if so equipped)
LIC3592
Instruments and controls2-5
