2018 NISSAN ALTIMA Owner´s Manual

To reset at a slower cruising speed,use
one of the following three methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the COAST/SET switch and release it.
∙ Push and hold the COAST/SET switch. Release the switch when the vehicle
slows to the desired speed.
∙ Push and release the COAST/SET switch. Each time you do this, the set
speed decreases by about 1 mph
(1.6 km/h).
To resume the preset speed, push and
release the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when
the vehicle speed is over 25 mph (40 km/h).
To turn off the cruise control, use one of
the following three methods:
∙ Push the CANCEL switch.
∙ Tap the brake pedal.
∙ Push the ON/OFF switch off. The
light in the instrument panel goes out.
WARNING
Failure to follow the warnings and in-
structions for proper use of the ICC sys-
tem could result in serious injury or
death.
∙ The ICC system is only an aid to assist the driver and is not a collision warn-
ing or avoidance device. It is the driv-
er’s responsibility to stay alert, drive
safely and be in control of the vehicle
at all time.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Always drive carefully and attentively when using the ICC system. Read and
understand the Owner’s Manual thor-
oughly before using the ICC system.
To avoid serious injury or death, do
not rely on the system to prevent ac-
cidents or to control the vehicle’s
speed in emergency situations. Do
not use the ICC system except in ap-
propriate road and traffic conditions. The ICC system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and di-
rection.
The ICC system uses a radar sensor
1
located on the front of the vehicle to detect
vehicles traveling ahead.
If the radar sensor detects a slower moving
vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The detection range of the sensor is ap-
proximately 390 f t (120 m) ahead.
LSD2479
INTELLIGENT CRUISE CONTROL (ICC)
(if so equipped)
Starting and driving5-43

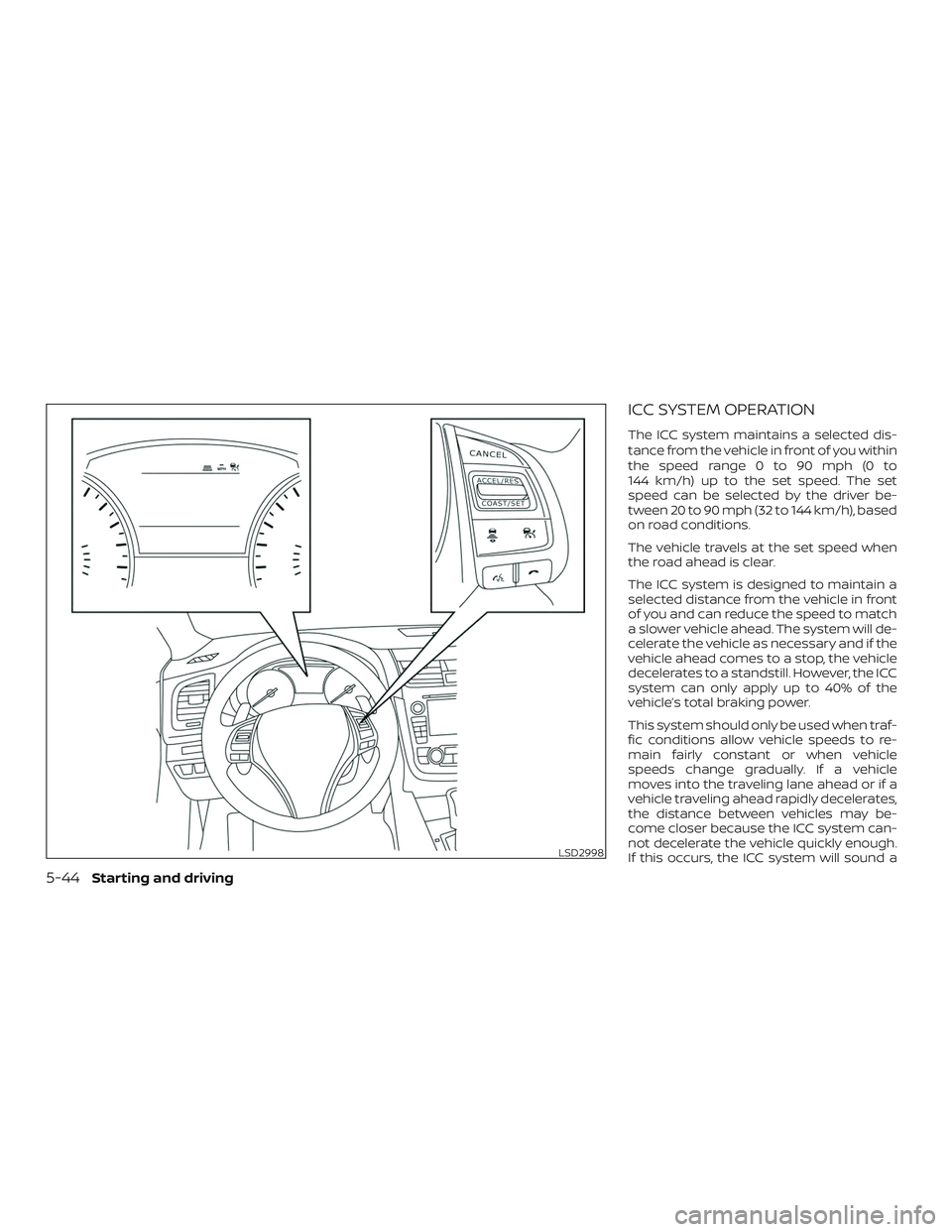

ICC SYSTEM OPERATION
The ICC system maintains a selected dis-
tance from the vehicle in front of you within
the speed range 0 to 90 mph (0 to
144 km/h) up to the set speed. The set
speed can be selected by the driver be-
tween 20 to 90 mph (32 to 144 km/h), based
on road conditions.
The vehicle travels at the set speed when
the road ahead is clear.
The ICC system is designed to maintain a
selected distance from the vehicle in front
of you and can reduce the speed to match
a slower vehicle ahead. The system will de-
celerate the vehicle as necessary and if the
vehicle ahead comes to a stop, the vehicle
decelerates to a standstill. However, the ICC
system can only apply up to 40% of the
vehicle’s total braking power.
This system should only be used when traf-
fic conditions allow vehicle speeds to re-
main fairly constant or when vehicle
speeds change gradually. If a vehicle
moves into the traveling lane ahead or if a
vehicle traveling ahead rapidly decelerates,
the distance between vehicles may be-
come closer because the ICC system can-
not decelerate the vehicle quickly enough.
If this occurs, the ICC system will sound a
LSD2998
5-44Starting and driving

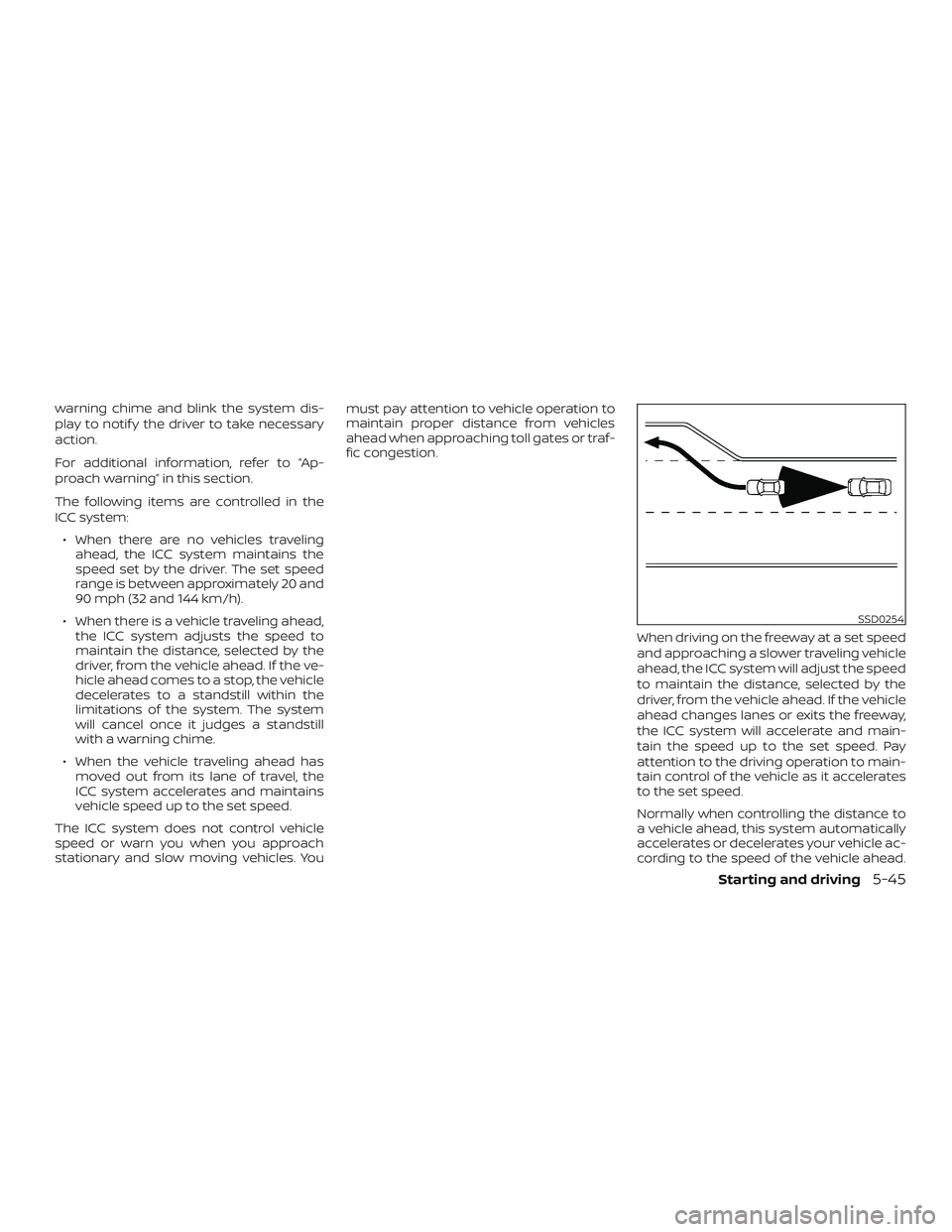

warning chime and blink the system dis-
play to notif y the driver to take necessary
action.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the
ICC system:∙ When there are no vehicles traveling ahead, the ICC system maintains the
speed set by the driver. The set speed
range is between approximately 20 and
90 mph (32 and 144 km/h).
∙ When there is a vehicle traveling ahead, the ICC system adjusts the speed to
maintain the distance, selected by the
driver, from the vehicle ahead. If the ve-
hicle ahead comes to a stop, the vehicle
decelerates to a standstill within the
limitations of the system. The system
will cancel once it judges a standstill
with a warning chime.
∙ When the vehicle traveling ahead has moved out from its lane of travel, the
ICC system accelerates and maintains
vehicle speed up to the set speed.
The ICC system does not control vehicle
speed or warn you when you approach
stationary and slow moving vehicles. You must pay attention to vehicle operation to
maintain proper distance from vehicles
ahead when approaching toll gates or traf-
fic congestion.
When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway,
the ICC system will accelerate and main-
tain the speed up to the set speed. Pay
attention to the driving operation to main-
tain control of the vehicle as it accelerates
to the set speed.
Normally when controlling the distance to
a vehicle ahead, this system automatically
accelerates or decelerates your vehicle ac-
cording to the speed of the vehicle ahead.
SSD0254
Starting and driving5-45

Depress the accelerator to properly accel-
erate your vehicle when acceleration is re-
quired for a lane change. Depress the brake
pedal when deceleration is required to
maintain a safe distance to the vehicle
ahead due to its sudden braking or if a
vehicle cuts in. Always stay alert when us-
ing the ICC system.

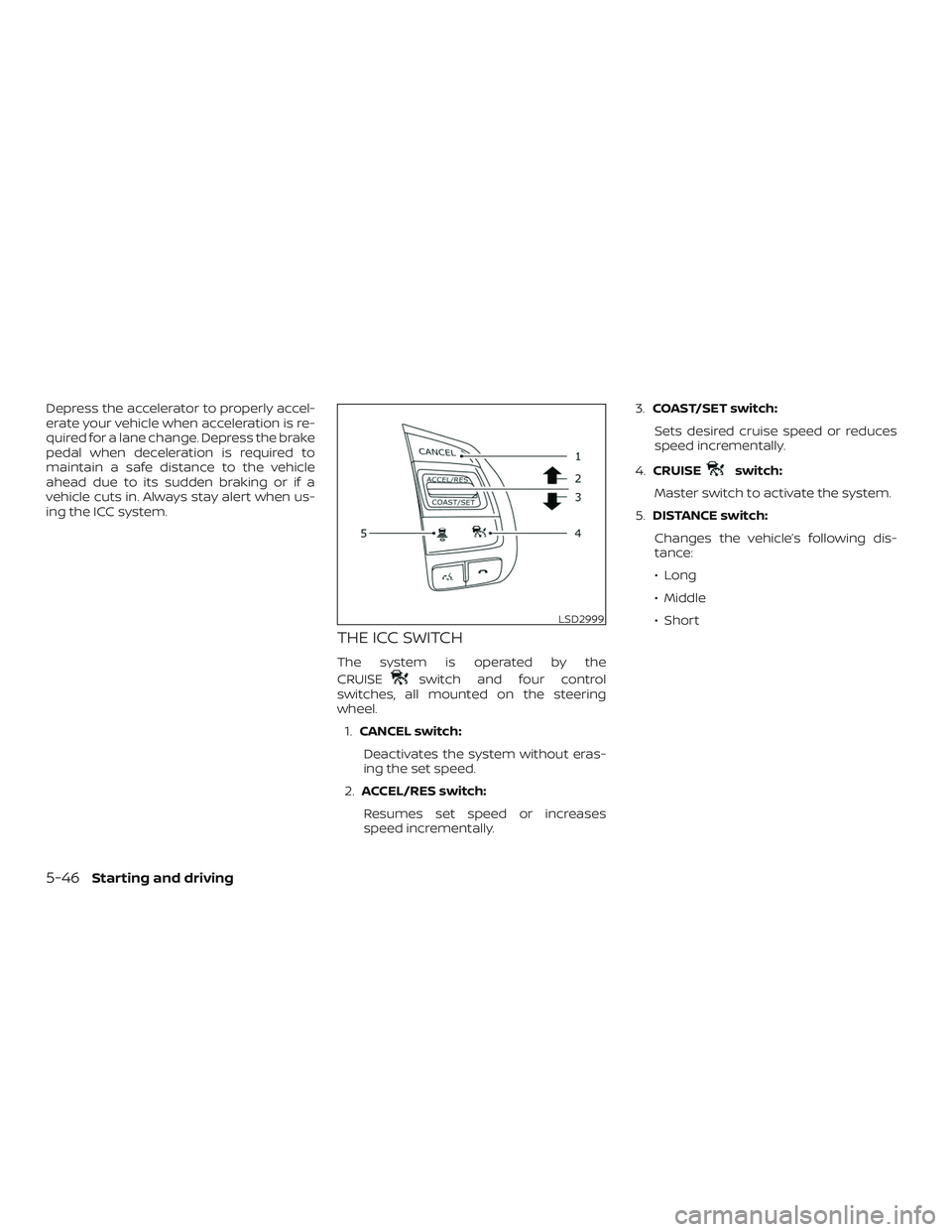

THE ICC SWITCH
The system is operated by the
CRUISE
switch and four control
switches, all mounted on the steering
wheel.
1. CANCEL switch:
Deactivates the system without eras-
ing the set speed.
2. ACCEL/RES switch:
Resumes set speed or increases
speed incrementally. 3.
COAST/SET switch:
Sets desired cruise speed or reduces
speed incrementally.
4. CRUISE
switch:
Master switch to activate the system.
5. DISTANCE switch:
Changes the vehicle’s following dis-
tance:
∙ Long
∙ Middle
∙ Short
LSD2999
5-46Starting and driving

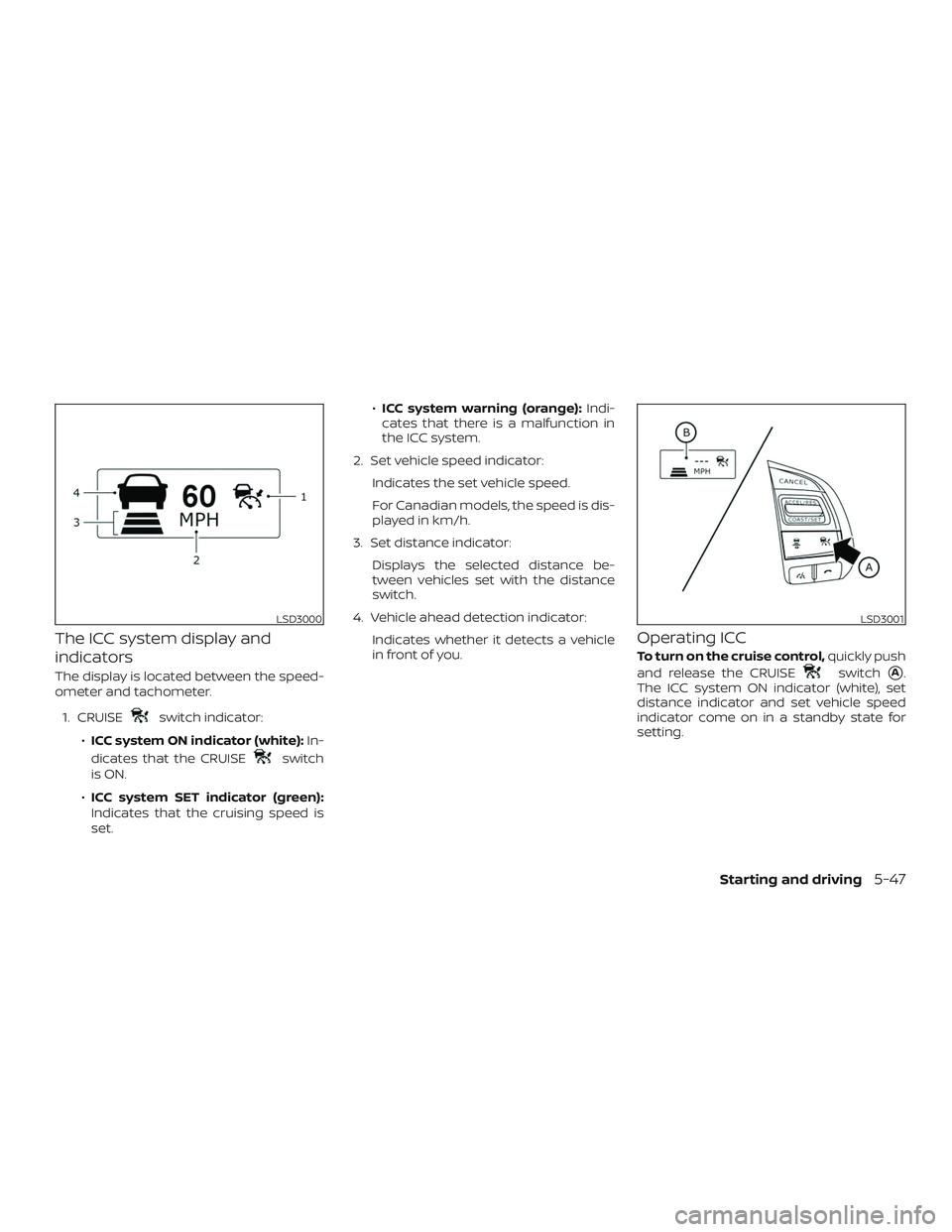

The ICC system display and
indicators
The display is located between the speed-
ometer and tachometer.1. CRUISE
switch indicator:
∙ ICC system ON indicator (white): In-
dicates that the CRUISE
switch
is ON.
∙ ICC system SET indicator (green):
Indicates that the cruising speed is
set. ∙
ICC system warning (orange): Indi-
cates that there is a malfunction in
the ICC system.
2. Set vehicle speed indicator: Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Set distance indicator: Displays the selected distance be-
tween vehicles set with the distance
switch.
4. Vehicle ahead detection indicator: Indicates whether it detects a vehicle
in front of you.
Operating ICC
To turn on the cruise control, quickly push
and release the CRUISE
switchA.
The ICC system ON indicator (white), set
distance indicator and set vehicle speed
indicator come on in a standby state for
setting.
LSD3000LSD3001
Starting and driving5-47

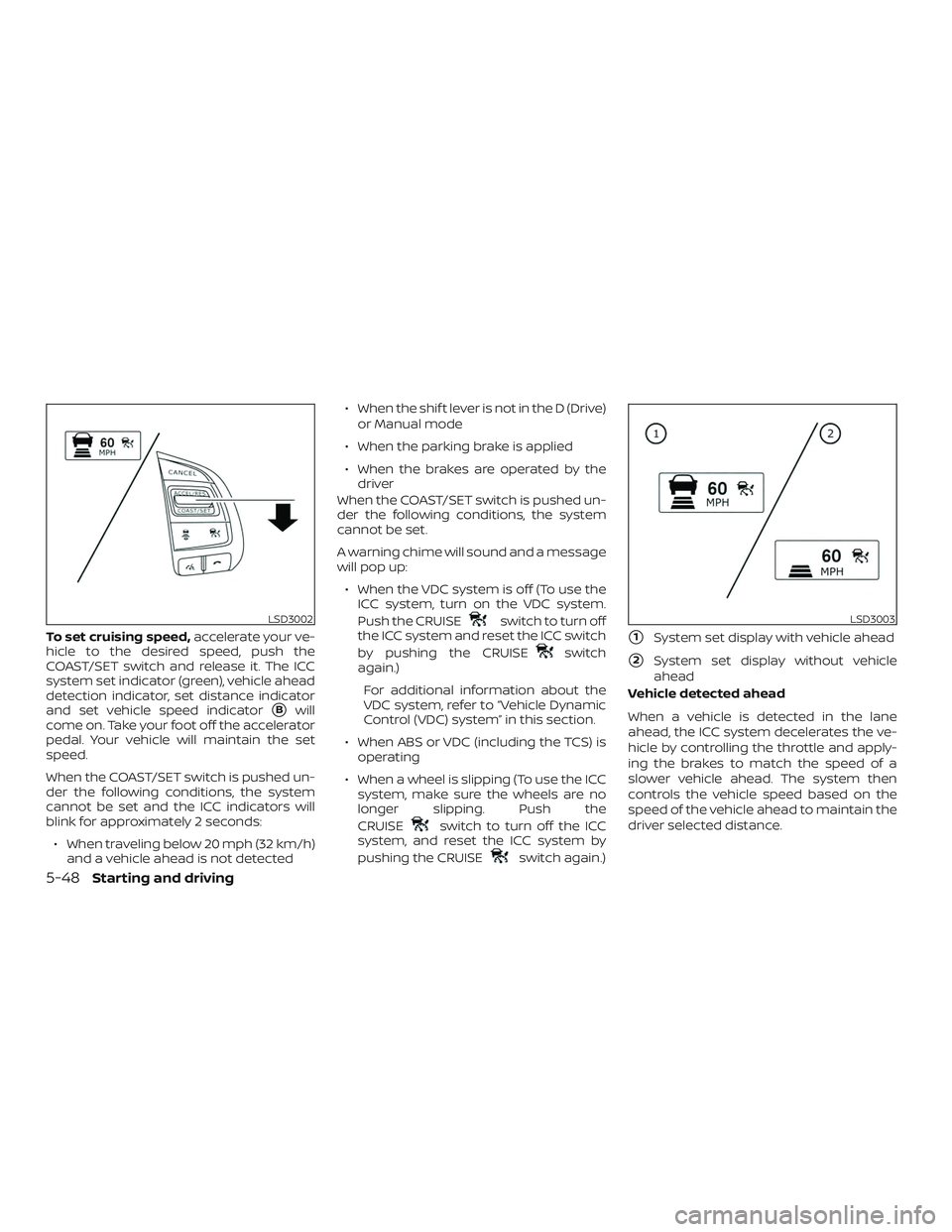

To set cruising speed,accelerate your ve-
hicle to the desired speed, push the
COAST/SET switch and release it. The ICC
system set indicator (green), vehicle ahead
detection indicator, set distance indicator
and set vehicle speed indicator
Bwill
come on. Take your foot off the accelerator
pedal. Your vehicle will maintain the set
speed.
When the COAST/SET switch is pushed un-
der the following conditions, the system
cannot be set and the ICC indicators will
blink for approximately 2 seconds:
∙ When traveling below 20 mph (32 km/h) and a vehicle ahead is not detected ∙ When the shif t lever is not in the D (Drive)
or Manual mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
When the COAST/SET switch is pushed un-
der the following conditions, the system
cannot be set.
A warning chime will sound and a message
will pop up:
∙ When the VDC system is off (To use the ICC system, turn on the VDC system.
Push the CRUISE
switch to turn off
the ICC system and reset the ICC switch
by pushing the CRUISE
switch
again.)
For additional information about the
VDC system, refer to “Vehicle Dynamic
Control (VDC) system” in this section.
∙ When ABS or VDC (including the TCS) is operating
∙ When a wheel is slipping (To use the ICC system, make sure the wheels are no
longer slipping. Push the
CRUISE
switch to turn off the ICC
system, and reset the ICC system by
pushing the CRUISE
switch again.)
1System set display with vehicle ahead
2System set display without vehicle
ahead
Vehicle detected ahead
When a vehicle is detected in the lane
ahead, the ICC system decelerates the ve-
hicle by controlling the throttle and apply-
ing the brakes to match the speed of a
slower vehicle ahead. The system then
controls the vehicle speed based on the
speed of the vehicle ahead to maintain the
driver selected distance.
LSD3002LSD3003
5-48Starting and driving

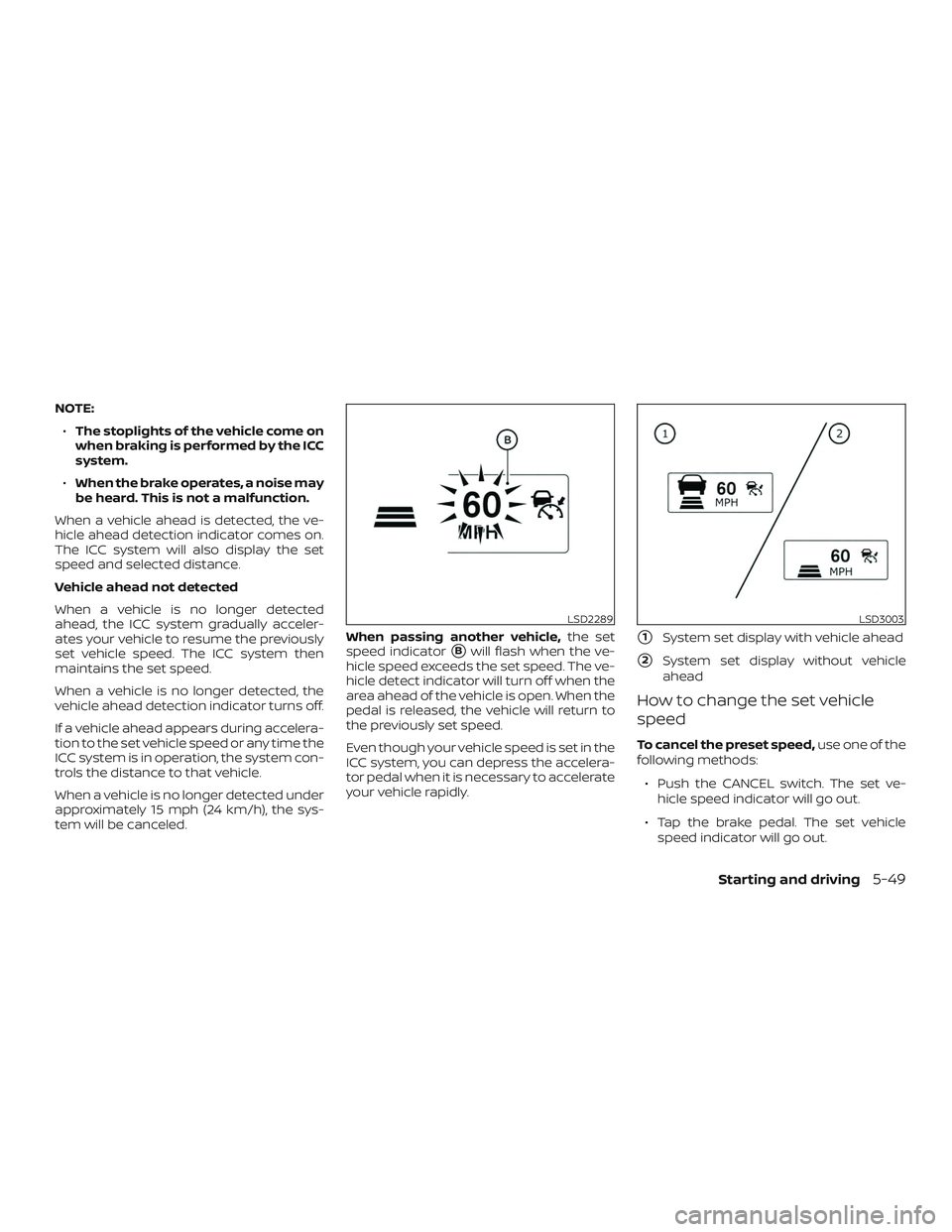

NOTE:∙ The stoplights of the vehicle come on
when braking is performed by the ICC
system.
∙ When the brake operates, a noise may
be heard. This is not a malfunction.
When a vehicle ahead is detected, the ve-
hicle ahead detection indicator comes on.
The ICC system will also display the set
speed and selected distance.
Vehicle ahead not detected
When a vehicle is no longer detected
ahead, the ICC system gradually acceler-
ates your vehicle to resume the previously
set vehicle speed. The ICC system then
maintains the set speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator turns off.
If a vehicle ahead appears during accelera-
tion to the set vehicle speed or any time the
ICC system is in operation, the system con-
trols the distance to that vehicle.
When a vehicle is no longer detected under
approximately 15 mph (24 km/h), the sys-
tem will be canceled. When passing another vehicle,
the set
speed indicator
Bwill flash when the ve-
hicle speed exceeds the set speed. The ve-
hicle detect indicator will turn off when the
area ahead of the vehicle is open. When the
pedal is released, the vehicle will return to
the previously set speed.
Even though your vehicle speed is set in the
ICC system, you can depress the accelera-
tor pedal when it is necessary to accelerate
your vehicle rapidly.1System set display with vehicle ahead
2System set display without vehicle
ahead
How to change the set vehicle
speed
To cancel the preset speed, use one of the
following methods:
∙ Push the CANCEL switch. The set ve- hicle speed indicator will go out.
∙ Tap the brake pedal. The set vehicle speed indicator will go out.
LSD2289LSD3003
Starting and driving5-49

∙ Turn the CRUISEswitch off. The ICC
indicators will go out.

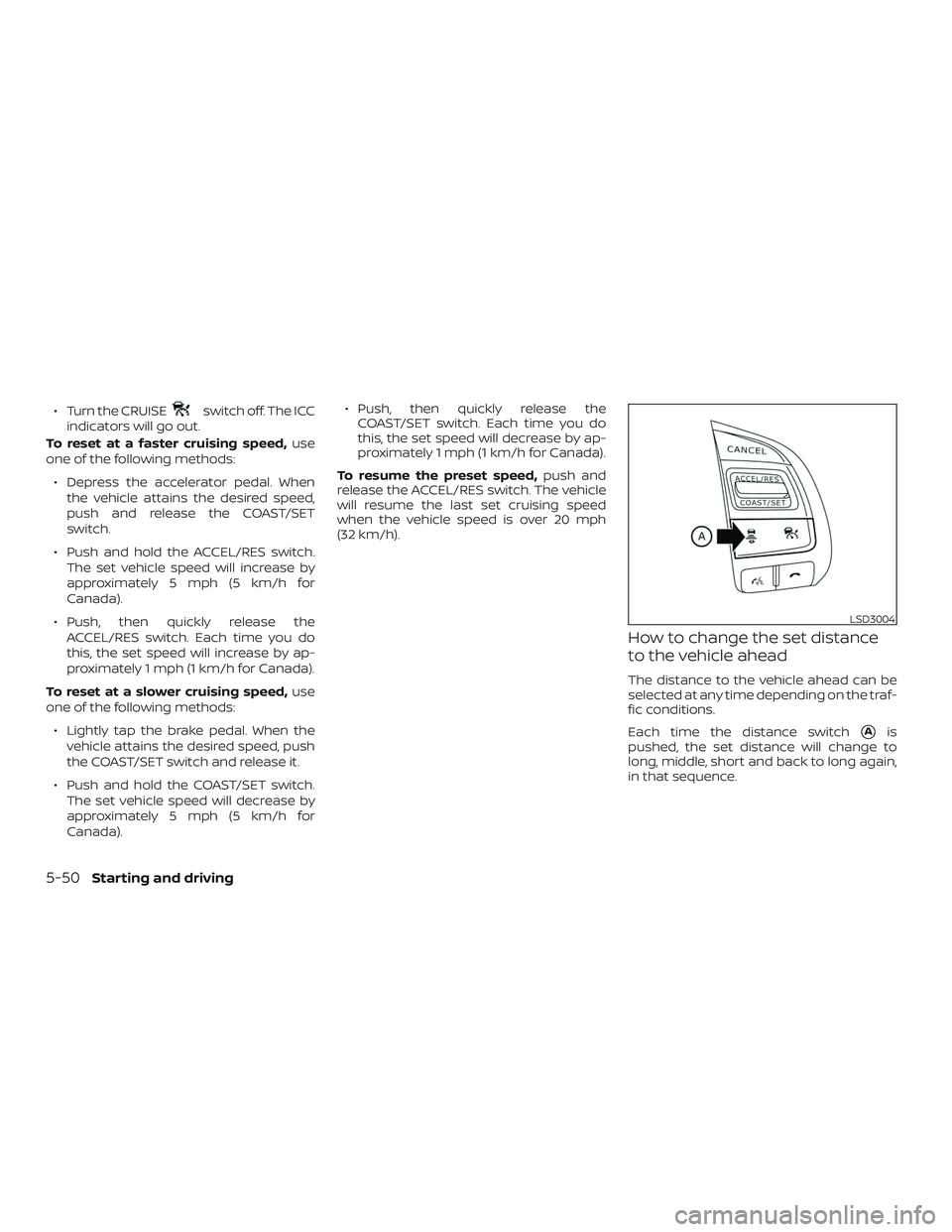

To reset at a faster cruising speed, use
one of the following methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed,
push and release the COAST/SET
switch.
∙ Push and hold the ACCEL/RES switch. The set vehicle speed will increase by
approximately 5 mph (5 km/h for
Canada).
∙ Push, then quickly release the ACCEL/RES switch. Each time you do
this, the set speed will increase by ap-
proximately 1 mph (1 km/h for Canada).
To reset at a slower cruising speed, use
one of the following methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the COAST/SET switch and release it.
∙ Push and hold the COAST/SET switch. The set vehicle speed will decrease by
approximately 5 mph (5 km/h for
Canada). ∙ Push, then quickly release the
COAST/SET switch. Each time you do
this, the set speed will decrease by ap-
proximately 1 mph (1 km/h for Canada).
To resume the preset speed, push and
release the ACCEL/RES switch. The vehicle
will resume the last set cruising speed
when the vehicle speed is over 20 mph
(32 km/h).
How to change the set distance
to the vehicle ahead
The distance to the vehicle ahead can be
selected at any time depending on the traf-
fic conditions.
Each time the distance switch
Ais
pushed, the set distance will change to
long, middle, short and back to long again,
in that sequence.
LSD3004
5-50Starting and driving
